SSD2125-A

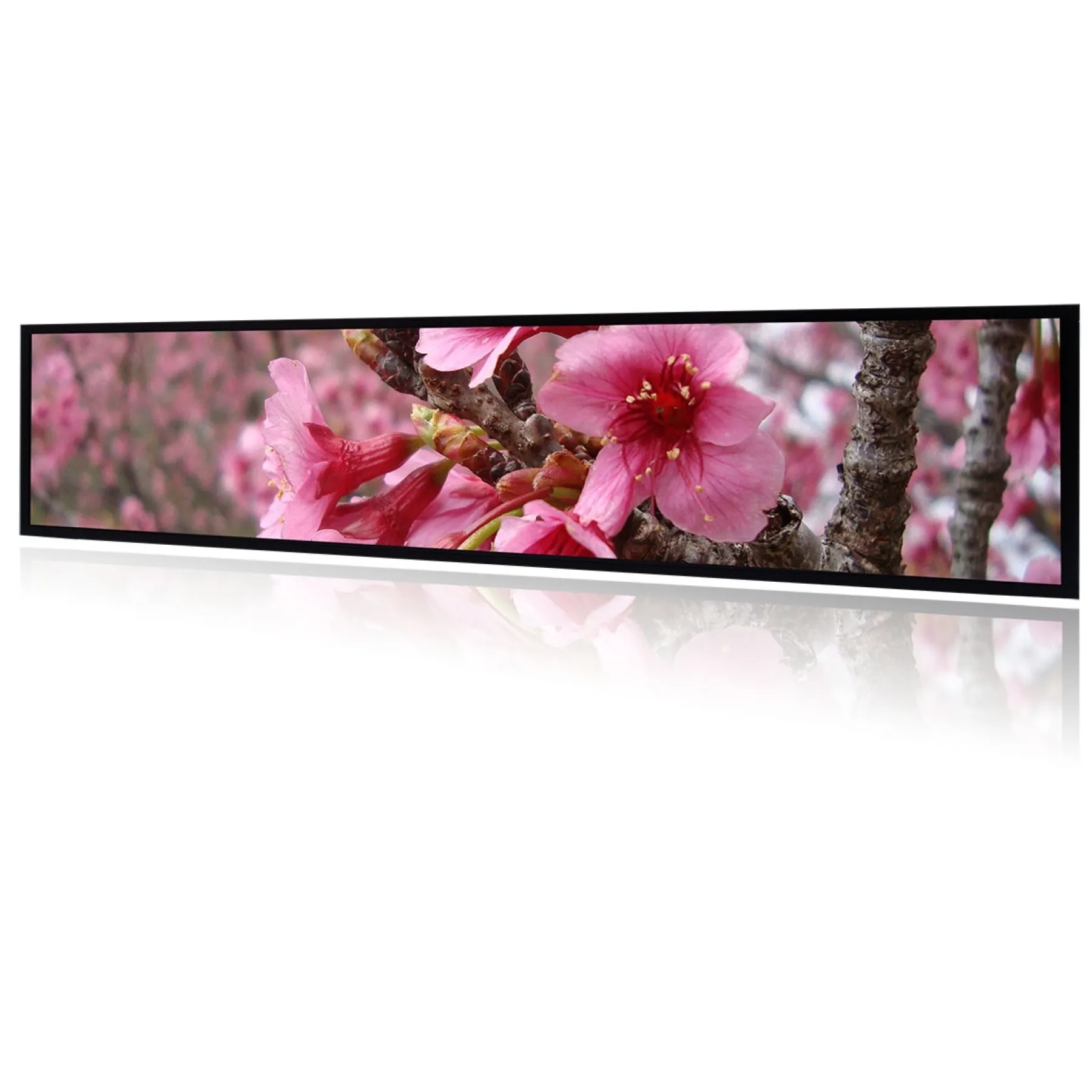

Name: Litemax SSD2125-A 21.3" Ultra Wide Stretched Bar LCD Monitor(1920x316) 1000 NITS
SKU: SSD2125-A

Litemax

Litemax SSD2125-A 21.3″ Ultra Wide Stretched Bar LCD Monitor(1920×316) 1000 NITS

SSD2125-A

Brand: Litemax
Sunlight readable 1000 NITS
1920 x 316 resolution
Size: 558mm (W) x 119mm (H) x 46mm (D)

Product Code: SSD2125-A

Categories: Commercial Monitors, Litemax, Specialist Displays, Stretch Displays, Stretched Bar LCD Display Monitors

Range: Litemax

Details

The SSD2125-A is a specially resized 21.3" ultra wide stretched LCD monitor at 1920 x 316 resolution. The product is housed in a wall mountable chassis with standard VESA mounting points, and this eye catching format offers an innovative and fresh approach to grab the public's attention. The display features a sunlight readable 1000 NITS brightness LCD panel with multiple video input options. The stretched design of these screens gives OEM designers the perfect solution for restricted digital signage spaces, public transportation, venue box office information, restaurant menu headers, and vending machine applications.

Ordering Info

SSD2125-ANB-I01: 21.28″ Ultra Wide Stretched Bar LCD Monitor, VGA, DVI, DP+ Inputs
840612051100: 12V, 60 Watt AC Adaptor

Downloads

SSD2125-A Datasheet (PDF)

0.26MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Bezel: Black, VESA Mount (kit format available)
Viewable Image Size: 21.28″
Resolution: 1920×316
Aspect Ratio: 16:2.6
Brightness: 1000 cd/m2
Contrast: 1000:1
Viewing Angle: 170°(H), 160°(V)
Backlight: LED
Touchscreen: Optional
VGA: 1 x DB15
Video Inputs: VGA, DVI, Display Port/AV /S-Video /Component Options)
Power: 12VDC with Optional AC Adaptor (840612051100)

Screen Size	21" to 30", 21.3"
Brightness	1000nit, High
