APN-200P Series

Name: Industrial 802.11b/g Wireless LAN Access Point/Bridge/Repeater
SKU: APN-200P Series

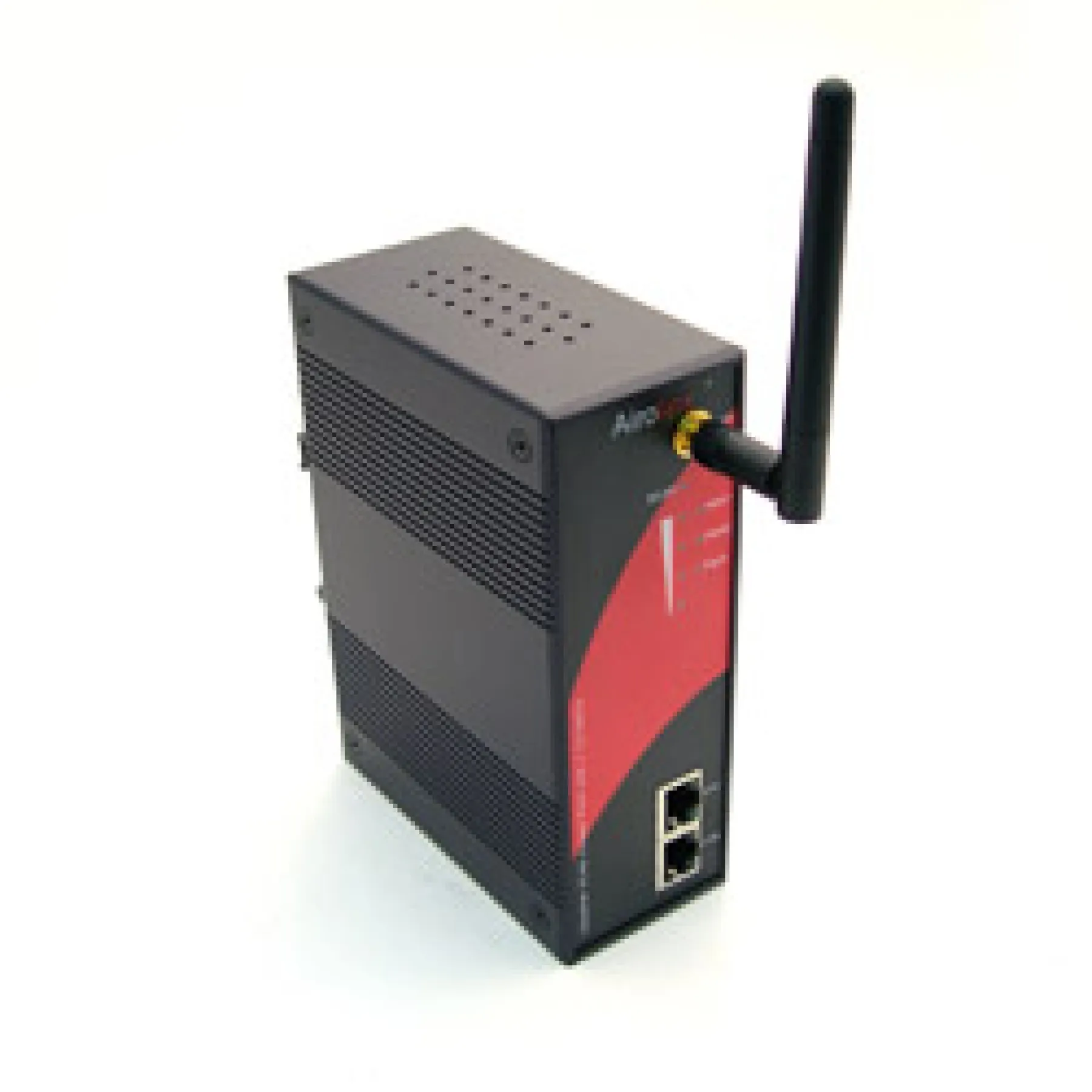

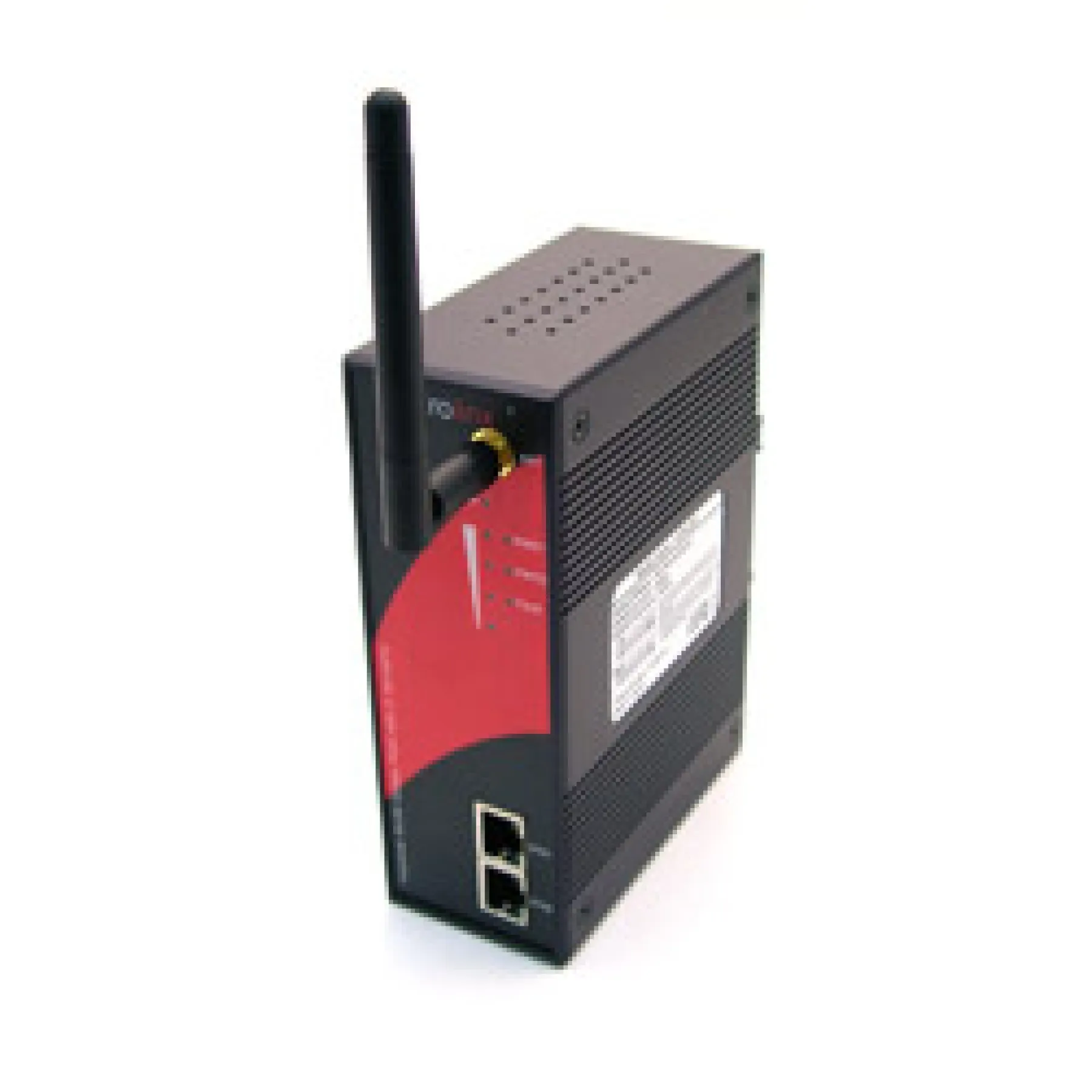

Industrial 802.11b/g Wireless LAN Access Point/Bridge/Repeater

APN-200P Series

The APN-200P is a reliable 802.11b/g WLAN with a 2 port LAN Access Point. It can be configured to operate as an Access Point, Bridge, or Repeater. The APN-200P is easily configured using a WEB interface via LAN port or WLAN interface. In addition, the APN-200P provides P.O.E. (Power over Ethernet) that provides a PD feature on the ETH2, which is fully compliant with IEEE802.3af P.O.E. specification.

Product Code: APN-200P Series

Categories: Antaira, Antaira Industrial Wireless Solutions, Industrial Wireless LAN, Industrial Wireless Solutions

Details

Ordering Info

APN-200P Industrial 802.11b/g Wireless LAN Access Point/Bridge/Repeater with PoE
APN-200P-T
Industrial 802.11b/g Wireless (Wi-Fi) LAN Access Point/Bridge/Repeater with PoE

Downloads

APN-200P Series Data Sheet (PDF)

0.29MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Fully Compliant with IEEE 802.3af (P.O.E., Power Device)
Supports up to 54Mbps Link Speed
WEP / WPA / WPA-PSK (TKIP, AES) / WPA2 / WPA2-PSK (TKIP, AES) / 802.1x / RADIUS Support
Supports AP / Bridge / Repeater Mode
Daisy Chain Support to Reduce Usage of Switch Ports
Redundant Power Inputs: 12 ~ 48VDC on Terminal Block
Secured Management by HTTPS
Event Warnings by Syslog, Email, SNMP Trap, Relay and Beeper
Fully Compliant with IEEE 802.3af (P.O.E., Power Device)
5-Year Warranty
Ethernet Port: 2 x 10/100BaseT(X) which supports Switch Mode
Connector: RJ-45
Power Over Ethernet: Present at ETH2
Power Device (IEEE 802.3af):- IEEE 802.3af Compliant Input Interface
Power Consumption: 8 Watts Max.
Overload & Short Circuit Protection
Isolation Voltage: 1000 VDC Min.
Isolation Resistance: 108 ohms Min.
LED: PWR 1(2) (P.O.E.) / Ready, ETH(1) Link/ACT, WLAN Link/ACT, Fault
WLAN Operation Mode: AP / Bridge / Repeater / AP-Client
Protocol: ICMP, IP, TCP, UDP, DHCP, BootP, ARP/RARP, DNS, SNMP MIB HTTPS, SNMP v1/v2, Trap, Private MIB
Antenna Connector: Reverse SMA
Radio Frequency Type: DSSS
Modulation: IEEE 802.11b: CCK, DQPSK, DBPSK
IEEE 802.11g: OFDM w/ BPSK, QPSK, 16QAM, 64QAM
Frequency Band: America/FCC: 2.412 ~ 2.462 GHz (11 Channels)
Europe CE/ETSI: 2.412 ~ 2.472 GHz (13 Channels)
Transmission Rate: IEEE 802.11b: 1 / 2 / 5.5 / 11 Mbps
IEEE 802.11g: 6 / 9 / 12 / 18 / 24 / 36 / 48 / 54 Mbps
Transmit Power: 18 dBm
Receiver Sensitivity: -81 dBm @ 11 Mbps, PER < 8%
64 dBm @ 54 Mbps, PER < 10%
Encryption Security: WEP: 64-bit, 128-bit Key Supported
WPA / WPA2: 802.11i (WEP and AES Encryption)
PSK (256-bit Key Pre-shared Key Supported)
802.1x and RADIUS Supported
TKIP Encryption
Wireless Security: SSID Broadcast Disable
Power Input: 12 ~ 48VDC in 6-Pin Terminal Block
Power over Ethernet (PoE)
Power Consumption: 6 Watts
Overload Curernt Protection: Present
Reverse Polarity Protection: Present on Terminal Block
Operating Temperature: -10° C to 60 ° C (14° F to 140° F)
Storage Temperature: -40° C to 80° C (-40° F to 176° F)
Operating Humidity: 5% to 95% (Non-Condensing)
Dimensions: 52 x 144 x 106 mm (2.05 x 5.67 x 4.17 inches)
EMI: FCC Part 15, CISPR (EN55022) Class A
EMS: CE EN61000-4-2
CE EN61000-4-3
CE EN61000-4-4
CE EN61000-4-5
CE EN61000-4-6
