21″ RadiForce Monochrome Monitor CR/DR/MRI/CT/PACS (1200×1600)
GX240

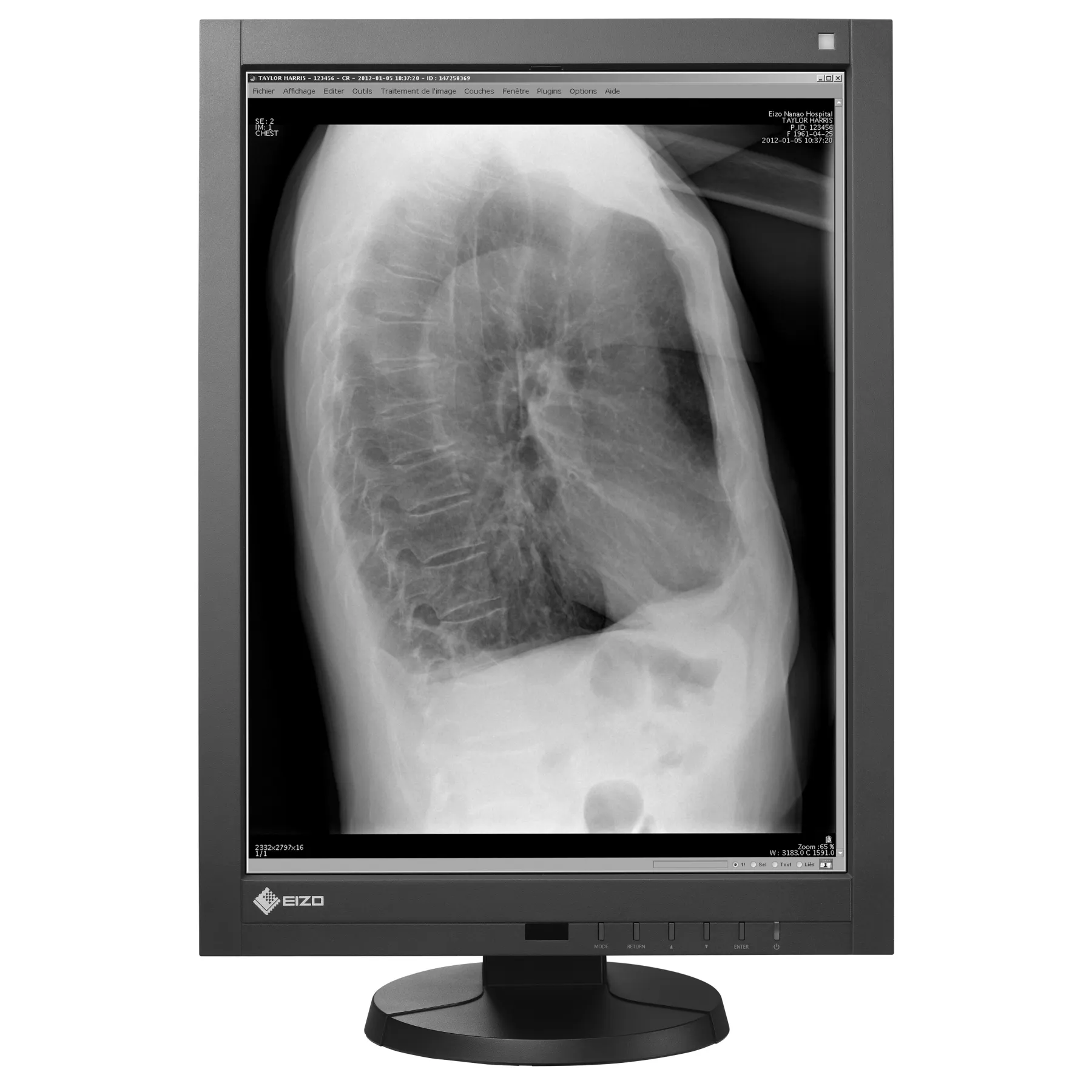

The RadiForce GX240 is a 2 megapixel high-resolution diagnostic monochrome monitor for health based applications including viewing CR, DR, MRI and CT images to use as a PACS/HIS/RIS terminal
- Brand: Eizo
- 1200 x 1600 resolution
- Fully compliant with DICOM Part 14
- 1200 NITS brightness
- Size: 376mm (W) x 599mm (H) x 245.5mm (D with stand)
Details
The RadiForce GX240 is a 2 megapixel high-resolution diagnostic monochrome monitor for health based applications including viewing CR, DR, MRI and CT images to use as a PACS/HIS/RIS terminal. The GX240 is a high-definition, multi-functional medical grade monitor featuring precise calibration adhering to the DICOM Part 14 standard. The GX240 monochrome monitor has a hybrid gamma function that automatically distinguishes the medical and non-medical images and optimizes the brightness accordingly. It also includes a presence sensor for maximized efficiency as well as the CAL switch function to allow you to view different modalities in the most suiting mode be it for CR, CT or endoscope images.
Ordering Info
- GX240 – 21″ RadiForce Monochrome Monitor CR/DR/MRI/CT/PACS (1200×1600)
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
- Model Variations: GX240-CL: Clear Base, GX240-CL-P: Pairing
- Cabinet Color: Black
- Type: Monochrome (IPS)
- Backlight: LED
- Size: 54 cm / 21.3″
- Native Resolution: 1200×1600 (3:4 aspect ratio)
- Viewable Image Size (H x V): 324.0 x 432.0 mm
- Pixel Pitch: 0.270 x 0.270 mm
- Grayscale Tones: 10-bit (DisplayPort) : 1,024 from a palette of 16,369 tones
- 8-bit: 256 from a palette of 16,369 tones
- Viewing Angles (H / V, typical): 176° / 176°
- Brightness (typical): 1,200 cd/m2
- Recommended Brightness for Calibration: 500 cd/m2
- Contrast Ratio (typical): 1400:1
- Response Time (typical): 40 ms (on / off)
- Input Terminals: DVI-D x 1, DisplayPort x 1
- Digital Scanning Frequency (H / V): 31 – 100 kHz / 59 – 61 Hz Frame synchronous mode: 59 – 61 Hz
- USB Function: 1 upstream, 2 downstream
- Standard: USB 2.0
- Power Requirements: AC 100 – 120 V, 200 – 240 V: 50 / 60 Hz
- Maximum Power Consumption: 76 W
- Typical Power Consumption: 29 W
- Power Save Mode: Less than 1.6 W
- Power Management: DVI DMPM, DisplayPort 1.1a
- Sensor: Backlight Sensor, Integrated Front Sensor, Presence Sensor, Ambient Light Sensor
- Brightness Stabilization: Yes
- Digital Uniformity Equalizer: Yes
- Preset Modes: CAL Switch
- OSD Languages: English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
- Net Weight: 10.2 kg
- Net Weight (Without Stand): 7.5 kg
- Hole Spacing (VESA Standard): 100 x 100 mm
- Certifications & Standards: CE (Medical Device Directive), EN60601-1, UL60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, Canadian ICES-003-B, RCM, RoHS, China RoHS, WEEE, CCC, EAC, FDA 510(k) Clearance Yes (for General Radiography)
- Supplied Accessories: AC power cord, signal cables (DVI-D – DVI-D, DisplayPort – DisplayPort), USB cable, Utility Disk (RadiCS LE, ScreenManager Pro for Medical, user’s manual)
- Warranty: Five Years
| Screen Size | 21", 21" to 30" |
|---|---|
| Brightness | 1200nit, High |
