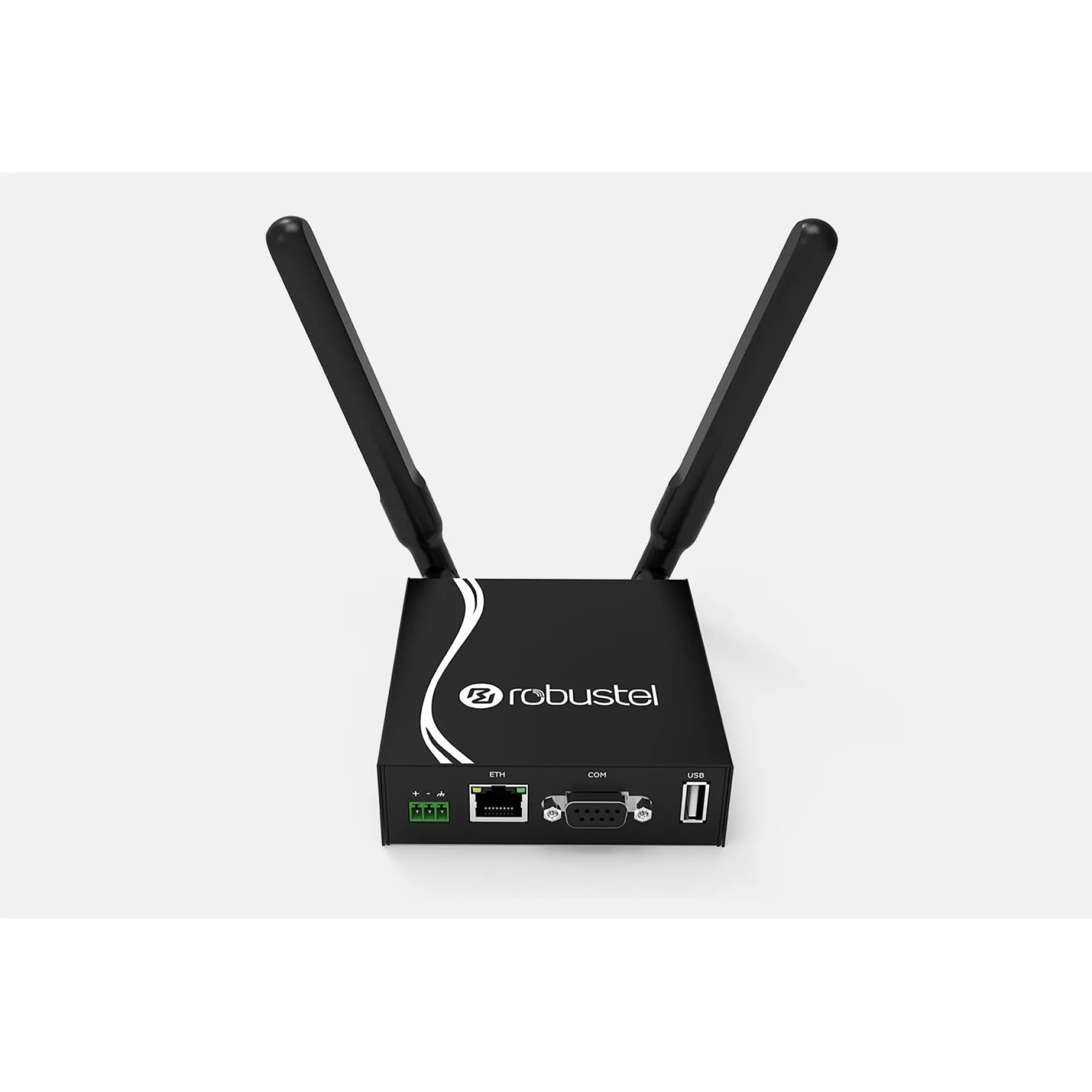

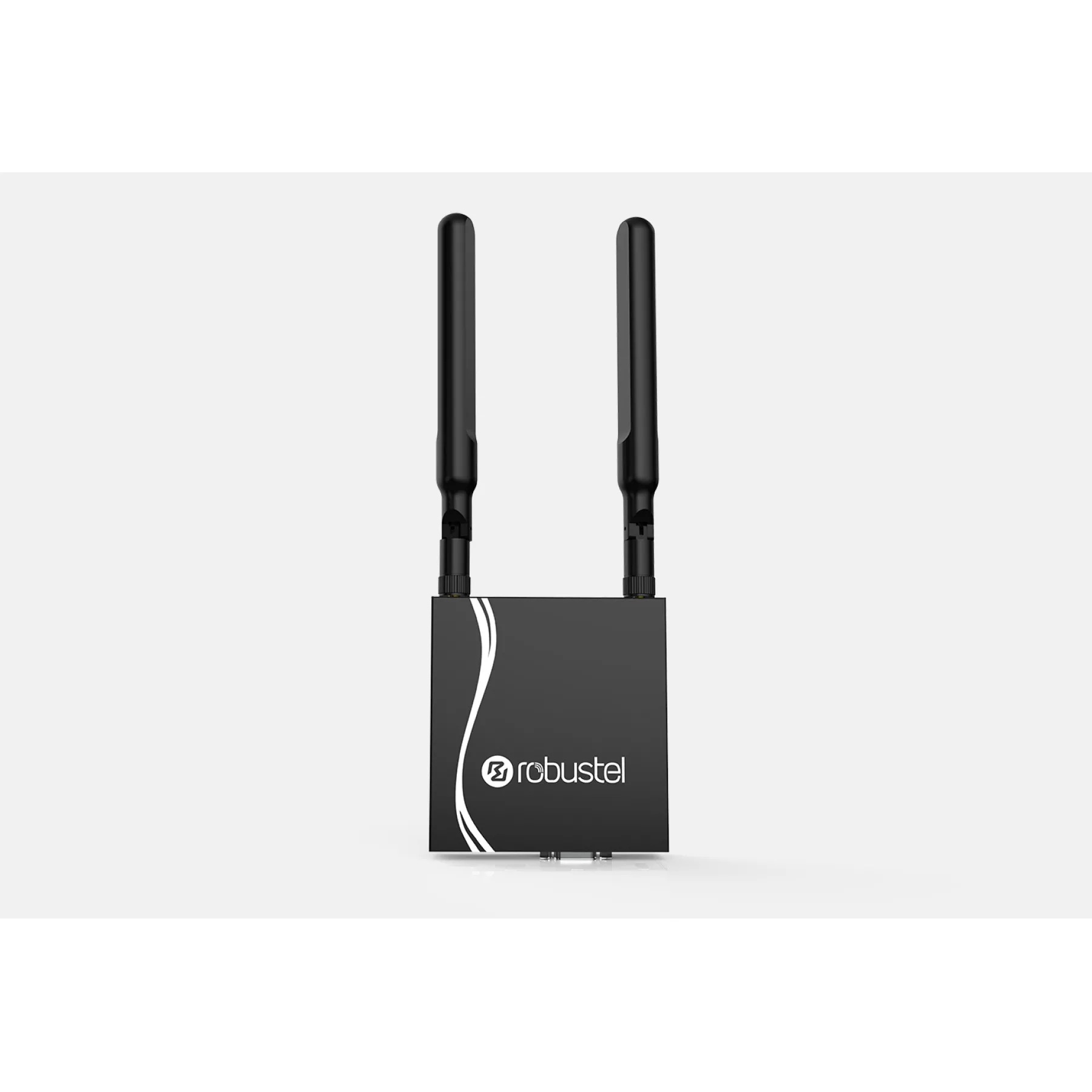

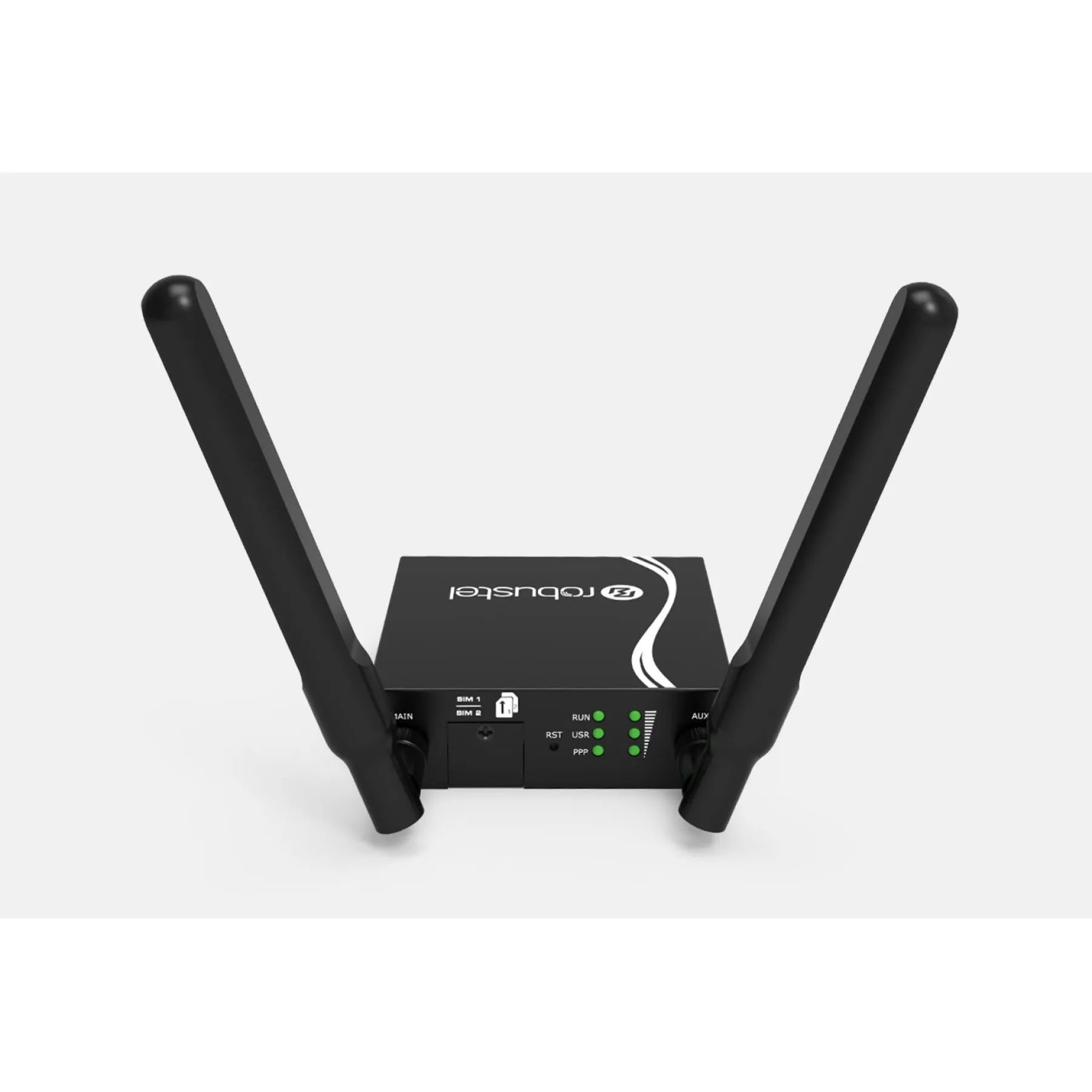

Robustel R3000 Low Cost Dual SIM Industrial Cellular VPN 2G/3G/4G Router
R3000 Lite
- Dual SIM redundancy for persistent 2G/3G/4G cellular network connections
- RobustOS + SDK + App
- IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
- Management and maintenance via Web/CLI/SMS/SNMP/RobustLink Cloud
- Robust industrial design (9 to 36V DC, desktop or wall mounting or DIN rail mounting)
R3000 Lite
Antaira Industrial Ethernet Switches, Antaira Industrial Wireless Solutions, Industrial Cellular (2G/3G/4G/5G), Industrial Routers, Industrial Wireless Solutions, Robustel
Details
R3000 Lite is a cost effective, industrial-grade VPN gateway designed for cost-sensitive M2M applications.
Ordering Info
- R3000-L3H HSDPA Router, UMTS/HSDPA 900/2100 MHZ, Quad band GSM/GPRS/EDGE
- R3000-L3P HSPA+ Router, UMTS/HSPA+ 850/900/1900/2100 MHz, Quad band GSM/GPRS/EDGE
- R3000-L4L FDD LTE Router, LTE B1/B2/B3/B5/B7/B8/B20, UMTS/DC-HSPA+ 850/900/1900/2100MHz, GSM 850/900/1800/1900 MHz
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| Cellular Interface | |
| Number of ports | 2 (MAIN + AUX) |
| Connector | SMA, female |
| SIM | 2 (3 V & 1.8 V) |
| Standards | GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE |
| Ethernet Interface | |
| Number of ports | 1 x 10/100 Mbps LAN port |
| Magnet isolation protection | 1.5 KV |
| Serial Interfaces | |
| Number of ports | 1 x RS-232 and 1 x RS-485 |
| Connector | DB9, female |
| ESD protection | ±15 KV |
| Baud rate | 300 bps to 230400 bps |
| Others | |
| Reset button | 1 x RST |
| Expansion | 1 x USB 2.0 host up to 480 Mbps |
| LED indicators | 1 x RUN, 1 x PPP, 1 x USR, 3 x RSSI |
| Built-in | RTC, Watchdog, Timer |
| Software(Basic features of RobustOS) | |
| Network protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, RIP, OSPF, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc. |
| VPN tunnel | IPsec, OpenVPN, GRE |
| Firewall | DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Management | Web, CLI, SMS |
| Serial port | Transparent, TCP Client/Server, UDP, Modbus RTU Gateway |
| App Center | |
| Apps | L2TP, PPTP, DMVPN, RobustVPN, VRRP, QoS, SNMP, Language, RobustLink |
| *Request on demand. For more Apps please visit www.robustel.com. | |
| Power Supply and Consumption | |
| Power supply interface | 3.5 mm terminal block |
| Input voltage | 9 to 36 VDC |
| Power consumption | Idle: 100 mA @ 12 V |
| Data link: 400 mA (peak) @ 12 V | |
| Physical Characteristics | |
| Ingress protection | IP30 |
| Housing & Weight | Metal, 305g |
| Dimension | 105 mm x 98 mm x 29.5 mm |
| Installation | Desktop or wall mounting or 35 mm DIN rail mounting |
| EMC | |
| EMI | EN 55022: 2006/A1: 2007 (CE & RE) Class B |
| EMS | IEC 61000-4-2 (ESD) Level 3 |
| IEC 61000-4-3 (RS) Level 3 | |
| IEC 61000-4-4 (EFT) Level 3 | |
| IEC 61000-4-5 (Surge) Level 3 | |
| IEC 61000-4-6 (CS) Level 3 | |
