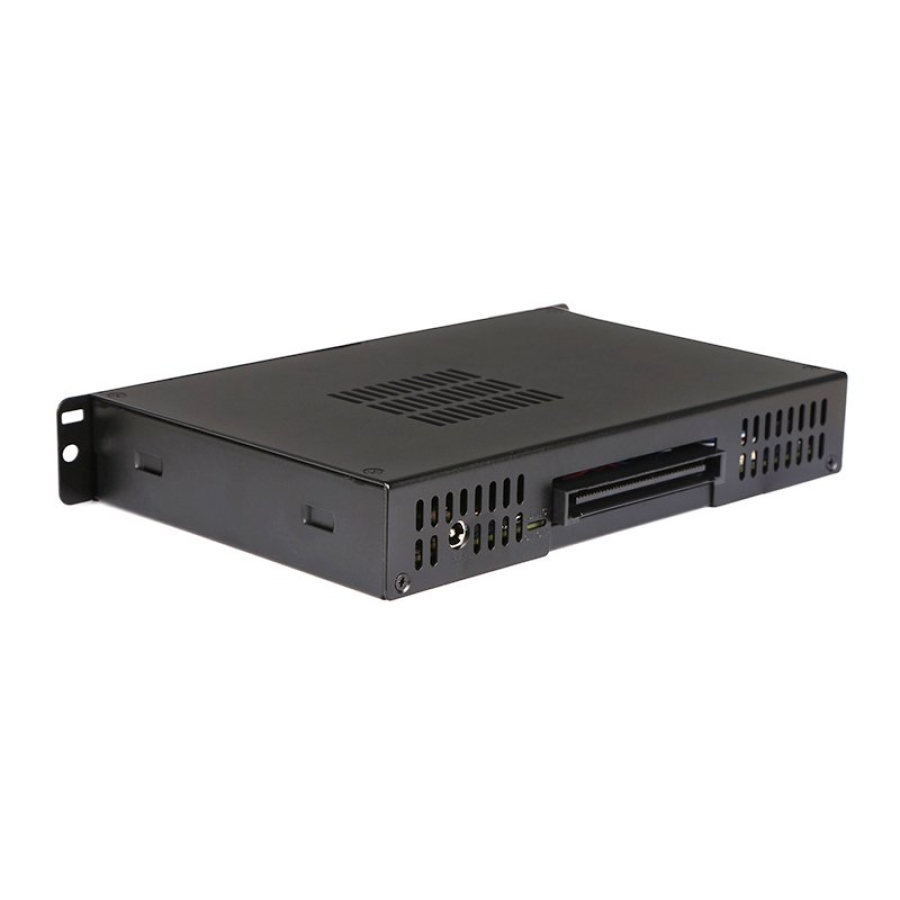

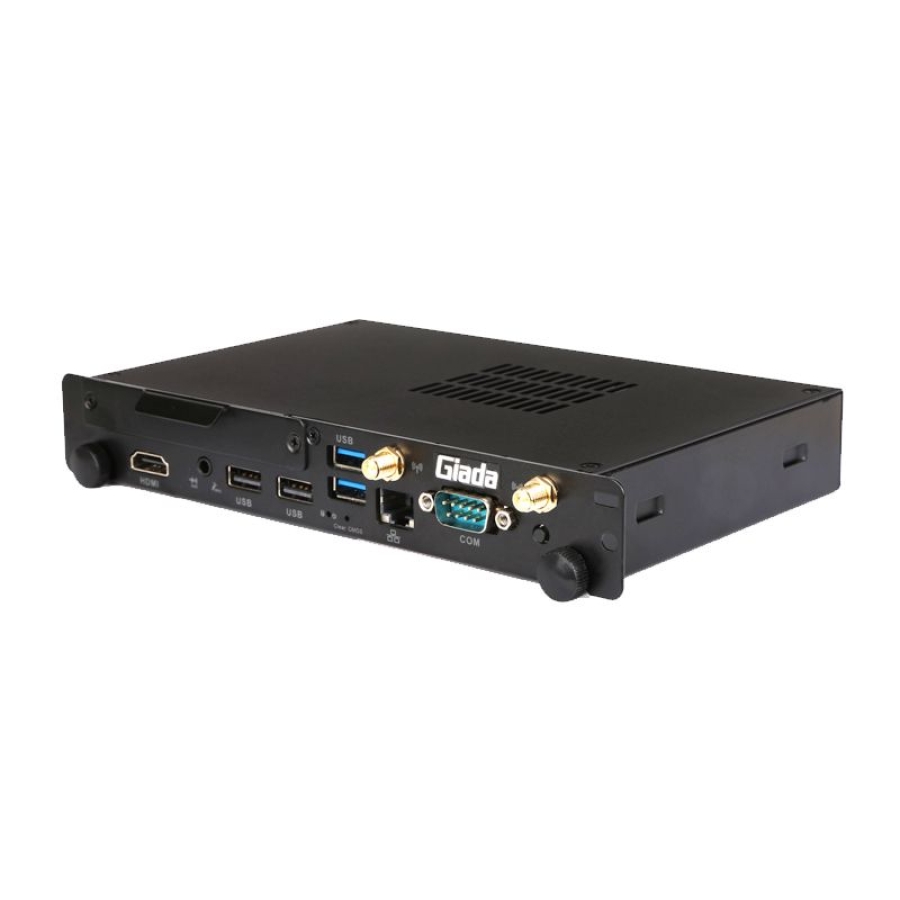

Giada PC67-vPro Intel OPS Player with Intel Core i5-7300U Processor
PC67-vPro
7th Gen. Kaby Lake Intel Core i3/i5/i7 or Celeron 3865 OPS Digital Signage Player with up 32GB Memory, 4K HDMI Port, 2 USB 3.0 Ports, 2 USB 2.0 Ports, M.2 WiFi and vPro Technology
- Intel 7th Generation Core Processors
- 2 x SO-DIMM DDR4-2133MHz, Up to 32GB
- 1 x JAE 80pin (HDMI + DP), 1 x HDMI
- 1 x 2.5″ SATA, 1 x mSATA, 1 x M.2 (2242/2280) for SSD
- 2 x USB 3.0, 2 x USB 2.0, 1 x RS232, 1 x RJ45
- Support Intel vPro Technology (I219Im + M.2 2230)
Details
Adopting Intel Kabylake-U CPUs,the Giada PC67-vPro are the latest OPS products designed according to Intel OPS standard. It provides the ideal solution for all-in-one touch PC or interactive whiteboard applications.
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| CPU | Intel® Core i5-7300U |
| Frequency | 2.60 GHz (Up to 3.50 GHz ) |
| BIOS | AMI Source Code |
| Chipset | SOC |
| Type | DDR4-2133MHz |
| Socket | 2 x SO-DIMM |
| Max Size | 32GB |
| GPU | Intel® HD Graphics 620 |
| Graphic Engine | DirectX12, OpenGL 4.4, OpenCL 2.1 |
| DP（80Pin JAE OPS） | 1 x DP (Max. 4096 x 2304@60Hz) |
| HDMI（80Pin JAE OPS） | 1 x HDMI 1.4 (Max. 4096 x 2304@24Hz) |
| HDMI | 1 x HDMI 1.4 (Max. 3840 x 2160@30Hz) |
| Controller | Intel I219LM Gigabit Ethernet |
| Interface | 1 x RJ45 |
| USB | 2 x USB 3.0, 2 x USB 2.0 |
| Display Interface | 1 x DP1.2（JAE）,1 x HDMI1.4（JAE）,1 x HDMI1.4 |
| LAN | 1 x RJ45 |
| Serial Port | 1 x RS232 |
| Audio | 1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT) |
| Mini-PCIe1# | 1 x Full-size Mini-PCIe for mSATA |
| M.2 1# | 1 x M.2 (2230 ) for WiFi/BT |
| M.2 2# | 1 x M.2 (2242/2280) for SSD |
| JAHC Switch | 1 |
| LED Indicators | 1 x HDD LED, 1 x Power LED |
| SATA | 1 x 2.5″ SATA |
| mSATA | 1 x Full-size Mini-PCIe for mSATA |
| M.2 | 1 x M.2 (2242/2280) for SSD |
| WatchDog Timer | 0~255 Second Time Out Support |
| Auto Power On | Power Activated Automatically Start |
| RTC | Set Up Independently Every day, A Week as a Cycle |
| Wake On Lan | Yes |
| Windows | Windows 10(64-bit) |
| Linux | Supported |
| Power Type | ATX/AT mode |
| Input Voltage | 19V |
| Dimensions (W × D × H) | 200mm x 119mm x 30mm |
| Construction | Metal |
| Color | Black |
| Operating Temperature | 0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow |
| Relative Humidity | 95%@40℃ (non-condensing) |
| Certification | CE, FCC Class B, CCC |
