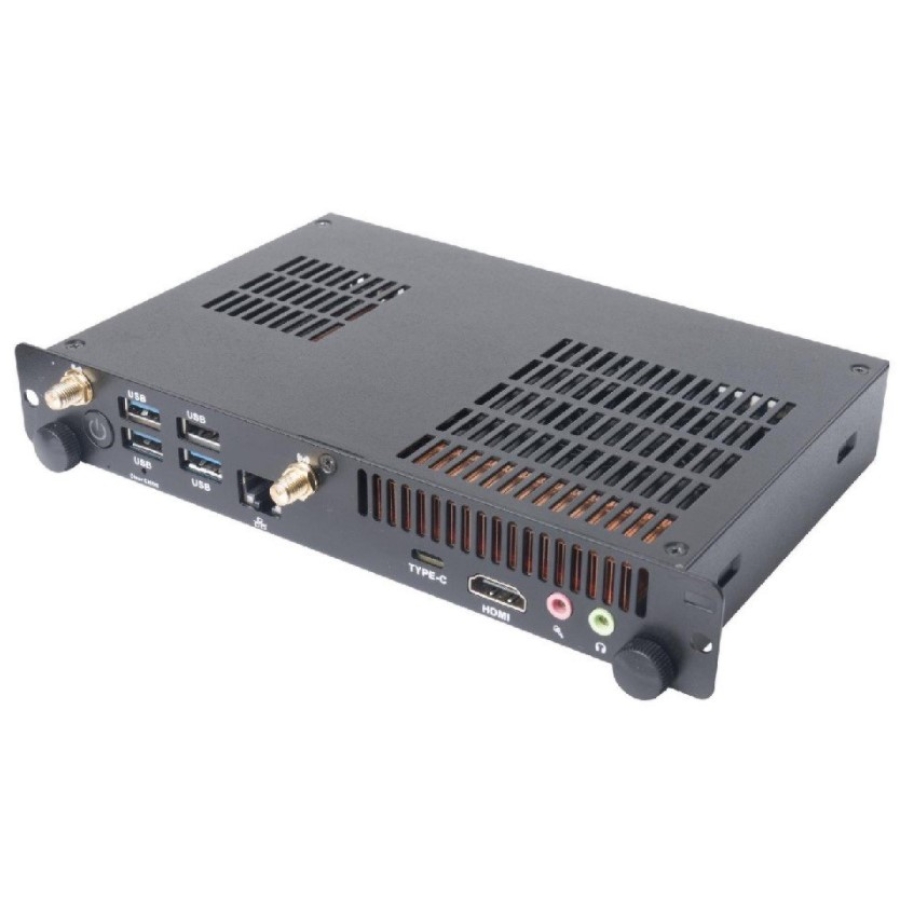

Giada PC610 Intel LGA12000 High-End Comet Lake OPS Player w/ 5x USB and 1x LAN
PC610
- Intel LGA1200 Socket 10th/11th Gen. Processors
- 2 x SO-DIMM DDR4, Up to 32GB
- 1 x JAE (DP/HDMI), 1 x HDMI, Supporting 4K Display
- 1 x M.2 (2242/2280) for SSD
- 1 x USB Type-C, 4 x USB Type-A
- 1 x RJ45, 1 x M.2 (2230) for WiFi/BT (WiFi 6)
PC610
Digital Signage Computers, Digital Signage Players, Embedded Box PCs, Giada, Intel OPS PCs, Semi-Industrial Computers
Details

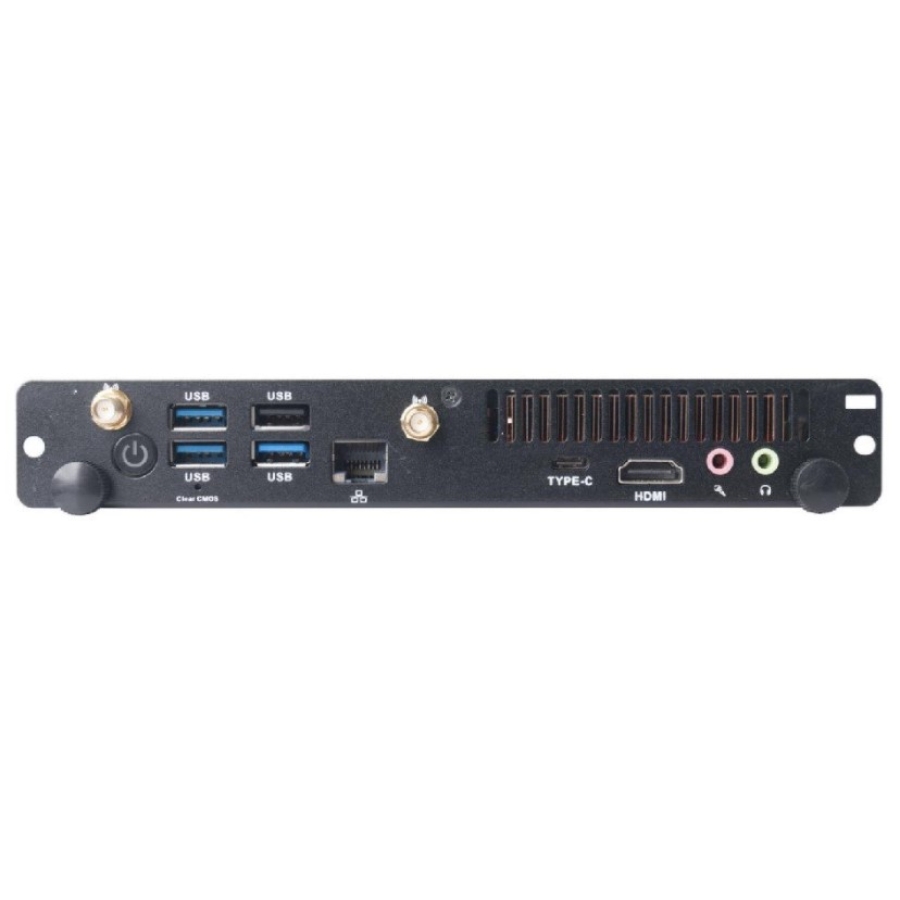

The Giada PC610 is a high-end Comet Lake OPS player powered by Intel LGA1200 socket 10th/11th Generation processors. This OPS player contains rich I/O including 1x RJ45 port, 1x Serial port and 5x USB ports alongside 1x M.2 key for WiFi/BT. The PC610 operates at a standard temperature of 0°C ~ 40°C.Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| CPU | Intel® LGA1200 Socket 10th /11th Gen.Processors (TDP≤35W) |
| BIOS | AMI Source Code |
| Chipset | Intel® H470 (Optional:Q470/H420E) |
| Type | DDR4-2666MHz |
| Socket | 2 x SO-DIMM |
| Max Size | 32GB |
| DP（80Pin JAE OPS） | 1 x DP (Max.4096 x 2304@60Hz) |
| HDMI（80Pin JAE OPS） | 1 x HDMI (Max.4096 x 2304@60Hz) |
| HDMI | 1 x HDMI (Max.4096 x 2304 @24Hz) |
| Controller | RTL 8111H Gigabit Ethernet |
| Interface | 1 x RJ45 |
| USB | 2 x USB3.2 Gen1, 2 x USB3.2 Gen2 1 x USB Type-C 3.2 Gen2 (H470) 4 x USB3.2 Gen1 1 x USB Type-C 3.2 Gen1 (H420E) |
| Serial Port | 1 x UART |
| Audio | 1 x MIC-IN, 1 x AUDIO-OUT) |
| M.2 (2230) | 1 x M.2 (2230) E-Key for WiFi/BT (WiFi 6T) |
| TPM | Infineon TPM 2.0 (Optional) |
| M.2 | 1 x M.2 (2242/2280) M-Key for SSD |
| Windows | Windows 10（64-Bit), Linux Supported |

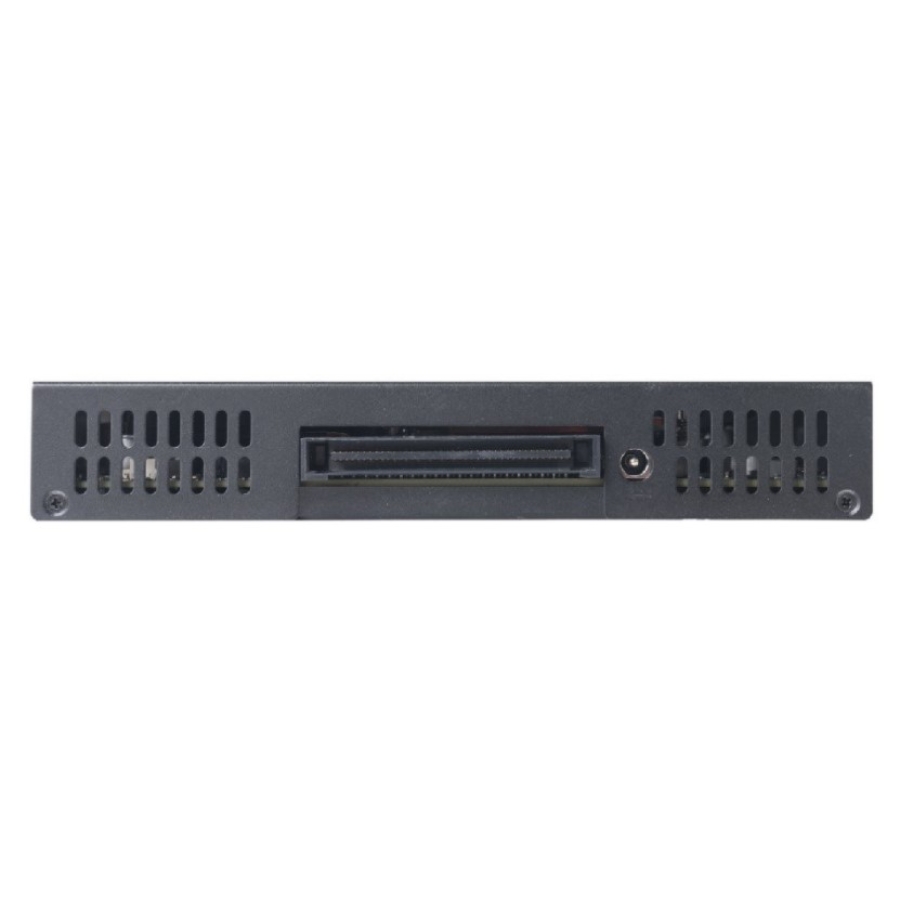

| Power Type | 2.5/5.5 DC Jack / 12V~19V, 80Pin JAE DC-IN / 12V~19V |
| Dimensions (W × D × H) | 200mm x 119mm x 30mm(7.87″x4.96″x1.18″) |
| Construction | Metal |
| Color | Black |
| Operating Temperature | 0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow |
| Relative Humidity | 95%@40℃ (non-condensing) |
| Certification | CE, FCC Class B, |
| Processor Type | Intel Core, up to 8 Cores |
|---|---|
| Memory Capacity | Up to 32GB |
| Serial Ports (COM) | 1x UART |
| USB Ports | 5x USB 3.2 |
| Ethernet Ports (LAN) | 1x 1G |
| Wireless | Wi-Fi |
| Video Ports | 1x DisplayPort, 2x HDMI |
| Audio | Yes |
| Storage Type | 1x M.2 |
| Expansion Type | 1x M.2 |
| Input Voltage | 12-19 VDC |
| Operating Temperature | Standard OT: 0°C to 40°C, Standard |
| Market Certifications | CE/FCC |
| OS Support | Linux, Windows 10 |
