F105D

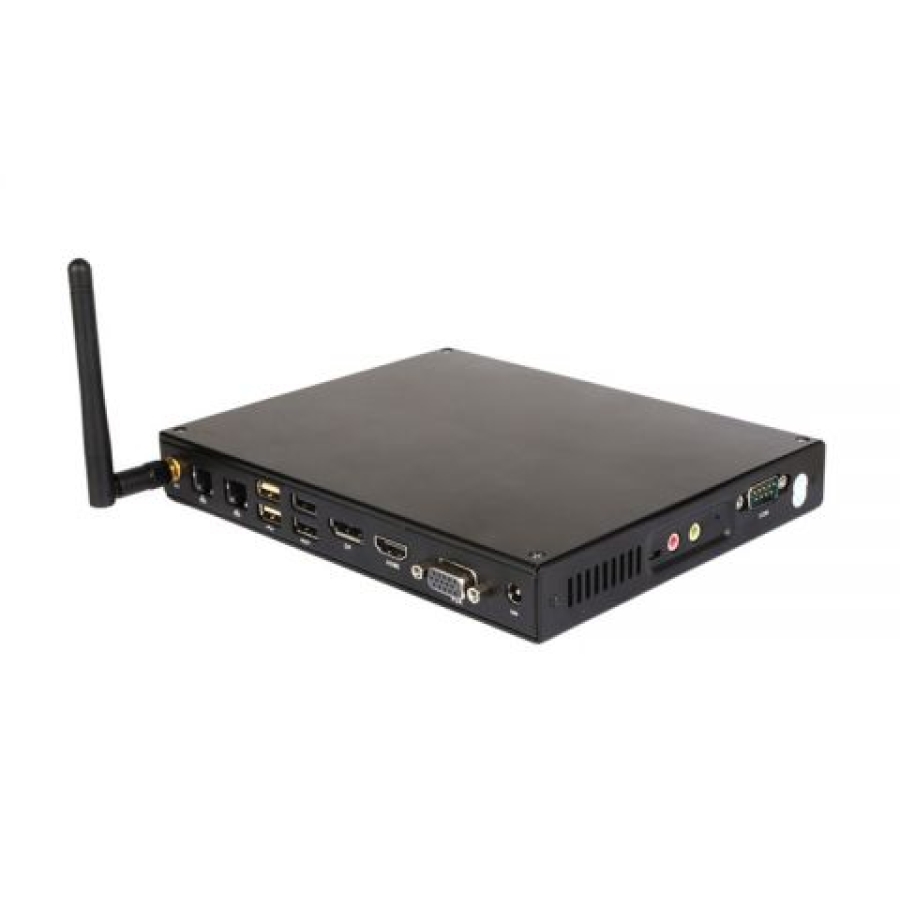

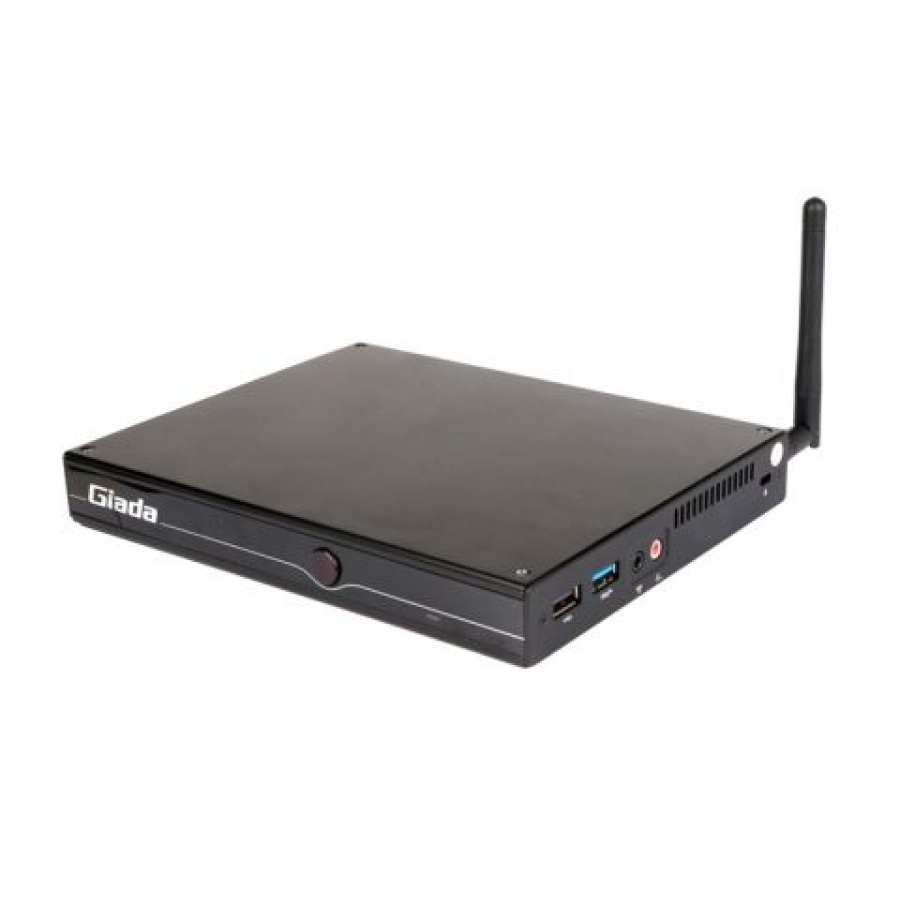

Giada F105D 3G Digital Signage Player

End of Life

Brand: Giada
Intel Celeron N3350/N3450 CPU options
SIM Slot For Remote Management
Intel Gen9 Graphic engine
Cost Effective
Size: 190mm (W) x 149mm (D) x 26 mm (H)

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

Product Code: F105D

Categories: End of Life Products

Range: Giada

Details

The Giada F105D digital signage player is powered by a choice of Intel Celeron N3350/N3450 processors. With 3 video outputs and connectivity via 2 x LAN, this cost effective digital signage player is a great choice for many digital signage applications. The F150 supports up to 8GB memory through 1 x SO-DIMM and can hold an SSD for storage, plus 1 x full size Mini PCIe for mSATA. I/O on the signage player includes 2 x LAN, 3 x USB 3.0, 3 x USB 2.0, 1 x HDMI, 1 x VGA, 1 x RS232, 1 x MIC-IN and 1 x AUDIO OUT & SPDIF. Expansion is possible via 2 x Mini PCIe, 1 x M.2 and 1 x SIM slot for remote management.

Ordering Info

F105D-BS200	Intel Celeron N3350
F105D-BQ200	Intel Celeron N3450

Downloads

Giada F105D Datasheet (PDF)

0.35MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

CPU	Intel®Celeron N3350, Intel®Celeron N3450.
Frequency	1.10GHz (Up to 2.40GHz)
BIOS	AMI Source Code
Chipset	SOC
Type	DDR3L-1866MHz
Socket	1 x SO-DIMM
Max Size	Ondoard 2GB
GPU	Intel® Gen9 Graphics engine
Graphic Engine	DirectX 12.0, OpenGL 4.3, OpenCL 2.0
DP	1 x DP (Max.4096 x 2304 @60Hz)
HDMI	1 x HDMI (Max.3840×2160 @30Hz)
HDMI	1 x VGA (Max.2048×1536 @60Hz)
Controller	2 x Realtek 8111H Gigabit Ethernet
Interface	2 x RJ45
USB	3 x USB 3.0,3 x USB 2.0
Serial Port	1 x RS232
Audio	1 x AUDIO-OUT, 1 x MIC-IN
Mini-PCIe1#	1 x Full-size Mini-PCIe for mSATA
Mini-PCIe2#	1 x Full-size Mini-PCIe for WiFi/BT/3G/4G
SIM	1 x SIM Slot
SATA	1 x 2.5″SATA
mSATA	1 x Full-size mSATA
M.2	1 x M.2(2242/2280) for SSD
WatchDog Timer	0~255 Second Time Out Support
Auto Power On	Power Activated Automatically Start
Remote Control	By IR Controller for Power On
RTC	Set Up Independently Every day, A Week as a Cycle
Wake On Lan	Yes
Windows	Windows 10（64 Bit）
Linux	Supported
Power Type	DC-IN
Input Voltage	19V / 2.1A
Dimensions (W × D × H)	189.6mm x 148.3mm x 26mm（7.46″x 5.84″x 1.02″）
Construction	Metal
Mounting	Desk/Wall Mounting and VESA Mounting Kit (JZ183)
Color	Black
Operating Temperature	0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
Relative Humidity	95%@40℃ (non-condensing)
Certification	CE, FCC Class B, CCC
