DM6

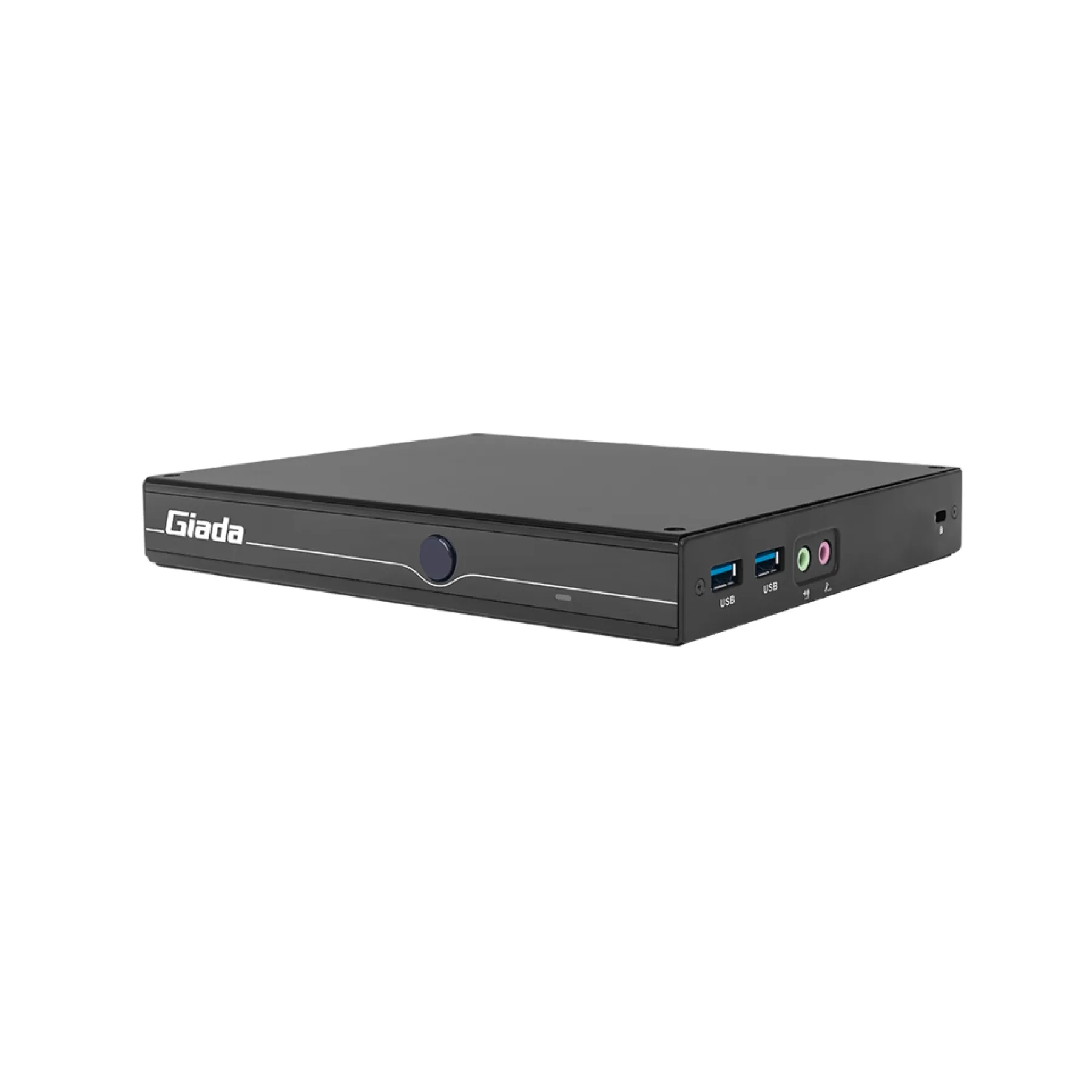

Name: Giada DM6 AMD Ryzen Digital Signage Player Supporting 4 x 4K HDMI Outputs
SKU: DM6

Giada

Giada DM6 AMD Ryzen Digital Signage Player Supporting 4 x 4K HDMI Outputs

DM6

Brand: Giada
AMD Ryzen V1605B or V1202B CPU Options
Powers 4 x 4K independent displays over HDMI
Radeon GPU
Size: 189.6mm (W) x 148.3mm (D) x 26mm (H)

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: DM6

Categories: Digital Signage Computers, Digital Signage Players, Embedded Box PCs, Giada, Semi-Industrial Computers

Range: Giada

Details

AMD® Ryzen™ V1000 Processors Long Life Cycle Product

The booksize player adopts high-performance Ryzen™ Embedded V1202B/V1605B processors. It supports dual-channel DDR4 memory and it's flexible to extend the hard drive through MSATA and 2.5" SATA slots.

Four Display Outputs - Supporting 4K Video Playback

The player supports AMD Radeon™ Vega 3 Graphics (V1202B) or Vega 8 Graphics (V1605B). It has four HDMI 2.0a outputs, supporting Max. 3840 x 2160@60Hz resolution. As for video decoding capability, it supports up to one 4K (3840 x 2160@60Hz) or four 1080p (1920x1080@60Hz) video decoding. With AMD driver, users can easily group monitor configurations, including 1 x 4 and 2 x 2.

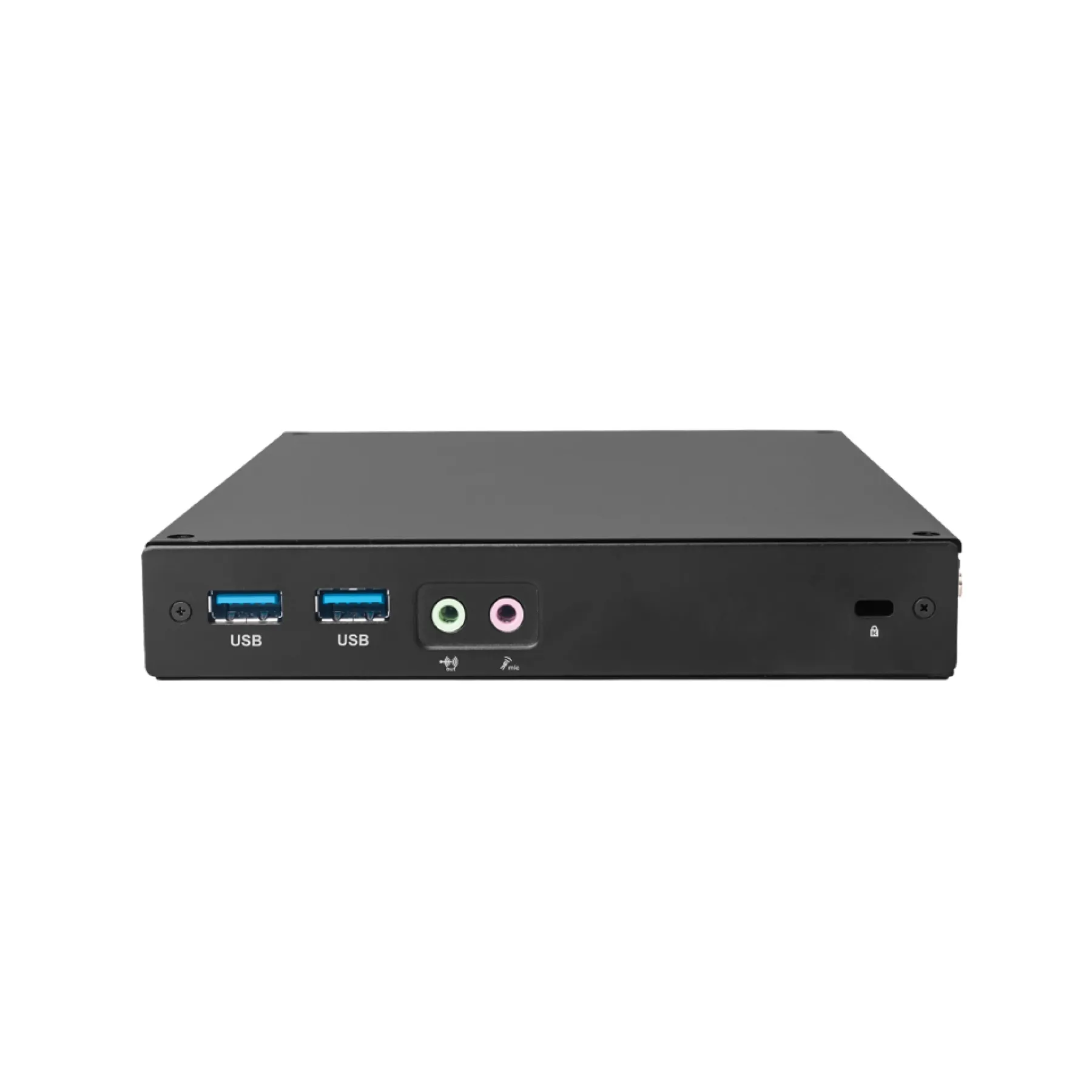

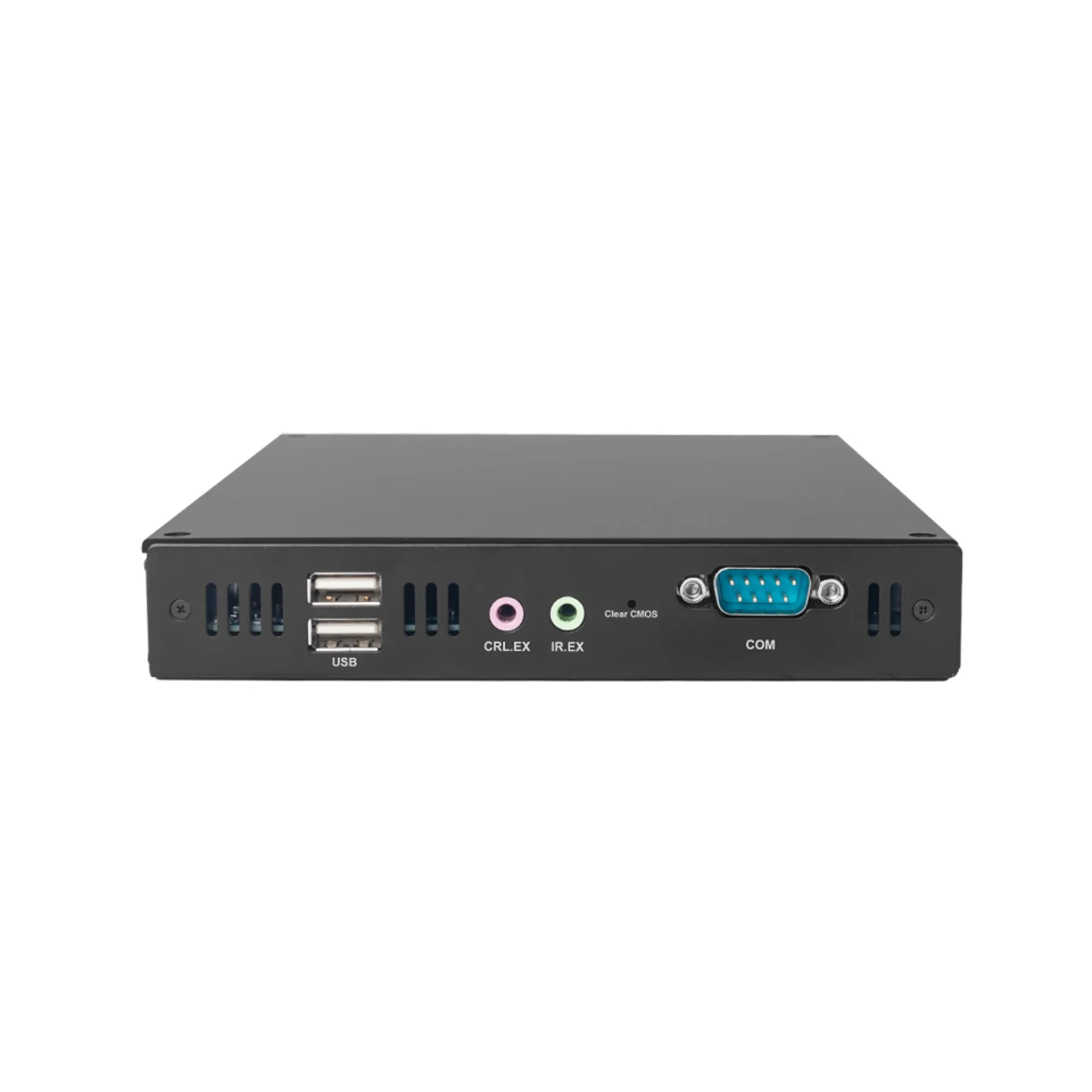

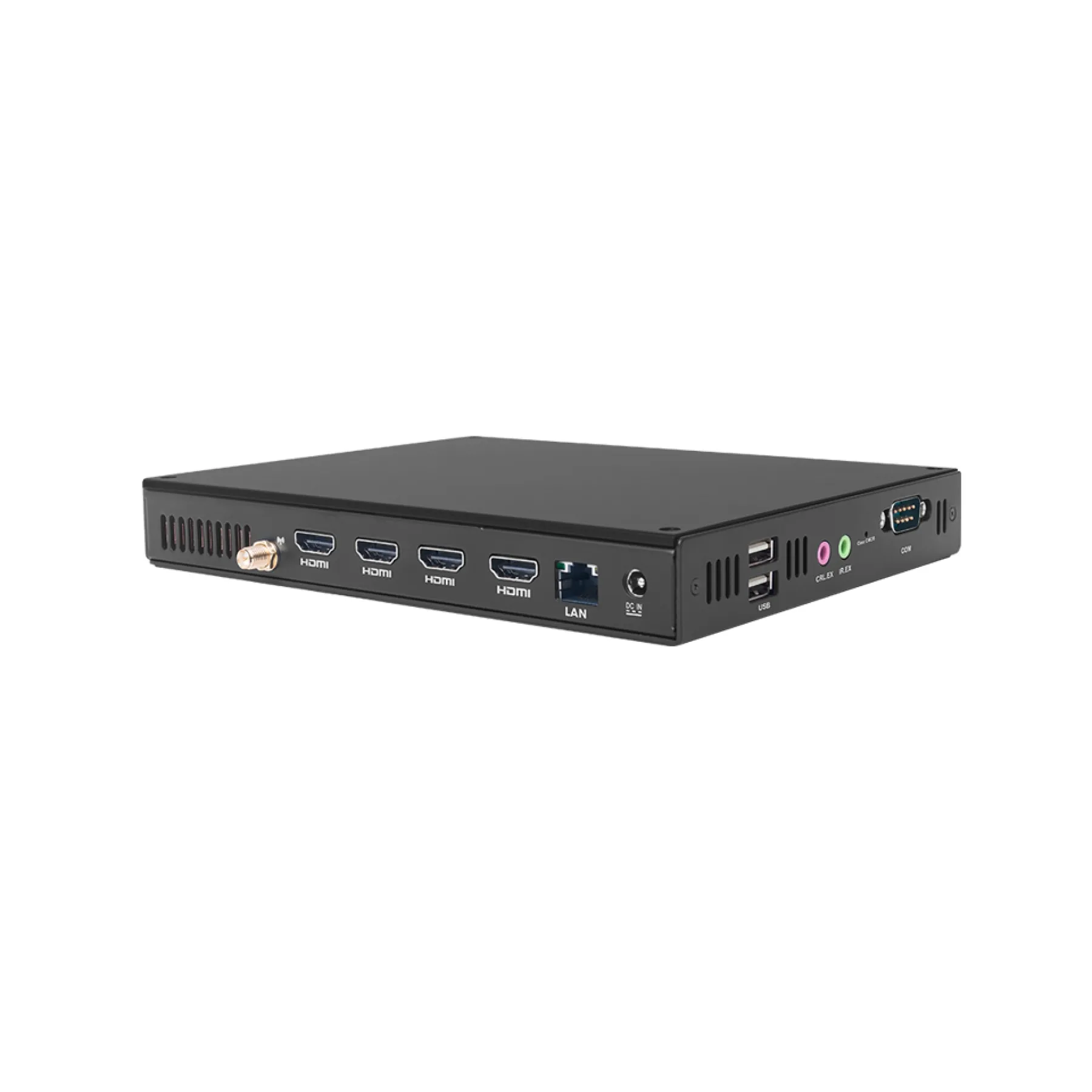

I/O Port Introduction

Ordering Info

DM6-V1605B40H0G-GIA	AMD Ryzen V1605B Digital Signage Player with 4 HDMI 4K Outputs
DM6-V1202B40H0G-GIA	AMD Ryzen V1202B Digital Signage Player with 4 HDMI 4K Outputs

Downloads

Datasheet (DM6) (PDF)

0.77MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

CPU	AMD RyzenTM V1202B
Frequency	2.0 GHz, 2 Core/4 Threads
BIOS	AMI Source Code
Chipset	SOC
Type	DDR4
Socket	2 x SO-DIMM
Max Size	32GB
GPU	RadeonTM GPU 1.1GHz / RadeonTM GPU 1.0GHz
Graphic Engine	Direct3D 2015, OpenGL 4.5, OpenCL 2.1
HDMI	4 x HDMI (Max.3840 x 2160 @60Hz)
Controller	Realtek RTL8111H Gigabit Ethernet
Interface	1 x RJ45
USB	2 x USB 3.1, 2 x USB 2.0
Serial Port	1 x RS232
Audio	1 x AUDIO-OUT, 1 x MIC-IN
Mini-PCIe #1	1 x Full-size Mini-PCIe for mSATA
Mini-PCIe #2	1 x Full-size Mini-PCIe for WiFi/BT/3G/4G
SIM	1 x SIM Slot
SATA	1 x 2.5″ SATA
mSATA	1 x Full-size mSATA
WatchDog Timer	0~255 Second Time Out Support
Auto Power On	Power Activated Automatically Start
RTC	Set Up Independently Every day, A Week as a Cycle
Windows	Windows 10（64-bit）
Linux	Supported
Power Type	DC-IN
Input Voltage	19V/3.42A
Dimensions (W × D × H)	189.6mm x 148.3mm x 26mm（7.46″ x 5.84″ x 1.02″）
Construction	Metal

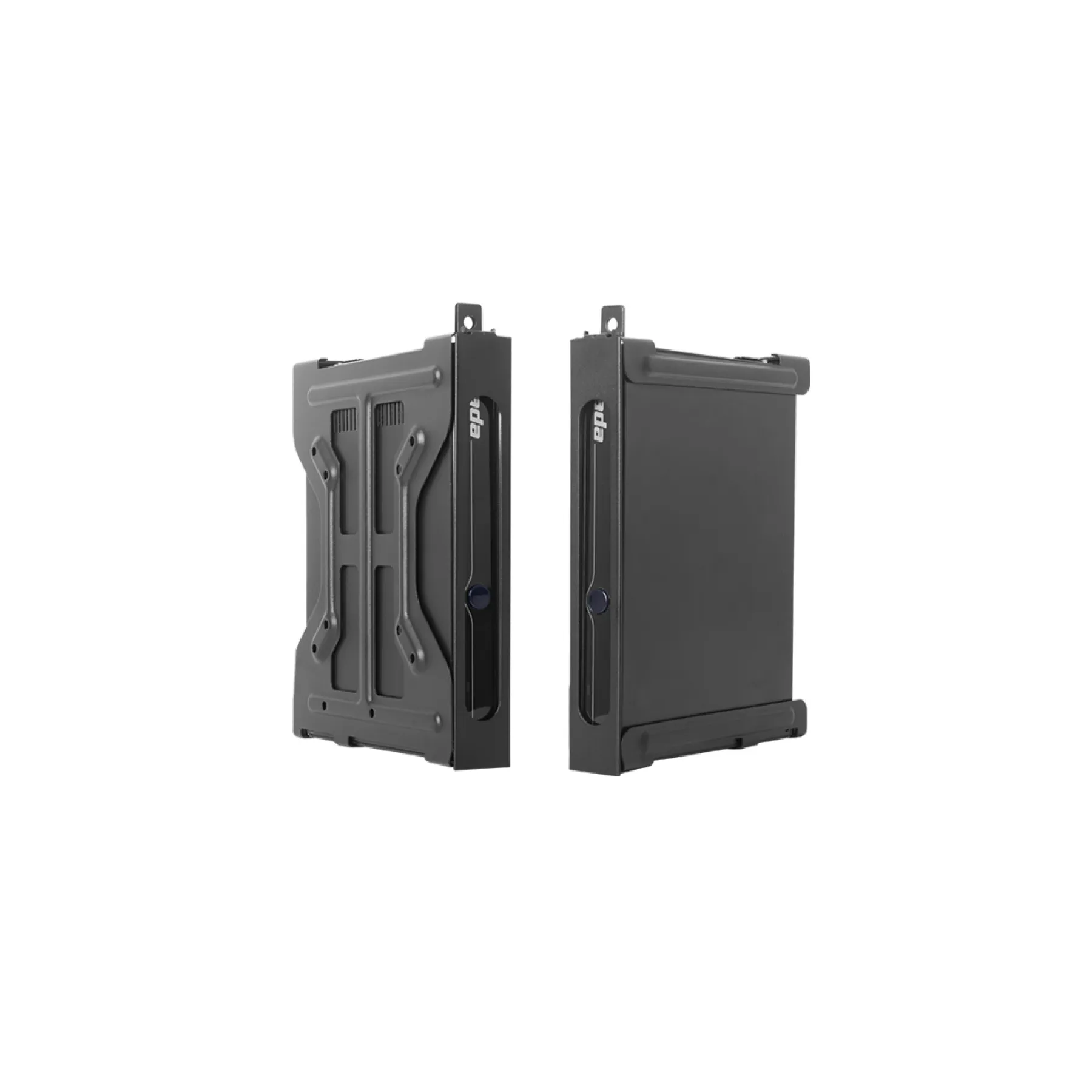

Mounting	Wall Mounting and VESA Mounting (JZ183)
Color	Black
Operating Temperature	0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
Relative Humidity	95%@40℃ (non-condensing)
Certification	CE, FCC Class B, CCC

Processor Type	AMD Ryzen, up to 2 Cores
Memory Capacity	Up to 32GB
Serial Ports (COM)	1x RS-232
USB Ports	2x USB 2.0, 2x USB 3.1
Ethernet Ports (LAN)	1x 1G
Wireless	Cellular, Wi-Fi
Video Ports	4x HDMI
Audio	Yes
Storage Type	1x mSATA, 1x 2.5"
Expansion Type	2x Mini PCI Express
Input Voltage	19 VDC
Mounting Options	Desk-mount, VESA-mount, Wall-mount
Operating Temperature	Standard OT: 0°C to 40°C, Standard
Market Certifications	CE/FCC
OS Support	Windows 10
