UST100-504-FL

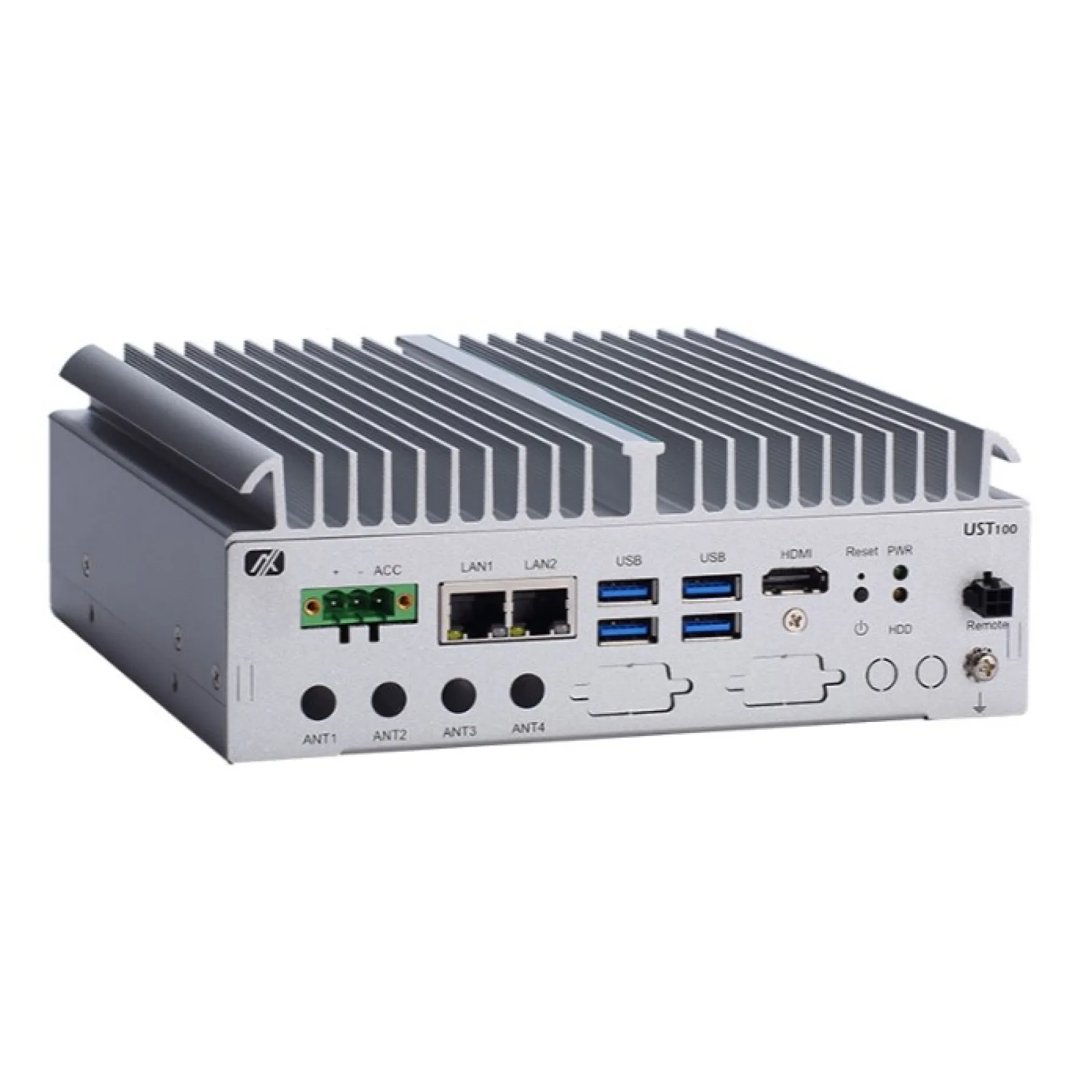

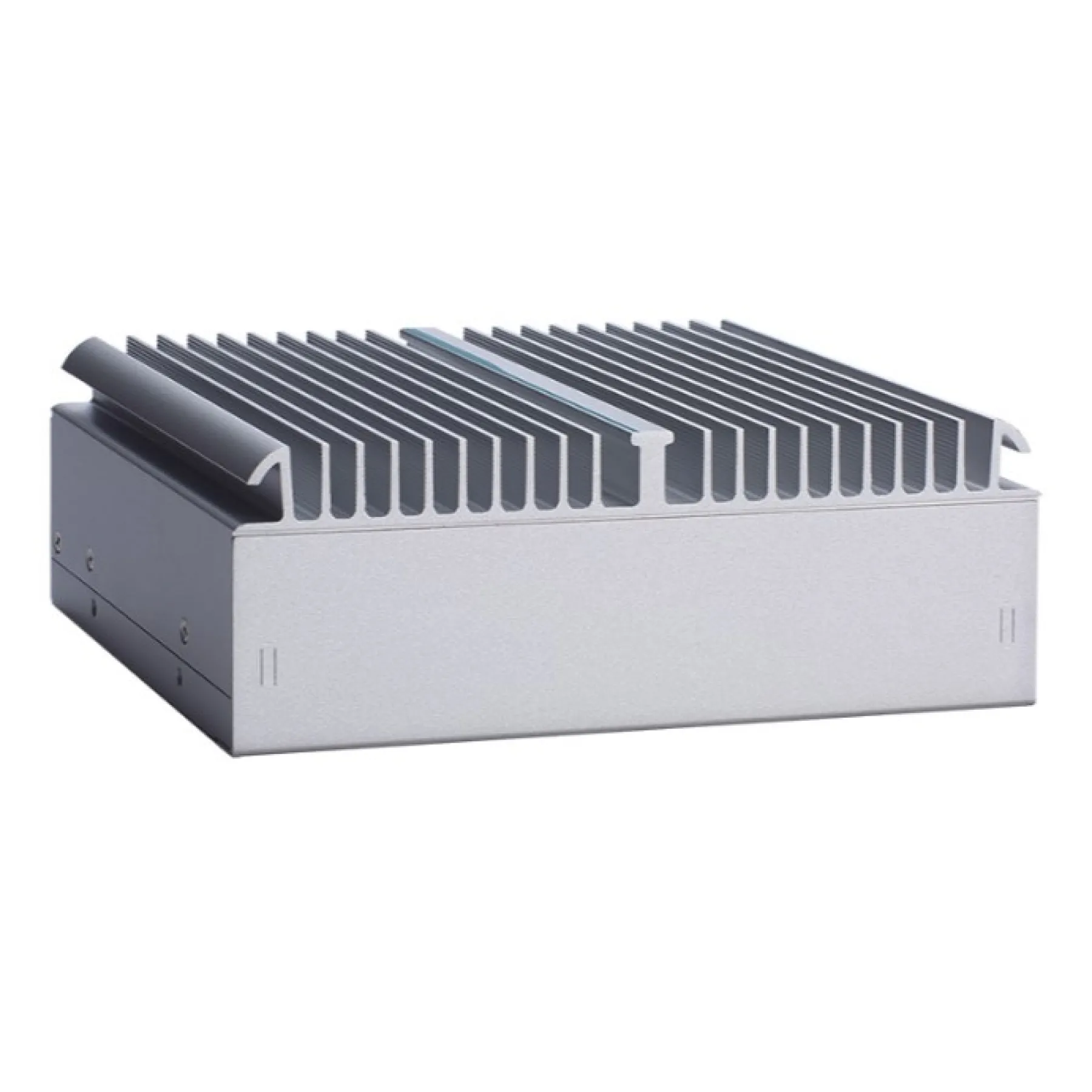

Axiomtek UST100-504-FL Ordinateur sans ventilateur 7e/6e génération Intel Core,Pentium & Celeron
UST100-504-FL
- CE, FCC certified; ISO 7637-2 compliant
- LGA1151 7th/6th gen Intel® Core™ & Pentium® processors (up to 35W) with Intel® H110
- Fanless and Wide operating temperatures from -40°C to +60°C
- 12/24 VDC power input, with power management (ACC ignition)
- Single-sided I/O design for easy maintenance
- Expansion capability for three PCI Express Mini Card slot and two internal SIM card slot
![](https://www.assured-systems.com/_cache/Payments_Icons_NEW-400x50.jpg)
Détails
The Axiomtek UST100-504-FL is a fanless embedded computer powered by 6th/7th Gen Intel Core, Pentium and Celeron processors. This computer contains Single-sided I/O design for easy maintenance and expansion capability for three PCI Express Mini Card slot and two internal SIM card slot.Téléchargements
Assured Systems Fiche technique (PDF)
Une édition PDF de cette page avec les fiches techniques des fabricants
Intégration Du Système
N'hésitez pas à nous demander comment nous pouvons configurer votre solution
Opérations Mondiales
Nous fournissons et assurons le support des produits par l'intermédiaire de nos bureaux dans le monde entier
Garantie Complète
Garanties de premier plan sur toutes les solutions en standard
Support Technique
Des ingénieurs expérimentés sont à votre disposition pour soutenir votre projet
Vous Ne Trouvez Pas Ce Que Vous Voulez ?
Spécifications
CPU | LGA1151 7th gen Intel® Gen Intel® Core™, Pentium® and Celeron® processors, TDP: 35W LGA1151 6th gen Intel® Gen Intel® Core™, Pentium® and Celeron® processors, TDP: 35W |
Chipset | Intel® H110 |
System Memory | 1 x DDR4-1866/2133/2400 SO-DIMM, up to 16GB |
BIOS | AMI |
COM | 1 x DB9 Serial console or RS-232/422/485 |
USB | 4 x USB 3.0 |
PoE | N/A |
Ethernet | 2 x RJ-45 10/100/1000 Mbps (Intel® i211-IT) |
Display | 1 x HDMI 1.4b supports up to 4K/2K @60Hz |
CANbus | N/A |
Digital I/O | 1 x DB9 4-in/4-out programmable DIO |
Audio | 1 x Mic-in, 1 x Line-out |
Storage | 1 x Internal 2.5” SATA drive (9.5 mm height) 1 x Full-sized mSATA (occupied 1 x PCI Express Mini Card slot) 1 x half-sized mSATA (occupied 1 x PCI Express Mini Card slot) |
Expansion | 1 x Full-size Rev.1.2 PCI Express Mini Card slot (USB/PCIe with SIM socket) 1 x Full-size Rev.1.2 PCI Express Mini Card slot (mSATA/USB/PCIe with SIM socket) 1 x Half-size Rev.1.2 PCI Express Mini Card slot (mSATA/USB) |
Others | 1 x Reset button, 1 x Power switch, 1 x Remote switch, 4 x Antenna opening |
Power Supply | 1 x Terminal block, 12/24 VDC with ACC ignition |
Power Consumption | 12V, 5.06A; 24V,2.72A |
Watchdog Timer | 255 levels, 1 to 255 sec. |
Construction | Aluminum extrusion and heavy-duty steel, IP30 |
Operating Temperature | -40°C to +60°C (-40°F to +140°F) with W.T. peripheral |
Relative Humidity | 0% to 95%, non-condensing |
Vibration | 3 Grms w/ SSD (5 to 500Hz, X/Y/Z direction; random, operating) 1 Grms w/ HDD (5 to 500Hz, X/Y/Z direction; random, operating) 2 Grms w/ HDD & Anti-Vibration Kit (5 to 500Hz, X/Y/Z direction; random, operating) MIL-STD-810G, Method 514.6C-VL Category 4 compliant |
Shock | N/A |
Dimensions (W x D x H) | 185 x 150 x 65.15 mm (7.09” x 5.91” x 2.56”) |
Weight (net/gross) | 1.71 kg (3.77 lb)/2.19 kg (4.83 lb) |
Certifications | CE (Class A), FCC (Class A) certified ISO 7637-2 compliant |
EOS Support | Windows® 10 64-bit, Windows® 7 64/32-bit (for 6th gen Intel® CPU), Ubuntu 18.04 |
Software Support | AMS.AXView |
Mounting | Wall mount |
