What is a BNC connector?

The BNC (Bayonet Neill-Concelman) connector is a type of coaxial connector extensively utilised in video and RF (radio frequency) applications. Its bayonet-style coupling mechanism allows for quick and secure connections, making it prevalent in industries like telecommunications, broadcasting, surveillance, and instrumentation.

BNC connectors are known for their reliability and robustness in transmitting high-frequency signals. They offer excellent impedance matching and low signal loss, making them suitable for high-frequency applications such as video transmission, RF signal distribution, and data networking.

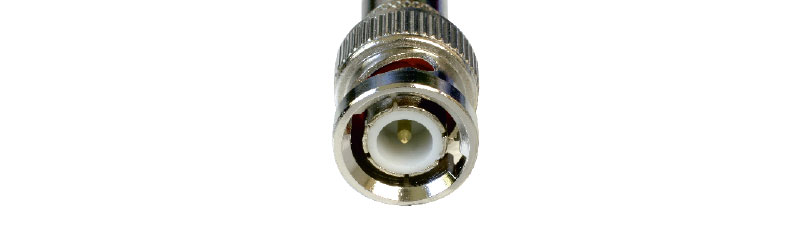

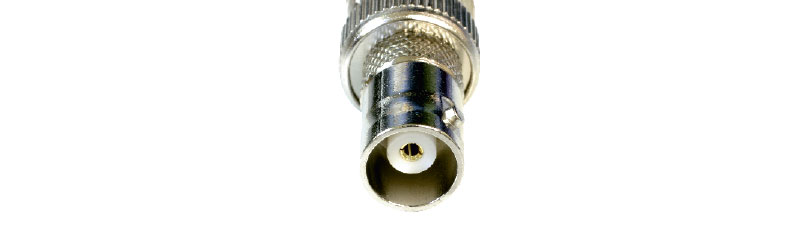

BNC connectors come in various sizes and configurations, including BNC male and BNC female connectors. They are typically terminated with coaxial cables using crimping or soldering techniques. Adapters are also available to convert between BNC connectors and other connector types, such as RCA or F-type connectors.

Common coaxial cables used with BNC connectors include RG-58/U for general-purpose use, RG-59/U for video transmission applications, and RG-6/U for longer cable runs and higher-frequency applications like cable television (CATV), satellite TV, and broadband internet.

The typical resistance ratings of BNC coaxial cables vary depending on their specifications. However, common impedance levels for BNC cables used in video and RF applications are 50 ohms and 75 ohms. It’s important to select the appropriate impedance for your specific application to ensure optimal signal transmission and compatibility.

BNC connectors are typically used with coaxial cables specially designed to carry high-frequency signals with minimal interference. These cables consist of a central conductor surrounded by insulating material and a metallic shield, protecting the signal from external interference and maintaining signal integrity.

In terms of cable runs, the length of BNC cables can vary depending on the specific application and requirements of the system. Standard coaxial cables terminated with BNC connectors are available in various lengths, ranging from a few inches to several hundred feet. Longer cable runs may require specialized cables with higher-quality shielding to minimize signal loss and maintain signal integrity over distance.

BNC connectors and coaxial cables support resolutions ranging from standard definition (SD) to high definition (HD) and even ultra-high definition (UHD). Typical resolutions include 480i (NTSC) and 576i (PAL) for SD, 720p and 1080p for HD, and 4K for UHD applications.

The resolution supported by BNC connectors and coaxial cables depends on various factors, including the quality of the cable, the transmission distance, and the specific application. However, BNC connectors and coaxial cables are commonly used in video applications where resolutions typically range from standard definition (SD) to high definition (HD) and beyond.

Here are some typical resolutions supported by BNC connectors and coaxial cables:

1. Standard Definition (SD): BNC connectors and coaxial cables can support SD video resolutions, including 480i (NTSC) and 576i (PAL). These resolutions are commonly used for analog video surveillance systems, older CCTV cameras, and legacy video equipment.
2. High Definition (HD): BNC connectors and coaxial cables can also support HD video resolutions, including 720p (1280×720 pixels) and 1080p (1920×1080 pixels). These resolutions are commonly used for modern CCTV systems, HD analog cameras, and some digital video recorders (DVRs).
3. Ultra High Definition (UHD): In some cases, BNC connectors and coaxial cables may also support UHD video resolutions, including 4K (3840×2160 pixels) and even higher resolutions. However, achieving reliable transmission of UHD video over coaxial cables may require specialized equipment and higher-quality cables with advanced shielding.

It’s important to note that the actual resolution supported by BNC connectors and coaxial cables may vary depending on factors such as cable quality, signal attenuation, and interference. Additionally, longer cable runs may require signal amplification or other signal conditioning techniques to maintain signal integrity and achieve reliable transmission of high-resolution video signals.

Overall, the BNC connector is a versatile and widely used connector in video and RF applications, offering reliable and high-performance connections for transmitting signals over coaxial cables.

SDI (Serial Digital Interface) and HD-SDI (High Definition Serial Digital Interface) are digital video standards commonly transmitted using BNC (Bayonet Neill-Concelman) connectors over coaxial cables.

• SDI and BNC: SDI signals, including standard-definition (SD) video, are frequently transmitted using BNC connectors and coaxial cables. BNC connectors offer a secure and reliable connection for SDI signals, ensuring minimal signal loss and maintaining signal integrity over distance. They are commonly found on SDI equipment such as cameras, monitors, and video switchers, facilitating easy and quick connections.
• HD-SDI and BNC: HD-SDI signals, which include high-definition (HD) video formats, are also transmitted using BNC connectors and coaxial cables. While HD-SDI requires higher bandwidth than SDI for transmitting HD video, the use of BNC connectors remains consistent. BNC connectors are compatible with the higher bandwidth requirements of HD-SDI, providing a suitable interface for transmitting HD video signals reliably and efficiently.
