What are UHF connectors?

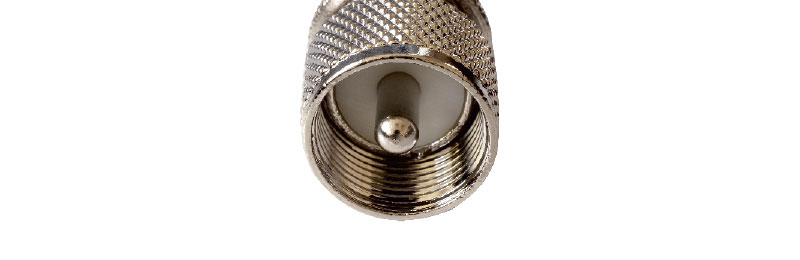

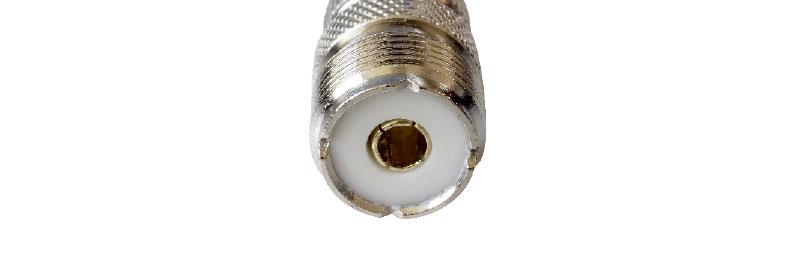

UHF (Ultra High Frequency) connectors, also known as PL-259 (male) and SO-239 (female) connectors, are widely used in RF applications. They feature a threaded coupling mechanism, providing a secure and reliable connection suitable for high-power transmissions.

UHF connectors are commonly used in:

• Amateur radio
• CB radio
• Broadcast equipment
• Base station antennas
• Repeater systems
• RF amplifiers

The typical cable used with UHF connectors is a coaxial cable terminated with UHF connectors on each end. These cables are designed to carry RF signals with minimal loss and interference.

The typical cable used with UHF connectors is a coaxial cable terminated with UHF connectors on each end. These cables are designed to carry RF signals with minimal loss and interference.

Several common types of coaxial cables are used with UHF connectors, each suited to specific applications:

1. RG-58/U: A flexible and lightweight cable suitable for short to medium cable runs. Commonly used in amateur radio, CB radio, and mobile communications.
2. RG-8/U: A heavier-duty cable designed for longer cable runs and higher power handling. Often used in base station antennas and RF amplifiers.
3. RG-213/U: Similar to RG-8/U but with a larger diameter and higher power handling. Used for long-distance transmission lines and high-power antennas.
4. LMR® Series: High-performance cables designed for mobile and fixed-site applications, offering low loss, excellent flexibility, and weather resistance.
5. Heliax®: High-performance, low-loss cables designed for demanding RF applications such as cellular networks and broadcast systems.

RG-58/U coaxial cable features:

• Solid center conductor
• Dielectric insulator
• Braided shield
• Outer jacket
• Suitable for short to medium cable runs

RG-8/U coaxial cable features:

• Solid or stranded center conductor
• Thicker dielectric insulator
• Double or triple shield
• Durable outer jacket
• Suitable for longer cable runs and higher power applications

RG-213/U coaxial cable is similar to RG-8/U but has:

• Larger diameter
• Higher power handling capability
• Suitable for applications requiring lower loss and higher power

LMR® (Land Mobile Radio) series cables are high-performance coaxial cables designed for mobile and fixed-site applications. They offer:

• Low loss
• Excellent flexibility
• Weather resistance
• Suitable for outdoor and harsh environments

Heliax® coaxial cables are designed for demanding RF applications, such as cellular networks, broadcast systems, and microwave links. They feature:

• Corrugated copper outer conductor
• Foam dielectric
• Low attenuation
• High power handling capability

UHF connectors are suitable for both short and long cable runs, depending on the specific application and signal requirements. Typical cable runs can range from a few feet to several hundred feet or more.

UHF connectors are primarily used for transmitting RF signals rather than video or digital data signals. They are designed to support various wireless communication standards, including amateur radio bands, CB radio, and broadcast frequencies, operating within specific frequency ranges.

UHF connectors are designed to operate within the frequency range of 0 to 500 MHz, making them suitable for a wide range of RF applications, including:

• Amateur radio bands (1.8 MHz to 54 MHz)
• CB radio (26.965 MHz to 27.405 MHz)
• VHF (30 MHz to 300 MHz)
• UHF (300 MHz to 3 GHz)

UHF connectors are considered robust and versatile due to their:

• Secure threaded coupling mechanism
• High power handling capability
• Compatibility with various coaxial cables
• Wide application range, from amateur radio to commercial broadcasting

When choosing a coaxial cable for UHF connectors, consider the following factors:

• Application and signal requirements
• Cable run length
• Power handling capability
• Flexibility and ease of installation
• Environmental conditions (e.g., outdoor use, weather resistance)
• Cost and availability

By selecting a cable that meets the specific needs of your application, you can ensure reliable performance and signal integrity.

Yes, when using UHF connectors and cables in outdoor or harsh environments, consider:

• Weather resistance of the cable
• Durability of the outer jacket
• Potential for moisture ingress
• Temperature range the cable can withstand

Using cables like the LMR® series, which offer excellent weather resistance, can help ensure reliable performance in challenging conditions.

Yes, UHF connectors are suitable for high-power transmissions. Cables like RG-8/U, RG-213/U, and Heliax® are designed to handle higher power levels, making them ideal for applications requiring robust performance.

UHF connectors use a threaded coupling mechanism that provides a secure and reliable connection. This threaded design helps prevent accidental disconnections and ensures consistent signal quality.

The benefits of using UHF connectors include:

• Secure and reliable connections
• High power handling capability
• Compatibility with various coaxial cables
• Versatility for a wide range of RF applications
• Robust performance in demanding environments

While UHF connectors are widely used in traditional RF applications, modern communication systems often use other connectors (e.g., N-type, SMA) that offer better performance at higher frequencies. However, UHF connectors remain popular in amateur radio, CB radio, and some broadcast applications due to their robustness and ease of use.

When installing UHF connectors and cables, consider the following:

• Ensure proper cable termination to avoid signal loss
• Use appropriate tools for crimping or soldering connectors
• Verify impedance matching to maintain signal integrity
• Protect connections from environmental factors, especially in outdoor installations

UHF connectors have a few limitations, including:

• Performance degradation at higher frequencies (above 500 MHz)
• Larger size compared to some modern RF connectors
• Limited use in high-frequency applications (e.g., microwave frequencies)

Despite these limitations, UHF connectors remain a reliable choice for many RF applications due to their robust performance and versatility.

UHF connectors and compatible coaxial cables can be purchased from various suppliers, including electronics retailers, online stores, and specialised RF component distributors. Ensure that you select high-quality components from reputable sources to guarantee reliable performance in your applications.
