FR In this article:
- What are SMA connectors?
- What type of cable is used with SMA connectors?
- Are SMA cables suitable for both short and long cable runs?
- What frequency bands do SMA connectors support?
- What is the typical resistance and frequency range for SMA cables?
- Why is a secure connection important in SMA connectors?
- What are the advantages of using SMA connectors in wireless communication systems?
What are SMA connectors?
SMA (SubMiniature version A) connectors are commonly used in RF and microwave applications, providing a reliable and robust connection for transmitting high-frequency signals. These connectors feature a threaded coupling mechanism, ensuring secure mating and resistance to vibration and shock.

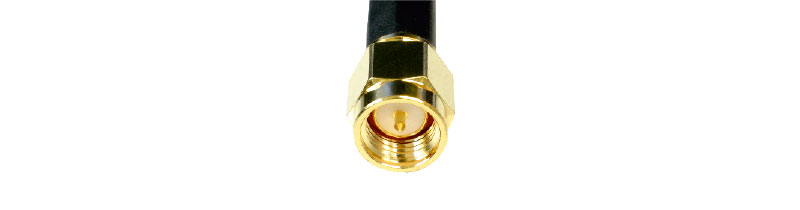

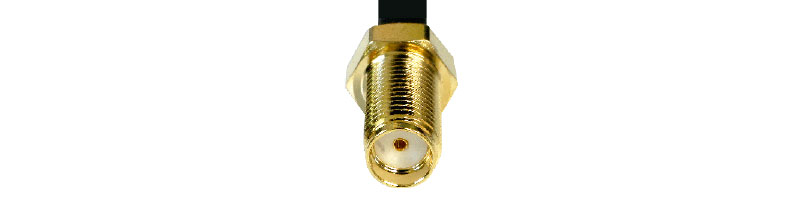

FEMALE MALE
What type of cable is used with SMA connectors?
SMA connectors are typically used with coaxial cables terminated with SMA connectors on each end. These cables are designed to carry RF signals with minimal loss and interference, ensuring reliable communication between devices.
Are SMA cables suitable for both short and long cable runs?
Yes, SMA cables are suitable for both short and long cable runs, depending on the application and signal requirements. Cable runs can range from a few feet to several hundred feet or more, making SMA connectors versatile for various applications.
What frequency bands do SMA connectors support?
SMA connectors support various wireless communication standards, including Wi-Fi, Bluetooth, cellular communication, and GPS, operating within specific frequency bands:
- Wi-Fi: Typically operates in the 2.4 GHz and 5 GHz bands.
- Bluetooth: Operates in the 2.4 GHz ISM band.
- Cellular Communication: Covers frequency bands such as 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, and more.
- GPS: Operates at 1.57542 GHz (L1 band) and 1.2276 GHz (L2 band).
What is the typical resistance and frequency range for SMA cables?
SMA cables are designed to have a typical impedance of 50 ohms, which is standard for RF and wireless communication applications. They operate effectively within a frequency range that can extend from DC to 18 GHz, depending on the quality and specifications of the cable.
Why is a secure connection important in SMA connectors?
A secure connection is crucial to prevent signal integrity issues and device damage. The threaded coupling mechanism of SMA connectors ensures that connections remain tight and stable, even in environments subject to vibration and shock.
What are the advantages of using SMA connectors in wireless communication systems?
SMA connectors offer several advantages:
- Reliability: Ensures consistent and secure connections.
- Versatility: Compatible with a wide range of equipment and applications.
- Signal Integrity: Maintains high-quality signal transmission with minimal loss.
- Robust Design: Resistant to vibration and shock, suitable for demanding environments.
By understanding these aspects of SMA connectors, users can make informed decisions about their application in various wireless communication systems, ensuring optimal performance and reliability.
