What are MCX connectors?

MCX connectors are miniature coaxial connectors commonly used in RF applications where space is limited. They facilitate quick and tool-free connections in devices like GPS receivers, wireless routers, and portable radios.

MCX connectors feature a snap-on coupling mechanism, enabling fast and effortless connections without tools. They provide a compact solution for RF applications, ideal for devices with limited space.

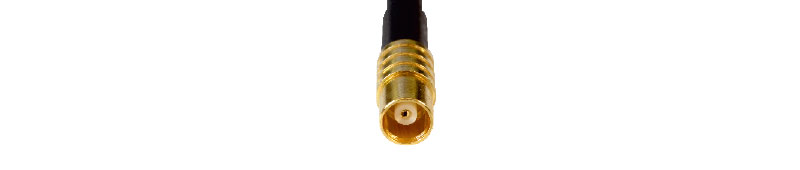

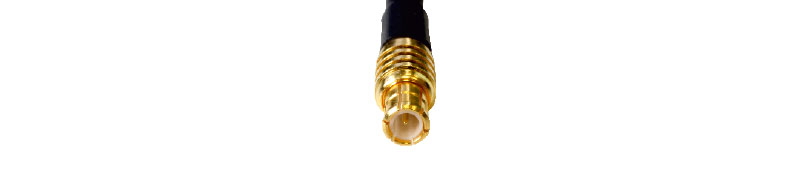

Coaxial cables terminated with MCX male or MCX female connectors on each end are typically used. These cables carry RF signals with minimal loss and interference, ensuring reliable communication between devices.

MCX cables are usually short to minimize signal loss and maintain integrity, ranging from a few inches to several feet based on application and signal requirements.

MCX connectors support various standards, including:

• GSM (900 MHz, 1800 MHz)
• CDMA (800 MHz, 1900 MHz)
• LTE (700 MHz, 800 MHz, 1800 MHz, 2600 MHz)
• GPS (1575.42 MHz) These bands ensure compatibility and efficient signal transmission.

MCX connectors offer a compact and reliable solution for connecting RF devices, especially in space-limited applications. They provide ease of use and high performance, enhancing communication efficiency in diverse RF applications.
