nTUF600

Nexcom nTUF600 Fanless Low Power Atom D525 Marine PC w/ IEC60945 Certification

End of Life

Brand: Nexcom
Intel Atom Dual Core D525 1.8GHz CPU
2 x cold swappable 2.5” SSD trays
Wide operating temp -25°C~55°C
Size: 294mm (W) x 200mm (D) x 100mm (H)

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

Product Code: nTUF600

Categories: End of Life Products

Range: Nexcom

Details

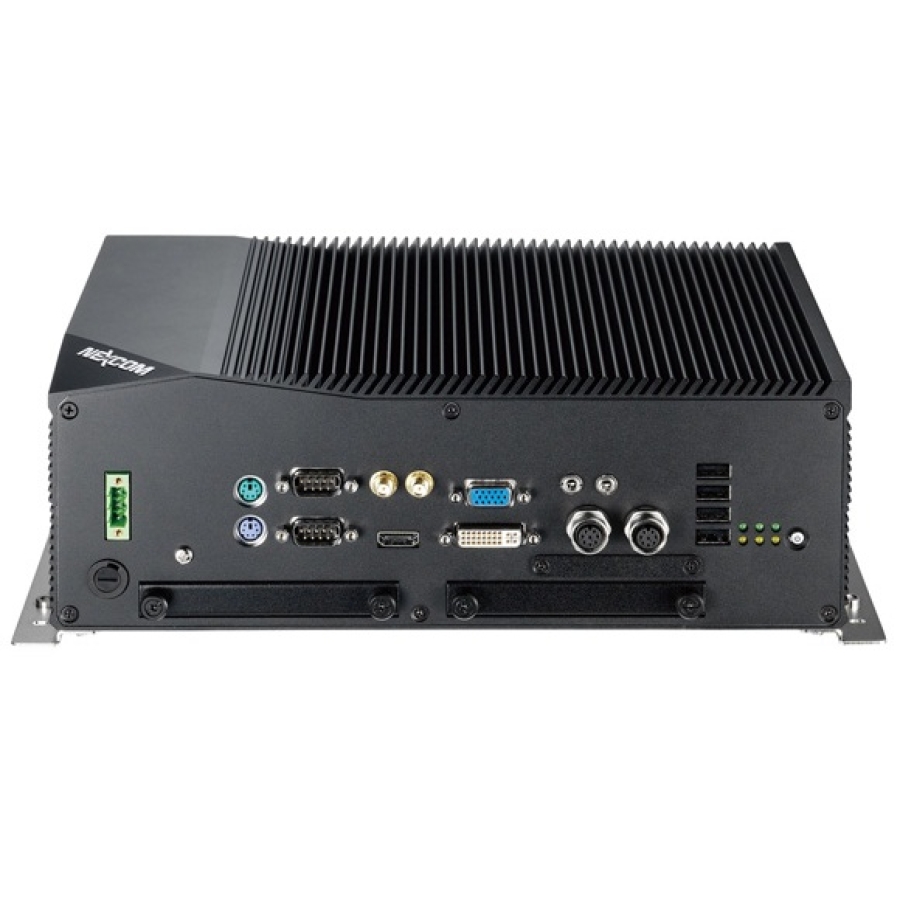

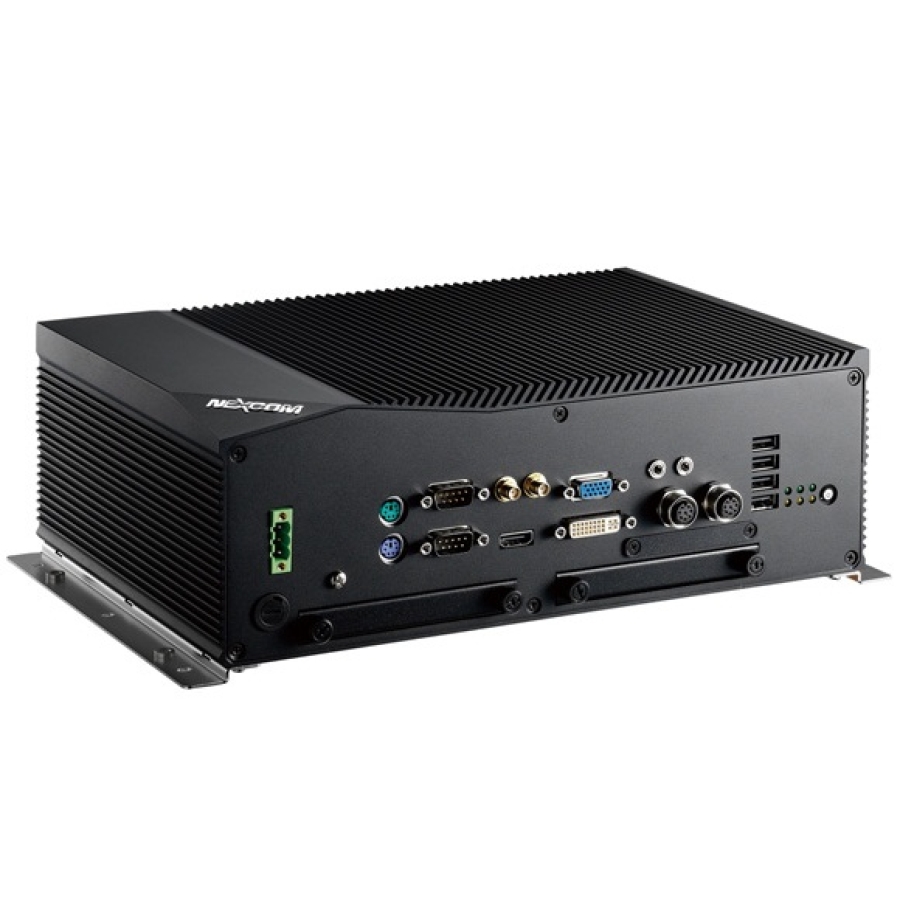

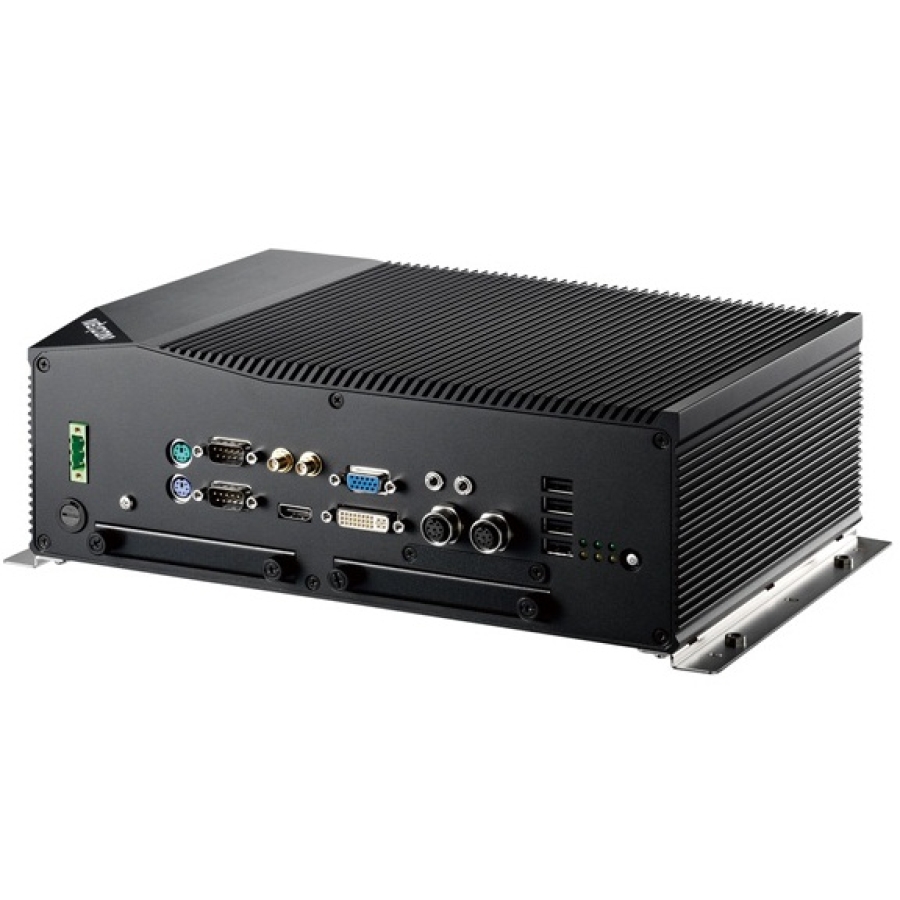

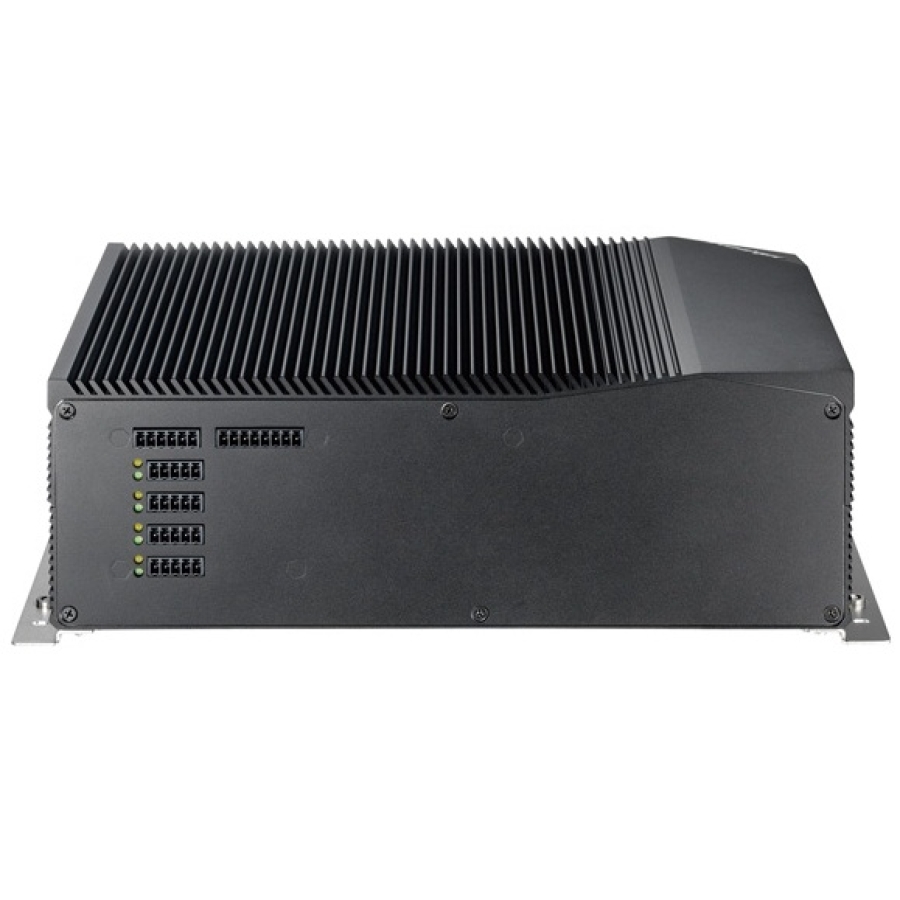

Assured Systems, a leading UK system integrator, is pleased to present the nTUF series from NEXCOM, tough computers designed for Marine Bridge and Control Room computing applications. The first product in the series is the nTUF600 Marine Fanless Computer based on the acclaimed Intel Atom Dual Core D525 platform providing optimised graphic and computing performance, combined with low power operation. The nTUF600 features 4 x USB2.0, 2 x lockable M12 Gigabit LAN ports, 1 x VGA, 2 x DB9 RS232, 2 x PS/2, 1 x CFast socket and two cold swappable 2.5” SSD trays on the front panel. On the rear of the system, the nTUF600 offers 4 x Digital Inputs, 4 x Digital Outputs and 4 x NEMA ports with 2KV optical protection. The isolated 24V DC input is designed for Marine applications as outlined by IEC60945 regulations.

Ordering Info

nTUF 600: Intel Atom Dual Core D525 1.8GHz Fanless Marine Computer

Downloads

Nexcom nTUF600 Datasheet (PDF)

0.56MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Chassis: Rugged, aluminium, fanless
Processor: On-board Intel® Atom™ Dual Core D525 1.8GHz processor, 1M Cache
Chipset: Chipset: Intel® ICH8M chipset
Memory: Up to 2GB DDR2 800MHz
Storage: 2 x Cold-Swappable SATA: 2.5” HDD, CFast socket
Graphics: Intel with 1 x VGA standard and 1 x DVI-D & 1x HDMI (via optional MXM 3.0 graphic module is installed)
Ethernet: 2 x 10/100 with M12 locking connector (1.5KV surge protection)
Audio: Mic-in and Line-out
Serial: 2 x RS232
Digital: 4 x Digital Input: 6-pin screw terminals – Voltage level: 5V, TTL-level
Digital: 4 x Digital Output: 8-pin screw terminals – 36V DC with 100mA relay
USB 2.0: 4
Power Input: 3-pin +24V DC input (16V to 30V range with 1.5KV isolation)
Fuse: 1 x external 10A fuse
Expansion: Mini-PCIe x 1, 1 x SIM card reader
Operating temperature: Ambient with air flow: -25°C~55°C
(according to IEC60945, E10 and DNV standards) Storage temperature: -20°C ~ 80°C Relative humidity: 10% to 93% (non-condensing)
IEC60945 (in process)
IACS-E10 (in process)
DNV 2.4 (in process)
