F202

Name: Giada F202 Fanless Super Compact Low Cost Computer with Celeron N2807 CPU
SKU: F202

Giada

Giada F202 Fanless Super Compact Low Cost Computer with Celeron N2807 CPU

F202

Fanless Super Compact Low Cost Computer with Celeron N2807 CPU & Intel HD Graphics

Brand: Giada
Intel Celeron N2807 CPU
Dual screen output
1 x USB3.0; 3 x USB2.0, 1 x HDMI, 1 x VGA, 1 x RJ45
Supports Windows, Linux and Android
Size: 116mm (W) x 116mm (D) x 30mm (H)

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: F202

Categories: Digital Signage Computers, Giada

Range: Giada

Details

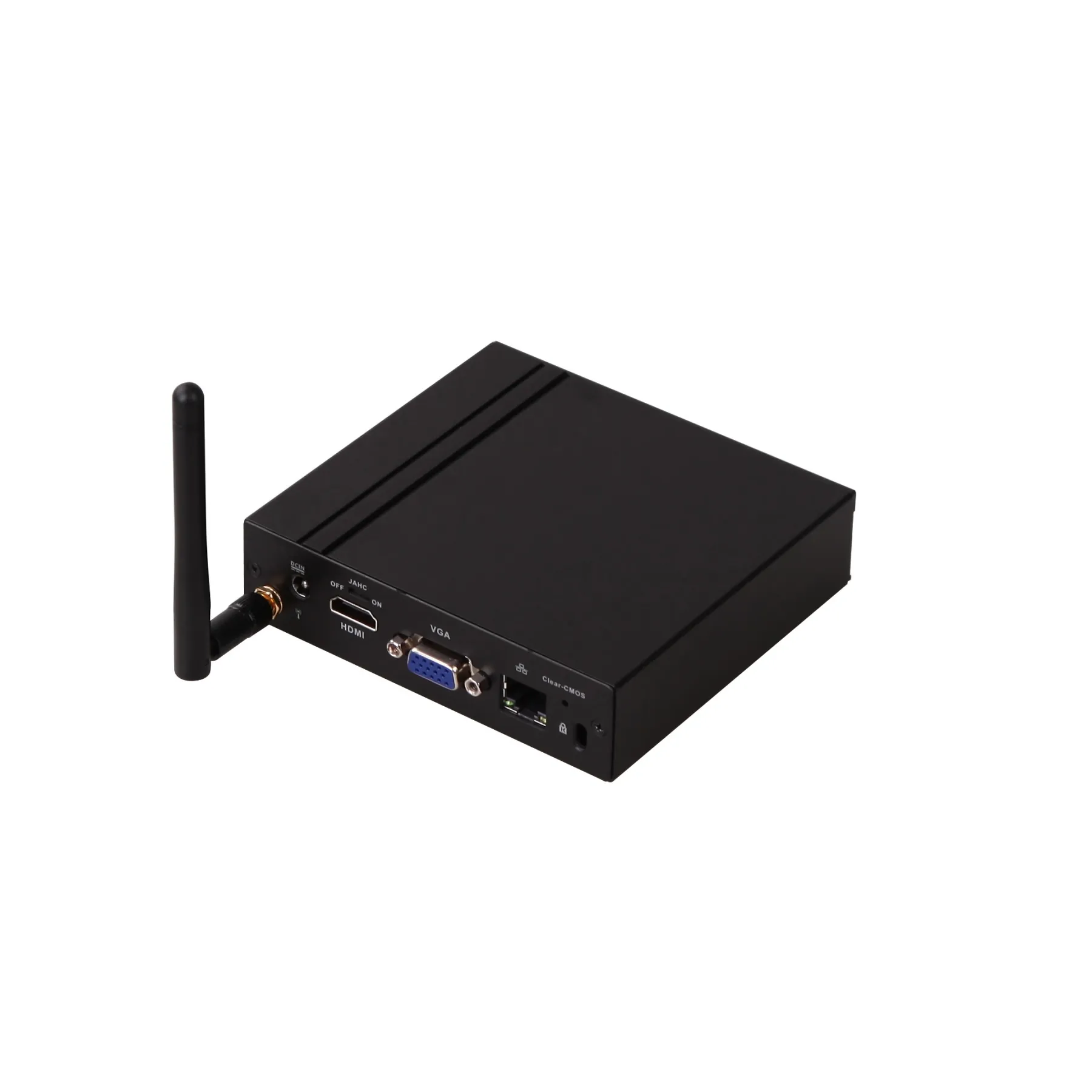

The Giada F202 is a super compact embedded computer designed for price sensitive applications. Based around the ultra low power consumption Intel Celeron N2807 series CPU, the F202 supports HDMI, VGA dual display outputs. The CPU draws on 5W offering ultra low-power CPU for energy conservation and environmental protection. The system is housed in a fanless metal chassis and offers LAN, 1 x USB3.0, 3 x USB2.0 and Audio. The system supports automatic power-on boot, timer switch and automatic restart should the system hang.

Downloads

Giada F202 Datasheet (PDF)

0.32MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

CPU	Intel® Celeron N2807
Frequency	1.58GHz (Up to 2.16GHz )
BIOS	AMI Source Code
Chipset	SOC
Type	DDR3L-1333MHz
Socket	2GB Onboard
Max Size	2GB
GPU	Intel® HD Graphics
Graphic Engine	DirectX 11.1, OpenGL 3.0, OpenCL 1.1, OpenGL ES 2.0
VGA	1 x VGA (Max.2560 x 1600@60Hz)
HDMI	1 x HDMI (Max.1920 x 1080@60Hz)
Controller	Realtek RTL8111H Gigabit Ethernet
Interface	1 x RJ45
USB	1 x USB 3.0, 3 x USB 2.0
LAN	1 x RJ45
Audio	1 x MIC-IN, 1 x AUDIO-OUT
Mini-PCIe 1#	1 x Full-size Mini-PCIe for mSATA
Mini-PCIe 2#	1 x Full-size Mini-PCIe for WiFi/BT
mSATA	1 x Full-size mSATA
WatchDog Timer	0~255 Second Time Out Support
Auto Power On	Power Activated Automatically Start
RTC	Set Up Independently Every day, A Week as a Cycle
Windows	Windows 7/8.1/10(64-bit)
Linux	Supported
Power Type	DC-IN
Input Voltage	12V/2A
Dimensions (W × D × H)	116.6mm x 107.2mm x 30mm(4.59″x4.23″x1.18″)
Fanless	Yes
Construction	Metal
Mounting(Optional)	Desk/Wall Mounting and VESA Mounting Kit (JT NUC-JC530)
Color	Black
Operating Temperature	0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
Relative Humidity	95%@40℃ (non-condensing)
Certification	CE, FCC Class B, CCC
