LPC-P190S-2X

Name: Elgens LPC-P190S-2X 19" Extended Temperature IP65/66 Panel PC
SKU: LPC-P190S-2X

Elgens

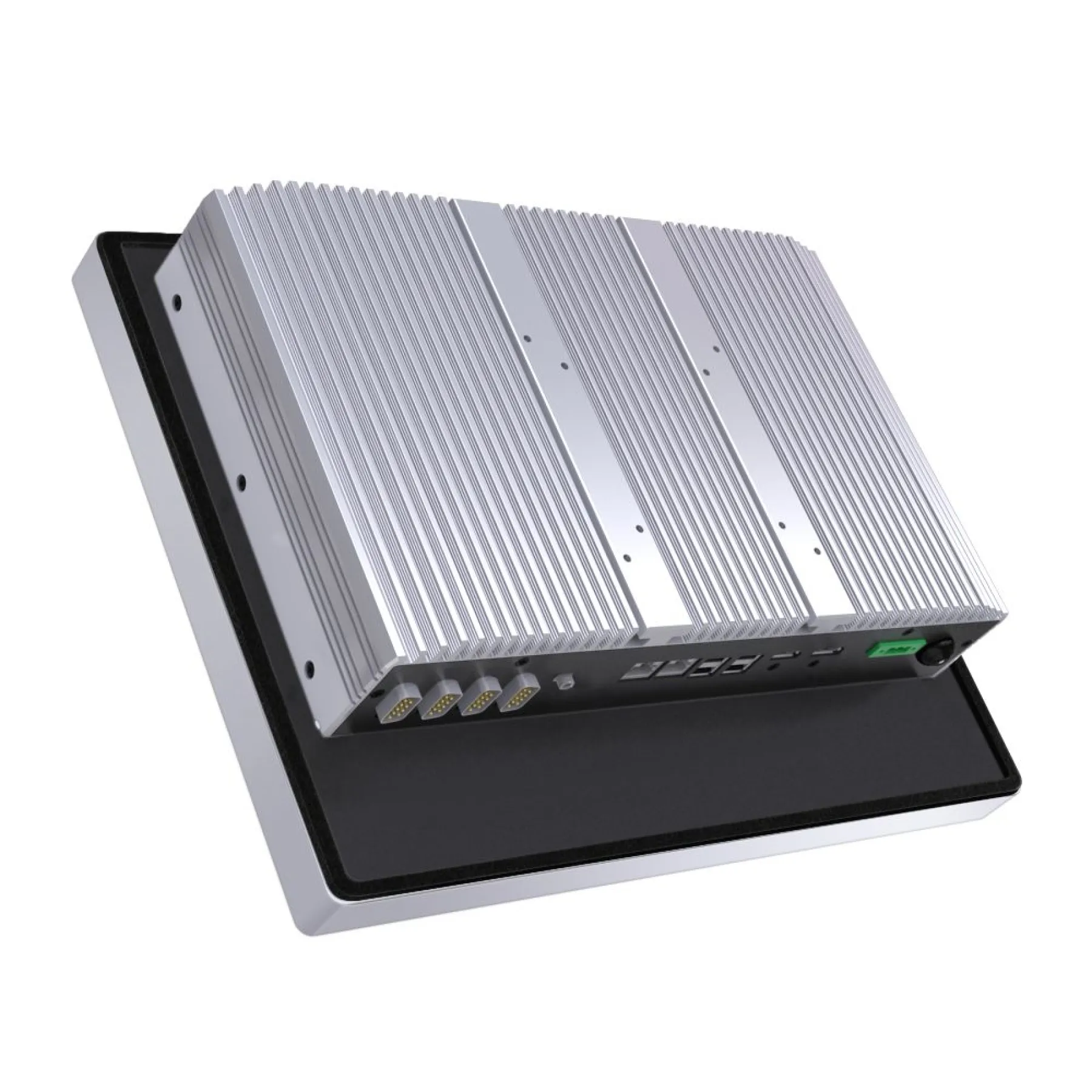

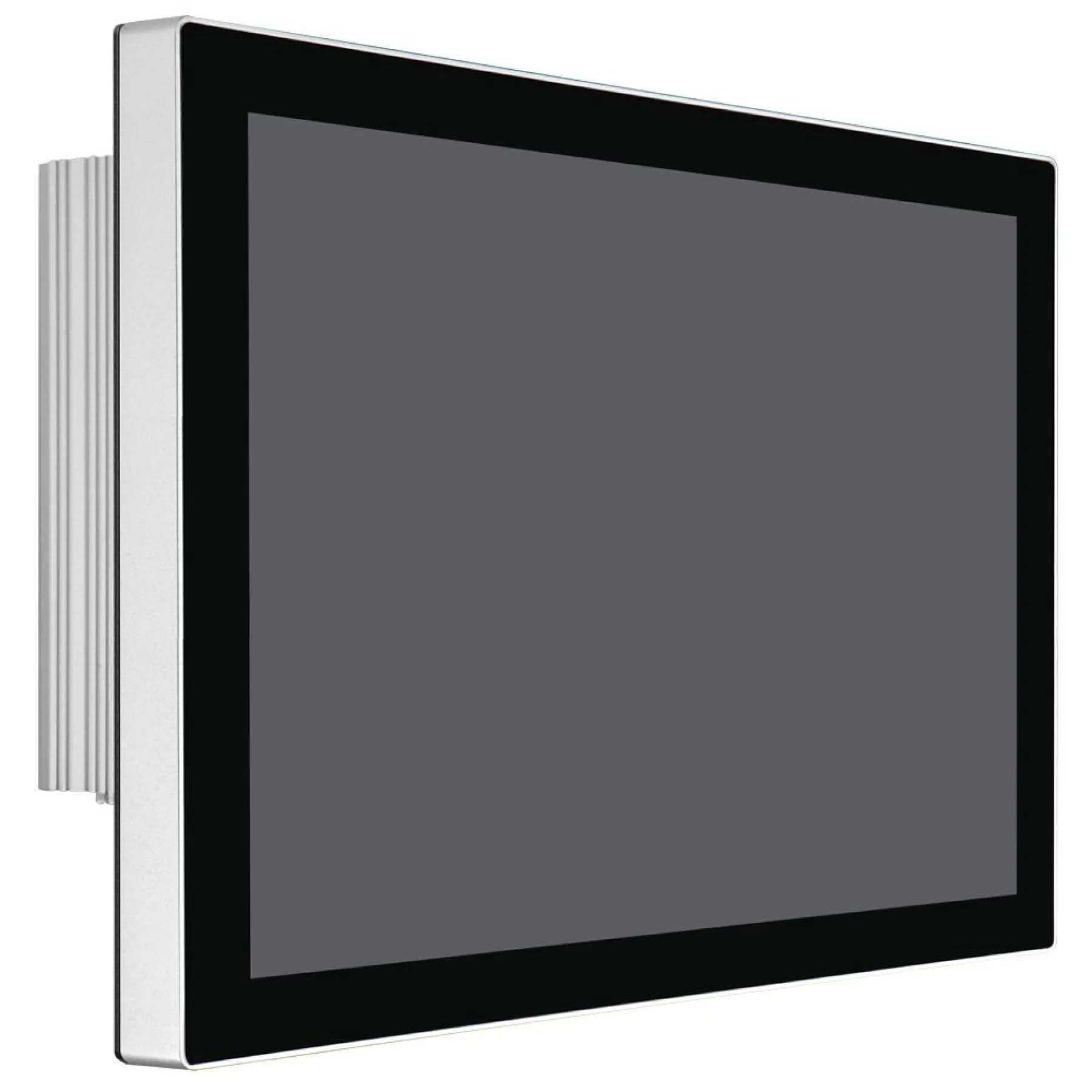

Elgens LPC-P190S-2X 19″ Extended Temperature IP65/66 Panel PC

LPC-P190S-2X

-30 ~ 70°C Operating Temp
IEC-60945 Certified / DNV Compliance
IP65 / 66 Front Panel
Fanless Design
3-Pin Power Input Terminal Block
DC 9~36V Wide Range Power Input
1280*1024 Resolution
350 nits LED Backlight
Optional 1000 nits LED Backlight
Lockable HDD Tray
-30°C Cold Start

Product Code: LPC-P190S-2X

Categories: Elgens

Range: Elgens

Details

Elgens LPC-P190S-2X 19" IP65/66 extended temperature panel PCs support the latest Intel Celeron and 6th/7th Gen Core processors for fanless operation. The bezel-free aluminium chassis has an IP65/66 front panel and supports a -30 - 70°C operating temperature. The display comes as 350 nits standard with the option for high brightness 1000 nit output.

Ordering Info

Select PPC with Preferred Processor

LPC-P190S-25: i3-6100ULPC-P190S-26: i5-6300ULPC-P190S-27: i7-6600ULPC-P190S-28: i5-7300U

Select Optional Extras

-H: High Brightness 1000 nits LED backlight-OB: Optical Bonding-G: Glass without touch-AG: Anti-Glare-AR: Anti-Reflection-V: Vandal Proof Glass

Downloads

Elgens LPC-P190S-2X Datasheet (PDF)

0.6MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Processor:	7th/6th Gen Kaby Lake-U/Skylake-U Core™ i7/i5/i3
System Memory:	DDR4 SO-DIMM, up to 16 GB
External I/O Port:	4 x USB 3.0, 2 x GbE LAN (I210-AT & I219LM, AMT 11.x supported), 1 x Display Port, 1 x HDMI, 3 x RS-232, 1 x RS-422/485 (COM1), 1 x Audio, 1 x Power press button, 1 x 3-Pin Power Input, 1 x Lockable HDD Tray
Storage:	2 x SATA3 (6.0Gb/s), 1 x mSATA (full size mini-PCIe)
Operating System:	6th Gen CPU for Win 7 Pro/ WES7 / Win 8 / Win 10, 7th Gen CPU for Win 10
Expansion:	2 x MiniPCIe Slot (1 x Nano Sim Holder)
Display Type:	19″ TFT LCD
Max. Resolution:	1280*1024
Max. Color:	16.7 M
Luminance:	350 nits
View Angle:	170 / 160
Backlight Lifetime:	30,000 hours
Type:	19″ P-cap USB interface
Power Input:	3-Pin Power Input Terminal Block(Default Always Power-on), DC 9~36V Wide Range Power, Input on board fuse / Input reverse / Over current / Output short circuit protection
Construction:	Aluminum Front Bezel and Case
IP Rating:	Front Panel IP65 / IP66 Compliant
Mounting:	VESA / Panel Mount
Dimension:	421 x 350 x 84 mm
Operating Temp:	-30~70 °C， IEC-60068-2-1/2/14
Storage Temp:	-30~70 °C
Humidity:	10~90% @40 °C, non-condensing
EMC:	FCC / CE Class A Certification, CE Class B Compliant
Vibration:	1.5 Grms @10~500Hz, IEC-60068-2-64
