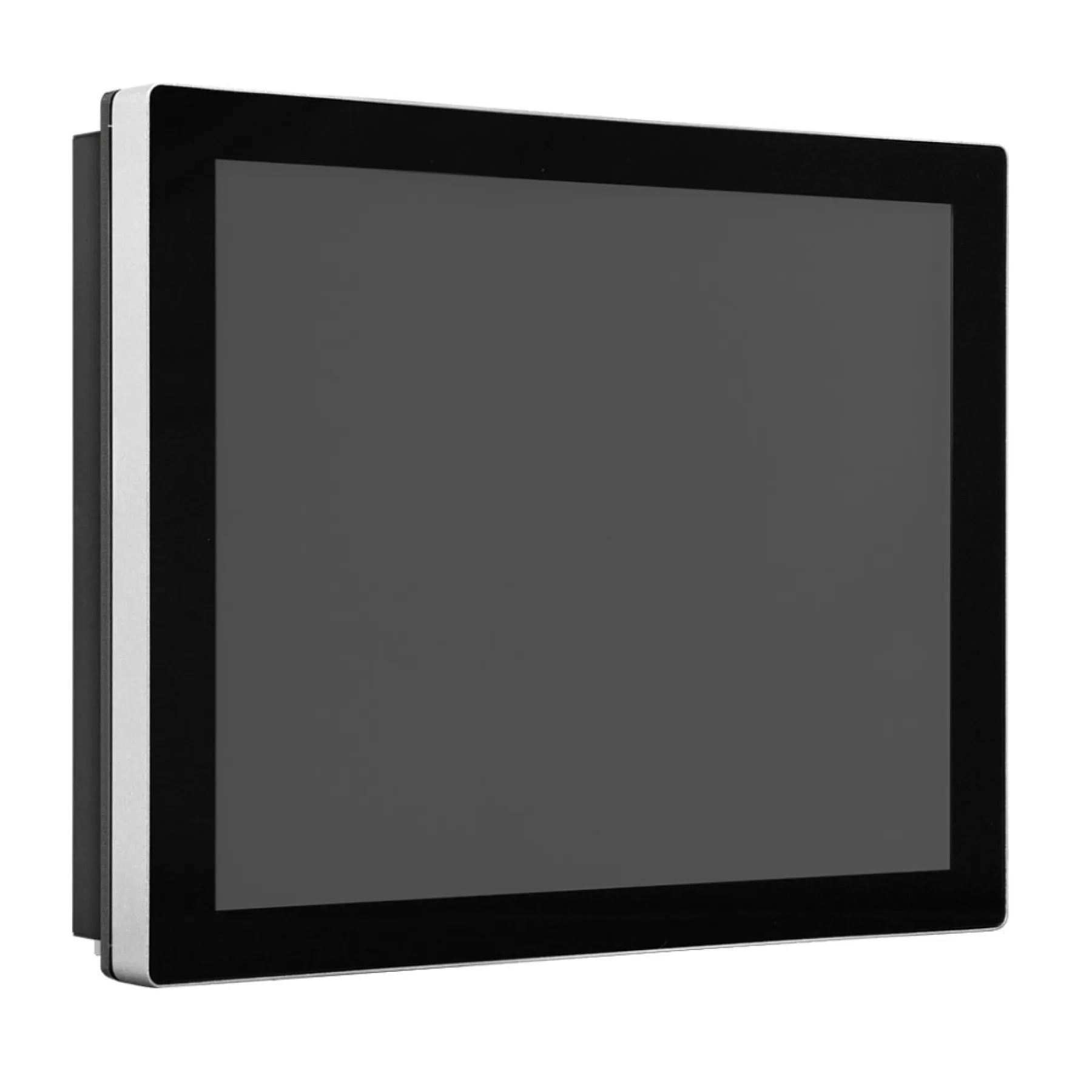

Elgens LPC-P170S-1X 17″ 7th/6th Gen KabyLake-U/Skylake-U Core i7/i5/i3 P-CAP Panel PC
LPC-P170S-1X
- -20 ~ 60°C Operating Temp
- IP65 / 66 Front Panel
- Bezel-Free Design
- Fanless Design
- 3-Pin Power Input Terminal Block
- DC 12~24V Wide Range Power Input
- 1280*1024 Resolution
- 350 nits LED Backlight
- Optional 1000 nits LED Backlight

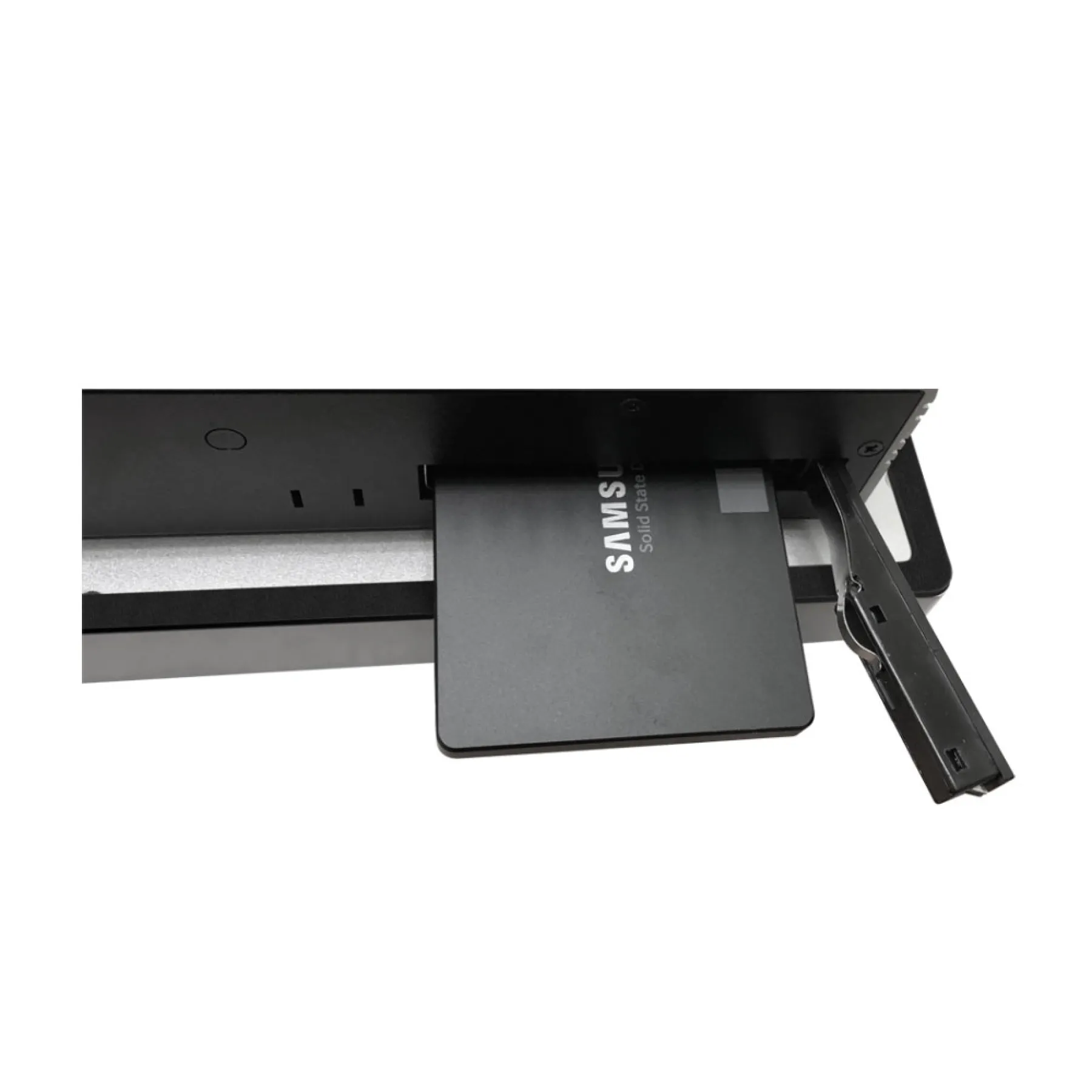

- Lockable HDD Tray
LPC-P170S-1X
Elgens, Elgens Panel PCs, Industrial Panel PCs, Industrial Touchscreen Computers, IP65 Panel PCs, IP66 Panel PCs, Panel Mount Panel PCs, Panel PCs
Details
The LPC-P170S-1X is a 17" P-CAP Panel PC powered by 7/6th Gen KabyLake-U / Skylake-U Core i7/i5/i3, Ip65 / 66 Bezel-Free and Wide Range Power Input.Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
| Touch Technology | Projected Capacitive |
|---|---|
| Ingress Protection | IP65, IP66 |
| Brightness | 350nit, Standard |
| Resolution | 1280x1024, Special/Other |
| GPU | Integrated GPU |
| Memory Capacity | Up to 16GB |
| Cooling Type | Fanless, Yes |

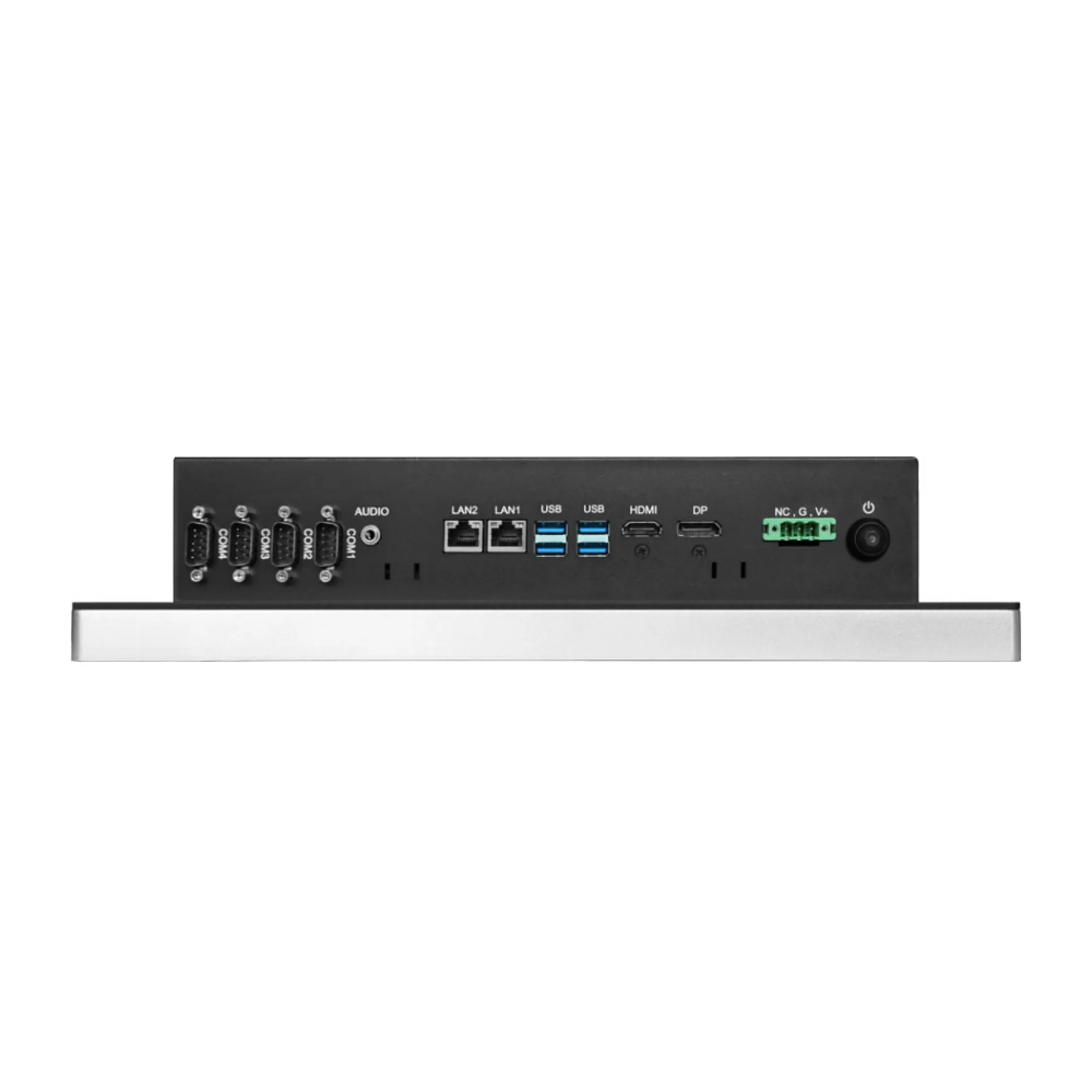

| Serial Ports (COM) | 1 Port, 3 Ports, 4 Ports, RS-232, RS-232/422/485 |
| USB Ports | 4 Ports, 4 Ports, USB 3.0 |
| Ethernet Ports (LAN) | 2 Ports, 2 Ports |
| Wireless | Wi-Fi |
| Audio | Yes |
| Video Ports | 1x DisplayPort, 1x HDMI, 2 Ports |
| Storage Type | 1, 2, 3, mSATA, SATA |
| Expansion Type | 2, 2, Any Expansion Type, Mini PCI Express |
| Input Voltage | 12-24 VDC |

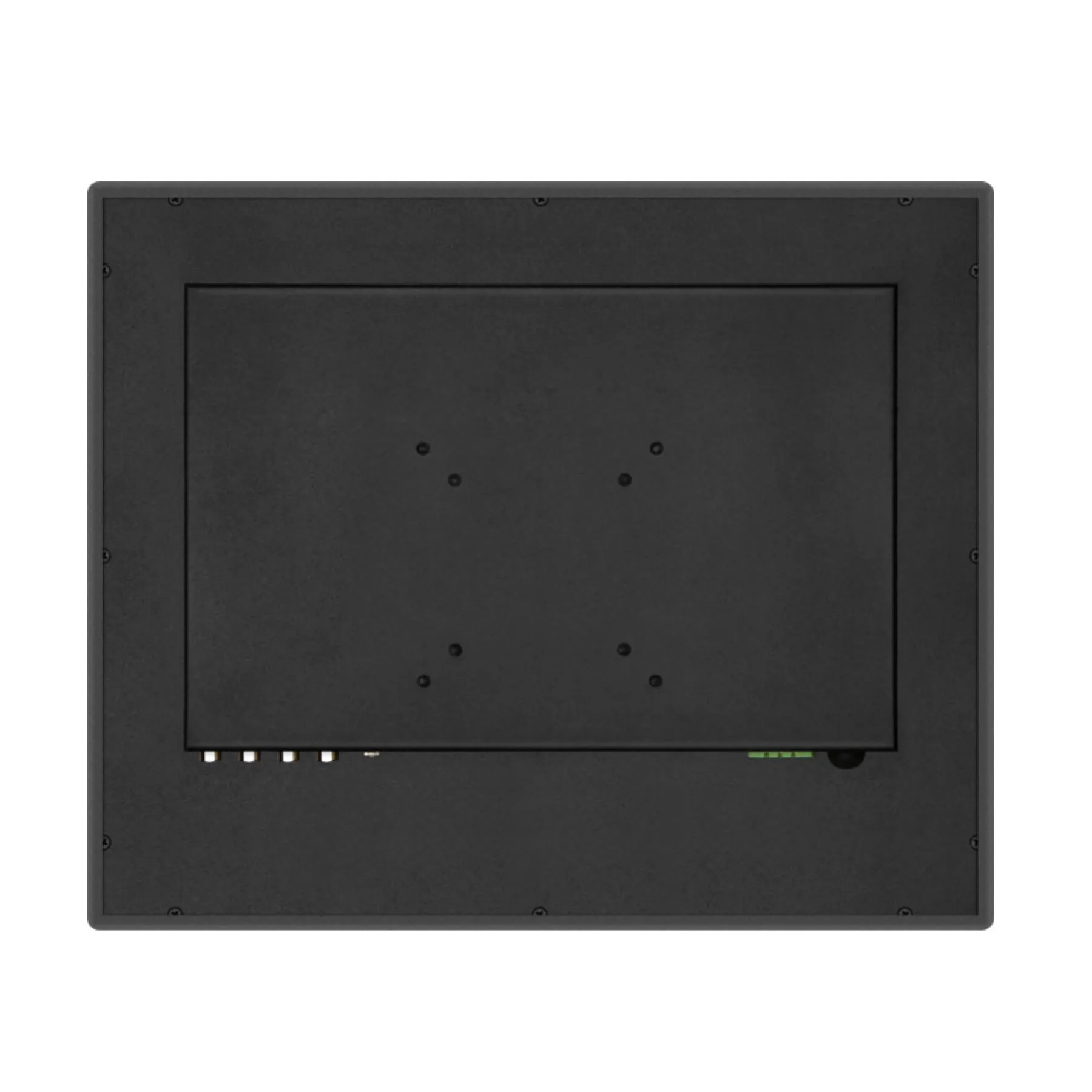

| Mounting Options | Panel-mount, VESA-mount |
| Operating Temperature | -20°C to 60°C, Wide |
| Certifications | CE/FCC |
| OS Support | Windows 10, Windows 10 IoT, Windows 10 Pro, Windows 7, Windows 8 |
