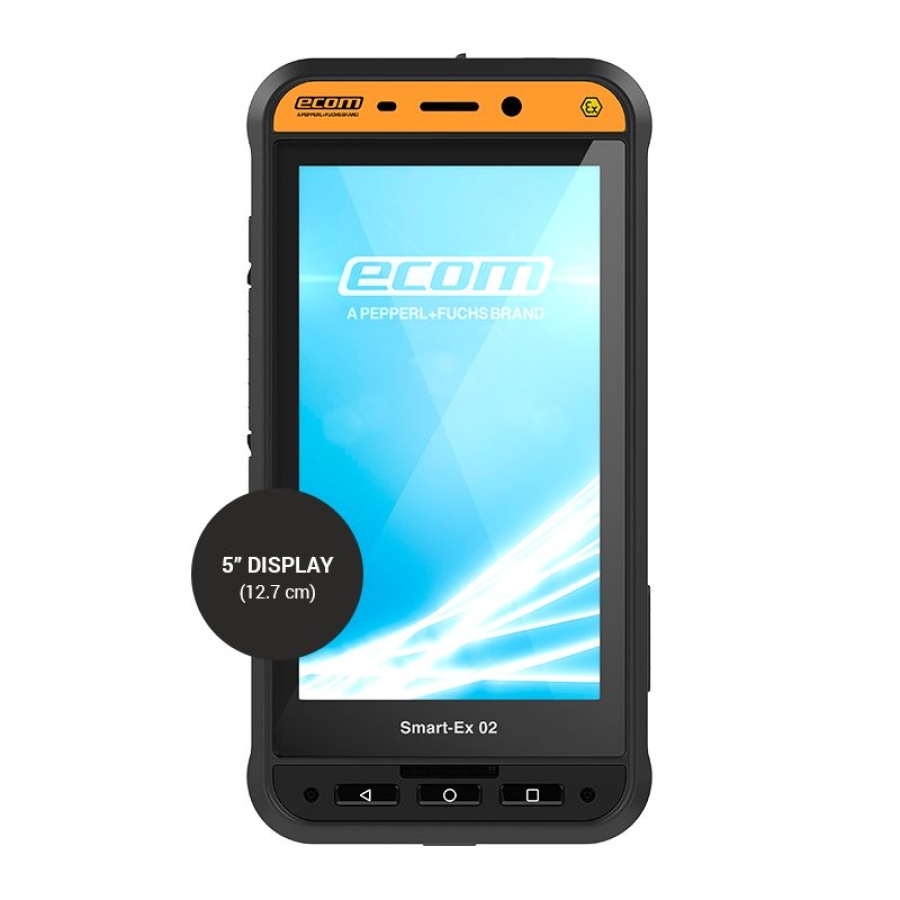

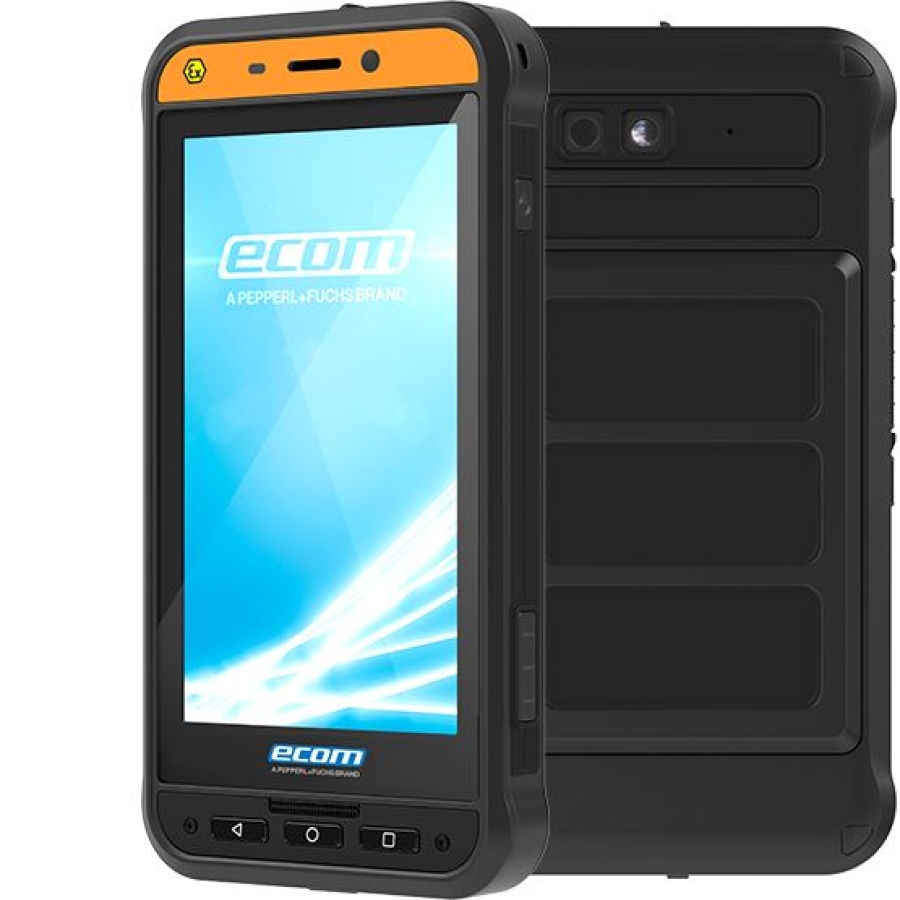

Ecom Smart-Ex 02 DZ2 Intrinsically Safe Smartphone: Zone 2 and Division 2
End of Life
- 4G / LTE standard (SIM unlocked)
- Supports Dual-SIM
- Supports 21 LTE bands
- Android™ 9 operating system
- 3 GB RAM, 32 GB ROMUp to 128 GB additional memory with microSD
- WiFi Standard 802.11 a/b/g/n/ac/e/k/r/hWiFi 2.4 Ghz und 5 Ghz support
- Bluetooth® 4.2 incl. BLE
- GPS / A-GPS / Glonass / Beidou / Galileo / NFC
- 2 cameras: 12 MP camera with autofocus and LED flash + 5 MP camera
- Waterproof magnetic USB 2.0 connection
- Replaceable 4400 mAh battery
- Approved for Android Enterprise
Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.
Details
The Ecom Smart-Ex 02 DZ2 is the successor of the intrinsically safe smartphone Smart-Ex® 201 for Zone 2/22 and DIV 2 areas. In addition, it meets all important global hazardous location and regulatory certifications.
The rugged smartphone has a large, high-resolution display, powerful features, and optimized accessories. Its extended temperature range makes it suitable for even the harshest environments.
Designed to support 21 LTE frequency bands, the Smart-Ex 02 has no SIM lock and can be connected to different networks worldwide. An Android™ 9 operating system enables the intrinsically safe device to work safely, quickly, and efficiently.
The ergonomic design and intuitive user interface enhance the user experience, and optimized accessories and peripherals ensure total compatibility with current and future ecom products. With the most powerful replaceable battery on market (4400 mAh), longer shifts and 24-hour work coverage are possible.
The Smart-Ex 02 also sets new standards when it comes to security. Regular security updates prevent unauthorized access to confidential personal and company data.
To ensure unlimited, long-term use of the smartphone, ecom offers a three-year service level agreement. Pepperl+Fuchs’ global sales and service network provides excellent customer service around the globe. Support from ecom’s system engineers and development teams is also available when software requirements change.
Ordering Info
Ecom Smart-Ex 02 DZ2 Intrinsically Safe Smartphone: Zone 2 and Division 2
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| Operating System | Android™ 9.0 |
| Processor | Qualcomm Snapdragon 450 platform |
| Band | Cellular frequency bands: |
| 4G LTE FDD: B1, B2, B3, B4, B5, B7, B8, B11, B12, B13, B20, B21, B25, B26, B28, B66, B71 | |
| 4G LTE TDD: B38, B39, B40, B41 | |
| 3G UMTS: 850 / 900 / 1700 / 1900 / 2100 MHz | |
| 2G GSM: 850 / 900 / 1800 / 1900 MHz | |
| Memory | 3 GB RAM, 32 GB ROM |
| User memory | SD card up to 128 GB |
| Display | 12.7 cm (5.0 inch) extreme shock and scratch resistant Gorilla® Glass with glove touch and wet mode |
| Ports | 3.5 mm jack connection with special ecom mounting solution |
| 7-pins water-proof magnetic USB 2.0 connector | |
| Dimensions | 163 x 82 x 22 mm |
| Weight | approx. 380 g |
| Connectivity | 4G / LTE -standard (SIM unlocked); LTE Dual SIM; Nano SIM |
| WiFi 2.4 Ghz and 5 Ghz support | |
| WiFi standards 802.11 a/b/g/n/ac/e/k/r/h | |
| Bluetooth® 4.2 incl. BLE (Bluetooth Low Energy) | |
| GPS / A-GPS / Glonass / Beidou / Galileo | |
| NFC | |
| Camera | 12 MP rear with autofocus and LED flash with flashlight function / 5 MP front (optional) |
| Battery | Replaceable Li-Ion Battery pack with 3.7 V / 4400 mAh / 16.28 Wh |
| Protection class | IP68, MIL-STD-810G |
| Applications | Google Play Store certified |
| Email Client | EAS, Gmail, POP3, IMAP |
| Ambient temperature | -20 °C … +60 °C (certification pending) |
| Dedicated Keys | PTT / Alarm / Power / Multifunction / Volume / Control / Hardware buttons for Android features |
| Microphone | Dual mic solution with three selectable background noise suppression options |
| Speaker | Loud Speaker with Gore® Protective Vents |
| Video streaming | Support MP4, M4V, 3GP, 3G2, TS, WMV, ASF, AVI, FLV, MKV, WEBM |
| ATEX (Europe) | II 3G Ex ic op is IIC T4 Gc IP64 |
| II 3D Ex ic op is IIIC T120°C Dc | |
| Ambient temperature: -20 °C ≤ Ta ≤ +60 °C | |
| IECEx (International) | Ex ic op is IIC T4 Gc IP64 |
| Ex ic op is IIIC T120°C Dc | |
| Ambient temperature: -20 °C ≤ Ta ≤ +60 °C | |
| SGS (CEC / NEC) | Class I, II, III, Division 2 Group A-G T4 IP 64 |
| Ex ic IIC T4 Gc | |
| Ex ic IIIC T120°C Dc | |
| Cl I Zn 2, AEx ic IIC T4 Gc | |
| Zn 22, AEx ic IIIC T120°C Dc | |
| -20°C ≤ Ta ≤ +60°C, IP 64 |
