eBOX560-500-FL

Name: Axiomtek eBOX560-500-FL Tiny Fanless Embedded System w/6th Gen Intel Core
SKU: eBOX560-500-FL

Axiomtek

Axiomtek eBOX560-500-FL Tiny Fanless Embedded System w/6th Gen Intel Core

eBOX560-500-FL

Brand: Axiomtek
6th generation Intel Core i7-6600U 3.4 GHz/ Celeron 3955U 2.0 GHz CPU options

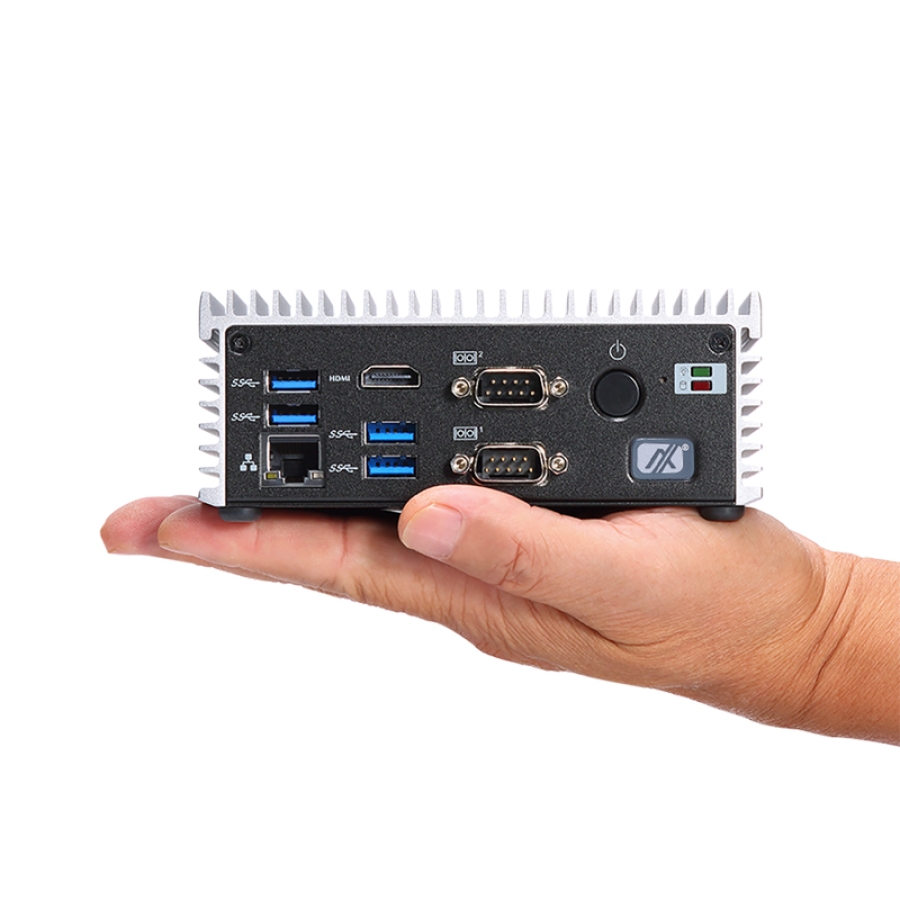

Ultra compact size
Comprehensive I/O
Wide operating temperature
1 x Full-size PCI Express Mini Card slot
Size: 141.5 mm (W) x 106 mm (D) x 55 mm (H)

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: eBOX560-500-FL

Categories: Axiomtek, Din Rail PCs, Embedded Box PCs, Fanless Embedded PCs, Fanless Industrial PCs, Industrial Computing, Industrial Mini PCs, Rugged Computers

Range: Axiomtek

Details

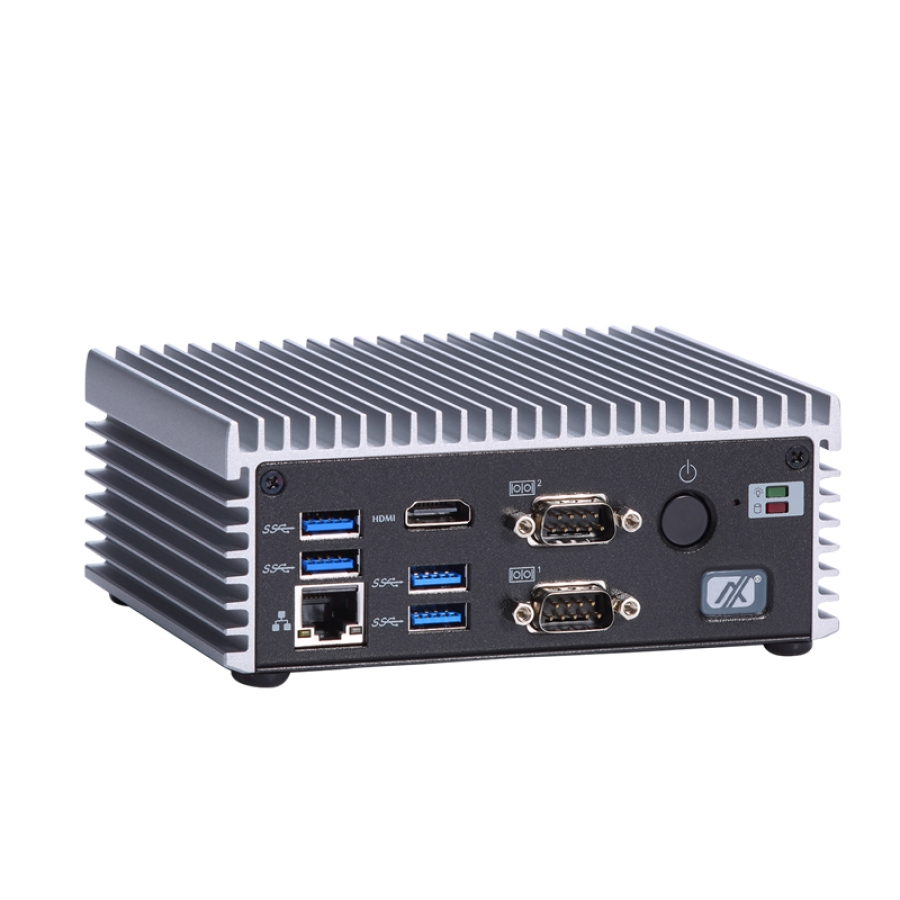

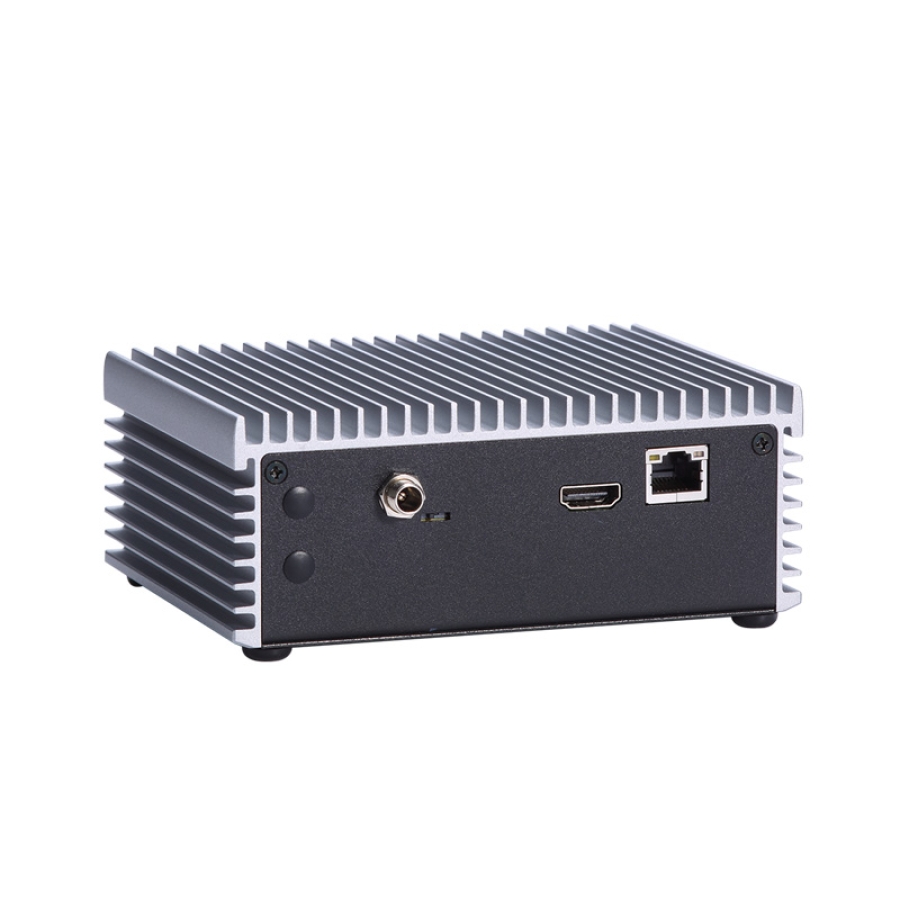

The fanless embedded system- eBOX560-500-FL- is an Intel Skylake based system in a compact, palm-sized enclosure with a comprehensive I/O interface. One 260-pin DDR4-2133 SO-DIMM socket with system memory up to 16GB is available, whilst the power-efficient IP40 rated system supports 12V DC input with screw-lock featuring an AT/ATX DIP switch. The eBOX560-500-FL is ideal for IoT solutions, signage, retail, smart factories, thin clients and industrial controller systems.

Ordering Info

eBOX560-500-FL-3955U-US Fanless embedded system with 6th generation Intel Celeron 3955U Skylake ULT processor, 2 HDMI, 2 GbE LANs, 4 USB 3.0, 2 COM, PCI Express Mini Card and 12V 60W power adaptor and US power cord
eBOX560-500-FL-3955U-EU Fanless embedded system with 6th generation Intel Celeron 3955U Skylake ULT processor, 2 HDMI, 2 GbE LANs, 4 USB 3.0, 2 COM, PCI Express Mini Card and 12V 60W power adaptor and EU power cord
eBOX560-500-FL-6600U-US Fanless embedded system with 6th generation Intel Core i7-6600U Skylake ULT processor, 2 HDMI, 2 GbE LANs, 4 USB 3.0, 2 COM, PCI Express Mini Card and 12V 60W power adaptor and US power cord
eBOX560-500-FL-6600U-EU Fanless embedded system with 6th generation Intel Core i7-6600U Skylake ULT processor, 2 HDMI, 2 GbE LANs, 4 USB 3.0, 2 COM, PCI Express Mini Card and 12V 60W power adaptor and EU power cord

Downloads

Axiomtek Ebox560-500-FL Datasheet (PDF)

0.34MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

CPU: 6th generation Intel Core i7-6600U 3.4 GHz/ Celeron 3955U 2.0 GHz ULT SoC (Skylake)
Chipset: SoC Integrated
System Memory: 1 x 260-pin SO-DIMM DDR4-2133 up to 16 GB
BIOS: AMI
COM: 1 x RS-232/422/485, 1 x RS-232
USB: 4 x USB 3.0
Ethernet: 2 x 10/100/1000Mbps
Display: 2 x HDMI
Digital I/O: N/A
Audio: N/A
Storage: 1 x 2.5” SATA HDD drive bay, 1 x mSATA (optional)
Expansion: 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
Others: 2 x SMA type connector opening for antenna, 1 x AT/ATX Quick switch, 1 x ATX power switch, 1 x reset button
Power Supply: 12VDC
Watchdog Timer: 255 levels, 1~255 sec.
Construction: Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature: -10°C ~ +55°C (-14°F~+131°F) (with W.T. SSD)
Relative Humidity: 10% ~ 95% , non-condensing
Vibration: 3 Grms with SSD™ (5-500Hz, X, Y, Z directions)
Dimensions (W x D x H) : 141.5 x 106 x 55 mm (5.57″ x 4.17″ x 2.17″)
Weight (net/gross): TBD
Certification: CE
EOS Support: Win 7, Win 10, Win 8.1, AXView 2.0
Mounting: Wall mount, Din-rail, VESA mount

Processor Type	Intel Core, up to 2 Cores, Intel Celeron, up to 2 Cores
Memory Capacity	Up to 16GB
Cooling Type	Fanless
Serial Ports (COM)	1x RS-232/422/485, 1x RS-232
USB Ports	4x USB 3.0
Ethernet Ports (LAN)	2x 1G
Wireless	Wi-Fi
Video Ports	2x HDMI
Storage Type	1x mSATA, 1x 2.5"
Expansion Type	1x Mini PCI Express
Input Voltage	12 VDC
Mounting Options	DIN-mount, VESA-mount, Wall-mount
Operating Temperature	Wide OT: -10°C to 55°C
Market Certifications	CE/FCC
OS Support	Linux, Windows 10
