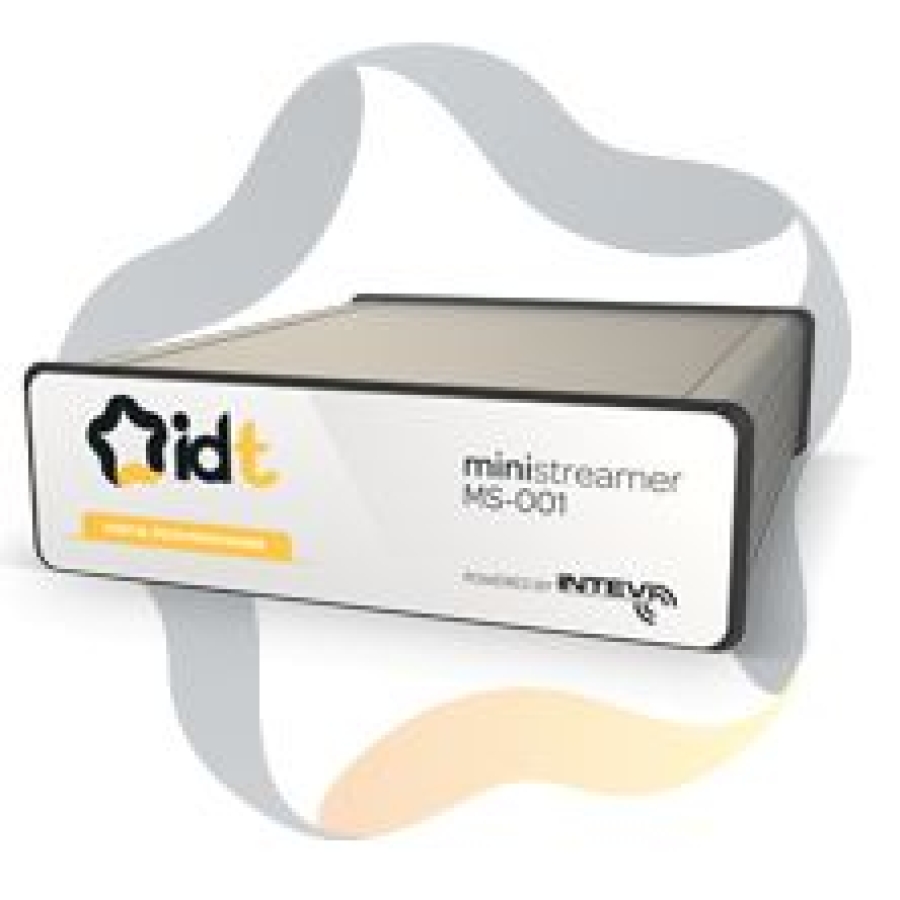

MS-001

DVB-T to Triple IPTV Gateway

End of Life

The ministreamer MS-001 is a small stand alone appliance that can decode terrestrial DVB-T signals and broadcast up to three independent channels from any transport stream on separate IP multicast addresses. This cost effective solution is ideal to create a head end solution on an IPTV platform, or can be used in isolation to deliver streamed TV signals for displaying as part of a digital signage solution. The MS-001 is automatically discoverable on the network using a UDP beacon and can be controlled fully using a UDP API.

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

The ministreamer MS-001 is a small stand alone appliance that can decode terrestrial DVB-T signals and broadcast up to three independent channels from any transport stream on separate IP multicast addresses. This cost effective solution is ideal to create a head end solution on an IPTV platform, or can be used in isolation to deliver streamed TV signals for displaying as part of a digital signage solution. The MS-001 is automatically discoverable on the network using a UDP beacon and can be controlled fully using a UDP API.

Ordering Info

  • MS-001: DVB-T to Triple IPTV Gateway

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • Frequency Range: 170 – 230MHz / 470 – 860MHz
  • Demodulation: COFDM 2K, 8K
  • Bandwidth: 6/7/8MHz automatic selection by region
  • Input Level: 60 – 80 dBaV (-47 to -27 dBm)
  • Input Impedance: 75 Ohm
  • Noise Fig: 5.5 – 7 dB
  • IF Centre Freq: 36.15MHz
  • Connector: F Female
  • Power: 7.5 – 12v DC
  • Weight: 280gm
  • Network Format: UDP streaming
  • Ethernet: 10/100
