FR rBOX104-FL

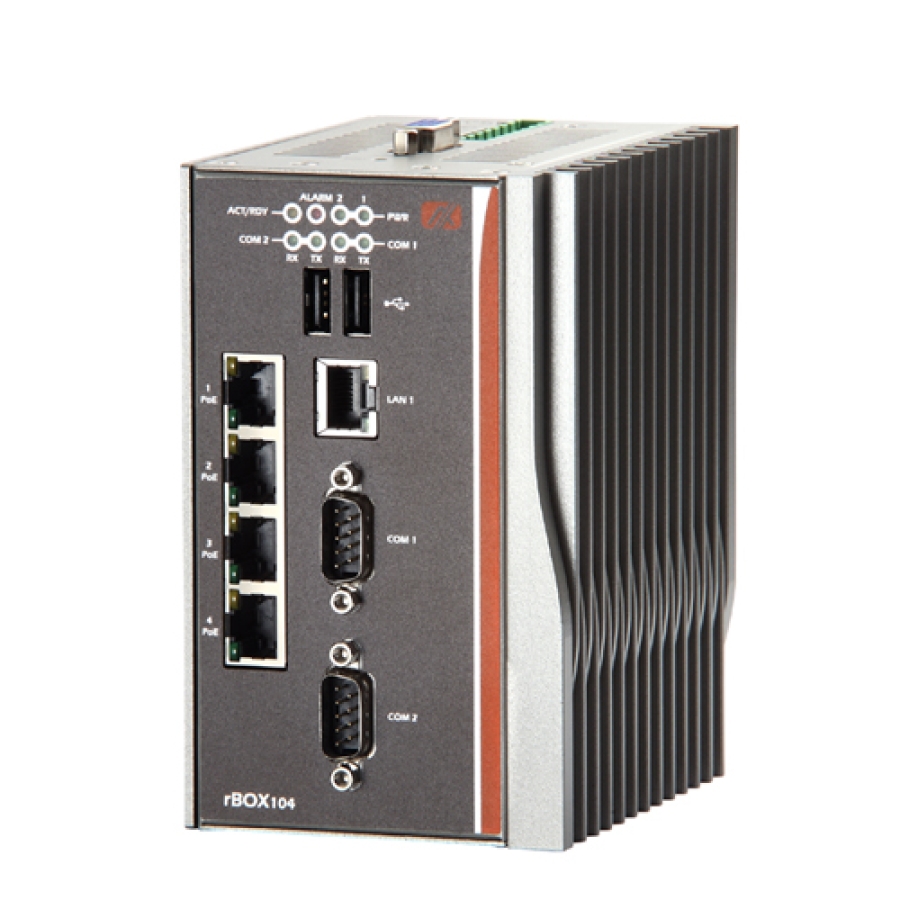

Axiomtek rBOX104-FL DIN-Mount Intel Atom Z510/520PT Fanless Computer, PoE
End of Life
Axiomtek's rBOX104 DIN-rail fanless embedded system utilises Intel's acclaimed Atom Z510PT/Z520PT range of processors and is designed to withstand temperatures ranging from -40C to +70C.
- Brand: Axiomtek
- Intel Atom Z510PT 1.1 GHz or Z520PT 1.33 GHz CPU options
- Wide operating temperature -40C ~ +70C
- 2 x COM ports, 2 x USB ports, 1 x VGA port
- 1 x 10/100Mbps Ethernet with Magnetic Isolation Protection
- Size: 81mm (W) x 110mm (D) x 135mm (H)
Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.
Details
Axiomtek's rBOX104 DIN-rail fanless embedded system utilises Intel's acclaimed Atom Z510PT/Z520PT range of processors and is designed to withstand temperatures ranging from -40C to +70C. The cost-effective rBOX104 supports four Power-over-Ethernet (PoE) ports, which can power IEEE802.3af compliant devices and transmit data simultaneously, saving wiring costs and making the device ideal for outdoor applications such as IP video surveillance, APs, industrial controls, and intercoms. Multiple serial ports, high-speed LANs and USB 2.0 ports further enable fast and efficient data communication, control and acquisition.
Ordering Info
- rBOX104-FL 1.1G: DIN-Mount Intel Atom Z510PT 1.1GHz Fanless Computer System with PoE
- rBOX104-FL 1.33G: DIN-Mount Intel Atom Z512PT 1.33GHz Fanless Computer System with PoE
- Memory: 1GB or 2GB Wide Temperature DDR400 SODIMM
- Compact Flash: 1GB or above, Wide Temperature
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
- Fanless operation
- Intel Atom processor Z510PT (1.1 GHz) or Z520PT (1.33 GHz)
- Wide temperature operation -40C ~ +70C
- Supports 4-port IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
- Supports 2 COM ports, 2 USB ports and VGA port
- Supports one 10/100Mbps Ethernet with Magnetic Isolation Protection
- SNMP V1/V2c
- Supports CompactFlash
- 48VDC power input with terminal block
- Supports AXView monitoring software package
