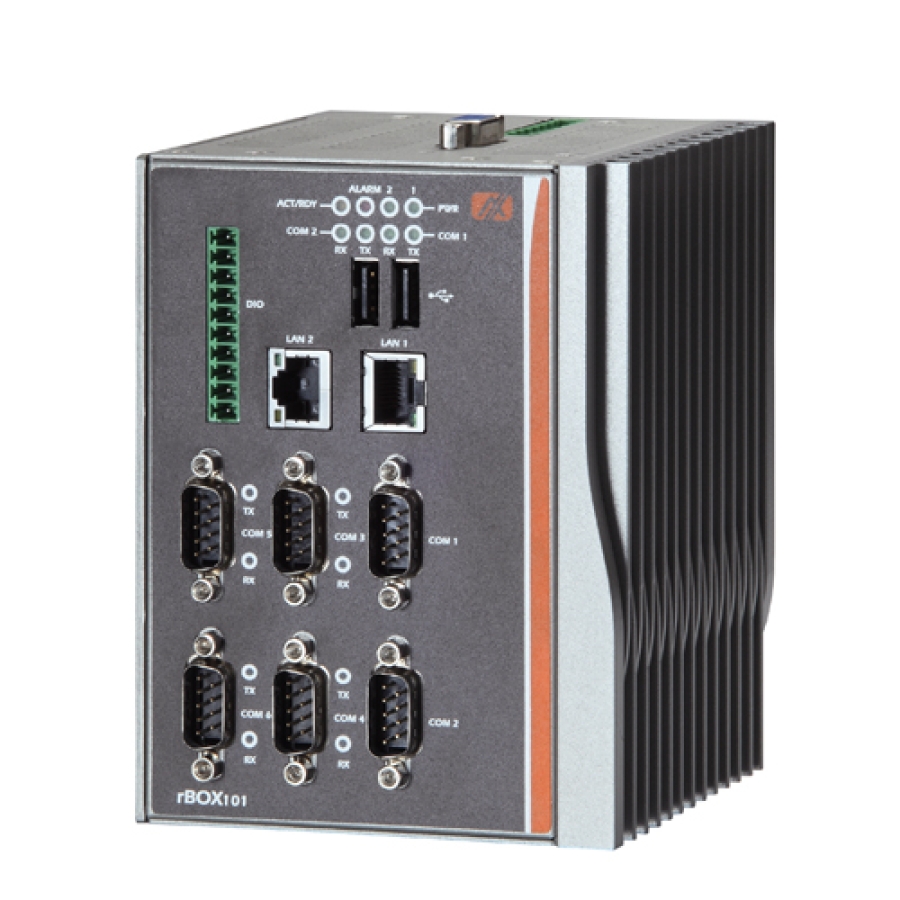

Axiomtek rBOX101-6COM-FL DIN-Mount Intel Atom Z510/520PT Fanless PC w/ 6 COM
End of Life
Axiomtek's rBOX101-6COM DIN-rail fanless embedded system utilises Intel's acclaimed Atom Z510PT/Z520PT range of processors and is designed to withstand temperatures ranging from -40C to +70C. The cost-effective rBOX101-6COM supports six isolated RS-232/422/485 serial ports, making it perfect for industrial control applications. Other features include high-speed LANs and USB 2.0 ports, further enabling fast and efficient data communication, control and acquisition.
- Brand: Axiomtek
- Intel Atom Z510PT 1.1 GHz or Z520PT 1.33 GHz CPU options
- Wide operating temperature -40C ~ +70C
- 6 x isolated COM ports
- Wide power input 12-48VDC
- Size: 101mm (W) x 110mm (D) x 135mm (H)
Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.
Details
Axiomtek's rBOX101-6COM DIN-rail fanless embedded system utilises Intel's acclaimed Atom Z510PT/Z520PT range of processors and is designed to withstand temperatures ranging from -40C to +70C. The cost-effective rBOX101-6COM supports 6 x isolated RS-232/422/485 serial ports, making it perfect for industrial control applications. Other features include 2 x LAN, 2 x USB 2.0 ports and 1 x isolated DIO, further enabling fast and efficient data communication, control and acquisition.
Ordering Info
- rBOX101-6COM-FL 1.1G: DIN-Mount Intel Atom Z510PT 1.1GHz Fanless Computer System with 6 COM
- rBOX101-6COM-FL 1.33G: DIN-Mount Intel Atom Z520PT 1.33GHz Fanless Computer System with 6 COM
- Memory: 1GB or 2GB Wide Temperature DDR400 SODIMM
- Compact Flash: 1GB or above, Wide Temperature
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
- Fanless operation
- Intel Atom processor Z510PT (1.1 GHz) or Z520PT (1.33 GHz)
- Wide temperature operation -40C ~ +70C
- Supports 6 x isolated COM ports, 2 x USB ports, 1 x DIO (4 in/out), 1 x VGA port
- 1 x isolated GbE and 1 x isolated 10/100Mbps Ethernet
- SNMP V1/V2c
- Supports CompactFlash
- 12-48VDC power input with terminal block
- Supports AXView monitoring software package
