FLOYD

Name: Diamond Systems FLOYD NVIDIA Jetson Nano/Xavier NX Carrier Board w/ Optional PoE
SKU: FLOYD

Diamond Systems

Diamond Systems FLOYD NVIDIA Jetson Nano/Xavier NX Carrier Board w/ Optional PoE

FLOYD

1x or 2x Gigabit Ethernet ports
Optional PoE+ support (with external power source)
2x HDMI 2.0a/b ports
1x USB 3.0 port with type A connector
2x USB 2.0 ports with type A connector; 1 port can serve as OTG
8x GPIO with 3.3V logic levels
2x serial ports with RS-232/422/485 (depending on model)
3x dual/quad lane MIPI/CSI camera ports
1x CAN port (NX module only)
1x Mini PCIe socket with PCIe and USB support
1x M.2 2280 PCIe x1 or x4 NVME socket
Size: 5.8 x 3.0″ / 147 x 76mm
Input voltage: 12-24VDC
-25 to +80ºC operating temperature (same as Jetson Nano / NX)

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: FLOYD

Categories: Diamond Systems, Industrial Motherboards, NVIDIA Jetson Carrier Boards, NVIDIA Jetson Embedded Carrier Boards, NVIDIA Jetson Nano Carrier Boards, NVIDIA Jetson Xavier NX Carrier Boards

Range: Diamond Systems

Details

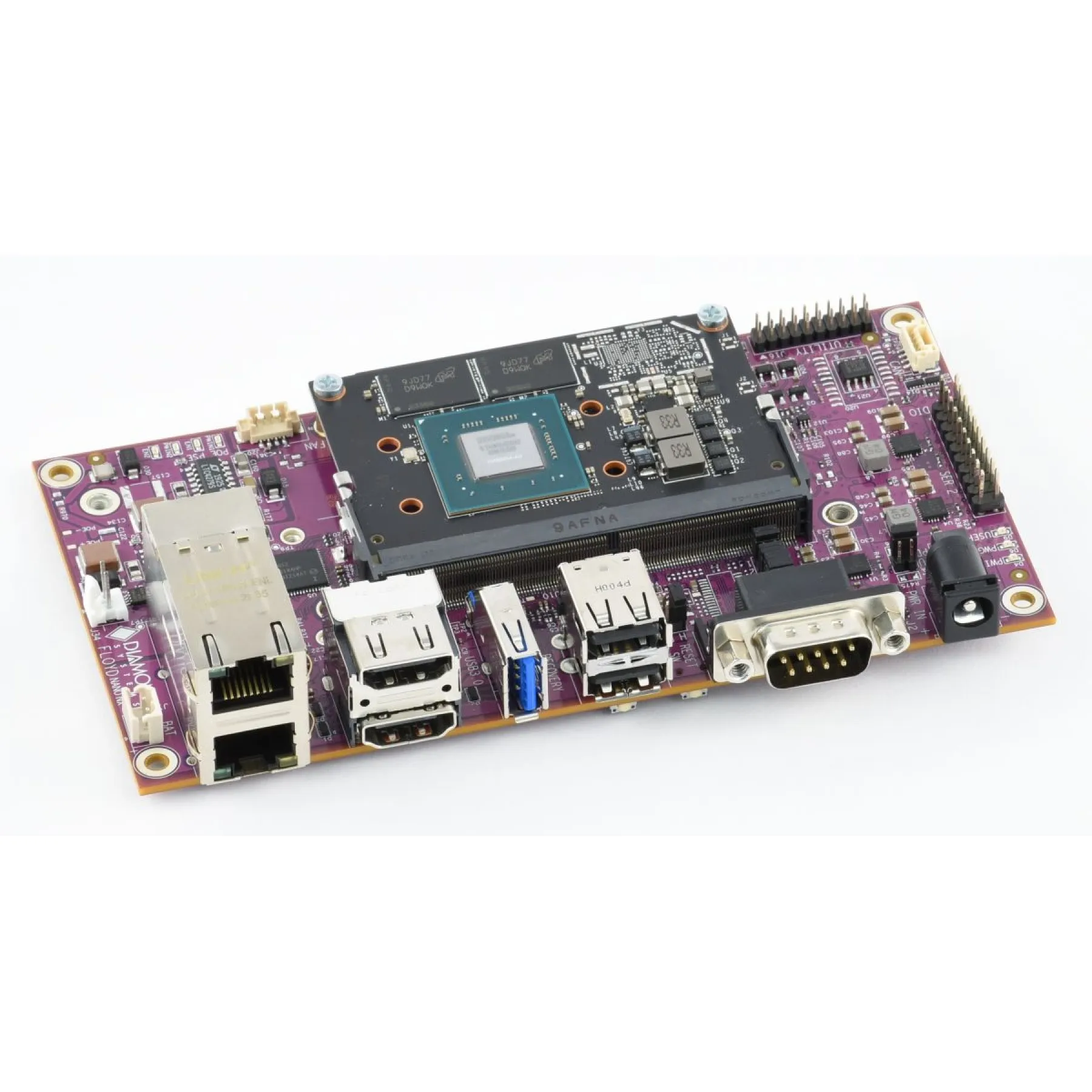

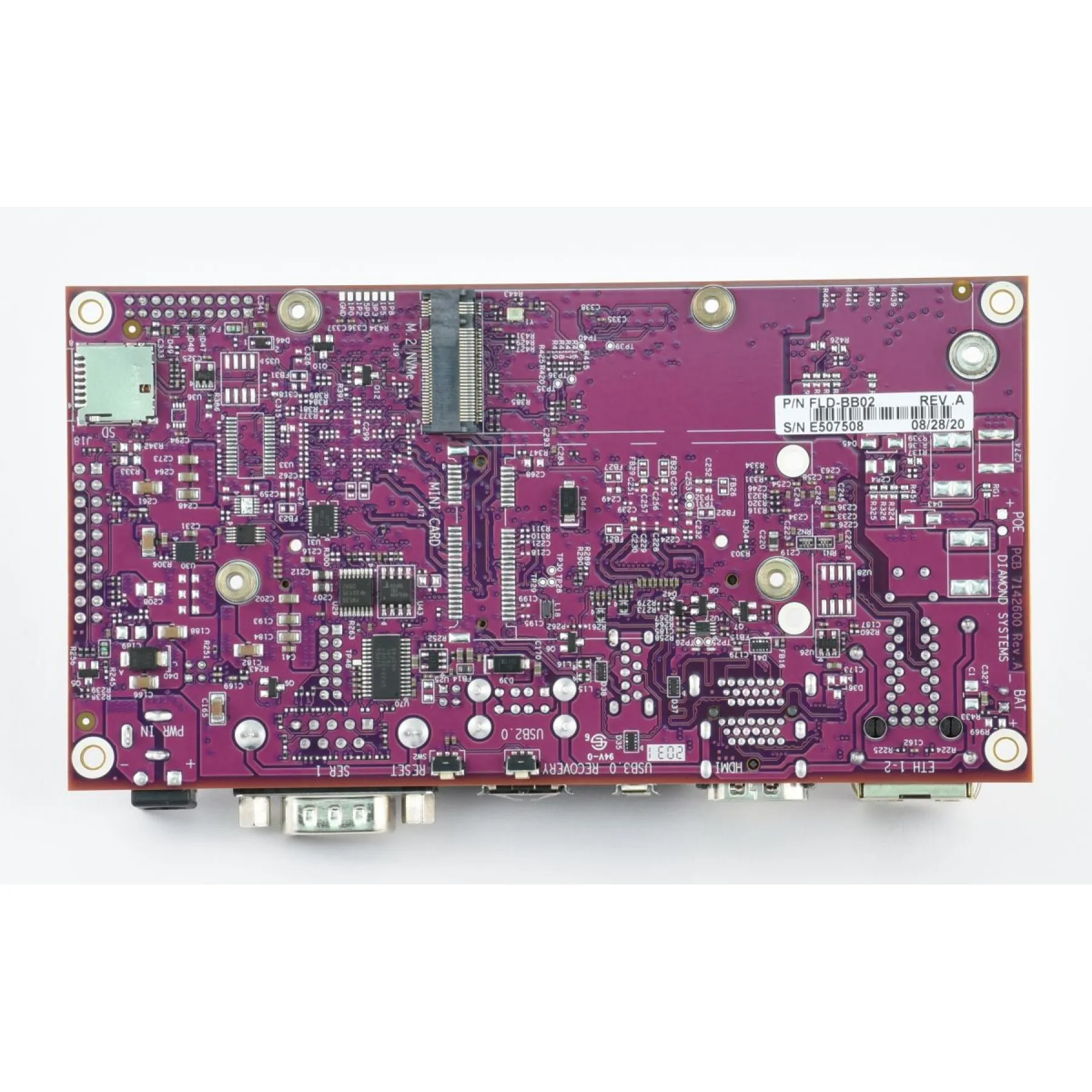

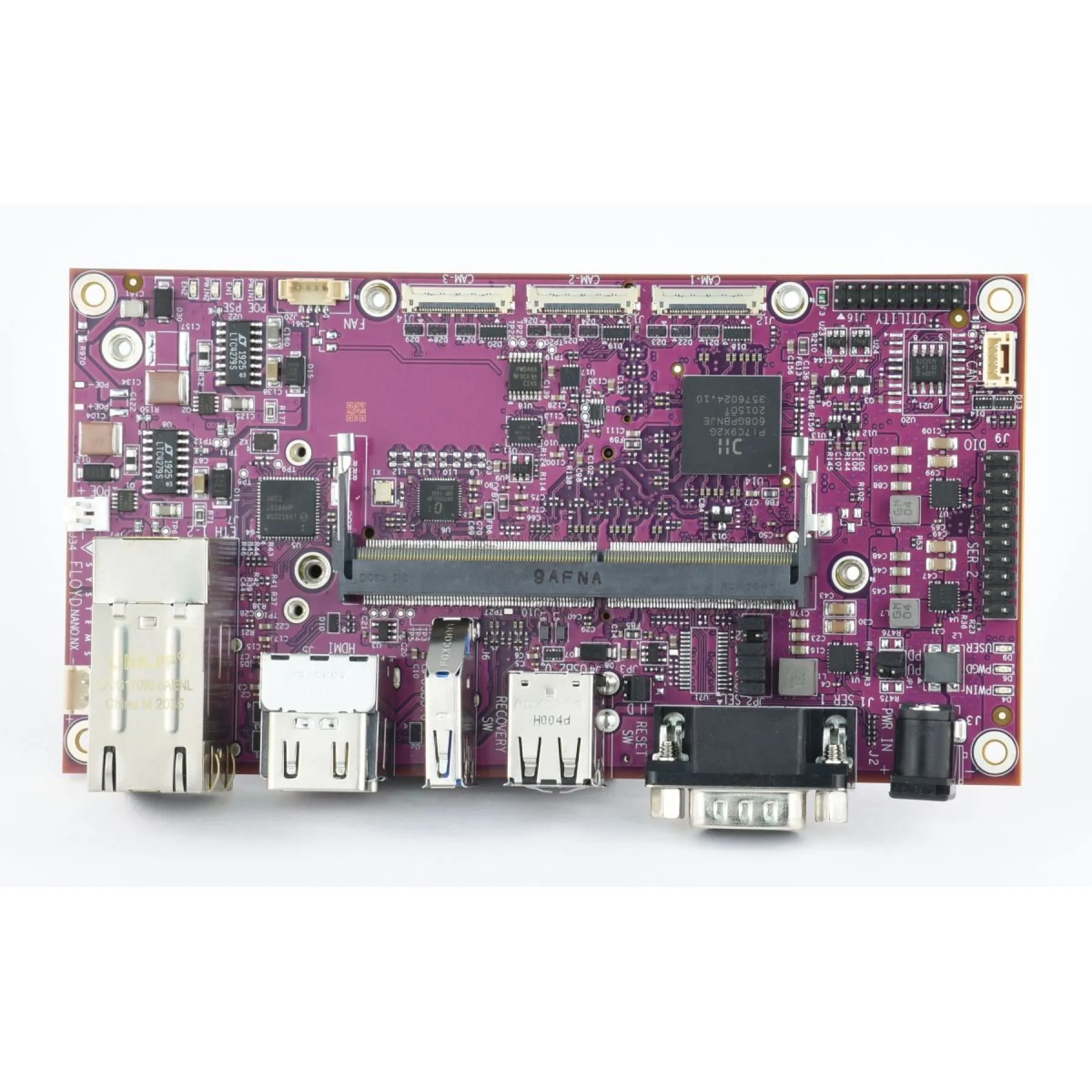

The Diamond Systems FLOYD carrier board converts the Nvidia Jetson Nano and Xavier NX modules into complete embedded systems by providing interface circuitry, I/O connectors for all module features, camera interfaces, power supply, and additional I/O. Camera inputs include 2x PoE Gigabit Ethernet ports, 3x MIPI/CSI 2/4-lane connectors, and 1x USB 3.0 port. MiniCard, M.2, and Micro SD sockets support I/O expansion and storage. FLOYD + NVIDIA redefine possibility; the combination of Nvidia’s performance/power efficiency and Diamond’s I/O enables a new generation of high-compute, low-cost solutions.

Floyd's multiple camera inputs provide increased versatility for use in a wide variety of imaging applications, which make up a substantial portion all Jetson applications today. As with all Diamond products, Floyd is designed and built for reliable performance and extended operating temperature to meet the full capabilities of the Jetson modules.

With the Xavier NX module installed, Floyd offers 1x CAN 2.0B port. The standard configuration is non-isolated; isolation is available as special order.

Floyd is supported by a full Linux BSP based on Nvidia Jetpack.

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Feature	FLD-BB01	FLD-BB02
Gigabit Ethernet	2	1
PoE	Both ports	No
HDMI	2	1
Camera CSI 4-Lane	3	3
USB 3.0	1	1
USB 2.0	2	2
M.2 2280 Socket	PCIe x1	PCIe x4
Minicard Socket	Full size PCIe + USB	No
SD Card	Yes	Yes
GPIO 3.3V	8	8
Serial	2x RS-232/422-485	1x RS-232 1x RS-232/485
CAN 2.0	1 (NX only)	No

AI Engine	NVIDIA Jetson Nano, NVIDIA Jetson Xavier NX
Memory Capacity	N/A
Memory Type	N/A
COM Ports	2x RS-232/422/485
LAN Ports	1x 1GB, 2x 1GB
USB Ports	1x USB 3.0, 2x USB 2.0
Video Ports	2x HDMI
Storage	1x SD CARD, 1x M.2 PCIe
Operating Temperature	-25°C to 80°C
