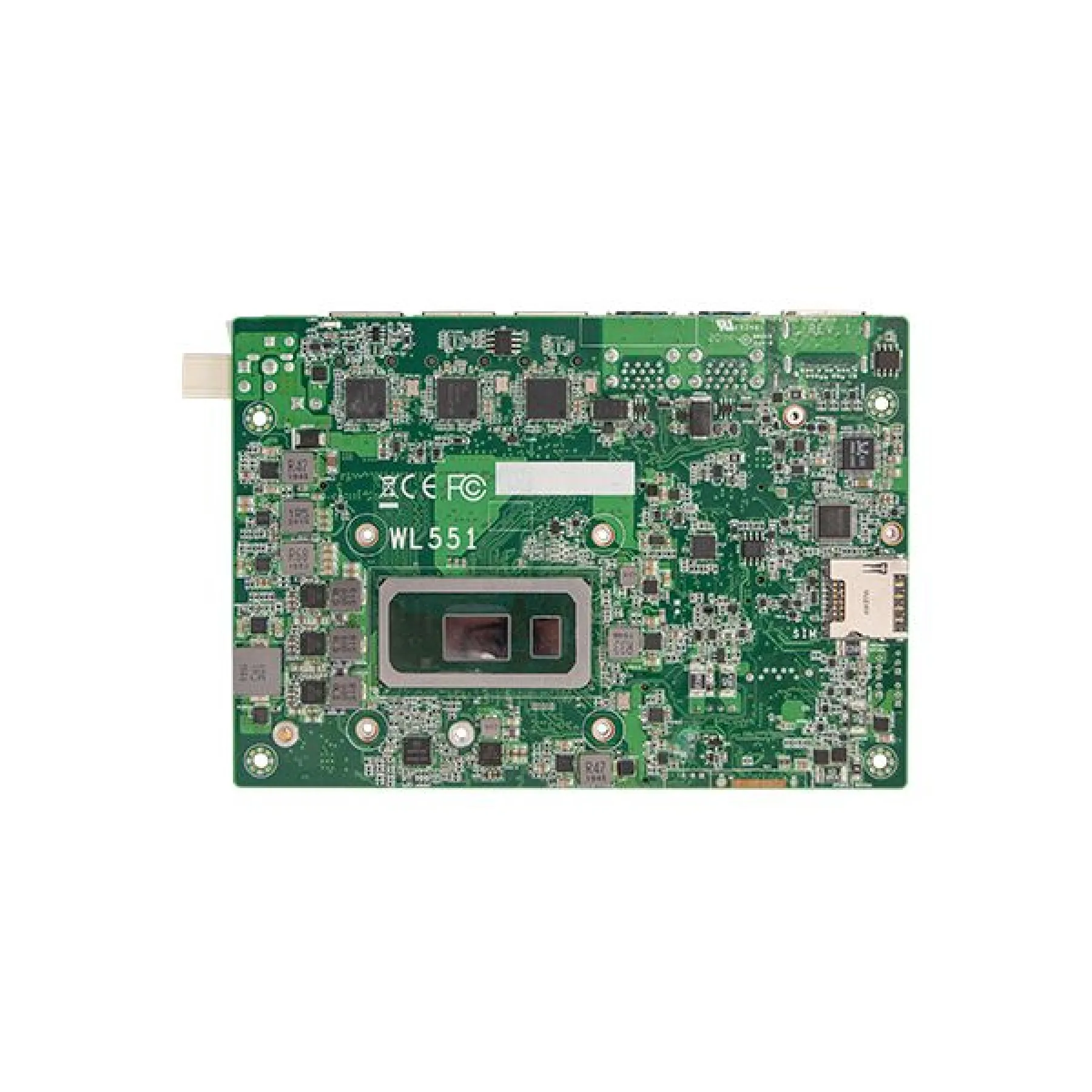

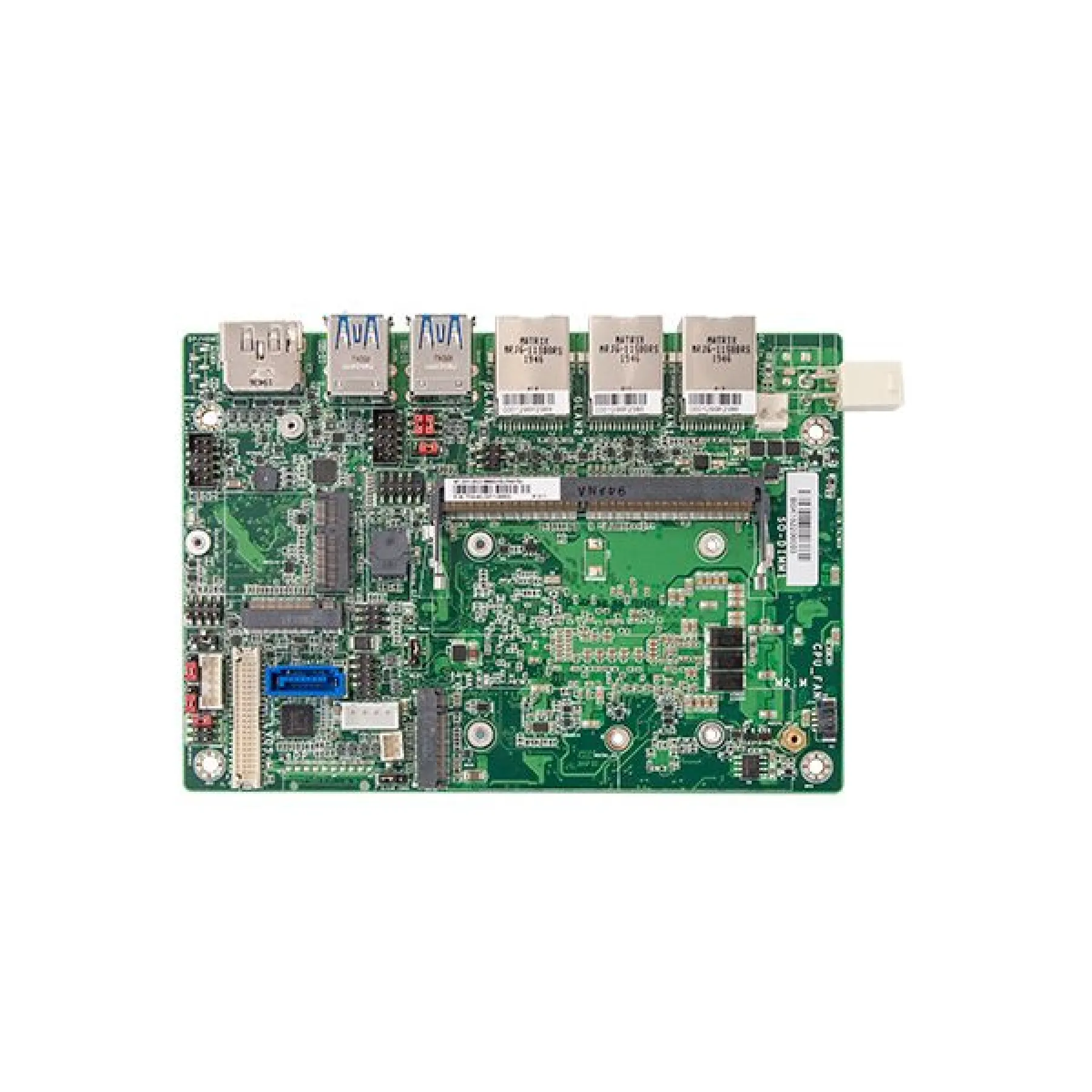

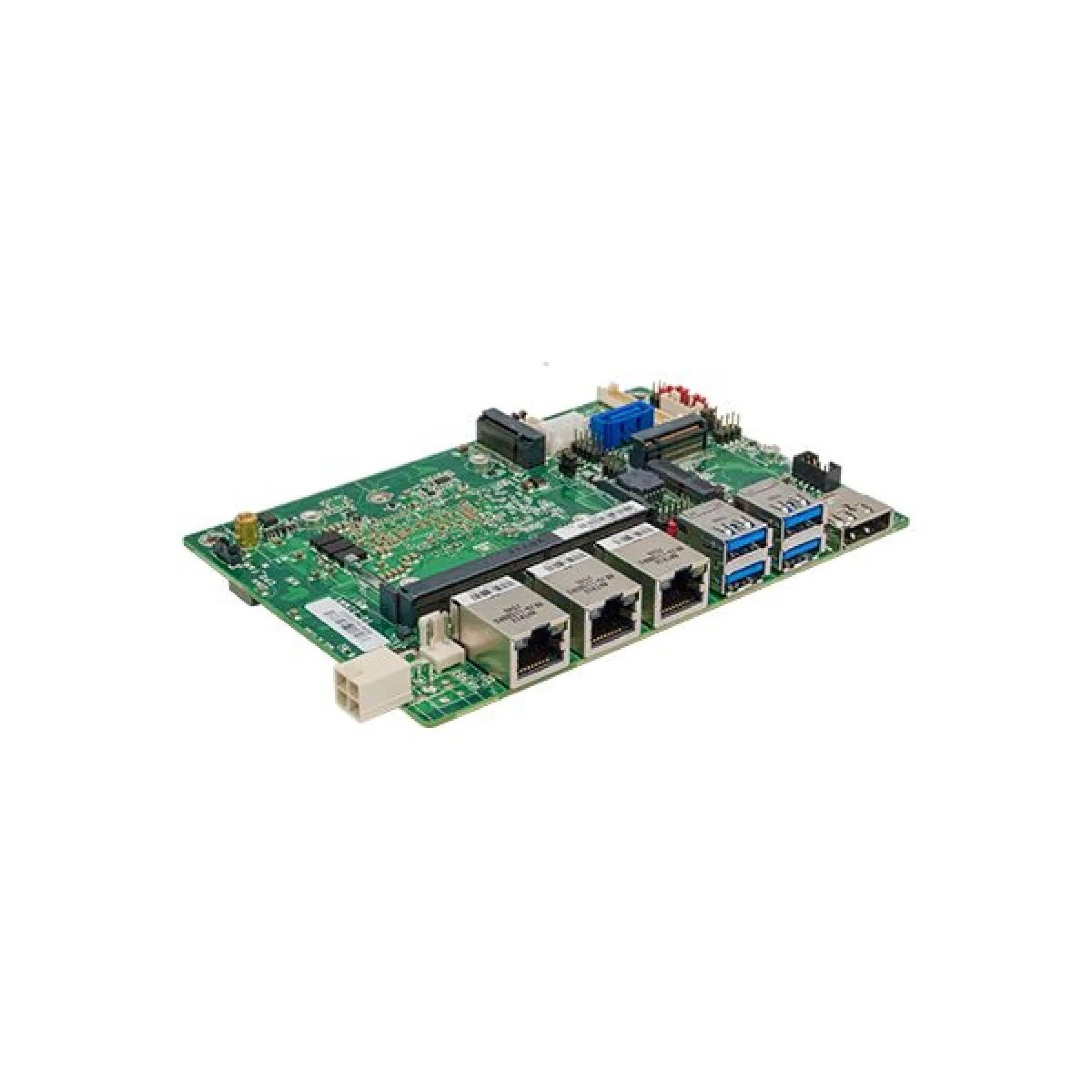

DFI WL551 8th Gen Intel Core 3.5″ Single Board Computer w 6x USB,3x LAN & 1x COM
WL551
- 8th Gen Intel CoreTM Processor 3.5″ SBC
- Dual independent displays: DP++ + HDMI, 1 LVDS or eDP (opt.)
- 4K High Resolution: Supports 4K/2K resolution
- Multiple Expansion: 1 M.2 M Key, 2 M.2 B Key, 1 M.2 E Key
- Rich I/O 1: 3 Intel GbE, 1 COM, 4 USB 3.1 Gen2, 2 USB 2.0
- 15-Year CPU Life Cycle Support Until Q2′ 35 (Based on Intel IOTG Roadmap)
Details
The DFI WL551 is a 3.5" Single Board Computer powered by 8th Gen Intel Core processors. This board supports 4K/2K resolutions and contains rich I/O which includes 3 x Intel GbE, 1 x COM, 4 x USB 3.1 Gen2 and 2 x USB 2.0 ports.
Ordering Info
| WL551-BCI-8665UE | i7-8665UE, 1 SODIMM, 3 GbE, 6 USB, 12V D, -5 to 65°C |
| WL551-BCI-8365UE | i5-8365UE, 1 SODIMM, 3 GbE, 6 USB, 12V D, -5 to 65°C |
| WL551-BCI-8145UE | i3-8145UE, 1 SODIMM, 3 GbE, 6 USB, 12V D, -5 to 65°C |
| WL551-BCI-4305UE | Celeron-4305UE , 1 SODIMM, 3 GbE, 6 USB, 12V D, -5 to 65°C |
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| Processor | 8th Generation Intel Core Processors, BGA 1528Intel Core i7-8665UE, Quad Core, 8M Cache, 1.7GHz (4.4GHz), 15WIntel Core i5-8365UE, Quad Core, 6M Cache, 1.6GHz (4.1GHz), 15WIntel Core i3-8145UE, Dual Core, 4M Cache, 2.2GHz (3.9GHz), 15WIntel Core Celeron 4305UE, Dual Core, 2M Cache, 2.0GHz (2.0GHz), 15W |
| Memory | One 260-pin SODIMM up to 32GBSingle Channel DDR4 up to 2400MHz |
| BIOS | AMI SPI 128Mbit |
| Controller | Intel UHD Graphics 620/ Intel UHD Graphics 610 (for Celeron 4305UE) |
| Feature | OpenGL 4.5, DirectX 12, OpenCL 2.1HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9 |
| Display | 1 x DP++/HDMI1 x LVDS or 1 x eDP (opt.)DP++: resolution up to 4096×2304 @ 60HzHDMI: resolution up to 4096×2160 @30HzLVDS: resolution up to 1920×1200 @60HzeDP: resolution up to 4096×2304 @ 60Hz |
| Dual Displays | 1x COMBO port (DP++/HDMI) + 1 x LVDS1x COMBO port (DP++/HDMI) + 1 x eDP (opt.) |
| Interface | 1 x M.2 M key 2280/2242 (PCIe x4/SATA 3.0)2 x M.2 B key 3042/2242 (USB 3.1 Gen1/USB 2.0/SATA 3.0 or PCIe x1)Support Micro SIM slot (opt.)1 x M.2 E key 2230 (PCIe x2/USB 2.0)Support Innodisk InnoAGE SSD |
| Audio Codec | Realtek ALC262-VC2-GR |
| Controller | 3 x Intel I211AT PCIe (10/100/1000Mbps) or3 x Intel I210IT PCIe (10/100/1000Mbps) |
| Rear I/O: Ethernet | 3 x GbE (RJ-45) |
| USB | 4 x USB 3.1 Gen 2 |
| Display | 1 x COMBO port (DP++/HDMI) |
| Internal I/O: Serial | 1 x RS-232/422/485 (2.00mm pitch)RS485 support auto flow control |
| USB | 2 x USB 2.0 (2.00mm pitch) |
| Display | 1 x LVDS LCD Panel connector or 1 x eDP LCD panel connector1 x LCD/Intverter Power |
| Audio | 1 x Audio (Line-out/Mic-in) |
| SATA | 1 x SATA 3.0 (up to 6Gb/s)1 x SATA Power |
| DIO | 1 x 8-bit DIO |
| SMBus | 1 x SMBus |
| Output & Interval | System Reset, Programmable via Software from 1 to 255 Seconds |
| TPM | fTPM2.0 (default)dTPM2.0 (opt.) |
| Type | Single 12V +/-10% DC |
| Connector | 4-pin Right Angle Type Connector (default)DC Jack (available upon request)4-pin Vertical Type Connector (available upon request) |
| Consumption | TBD |
| RTC Battery | CR2032 Coin Cell |
| OS Support | Windows 10 IoT Enterprise (64-bit)Linux |
| Temperature | Operating: -5 to 65°C, -30 to 80 °CStorage: -40 to 85°C |
| Humidity | Operating: 5 to 90% RHStorage: 5 to 90% RH |
| MTBF | TBD |
| Dimensions | 3.5″ SBC Form Factor146mm (5.75″) x 102mm (4.02″) |
| Height | PCB: 1.6mmTop Side: 15mmBottom Side: 4mm |
| Certifications | CE, FCC, RoHS |
| Packing List | 1 WL551 board1 SATA cable (Length: 300mm) 332-553001-205G1 SATA power cable (Length: 250mm) A81-004041-016G1 COM cable (Length: 250mm) 332-753040-000G1 USB 2.0 cable (Length: 200mm) A81-001032-016G1 Audio cable (Length: 160mm) A81-022007-016G1 Front Panel cable (Length: 250mm) A81-009307-001G1 Heatsink (Hight: TBD) TBD1 DVD 643-WL5511-000GNote: The items are subject to change in the developing stage. |
| Processor Type | Intel Celeron: Up to 2 Cores, Intel Core: Up to 2 Cores, Intel Core: Up to 4 Cores |
|---|---|
| Memory Type | DDR4 |
| COM Ports | 1x RS-232/422/485 |
| LAN Ports | 3x 1GB |
| USB Ports | 2x USB 2.0, 4x USB 3.1 |
| Video Ports | 1x DisplayPort, 1x eDP, 1x HDMI, 1x LVDS |
| Storage | 2x SATA |
| Operating Temperature | -30°C to 80°C, -5°C to 65°C |
