VP101-BT

Name: DFI VP101-BT 10.1" In-Vehicle Touchscreen Panel PC with Ignition Control
SKU: VP101-BT

DFI

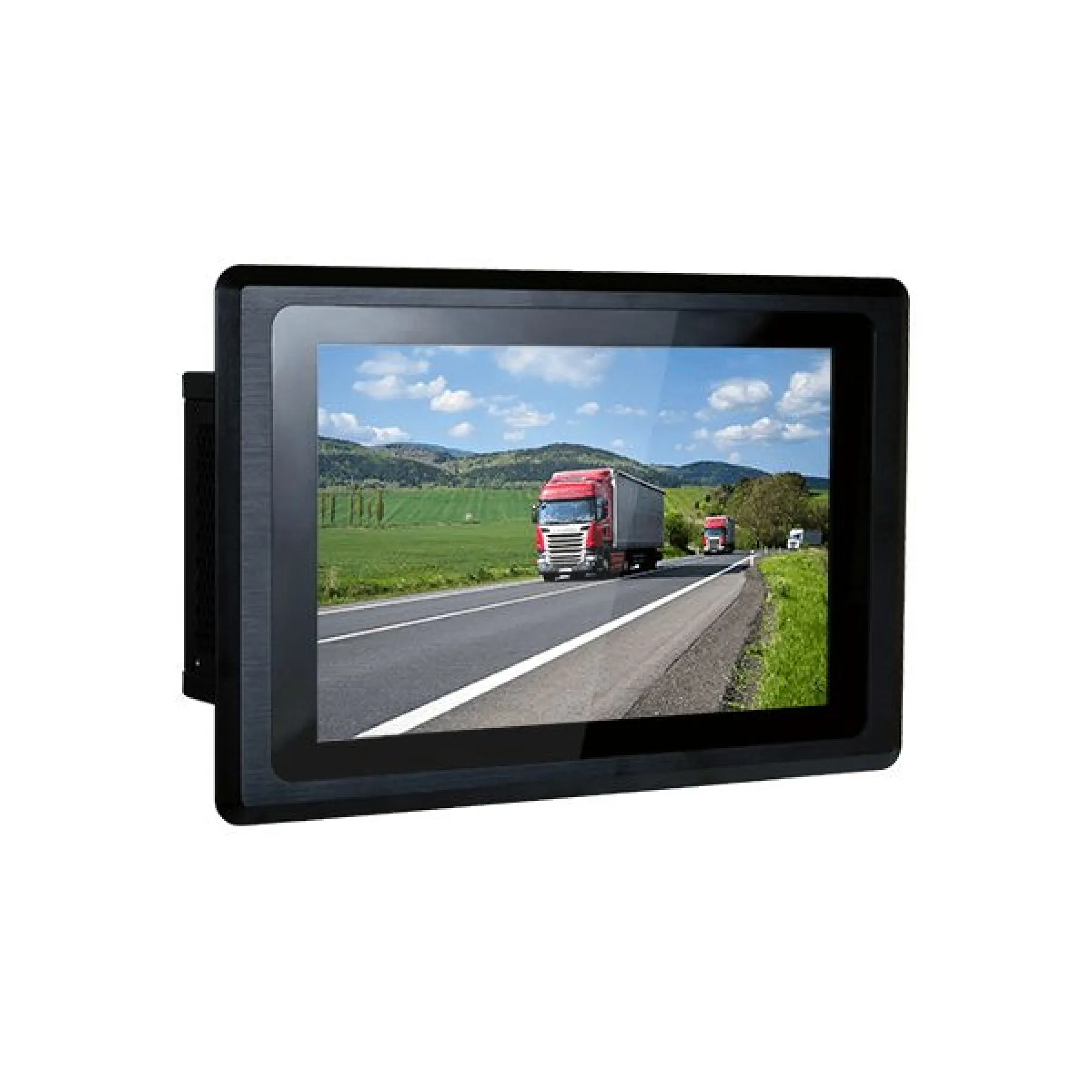

DFI VP101-BT 10.1″ In-Vehicle Touchscreen Panel PC with Ignition Control

VP101-BT

10.1″ 1280×800 TFT LCD Panel with Touch Screen
Supports Ignition Control and Delay On/Off Function
IP65 Front Panel Protection
VESA/Panel Mount
Rich I/O: 2 LAN, 5 x COM, 1 x USB 3.0, 3 x USB 2.0
15-Year CPU Life Cycle Support Until Q1′ 28 (Based on Intel IOTG Roadmap)

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: VP101-BT

Categories: Certified, Certified Computers, DFI, DFI Industrial Panel PCs & Displays, Embedded Box PCs, In Vehicle Computers, Railway Certified Computers

Range: DFI

Details

The DFI VP101-BT 10.1" In-Vehicle Touchscreen Panel PC with Ignition Control supports Ignition Control and Delay On/Off Function. It has IP65 Front Panel Protection along with VESA/Panel Mount. This PC contains Rich I/O ports including: 2 x LAN, 5 x COM, 1 x USB 3.0 AND 3 x USB 2.0.

Ordering Info

VP101-BT-454

10.1” Panel PC, BT253, Intel® Atom™ E3845, 4G RAM, 9~36V DC input

VP101-BT-252

10.1” Panel PC, BT253, Intel® Atom™ E3825, 2G RAM, 9~36V DC input

Downloads

DFI VP101-BT Datasheet (PDF)

0.81MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Processor Type	Intel Atom, up to 4 Cores
Memory Capacity	Up to 4GB
Serial Ports (COM)	1x RS-232, 4x RS-232/422/485
USB Ports	1x USB 3.0, 3x USB 2.0
Ethernet Ports (LAN)	2x 1G
Wireless	Cellular, Wi-Fi
Video Ports	1x VGA, 1x HDMI
Digital I/O	8 DIO
Audio	Yes
Storage Type	1x MicroSD, 1x 2.5", 1x eMMC
Expansion Type	3x Mini PCI Express
Input Voltage	9-36 VDC
Mounting Options	Panel-mount, VESA-mount
Market Certifications	CE/FCC, E-Mark
OS Support	Linux, Windows 10, Windows 7
