PL610-C622

Name: DFI PL610-C622 Intel Xeon Industrial ATX Motherboard w/ 6 DDR4 RDIMM up to 192GB
SKU: PL610-C622

DFI

DFI PL610-C622 Intel Xeon Industrial ATX Motherboard w/ 6 DDR4 RDIMM up to 192GB

PL610-C622

15-Year CPU Life Cycle Support Until Q3′ 32 (Based on Intel IOTG Roadmap)
Rich I/O: 2 Intel GbE, 1 dedicated IPMI LAN, 1x Fiber 10 GbE, 1 COM, 6 SATA 3.0, 5 USB 2.0, 2 USB 3.0
Multiple expansion: 2 PCIe x16, 1 PCIe x8, 2 PCIe x4, 1 M.2
VGA resolution up to 1920×1200 @ 60Hz
6 DDR4 RDIMM up to 192GB
Intel® Xeon® Scalable Processor with Intel® C622

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: PL610-C622

Categories: ATX Motherboards, DFI, DFI Industrial Motherboards, Industrial Motherboards

Range: DFI

Details

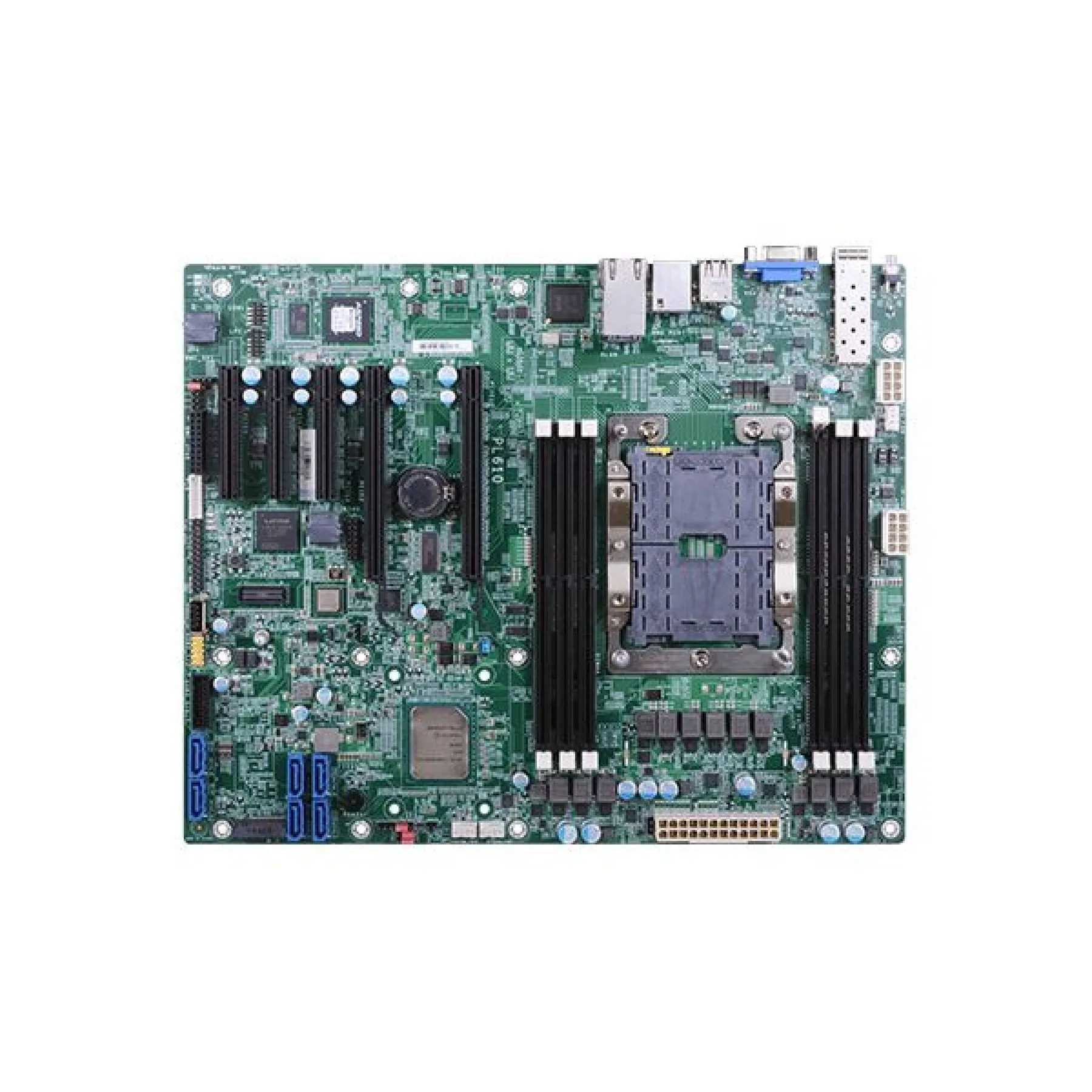

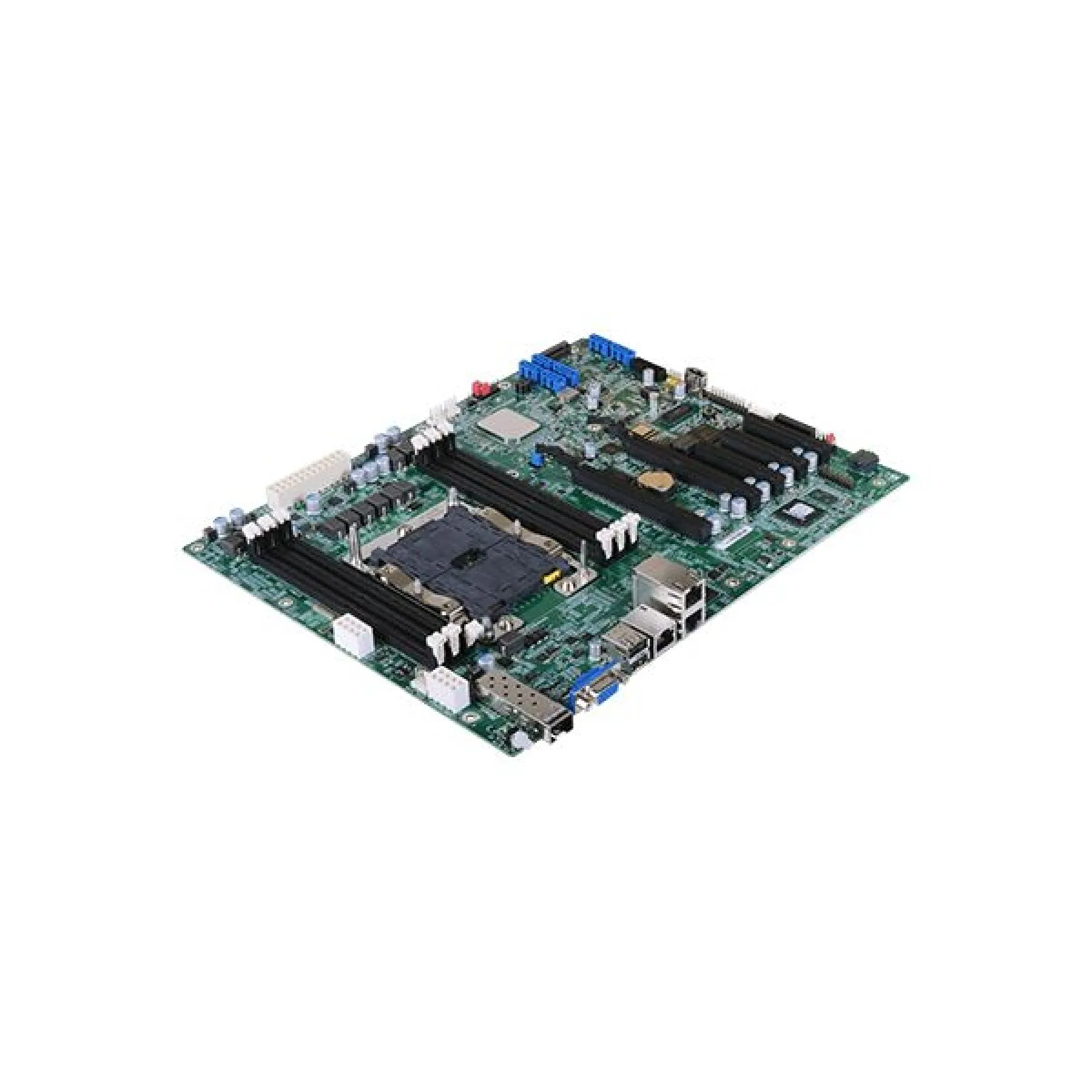

The DFI PL610-C622 is an Industrial ATX Motherboard powered by the Intel Xeon Scalable family processors with Intel C622. The rich I/O includes 2 Intel GbE, 1 dedicated IPMI LAN, 1x Fiber 10 GbE, 1 COM, 6 SATA 3.0, 5 USB 2.0 and 2 USB 3.0 alongside 2 PCIe x16, 1 PCIe x8, 2 PCIe x4 and 1 M.2 for multiple expansion.

Downloads

DFI PL610-C622 Datasheet (PDF)

1.18MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

System	Intel® Xeon® Scalable Processor Family
Expansion	2 x PCIe x16 (Gen 3)1 x PCIe x8 (Gen 3)2 x PCIe x4 (Gen 3)1 x M.2 2280 M key (PCIe Gen3 x 4 NVMe/SATA)
Ethernet	GbE: i350-AM210GbE: CS4227IPMI: RTL8211F
Rear I/O	2 x GbE (RJ-45), 1 x dedicated IPMI LAN, 1x Fiber 10 GbE, 2 x USB 2.0, 1 x PS/2 (mini-DIN-6), 1 x VGA
Internal I/O	1 x RS-232 (2.54mm pitch), 2 x USB 2.0 (2.54mm pitch), 1 x Vertical USB 2.0, 2 x USB 3.0, 6 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10, 1 x SMBus
Watchdog Timer	System Reset, Programmable via Software from 1 to 255 Seconds
Security	Infineon TPM 2.0 (optional)
Power Type	ATX
OS Support	Windows 10 IoT Enterprise LTSB RS1(64-bit)Windows Server 2012R2Windows Server 2016Linux
Environment	Operating: 0 to 60°C Storage: -40 to 85°C
Mechanism	ATX Form Factor 305mm (12″) x 244mm (9.6″)
Packing List	1 PL610-C622 motherboard1 I/O shield A49-PL6100-000G1 1 M.2 screw A32-112016-041G1 CPU clip 348-436471-100G

Processor Type	Intel Xeon: Up to 10 Cores, 12 Cores, 14 Cores, 16 Cores, 20 Cores, Intel Xeon: Up to 8 Cores
Memory Capacity	192GB
Memory Type	DDR4
COM Ports	1x RS-232
LAN Ports	1x 10GB, 3x 1GB
USB Ports	2x USB 3.0, 5x USB 2.0
Video Ports	1x VGA
Storage	6x SATA
Operating Temperature	0°C to 60°C
