PIC-Q170/H110

Name: DFI PIC-Q170/H110 6/7th Gen Intel Core w/ Intel Q170/H110 Industrial Motherboard
SKU: PIC-Q170/H110

DFI

DFI PIC-Q170/H110 6/7th Gen Intel Core w/ Intel Q170/H110 Industrial Motherboard

PIC-Q170/H110

7/6th Gen Intel Core with Intel Q170/H110
Rich I/O: 2 x Intel GbE, 4 x USB 3.0, 6 x USB 2.0
2 x DDR4 DIMM up to 32GB
Expansion Interface: 1 x PCIe x16 Gen. 3, 4 x PCIe x1 Gen. 3, 4 x PCI, 1 x M.2 2280 M Key
15-Year CPU Life Cycle Support Until Q4′ 29 (Based on Intel IOTG Roadmap)
2 independent displays: VGA + DVI-D (available upon request)
DVI resolution up to 1920×1200 @ 60Hz

Product Code: PIC-Q170/H110

Categories: DFI, Industrial Single Board Computers

Range: DFI

Details

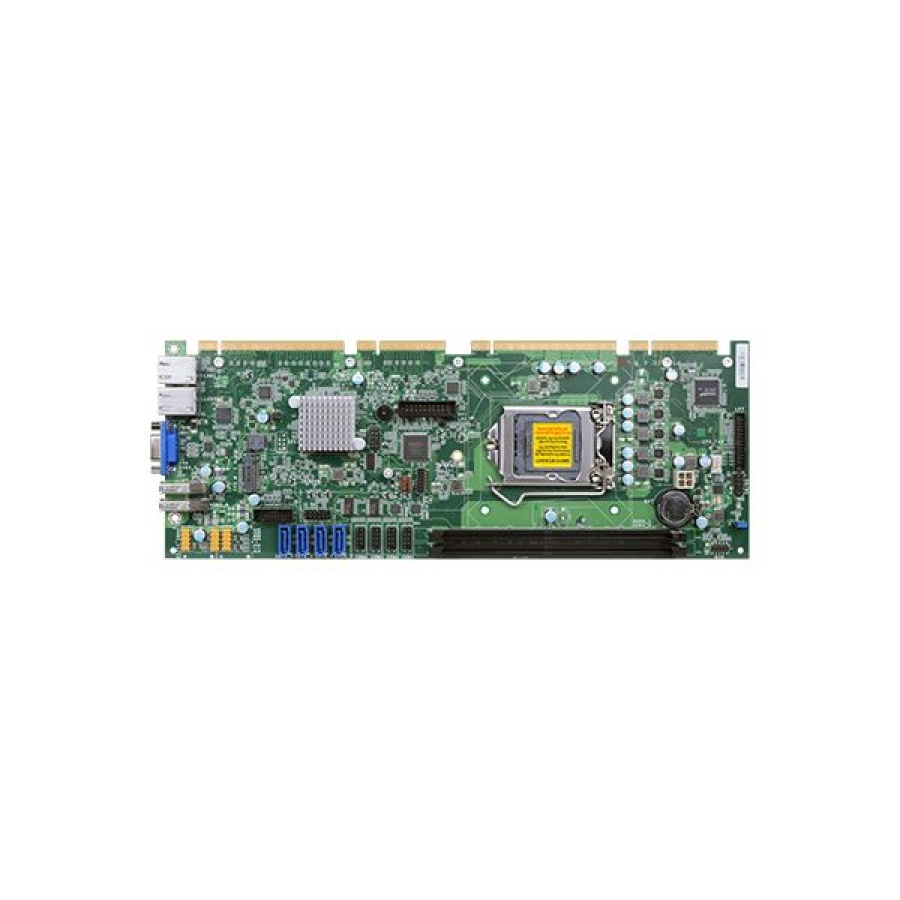

The DFI PIC-Q170/H110 is an industrial motherboard powered by 6th/7th Gen Intel Core processors including Intel Q170/H110. The rich I/O for this motherboard includes: 2 x Intel GbE, 4 x USB 3.0 and 6 x USB 2.0 ports alongside 2 x DDR4 DIMM for up to 32GB memory. The expansion interface includes 1 x PCIe x16 Gen. 3, 4 x PCIe x1 Gen. 3, 4 x PCI, and 1 x M.2 2280 M Key. This board from DFI has 2 independent displays: VGA + DVI-D with a DVI resolution up to 1920 x 1200 at 60Hz.

Downloads

DFI PIC-Q170/H110 Datasheet (PDF)

0.87MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

System	7th Generation Intel® Core™ Processors, LGA1151
Graphics	1 x VGA, 1 x DVI-D (available upon request) VGA: resolution up to 1920×1200 @ 60HzDVI: resolution up to 1920×1200 @ 60HzVGA + DVI-D (available upon request)
Expansion	1 x PCIe x16 Gen. 3, 4 x PCIe x1 Gen. 3, 4 x PCI, 1 x M.2 M key 2280 (PCIe/SATA3.0) (Q170 only)
Ethernet	Q170: 1 x Intel® I219LM PHY, 1 x Intel® I211AT PCIe (10/100/1000Mbps) (only Core i7/i5 support iAMT)H110: 1 x Intel® I219V PHY, 1 x Intel® I211AT PCIe (10/100/1000Mbps)

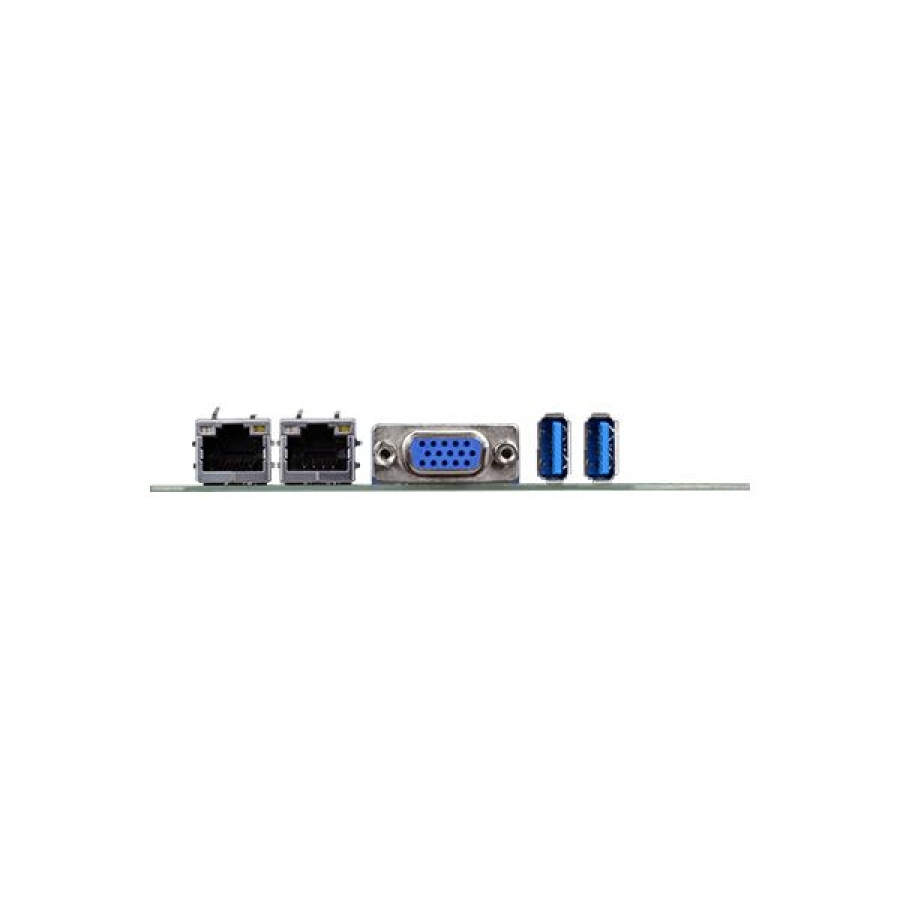

Rear I/O	2 x GbE (RJ-45), 2 x USB 3.0, 1 x VGA, 1 x DVI-D (available upon request)
Internal I/O	2 x RS232/422/485 (2.54mm pitch), 2 x RS232 (2.54mm pitch), 2 x USB 3.0 (2.0mm pitch) (Q170 only)6 x USB 2.0 (2.54mm pitch) (Q170), 4 x USB 2.0 (2.54mm pitch) (H110), 4 x SATA 3.0 (up to 6Gb/s), 1 x 8-bit DIO, 1 x SMBus, ATX 12V Power Connector and Expansion Goldfinger
Watchdog Timer	System Reset, Programmable via Software from 1 to 255 Seconds
Security	fTPM 2.0/dTPM 2.0(optional)
Power	Idle: i7-6700 65W: 12V @ 0.57A (6.84W), 5V @ 0.72A (3.6W), 3.3V @ 0.41A (1.353W)Max: i7-6700 65W: 12V @ 7.19A (86.28W), 5V @ 0.94A (4.7W), 3.3V @ 0.41A (1.353W)
OS Support	Windows 7 (32/64 bit), Windows 8.1 (64 bit), Windows 10 IoT Enterprise (64 bit), Note: 7th Gen Intel Core processors only support Win 10.
Environment	Operating: 0 to 60°C Storage: -20 to 85°C
Mechanical	Full Size PICMG 1.3 338mm (13.3″) x 126.39mm (4.98″)
Certifications	CE, FCC, RoHS

Processor Type	Intel Celeron: Up to 2 Cores, Intel Core: Up to 2 Cores, Intel Pentium: Up to 2 Cores, Intel Core: Up to 4 Cores
Memory Type	DDR4
COM Ports	2x RS-232, 2x RS-232/422/485
LAN Ports	2x 1GB
USB Ports	4x USB 3.0, 6x USB 2.0
Video Ports	1x DVI, 1x VGA
Storage	4x SATA
Operating Temperature	0°C to 60°C
