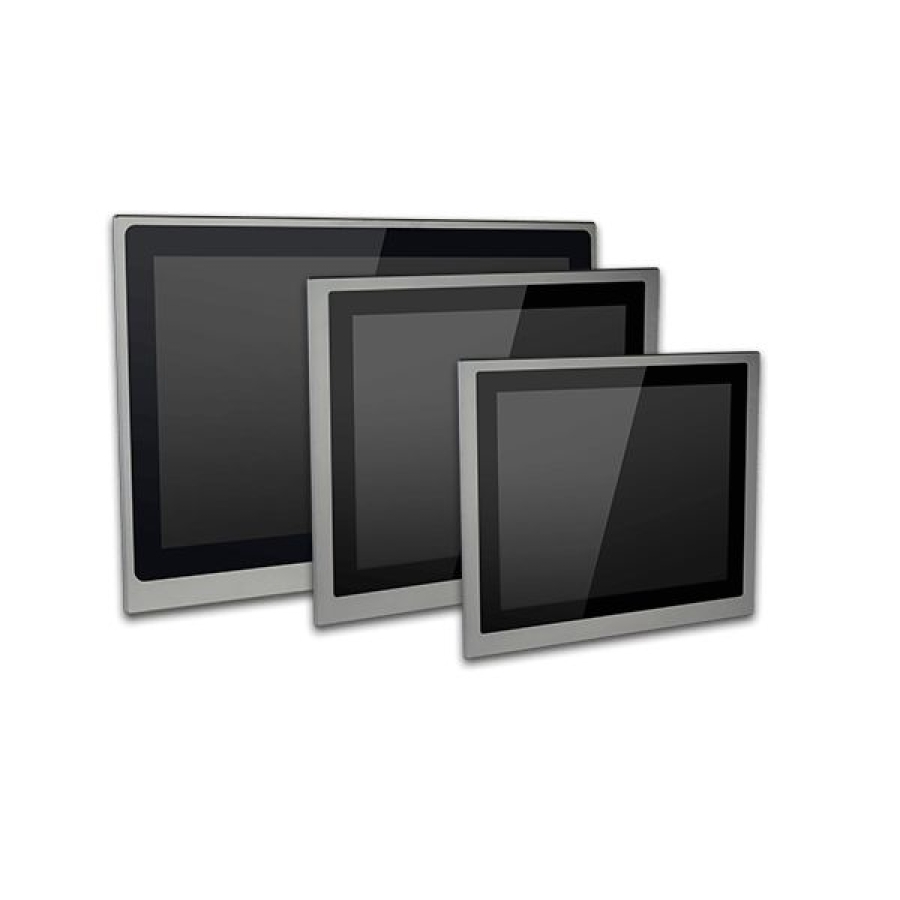

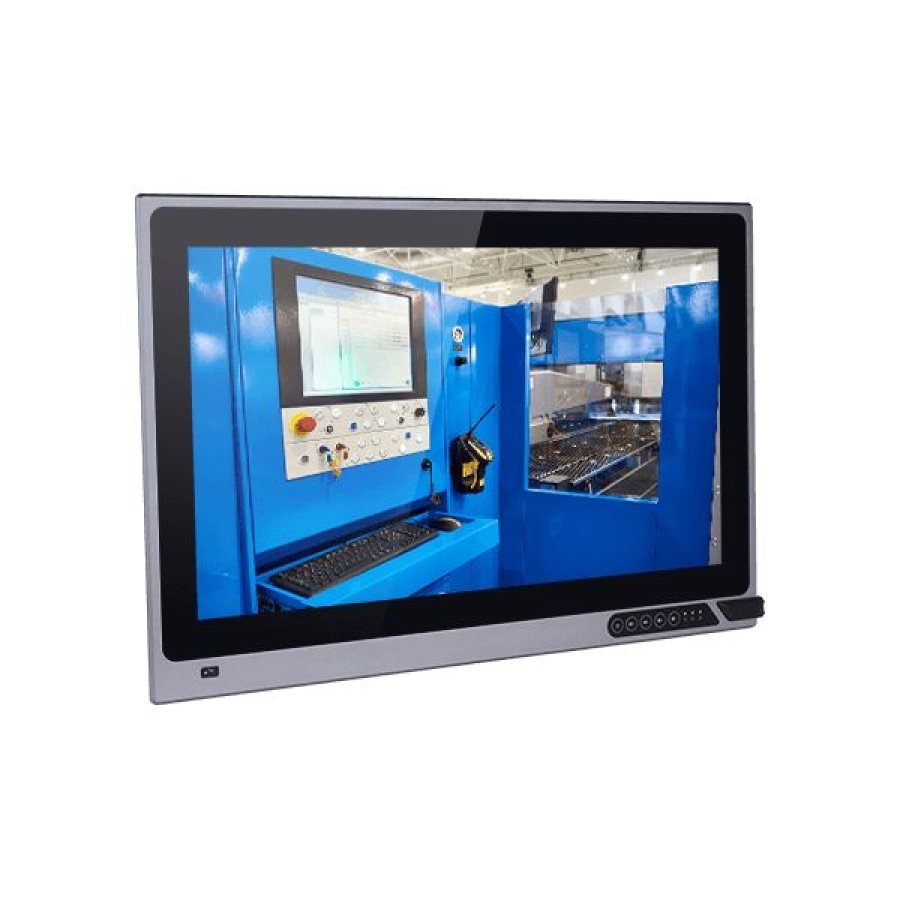

DFI KSM-KH Series 7th Gen Intel Core i7/i5/i3, Front IP65 Touch Panel PC
KSM-KH
- 15″, 15.6″, 17″, 18.5″, 19″, 21.5″ Displays
- Support Adaptive Display Platform
- Supports 9~36V Power Input
- Intel Core Processor with Fanless Design
- Multiple Panel Sizes with Resistive/P-Capacitive Touch Screen
- IP65 Front Panel Protection
- 15-Year CPU Life Cycle Support Until Q4′ 29 (Based on Intel IOTG Roadmap)
Details
The DFI KSM-KH Series is a high performance touch panel PC powered by 7th Generation Intel Core i7/i5/i3 Processors. This series comes in a variety of sizes including 15", 15.6", 17", 18.5", 19" and 21.5" Displays. All of these come with Resistive or Capacitive touch.
Ordering Info
|
KSM150-KH: |
15″ TFT LCD Panel |
| KSM156-KH: | 15.6″ TFT LCD Panel |
| KSM170-KH: | 17″ TFT LCD Panel |
| KSM185-KH: | 18.5″ TFT LCD Panel |
| KSM190-KH: | 19″ TFT LCD Panel |
| KSM215-KH: | 21.5″ TFT LCD Panel |
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification

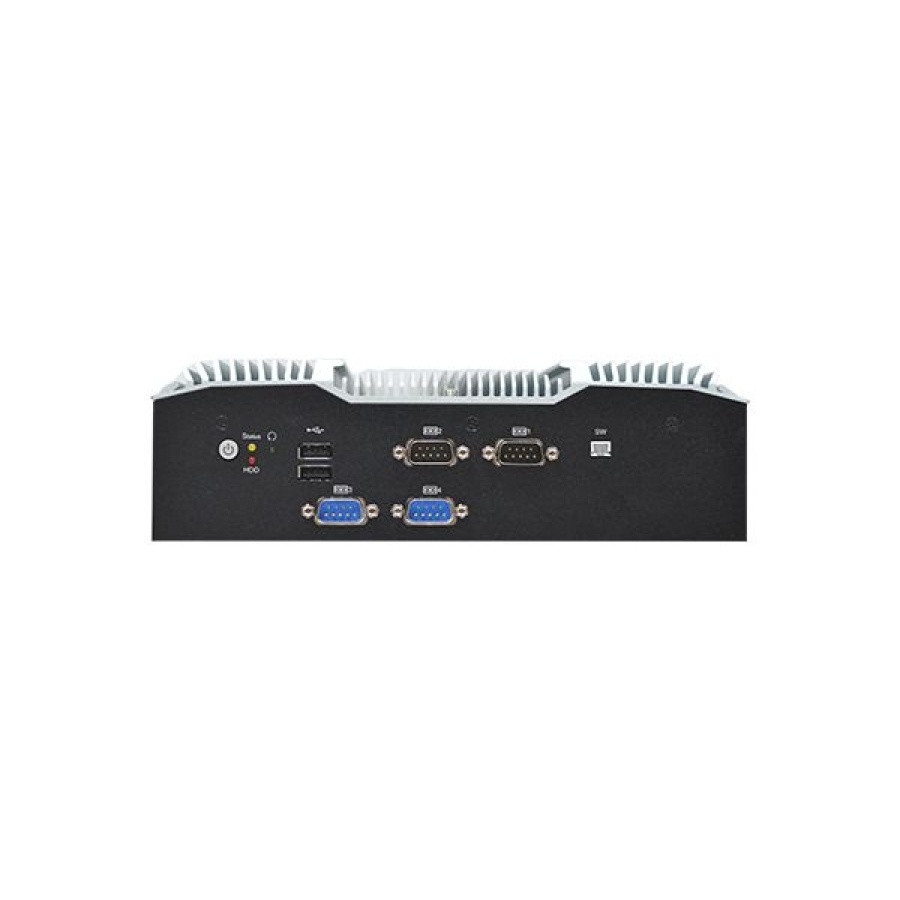

| Processor | 7th Generation Intel® Core™ Processors, BGA 1440Intel® Xeon® Processor E3-1535M v6, Quad Core, 8M Cache, 3.1GHz (4.2GHz), 45WIntel® Core™ i7-7820EQ Processor, Quad Core, 8M Cache, 3.0GHz (3.7GHz), 45WIntel® Core™ i5-7440EQ Processor, Quad Core, 6M Cache, 2.9GHz (3.6GHz), 45WIntel® Core™ i5-7442EQ Processor, Quad Core, 6M Cache, 2.1GHz (2.9GHz), 25WIntel® Core™ i3-7100E Processor, Dual Core, 3M Cache, 2.9GHz, 35WIntel® Core™ i3-7102E Processor, Dual Core, 3M Cache, 2.1GHz, 25W |
| Chipset | Intel® CM238 ChipsetIntel® QM175 Chipset |
| Memory | Two 260-pin SODIMM up to 32GB (CM238 supports ECC)Dual Channel DDR4 2400MHz |
| BIOS | Insyde SPI 128Mbit |
| Display | KSM150-KH: 15″ TFT LCD PanelKSM156-KH: 15.6″ TFT LCD PanelKSM170-KH: 17″ TFT LCD PanelKSM185-KH: 18.5″ TFT LCD PaneKSM190-KH: 19″ TFT LCD PanelKSM215-KH: 21.5″ TFT LCD Panel |
| Brightness | KSM150-KH: 300 (cd/m²)KSM156-KH: 400 (cd/m²)KSM170-KH: 350 (cd/m²)KSM185-KH: 450 (cd/m²)KSM190-KH: 350 (cd/m²)KSM215-KH: 300 (cd/m²) |
| Backlight Lifetime | KSM150-KH: 70,000 hoursKSM156-KH: 50,000 hoursKSM170-KH: 30,000 hoursKSM185-KH: 50,000 hoursKSM190-KH: 70,000 hoursKSM215-KH: 50,000 hours |
| Max Resolution | KSM150-KH: 1024 x 768KSM156-KH: 1366 x 768KSM170-KH: 1280 x 1024KSM185-KH: 1366 x 768KSM190-KH: 1280 x 1024KSM215-KH: 1920 x 1080 |
| Controller | Intel® HD Graphics |
| Feature | OpenGL up to 5.0, DirectX 11, OpenCL 2.1HW Decode: HEVC/H.265, H.264, M/JPEG, MPEG2, VC1/WMV9, VP8 (8-bit), VP9 (10-bit)HW Encode: HEVC/H.265, M/JPEG, MPEG2, VP8 |
| Display | 1 x VGA1 x HDMI/DVI (DVI-D signal) (DVI available upon request)1 x HDMI/DP++ (DP++ available upon request)VGA: resolution up to 1920×1200 @ 60HzDVI: resolution up to 2560×1600 @ 60HzHDMI: resolution up to 4096×2160 @ 24HzDP++: resolution up to 4096×2304 @ 60Hz |
| Triple Displays | VGA + HDMI/DVI (DVI-D signal) + HDMI/DP++ |
| External/Internal | 1 x 2.5″ SATA 3.0 Drive Bay (RAID) |
| Interface | 1 x Full-size Mini PCIe with micro SIM socket (PCIe/USB)1 x Full-size Mini PCIe with micro SIM socket (USB)1 x M.2 M Key 2280 (PCIe x4) |
| Controller | 1 x Intel® I211AT PCIe (10/100/1000Mbps)1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT) |
| Indicators | 1 x Power LED1 x Status LED1 x HDD LED |
| Front I/O: Serial | 2 x RS-232/422/485 (DB-9) (RS-232 with power)2 x RS-232/422/485 (DB-9) |
| USB | 2 x USB 2.0 (type A) |
| Buttons | 1 x Power Button1 x Reset Button |
| Wi-Fi Antenna | 2 x Wi-Fi Module Antenna Hole |
| Rear I/O: Ethernet | 2 x GbE (RJ-45) |
| USB | 4 x USB 3.0 (type A) |
| Display | 1 x VGA1 x HDMI/DVI (DVI-D signal) (DVI available upon request)1 x HDMI/DP++ (DP++ available upon request) |
| Audio | 1 x Line-out1 x Mic-in (available upon request) |
| Output & Interval | System Reset, Programmable via Software from 1 to 255 SecondsSystem Reset, Programmable via Software from 1 to 255 Seconds |
| TPM | TPM 2.0 |
| Type | Wide Range 9~36V |
| Connector | 3-pole Terminal Block |
| OS Support | Windows 10 IoT Enterprise LTSB 64 BitLinux (available upon request) |
| Operating Temperature | -20 to 50°C (SSD or mSATA-mini or CFast card, with 0.7m/s air flow) |
| Storage Temperature | -30 to 70°C |
| Relative Humidity | 5 to 95% RH (non-condensing) |
| Dimensions | KSM150-KH: 387 x 320 x 118 mmKSM156-KH: 407.3 x 277.3 x 97.92 mmKSM170-KH: 404 x 363.8 x 102.8 mmKSM185-KH: 472.06 x 314.15 x 102.8 mmKSM190-KH: 467 x 400 x 118 mmKSM215-KH: 544.2 x 360.6 x 118 mm |
| Construction | Metal + Aluminum |
| Mounting | Panel/VESA Mount 100 x 100 mm |
| Weight | KSM150-KH: 7.7 kgKSM156-KH: TBDKSM185-KH: 8.1 kgKSM190-KH: 10 kgKSM215-KH: 9.4 kg |
| Shock | Half sine wave 3G, 11ms, 3 shock per axis |
| Vibration | IEC68-2-64 |
| Certifications | CE, FCC, RoHS |
| Packing List | 1 Single Box1 3 pin Terminal Block Connector2 Mini PCIe Screw1 SATA Screw |
| Touch Technology | Projected Capacitive, Resistive |
|---|---|
| Ingress Protection | IP65 |
| Brightness | 300nit, 350nit, 400nit, 450nit, Standard |
| Resolution | 1024x768, 1280x1024, 1366x768, 1920x1081, FHD, Special/Other |
| GPU | Integrated GPU |
| Memory Capacity | Up to 32GB |
| Memory Channel | ECC |
| Cooling Type | Fanless, Yes |
| Serial Ports (COM) | 4 Ports, 4 Ports, RS-232/422/485 |
| USB Ports | 2 Ports, 4 Ports, 6 Ports, USB 2.0, USB 3.0 |
| Ethernet Ports (LAN) | 2 Ports, 2 Ports |
| Wireless | Wi-Fi |
| Audio | Yes |
| Video Ports | 1x DisplayPort, 1x VGA, 1x DVI, 1x HDMI, 3 Ports |
| Storage Type | 1, 2.5" |
| Expansion Type | 1x M.2, 2, 3, Any Expansion Type, M.2, Mini PCI Express |
| Input Voltage | 9-36 VDC |
| Mounting Options | Panel-mount, VESA-mount |
| Operating Temperature | -20°C to 50°C, 0°C to 45°C, 0°C to 50°C, Standard, Wide |
| Certifications | CE/FCC |
| OS Support | Linux, Windows 10, Windows 10 IoT, Windows 10 Pro |
