KS156P-EHL

DFI

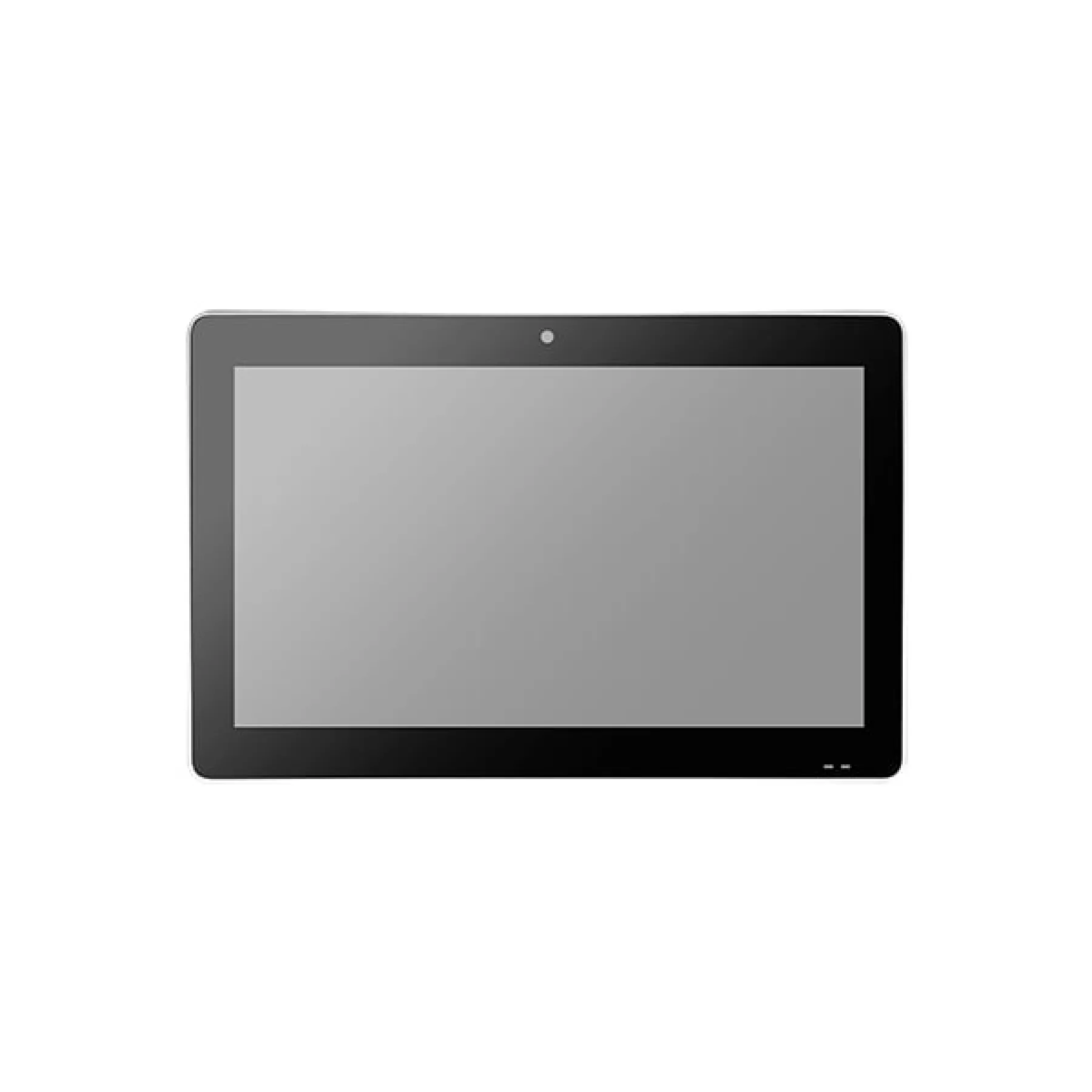

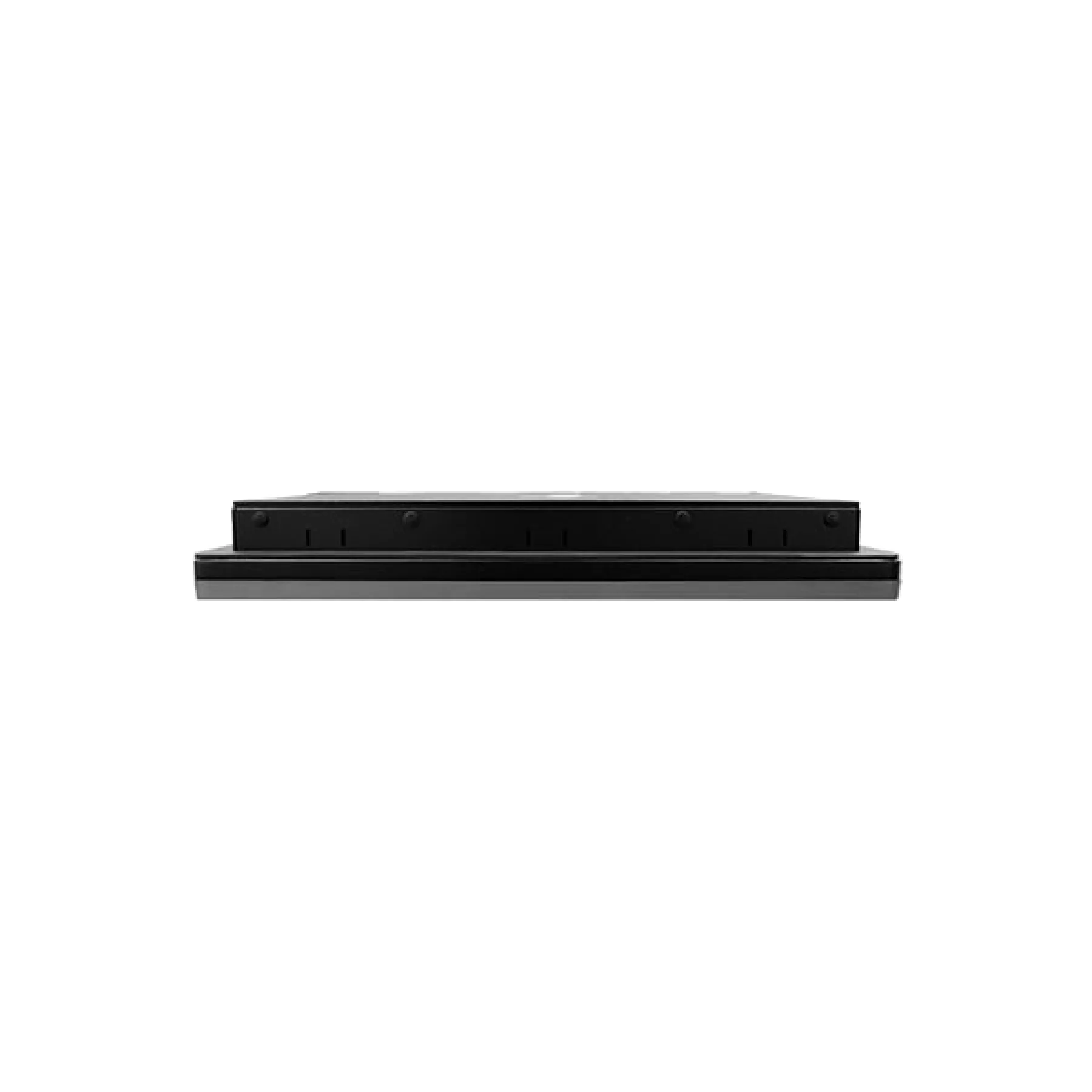

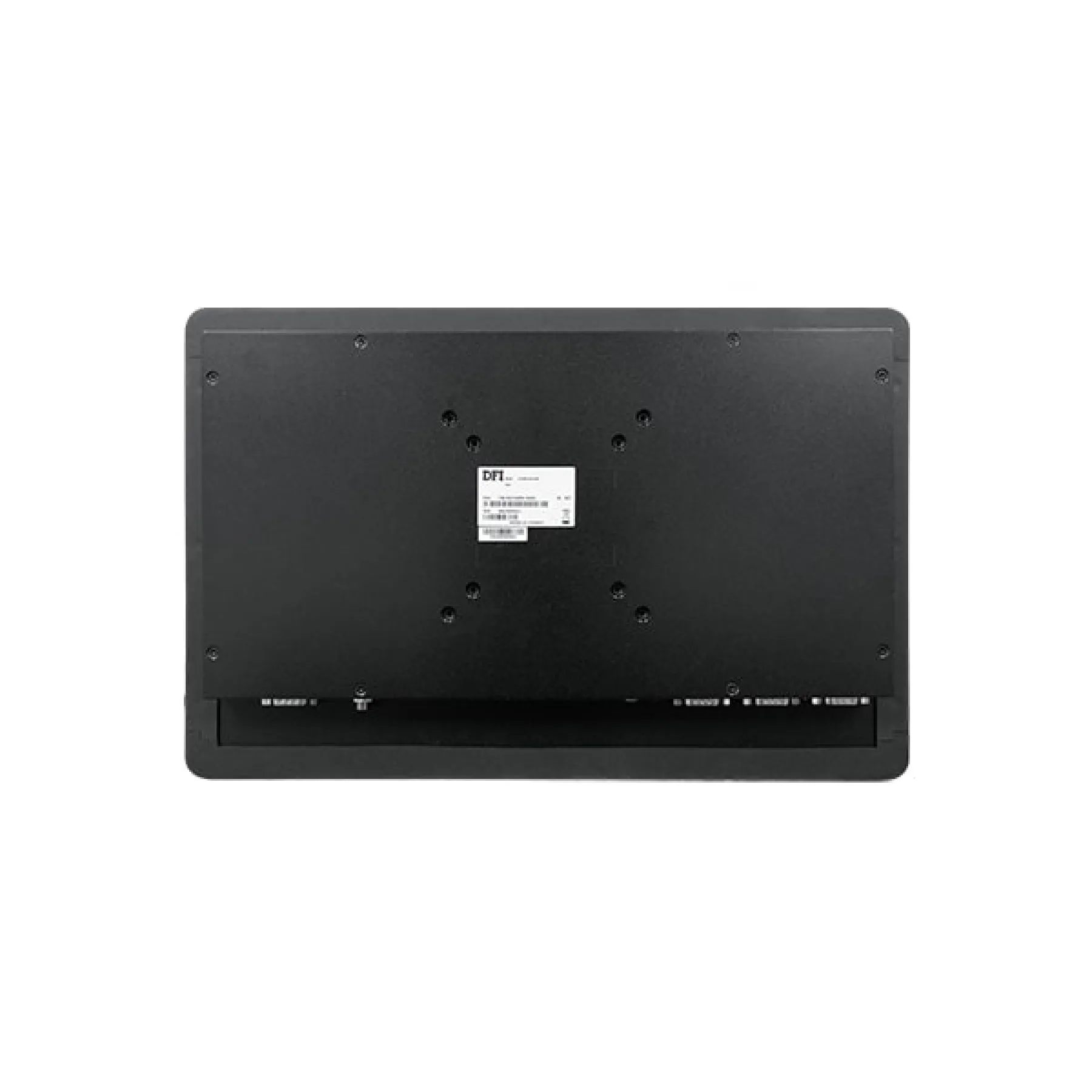

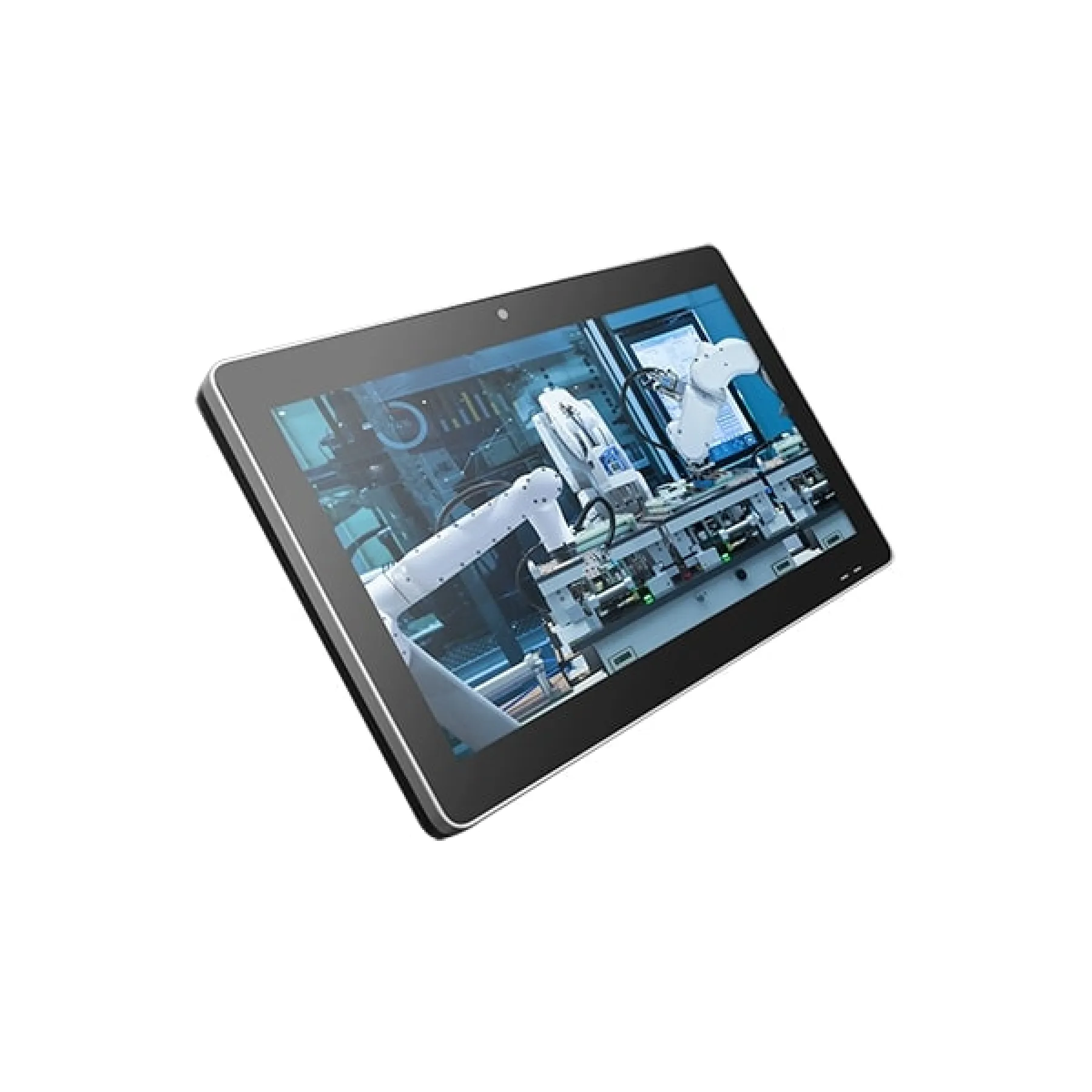

DFI KS156P-EHL 15.6″ Intel Atom Industrial Projected Capacitive Touch Panel PC

KS156P-EHL

  • Intel Atom X Series Processors, Quad Core
  • Touch Type: Projected Capacitive Touch
  • Dual Display: HDMI + DP++
  • Multiple Expansions: 1 M.2 2242/2280/3052 B Key, 1 M.2 2230 E Key
  • Wide Voltage: Support 9 ~ 36V
-
+

Details

The DFI KS156P-EHL is a 15.6" Industrial Touch Panel PC powered by Intel Atom x6425E/x6413E Processor.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Touch Technology Projected Capacitive
Ingress Protection IP65
Brightness 400nit, Standard
Resolution 1920x1080, FHD
GPU Integrated GPU
Memory Capacity Up to 32GB
Cooling Type Fanless, Yes
Serial Ports (COM) 2 Ports, 2 Ports, 4 Ports, RS-232, RS-232/422/485
USB Ports 4 Ports, 4 Ports, USB 3.2
Ethernet Ports (LAN) 2 Ports, 2 Ports, 2.5G
Wireless Cellular, Wi-Fi
Audio Yes
Video Ports 1x HDMI, 1x DisplayPort, 2 Ports
Storage Type 1, 2.5"
Expansion Type 2, 2, Any Expansion Type, M.2
Input Voltage 9-36 VDC
Mounting Options VESA-mount
Operating Temperature 0°C to 50°C, Standard
Certifications CE/FCC
