KD600-H110

DFI

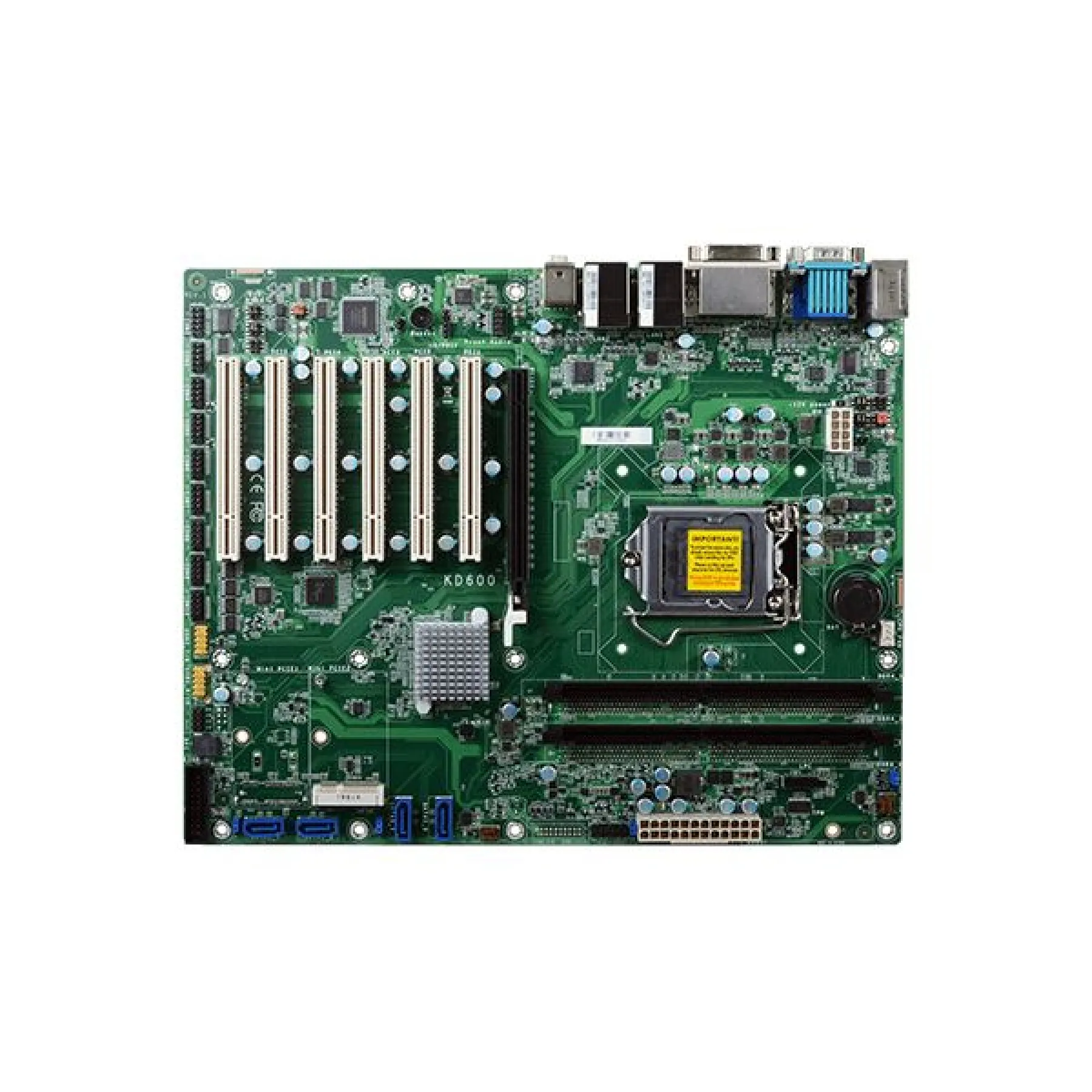

DFI KD600-H110 6th/7th Gen Intel Core Industrial ATX Motherboard with Intel H110

KD600-H110

  • 6th/7th Gen Intel Core with Intel H110
  • 2 DDR4 DIMM up to 32GB
  • Three display ports: VGA, DVI-D, DP++; Supports two independent displays
  • Multiple expansion: 6 PCI, 1 PCIex16
  • Rich I/O: 2 Intel GbE, 10 COM, 4 USB 3.0, 6 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q4′ 29 (Based on Intel IOTG Roadmap)

Available

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

The DFI KD600-H110 is an industrial ATX motherboard powered by 6th/7th Generation Intel Core processors with Intel H110. The rich I/O includes 2 Intel GbE, 10 COM, 4 USB 3.0 and 6 USB 2.0 alongside 6 PCI and 1 PCIex16 for multiple expansion.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

system 6th/7th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors with TDP up to 95W
Graphics Intel® HD Gen 9 Graphics
Expansion 6 x PCI1 x PCIex16
Ethernet 1 x Intel® I219V PCIe (10/100/1000Mbps)1 x Intel® I211AT PCIe (10/100/1000Mbps)
Rear I/O 2 x GbE (RJ-45), 1 x RS-232/422/485 (RS-232 w/ power) (DB-9), 4 x USB 3.02 x USB 2.0, 1 x PS/2 (mini-DIN-6), 1 x VGA, 1 x DVI-I (DVI-D signal), 1 x DP++, 1 x Line-out, 1 x Mic-in, 1 x Line-in (opt., MOQ required)
Internal I/O 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)8 x RS-232, 4 x USB 2.0, 1 x Front Aduio, 1 x S/PDIF, 4 x SATA 3.0 (up to 6Gb/s)1 x mSATA (co-lay with SATA_4), 1 x 8-bit DIO, 1 x LPC, 1 x SMBus
Watchdog Timer System Reset, Programmable via Software from 1 to 255 Seconds
Security Infi neon TPM2.0/1.2 (opt., MOQ required)
Power Type ATX
OS Support Windows 7 32/64-bitWindow 8.1 64-bitWindows 10 64-bitLinuxNote: 7th Gen CPU SKU ONLY support Windows 10 64-bit & Linux.
Environment Operating: 0 to 60°CStorage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
Mechanism ATX form factor305mm (12″) x 244mm (9.6″)
Packing List 1 KD600-H110 motherboard1 COM port cable (W/Bracket, Length: 300mm, 2 x COM ports): A81-015026-023G1 Serial ATA data cable (Length: 500mm): 332-553001-005G1 I/O shield: A49-KD6000-000G: 643-KD6001-000G
Memory Type DDR4
COM Ports 2x RS-232/422/485, 8x RS-232
LAN Ports 2x 1GB
USB Ports 4x USB 3.0, 6x USB 2.0
Video Ports 1x DisplayPort, 1x VGA, 1x DVI
Storage 1x mSATA, 4x SATA
Operating Temperature 0°C to 60°C
