KD330-H110

Name: DFI KD330-H110 Intel Core, Pentium and Celeron Industrial Micro-ATX Motherboard
SKU: KD330-H110

DFI

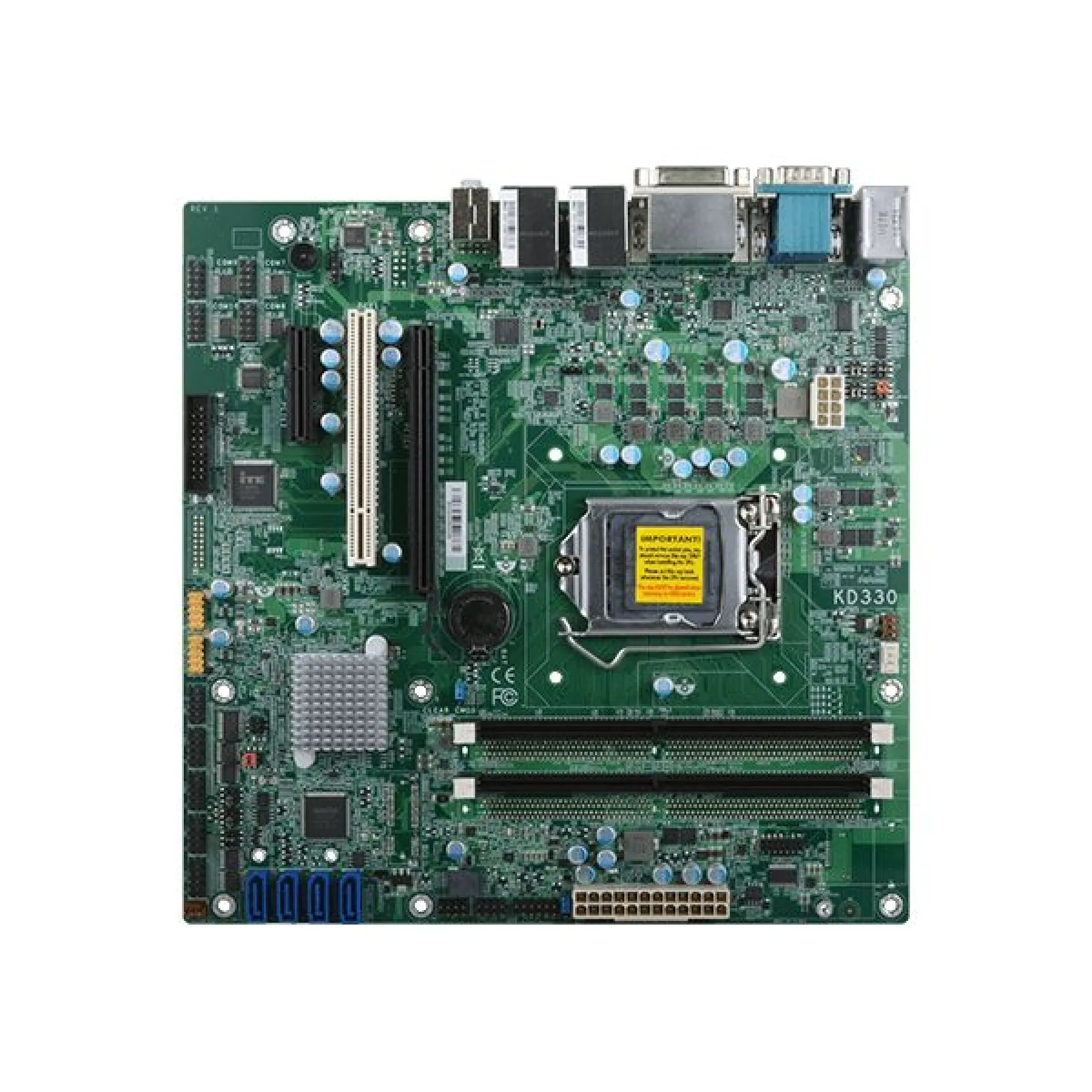

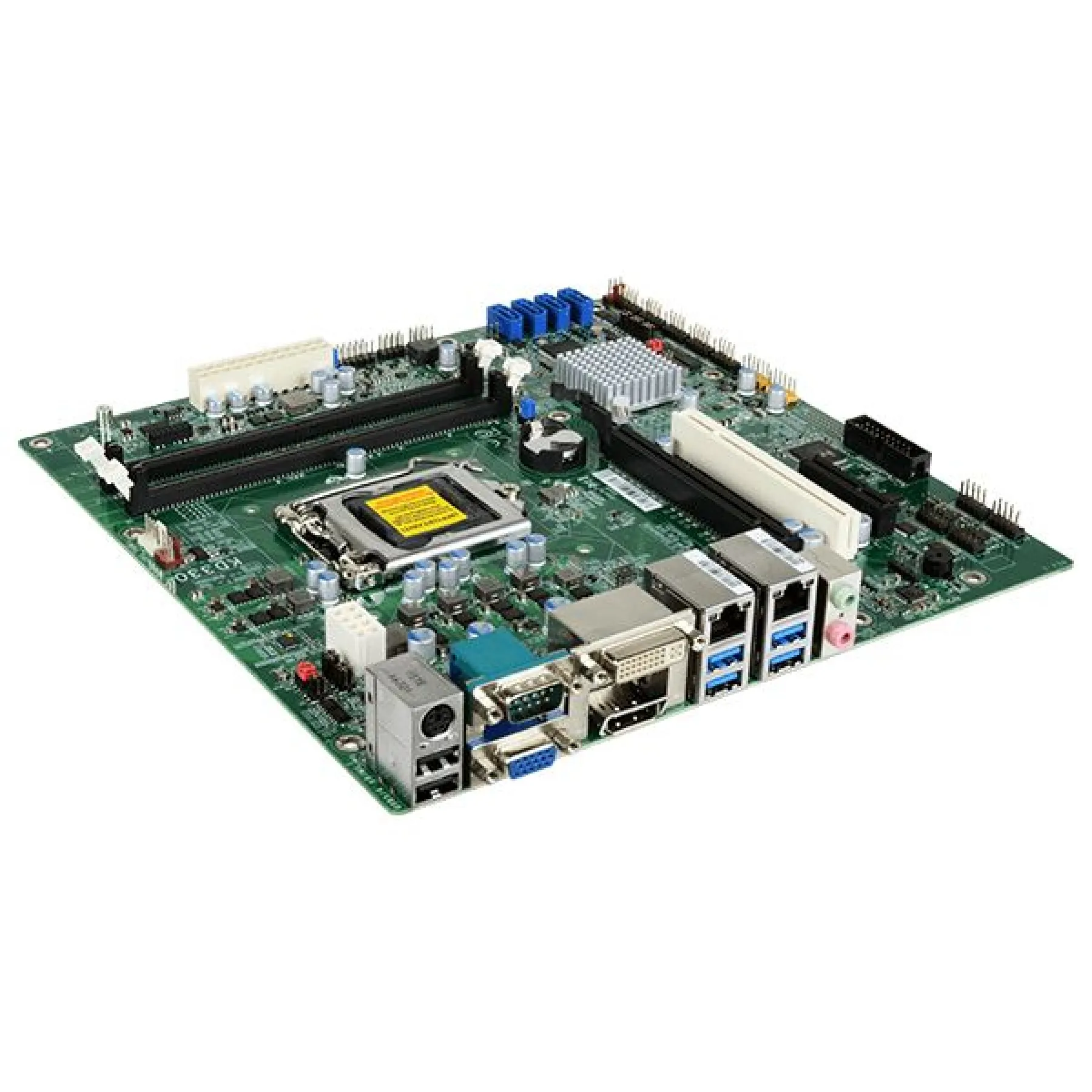

DFI KD330-H110 Intel Core, Pentium and Celeron Industrial Micro-ATX Motherboard

KD330-H110

6th/7th Gen Intel Corewith Intel H110
2 DDR4 DIMM up to 32GB
Rich I/O: 2 Intel GbE, 6 COM(default), 4 COM(opt.), 4 USB 3.0, 6 USB 2.0
Three display ports: VGA, DVI-D, DP++ Supports three independent displays
Multiple expansion: 1 PCIe x16, 1 PCIe x4, 1 PCI
15-Year CPU Life Cycle Support Until Q4′ 29 (Based on Intel IOTG Roadmap)

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: KD330-H110

Categories: DFI, Industrial Motherboards, Micro-ATX Motherboards

Range: DFI

Details

The DFI KD330-H110 is an Industrial Micro-ATX Motherboard powered by Intel Core, Pentium and Celeron processors. This motherboard contains 2 DDR4 DIMM for up to 32GB memory whilst also supporting three independent displays with three display ports. The rich I/O includes 2 Intel GbE, 6 COM(default), 4 COM(opt.), 4 USB 3.0 and 6 USB 2.0 alongside 1 PCIe x16, 1 PCIe x4 and 1 PCI for multiple expansion.

Downloads

DFI KD330-H110 Datasheet (PDF)

0.82MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

System Processors	6th/7th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors with TDP up to 95W
Graphics	Intel® HD Gen 9 Graphics
Expansion	1 x PCIe x16 (Gen 3)1 x PCIe x4 (Gen 2)1 x PCI
Audio	Realtek ALC888S-VD2-GR
Ethernet	1 x Intel® I211AT PCIe (10/100/1000Mbps) 1 x Intel® I219V PCIe (10/100/1000Mbps)
Rear I/O	2 x GbE (RJ-45), 1 x RS-232/422/485 (RS-232 w/ power) (DB-9), 4 x USB 3.0, 2 x USB 2.0, 1 x PS/2 (mini-DIN-6), 1 x VGA, 1 x DVI-I (DVI-D signal), 1 x DP++ , 1 x Line-out, 1 x Mic-in
Internal I/O	1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch), 4 x RS-232 (default), 4 x RS-232 (opt., MOQ required), 4 x USB 2.0 (2.54mm pitch), 1 x S/PDIF, 4 x SATA 3.0 (up to 6Gb/s), 1 x 8-bit DIO, 1 x LPC, 1 x SMBus
Watchdog Timer	System Reset, Programmable via Software from 1 to 255 Seconds
Security	opt., MOQ required
Power Type	ATX
OS Support	Windows 7 32/64-bitWindow 8.1 64-bitWindows 10 64-bitLinuxNote: 7th Gen CPU SKU ONLY support Windows 10 64-bit & Linux.
Environment	Operating: 0 to 60°C Storage: -40 to 85°C
Mechanism	microATX form factor 244mm (9.6″) x 244mm (9.6″)
Certifications	CE, FCC, RoHS
Packing List	1 KD330-H110 motherboard1 COM port cable (Length: 300mm, 2 x COM ports) A81-015026-023G1 Serial ATA data cable (Length: 500mm) 332-553001-005G1 I/O shield A49-SD3300-001G

Memory Type	DDR4
COM Ports	2x RS-232/422/485, 4x RS-232, 8x RS-232
LAN Ports	2x 1GB
USB Ports	4x USB 3.0, 6x USB 2.0
Video Ports	1x DisplayPort, 1x DVI, 1x VGA
Storage	4x SATA
Operating Temperature	0°C to 60°C
