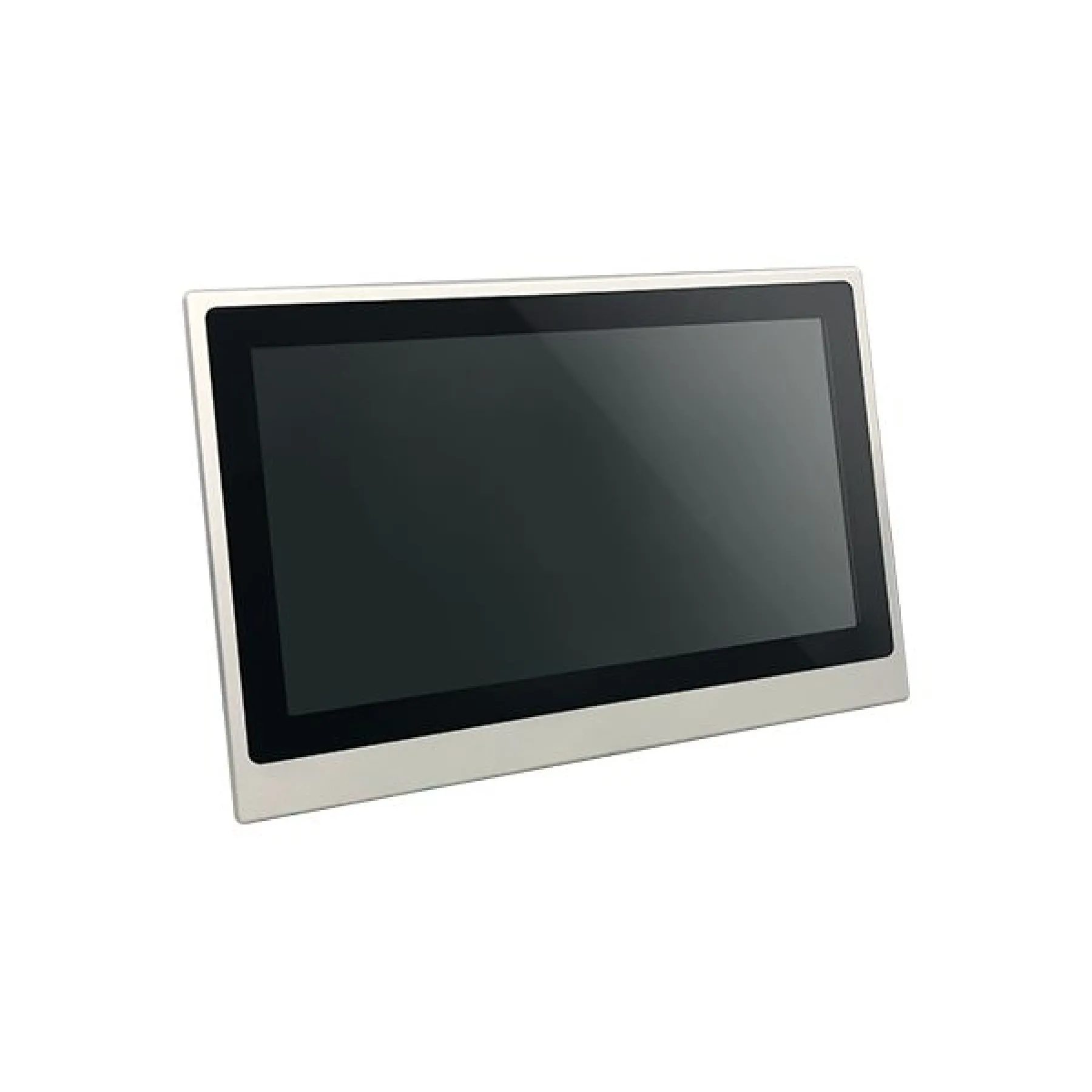

DFI IDP156-MS Industrial Touchscreen Panel Display w/ VGA/DVI/HDMI
IDP156-MS
- Two Types Touch: Projected Capacitive Multi-touch / Resistive Touch
- IP Rating: IP65 Front Panel
- Support 3 Signal Interfaces: VGA/DVI/HDMI
- Support Modular Extended Display: 1 x HDBaseT / 2 x HDBaseT / Wifi Display
- Various Mounting Type: VESA Mount 75 / Panel Mount
- Advanced Voltage: Support USB Type C
Details
The IDP156-MS has a IP65 rated Front Panel with a 15.6" TFT LCD display with a resolution of 1366 x 768 and both Capacitive and Resistive Touch Screen, whilst offering support for 3 Signal Interfaces via VGA, HDMI and DVI-D. The Touchscreen feature can also be used with an external PC via its USB port. It also has 2 x 3W internal speakers.
Ordering Info
| Model Name | Part Number |
| IDP156P-C20 | 750-IP1560-000G |
| IDP156P-W24 | 750-IP1560-100G |
| IDP156R-C20 | 750-IP1560-200G |
| IDP156R-W24 | 750-IP1560-300G |
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| KSM070-M8M | |
| Display Type | 15.6″ TFT LCD Monitor |
| Max. Resolution | 1366 x 768 |
| Brightness (cd/m2) | 400 cd/m² |
| Contrast | 800:1 |
| Active Area | 344.232mm x 193.536mm (H x V) |
| Touch Type | Projected Capacitive Multi-touch and Resistive Touch |
| Response Time | 10ms |
| Backlight Lifetime (hours) | 50,000 Hrs LED Backlight |
| View Angle | 170/130 |
| USB | 1 x USB port (touch to external PC) |
| Display | 1 x VGA1 x DVI-D1 x HDMI |
| Audio | 1 x Line-in |
| External Display (opt.) | 1 x HDBaseT 100M / 2 x HDBaseT 100M / Wifi Display |
| Operating Temperature | 0°C ~ 70°C |
| Storage Temperature | -30 to 70°C |
| Relative Humidity | 90% RH@ 60°C, 240Hrs (non-condensing) |
| Power Type | 20V USB Type C VDC Input / 12 to 24 VDC Input with DC Jack |
| Construction | Aluminum Front Bezel |
| IP Rating | IP65 Front Panel Protection |
| Mounting | Panel Mount/VESA Mount |
| Dimensions | 407.3 x 227.3 x 56 (mm) |
| Weight | TBD |
| OSD Keyboard | Multi-language OSD |
| Speaker | 2 x 3W |
| Screen Size | 11" to 20", 15.6" |
|---|---|
| Touch Technology | Projected Capactive, Resistive |
| Ingress Protection | IP65 |
| Brightness | 400nit, Standard |
