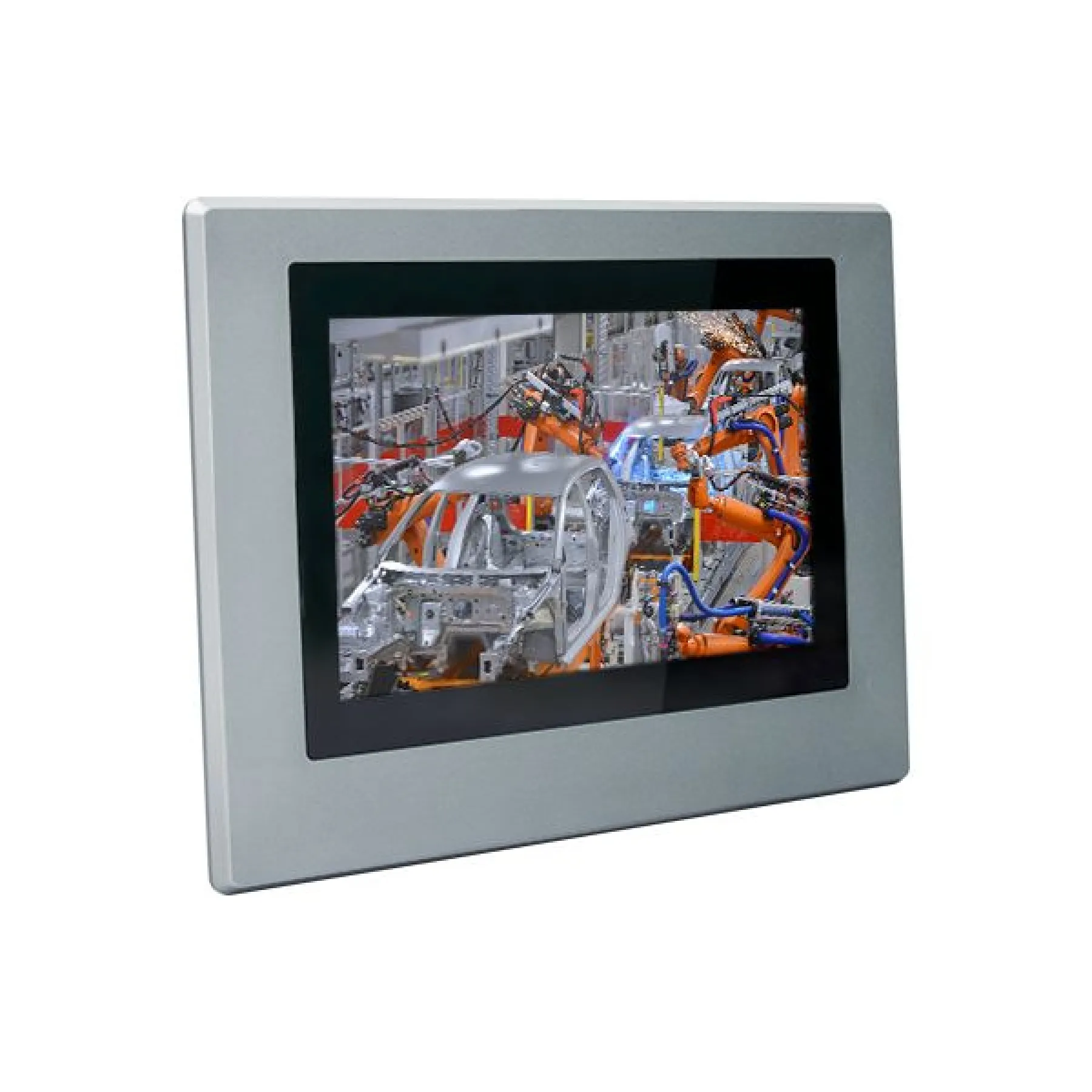

DFI IDP070-MS Industrial Touchscreen Monitor IP65 Front Panel w/ VGA/DVI/HDMI
IDP070-MS
- Two Types Touch: Projected Capacitive Multi-touch / Resistive Touch
- IP Rating: IP65 Front Panel
- Support 3 Signal Interfaces: VGA/DVI/HDMI
- Support Modular Extended Display: 1 x HDBaseT / 2 x HDBaseT / Wifi Display
- Various Mounting Type: VESA Mount 75 / Panel Mount
- Advanced Voltage: Support USB Type C (Optional)
Details
The IDP070-MS has a IP65 rated Front Panel with a 7" TFT LCD display with a maximum resolution of 800 x 480 and both a Capacitive and Resistive Touch Screen, whilst offering support for 3 Signal Interfaces via VGA, HDMI and DVI-D. The Touchscreen feature can also be used with an external PC via its USB port. It also has 2 x 3W internal speakers and is VESA, Panel and DIN-rail.
Ordering Info
| Model Name | Part Number | Description |
| IDP070PMSC20 | 750-IDP070-000G | 7″ TFT WVGA Monitor with Projected Capacitive Touch, 500nits, VGA/DVI-D/HDMI, USB Type C 20VDC input |
| IDP070PMSW24 | 750-IDP070-100G | 7″ TFT WVGA Monitor with Projected Capacitive Touch, 500nits, VGA/DVI-D/HDMI, 12 to 24VDC input |
| IDP070RMSC20 | 750-IDP070-200G | 7″ TFT WVGA Monitor with Resistive Touch, 500nits, VGA/DVI-D/HDMI, USB Type C 20VDC input |
| IDP070RMSW24 | 750-IDP070-300G | 7″ TFT WVGA Monitor with Resistive Touch, 500nits, VGA/DVI-D/HDMI, 12 to 24VDC input |
| DM-HDBR-1RJ | 750-DMHDBR0-000G | HDBaseT HDMI 2.0 Extender USB 100m RX |
| DM-HDBT-1RJ | 750-DMHDBT0-000G | HDBaseT HDMI 2.0 Extender USB 100m TX Daisy Chain |
| HDBT-Box | 750-HDBTB00-000G | HDBaseT HDMI 2.0 Extender USB 100m TX Box |
| DM-WIFI | 750-DMWIFI0-000G | External WiFi Display Module |
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| IDP070-MS | |
| Display Type | 7″ TFT LCD Monitor |
| Max. Resolution | 800 x 480 |
| Brightness (cd/m2) | 500 cd/m² |
| Contrast | 400:1 |
| Active Area | 152.4mm x 91.44mm (H x V) |
| Touch Type | Projected Capacitive Multi-touch and Resistive Touch |
| Response Time | 5ms |
| Backlight Lifetime (hours) | 40,000 Hrs LED Backlight |
| View Angle | 130/140 |
| USB | 1 x USB port (touch to external PC) |
| Display | 1 x VGA1 x DVI-D1 x HDMI |
| Audio | 1 x Line-in |
| External Display (opt.) | 1 x HDBaseT 100M / 2 x HDBaseT 100M / Wifi Display |
| Operating Temperature | 0°C ~ 75°C Standard -40° to 75°C (Optional) |
| Storage Temperature | -30°C ~ 85°C |
| Relative Humidity | 90% RH@ 60°C, 240Hrs (non-condensing) |
| Power Type | 1 x DC Power (Optional), 12 to 24 VDC or 1 x USB Type C DC Power (Optional), 20 VDC input |
| Construction | Aluminium Front Bezel |
| IP Rating | IP65 Front Panel Protection |
| Mounting | Panel Mount/VESA Mount/DIN-rail |
| Dimensions | 224 x 163.55 x 43.6 |
| Weight | TBD |
| OSD Keyboard | Multi-language OSD |
| Speaker | 2 x 3W |
| Packing List | 1 IDP070-MS Monitor1 Audio Cable1 VGA Cable1 USB Cable1 RS232 Cable1 Quick Guide |
| Certifications | CE/FCC Class A |
| Screen Size | 1" to 10", 7" |
|---|---|
| Touch Technology | Projected Capactive, Resistive |
| Ingress Protection | IP65 |
| Brightness | 500nit, Standard |
