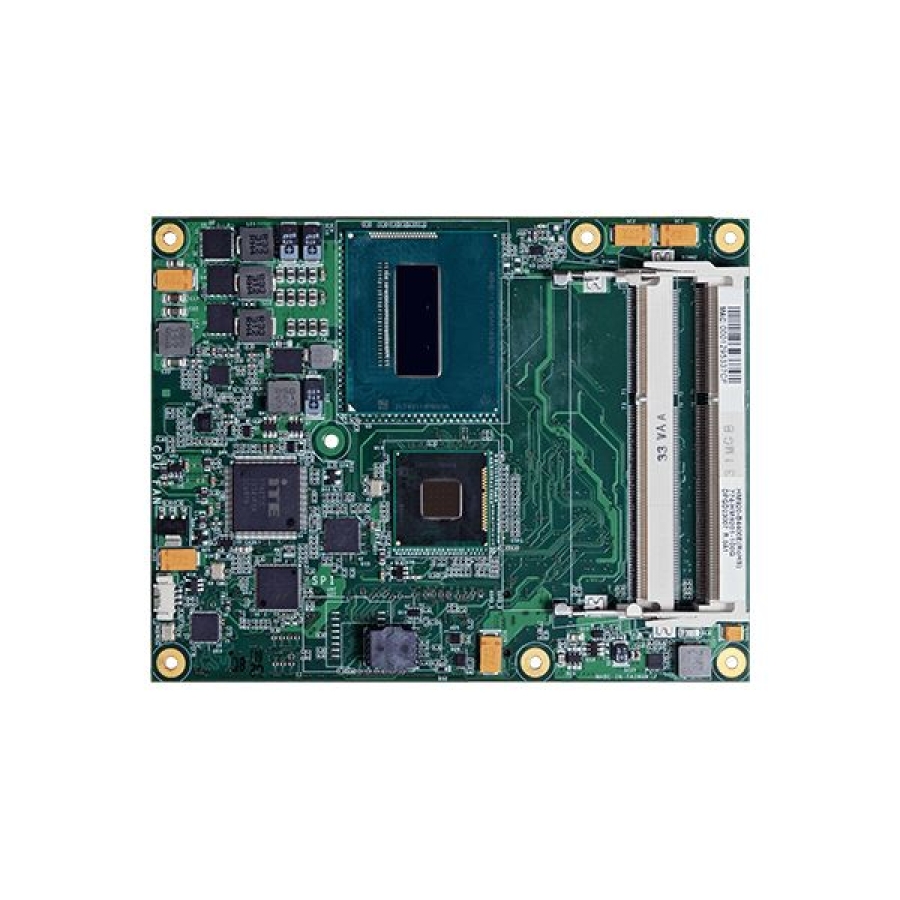

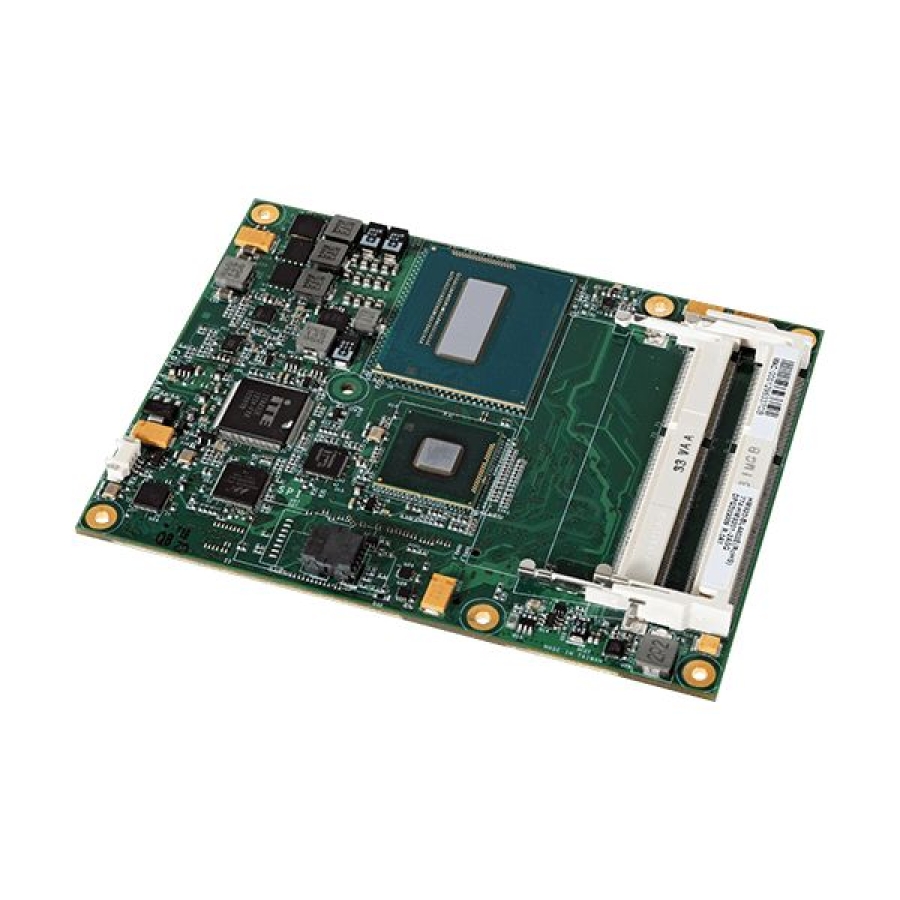

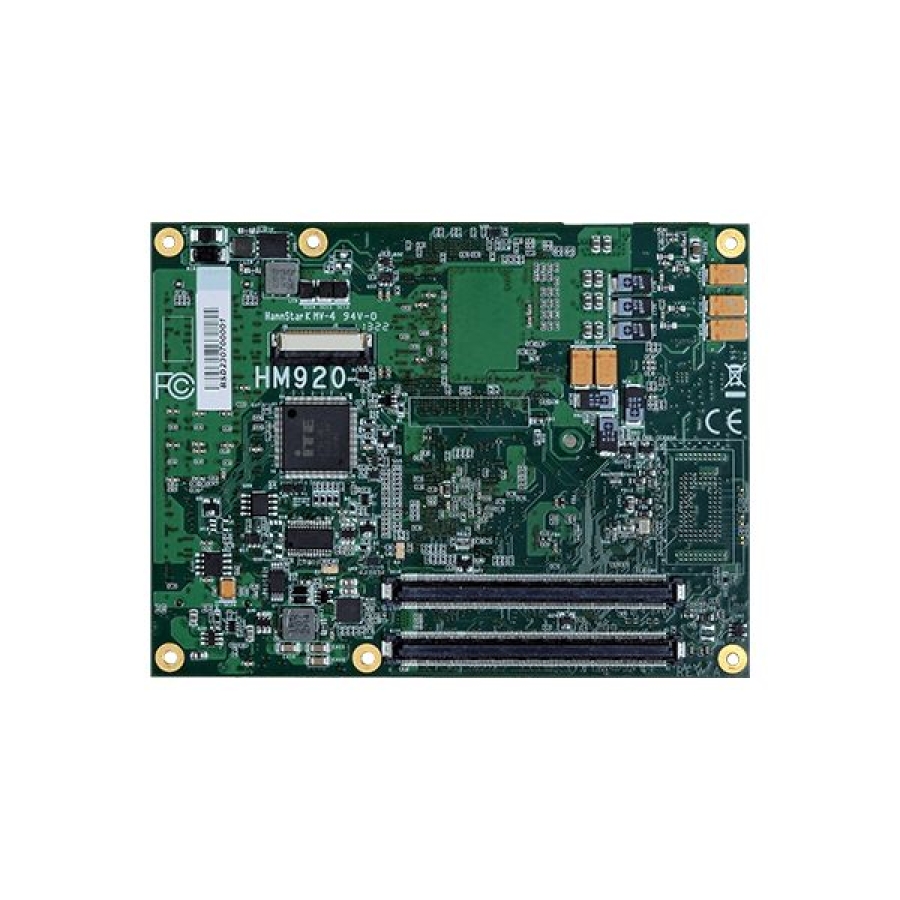

HM920-QM87

Name: DFI HM920-QM87 COM Basic Type 2 with 4th Gen Intel Core and Intel QM87 Chipset
SKU: HM920-QM87

DFI

DFI HM920-QM87 COM Basic Type 2 with 4th Gen Intel Core and Intel QM87 Chipset

End of Life

4th Gen Intel® Core™, Intel® QM87 Chipset
Dual channel DDR3L 1600MHz SODIMM up to 16GB
1 x VGA, 1 x LVDS
Multiple expansion: 1 PCIe x16, 4 x SATA 3.0, 1 x LPC, 1 x I2C, 1 x SMBus
Rich I/O: 1 x Intel GbE, 8 x USB 2.0
7-Year CPU Life Cycle Support Until Q3′ 19 (Based on Intel IOTG Roadmap)

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

Product Code: HM920-QM87

Categories: End of Life Products

Range: DFI

Details

DFI have launched the HM920-QM87 with BGA 1364 packaging technology for the latest 4th generation Intel® Core™ processor family. The HM920-QM87 is built on 22-nanometer process technology offering higher processing performance, superior graphics display support, and evolutionary improvements in system memory and I/O interfaces. It is DFI’s new COM Express product that supports the mobile-based Intel® QM87 Express chipset boasting a 5~15% CPU performance increase over the previous generations.

The integrated 4th generation Intel® HD Graphics engine provides smooth flash playback, rich 2D/3D graphics with high quality playback, and Intel®Clear Video Technology that supports advanced imaging capabilities for Blu-Ray and other high definition video processing such as image stabilization, gamut mapping and frame rate conversion. The enhancements in the instructions of Intel® Advanced Vector Extensions provide a huge performance improvement in floating-point-intensive computations which are a key part of digital signal and image processing applications such as medical imaging and weather radar. The Intel® graphics accelerator integrated in the HM920-QM87 also offers 1 VGA and 1 LVDS display interfaces.

In system memory, the HM920-QM87 new mobile platform with 2 DDR3L SODIMM sockets delivers maximum performance with up to 16GB. The optional onboard SSD is a lot faster than conventional rotating hard disks and it offers the persistent function of data storage. In addition, the module is also packed with high performance and flexible I/O with the mobile-based Intel® QM87 Express chipset. It provides 4 Serial ATA interfaces supporting RAID 0/1/5/10, 1 Intel® Gigabit Ethernet Phy interface with iAMT9.0 as well as the following interfaces: 8 USB, 1 LPC, 1 SMBus, 1 I2C and 1 IDE. The HM920-QM87 also comes with multiple expansion configurations, including 1 PCIe x16, 6 PCIe x1 and 4 PCI interfaces, to offer additional capabilities for various demands.

The HM920-QM87, a new mobile embedded module board with all these combined features described above, is an ideal product for a whole range of applications requiring a stable revision-controlled platform, such as factory automation, digital signage, medical equipment and kiosk embedded applications.

Ordering Info

Model Name : HM920-QM87BS0-4402E

Part Number : TBD

Description : Cooler, Intel Core i5-4402E, 2 SODIMM DDR3L, 0 to 60°C

Model Name : HM920-QM87BS0-4402E

Part Number : TBD

Description : None, Intel Core i5-4402E, 2 SODIMM DDR3L, 0 to 60°C

Model Name : HM920-QM87BS0-4400E

Part Number : TBD

Description : Cooler, Intel Core i5-4400E, 2 SODIMM DDR3L, 0 to 60°C

Model Name : HM920-QM87BS0-4400E

Part Number : TBD

Description : None, Intel Core i5-4400E, 2 SODIMM DDR3L, 0 to 60°C

Model Name : HM920-QM87BS0-4700EQ

Part Number : TBD

Description : Cooler, Intel Core i7-4700E, 2 SODIMM DDR3L, 0 to 60°C

Model Name : HM920-QM87BS0-4700EQ

Part Number : TBD

Description : None, Intel Core i7-4700E, 2 SODIMM DDR3L, 0 to 60°C

Downloads

DFI HM920-QM87 Datasheet (PDF)

0.81MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

System Processor 4th generation Intel® Core™ processors, BGA 1364Intel® Core™ i7-4700EQ, 6M Cache, 2.4GHz (3.4GHz), 47WIntel® Core™ i5-4400E, 3M Cache, 2.7GHz (3.3GHz), 37WIntel® Core™ i5-4402E, 3M Cache, 1.6GHz (2.7GHz), 25WIntel® Core™ i3-4100E, 3M Cache, 2.4GHz, 37WIntel® Core™ i3-4102E, 3M Cache, 1.6GHz, 25W Chipset Intel® QM87 Chipset Memory Two 204-pin SODIMM up to 16GB Dual Channel DDR3L 1600MHz BIOS AMI 64Mbit SPI Graphics Controller Intel® HD Graphics 4600 Feature OpenGL up to 4.0, DirectX 11.1, OpenCL 1.2 Display 1 x VGA1 x LVDS VGA: resolution up to 2048×1536 @ 75HzLVDS: dual channel 24-bit, resolution up to 1920×1200 @ 60Hz Expansion Interface 1 x PCIe x16 (Gen 3)5 x PCIe x1 4 x PCI (PCI 2.3)1 x LPC1 x I2C1 x SMBus1 x IDE Audio Interface HD Audio Ethernet Controller 1 x Intel® I217LM with iAMT9.0 (10/100/1000Mbps) I/O USB 8 x USB 2.0 SATA 4 x SATA 3.0 (up to 6Gb/s) SSD 1 x 4-bit GPIO (Default 4 inputs and 4 outputs) 1 x 2GB/4GB/8GB/16GB/32GB/64GB SSD (available upon request) Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode) Consumption TBD OS Support OS Support Windows XP Professional x86 & SP3 (32-bit) (limited function)Windows 7 Ultimate x86 & SP1 (32-bit)Windows 7 Ultimate x64 & SP1 (64-bit)Windows 8 Enterprise x86 (32-bit)Windows 8 Enterprise x64 (64-bit) Environment Temperature Operating: 0 to 60°CStorage: -20°C to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF 727,289 hrs @ 25°C; 420,729 hrs @ 45°CCalculation model: Telcordia Issue 2, Method I Case 3Environment: GB, GC – Ground Benign, Controlled Mechanism Dimensions COM Express® Basic 95mm (3.74″) x 125mm (4.9″) Compliance PICMG COM Express® R2.1, Type 2 Standards and Certifications Certifications CE, FCC Class B, RoHS Packing List Packing List 1 HM920 boardHeat spreader with heat sink and fan: 761-HSWMBL-000G
