ES220F-CS

DFI

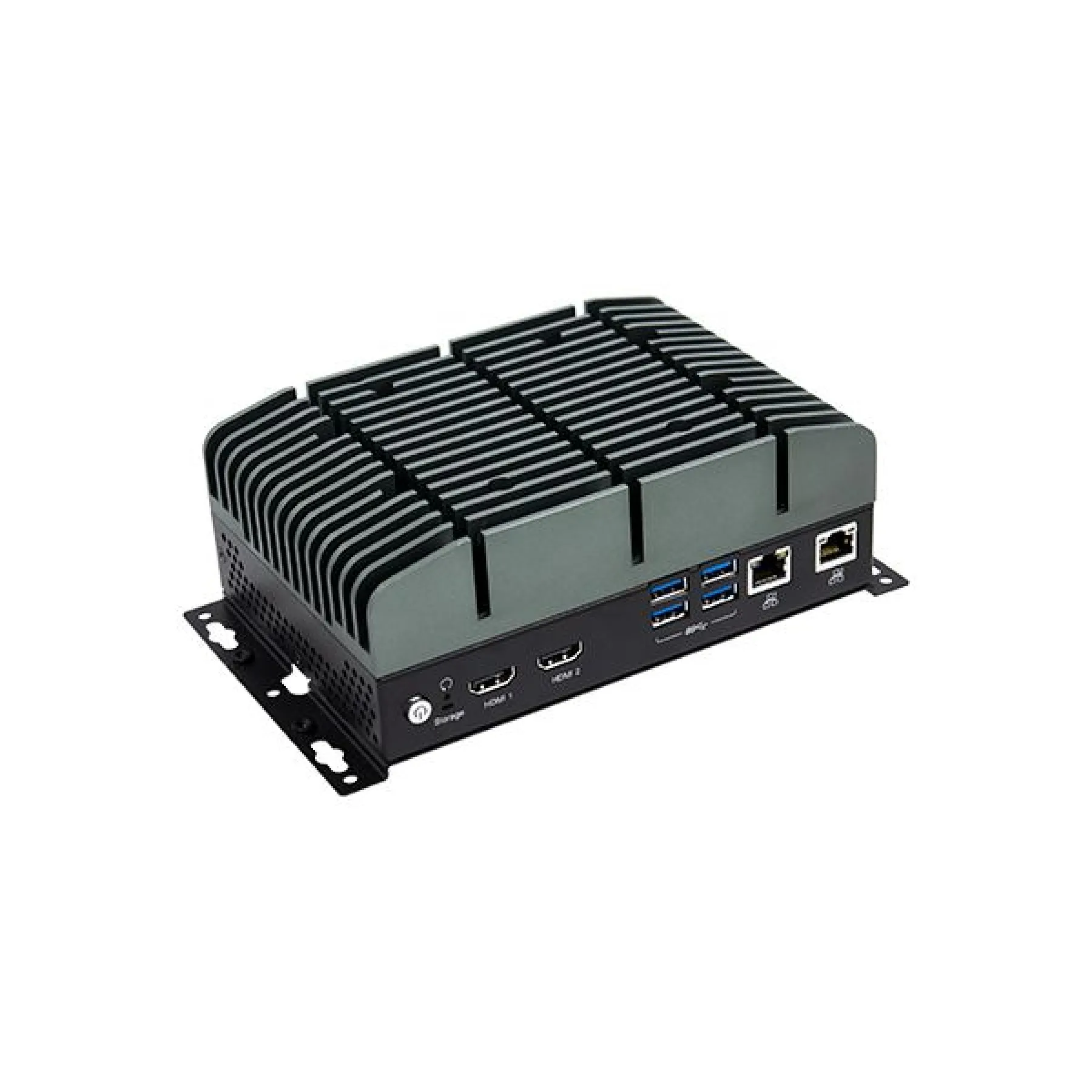

DFI ES220F-CS 8th/9th Gen Intel Core Fanless Embedded PC with up to 64GB Memory

ES220F-CS

  • 8th/9th Gen Intel Core Processors with Intel C246/Q370/H310 Chipset
  • Two DDR4 SODIMM up to 64GB
  • Single/Triple storage: 1 x M.2 SSD + 2 x 2.5″ SSD (configured option) (with RAID supported)

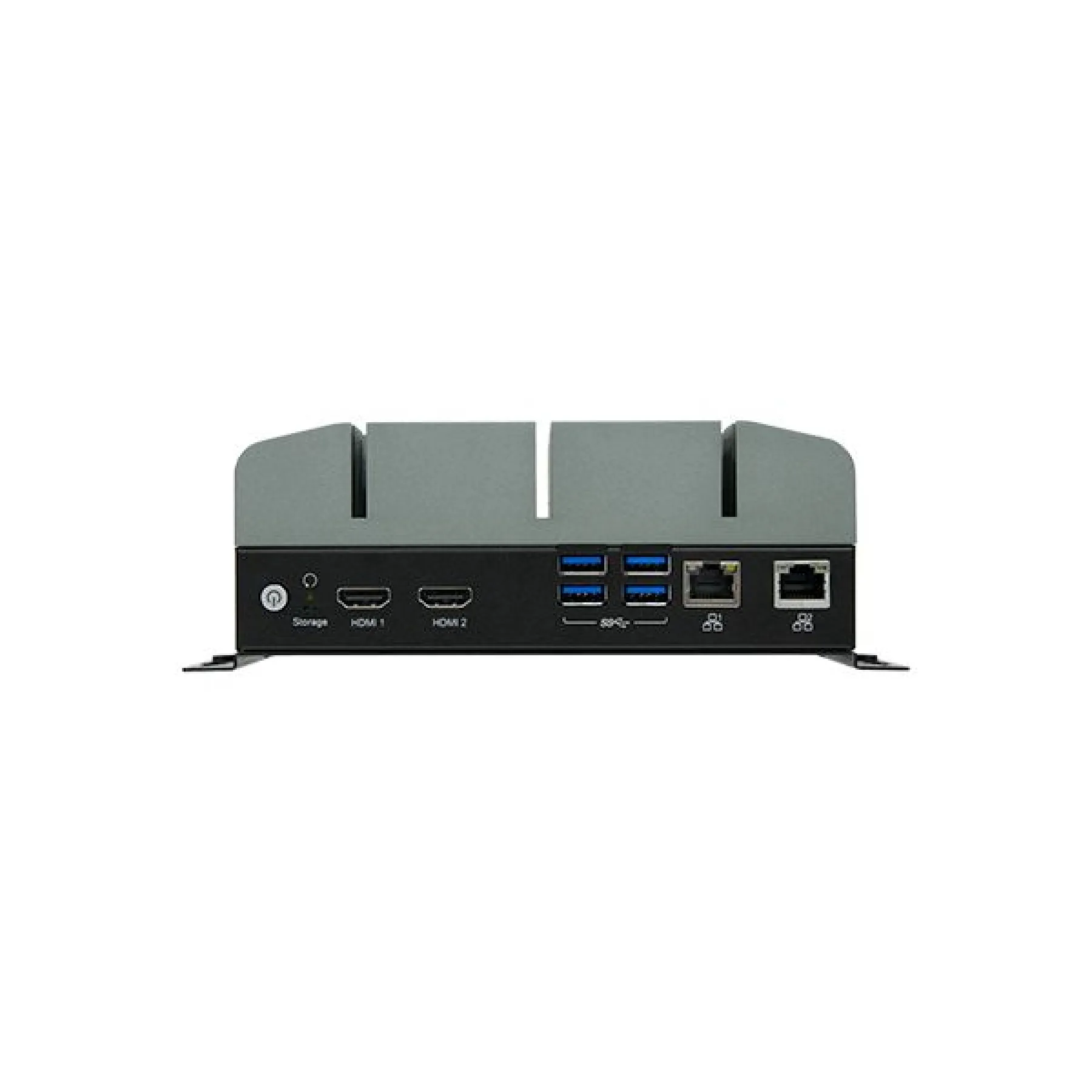

  • Rich I/O connectivity: 2 Intel GbE, 4 USB 3.1, 2 USB 2.0, 2 COM
  • 2 HDMI 2.0 Support resolution 4K@60Hz
  • 15-Year CPU Life Cycle Support Until Q2′ 34 (Based on Intel IOTG Roadmap)

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

The DFI ES220F-CS Fanless Embedded System is driven by 8th/9th Intel Core Processors with Intel C246/Q370/H310 and 2 x DDR SODIMM up to 64GB Memory.  It also ships with 1 x M.2 SSD and 2 x 2.5" SSD (configured option) (with RAID supported), including I/O connectivity via 2 x Intel GbE, 4 x USB 3.1, 2 x USB 2.0 and 2 x COM. The unit supports 4K @ 60Hz via 2 x HDMI 2.0 and comes with a 15-Year CPU Life Cycle Support Unit Q2' 34 (Based on Intel IOTG Roadmap)

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

Processor 9th Gen Intel Core Processors, LGA 1151 Socket Intel Core i7-9700TE Processor (8C/8T, 12M Cache, 3.6GHz, TDP 35W) Intel Core i5-9500TE Processor (6C/6T, 9M Cache, 3.6GHz, TDP 35W) Intel Core i3-9100TE Processor (4C/4T, 6M Cache, 3.2GHz, TDP 35W) 8th Gen Intel Core Processors, LGA 1151 Socket Intel Core i7-8700T Processor (6C/12T, 12M Cache, 4.0GHz; TDP 35W) Intel Core i5-8500T Processor (6C/6T, 9M Cache, 3.5GHz; TDP 35W) Intel Core i3-8100T Processor (4C/4T, 6M Cache, 3.1GHz; TDP 35W) Intel Pentium G5400T Processor (2C/4T, 4M Cache, 3.1GHz; TDP 35W) Intel Celeron G4900T Processor (2C/2T, 2M Cache, 2.9GHz; TDP 35W)
Chipset Intel C246/Q370/H310 Chipset
Memory 2 x 260-pin SODIMM up to 64GB Dual Channel DDR4 2666MHz (ECC : C246 only)
BIOS Insyde SPI 128Mbit
Graphics Controller Intel HD Graphics
Feature OpenGL 4.5, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display 2 x HDMI 2.0 HDMI: resolution up to 4096×2160@60Hz
Dual Displays 2 x HDMI 2.0
Internal Storage 2 x 2.5″ SATA bay (optional) support RAID 0/1
Interface Expansion 1 x M.2 2280 M key (PCIe x4/SATA 3.0) 1 x M.2 2230 E key (PCIe x1/USB2.0), WiFi
Ethernet Controller 2 x Intel I219/I210IT (10/100/1000Mbps) (Support Intel iAMT)
Ethernet Interface 2 x GbE RJ-45
LED Indicators 1 x Power LED 1 x HDD LED
Ethernet 2 x GbE (RJ-45)
USB 4 x USB 3.1 (type A)
Display 2 x HDMI 2.0
Buttons 1 x Power button 1 x Reset button

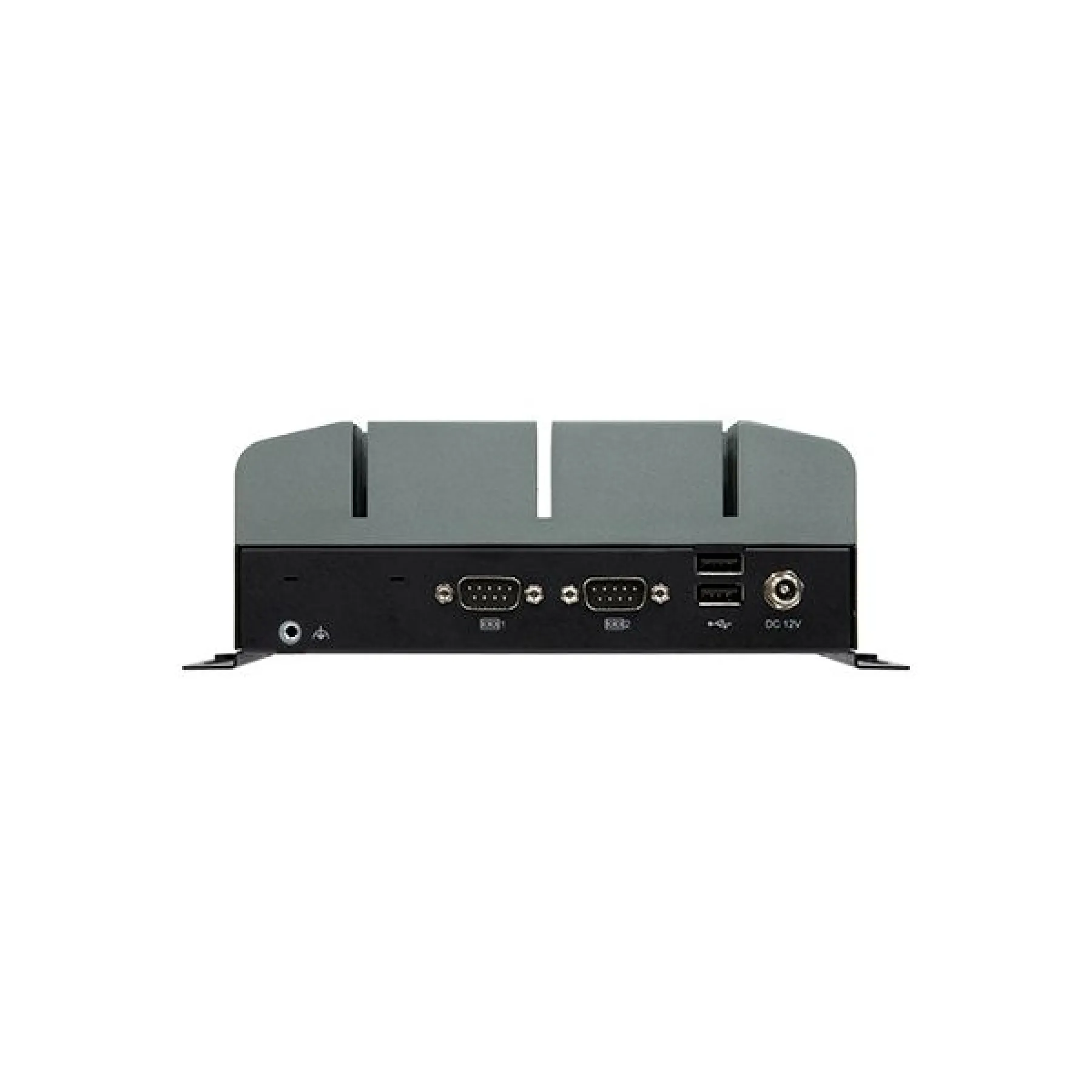

Serial 2 x RS232/RS422/RS485 (DB9) or 1 x RS232/RS422/RS485 (DB9)(COM1) + 1 x 8bit DIO (DB9)
USB 2 x USB 2.0 (type A)
Antenna 2 x Opening Antenna Hole (WiFi)
Watchdog Timer System Reset, Programmable via Software from 1 to 255 Seconds
Security TPM2.0 (option)
Power Type 12V DC-in jack lockable External power brick
RTC Battery CR2032 Coin Cell
Supply AC Power 100-250V, 50/60Hz
OS Support Windows 10 IoT Enterprise 2019 LTSC + RS5 Windows 10 Professional
Operating Temperature CPU power output config. via BIOS: TDP 35W : 35° C or 40° C cTDP 25W : -5° to 45° C cTPU 15W -20° to 60° C
Storage Temperature  -20° to 60° C
Relative Humidity 5 to 90% RH
Construction Metal + Aluminium
Mounting Wall mount VESA mount 75×75/10x10cm (optional)
Dimensions (W x H x D) 175 x 69.4 x 120mm (1 Storage: 1 x M.2 SSD) 175 x 90.4 x 120mm (3 Storage: 1 x M.2 SSD + 2 x 2.5” bay)
Weight 1.75 kg (1 Storage: 1 x M.2 SSD) TBD (3 Storage: 1 x M.2 SSD + 2 x 2.5” bay)
Color Black
Certifications FCC, CE Class B, ROHs, WEEE
Country of Origin Taiwan
Processor Type Intel Celeron, up to 2 Cores, Intel Pentium, up to 2 Cores, Intel Core, up to 8 Cores
Memory Capacity Up to 64GB
Serial Ports (COM) 2x RS-232/422/485
USB Ports 2x USB 2.0, 4x USB 3.1
Ethernet Ports (LAN) 2x 1G
Wireless Wi-Fi
Video Ports 2x HDMI
Digital I/O 8 DIO
Storage Type 2x 2.5"
Expansion Type 2x M.2
Input Voltage 12 VDC
Mounting Options VESA-mount, Wall-mount
Operating Temperature Wide OT: -5°C to 45°C, Standard OT: 35°C to 40°C, Standard
Market Certifications CE/FCC
OS Support Windows 10
