EC910-8MM

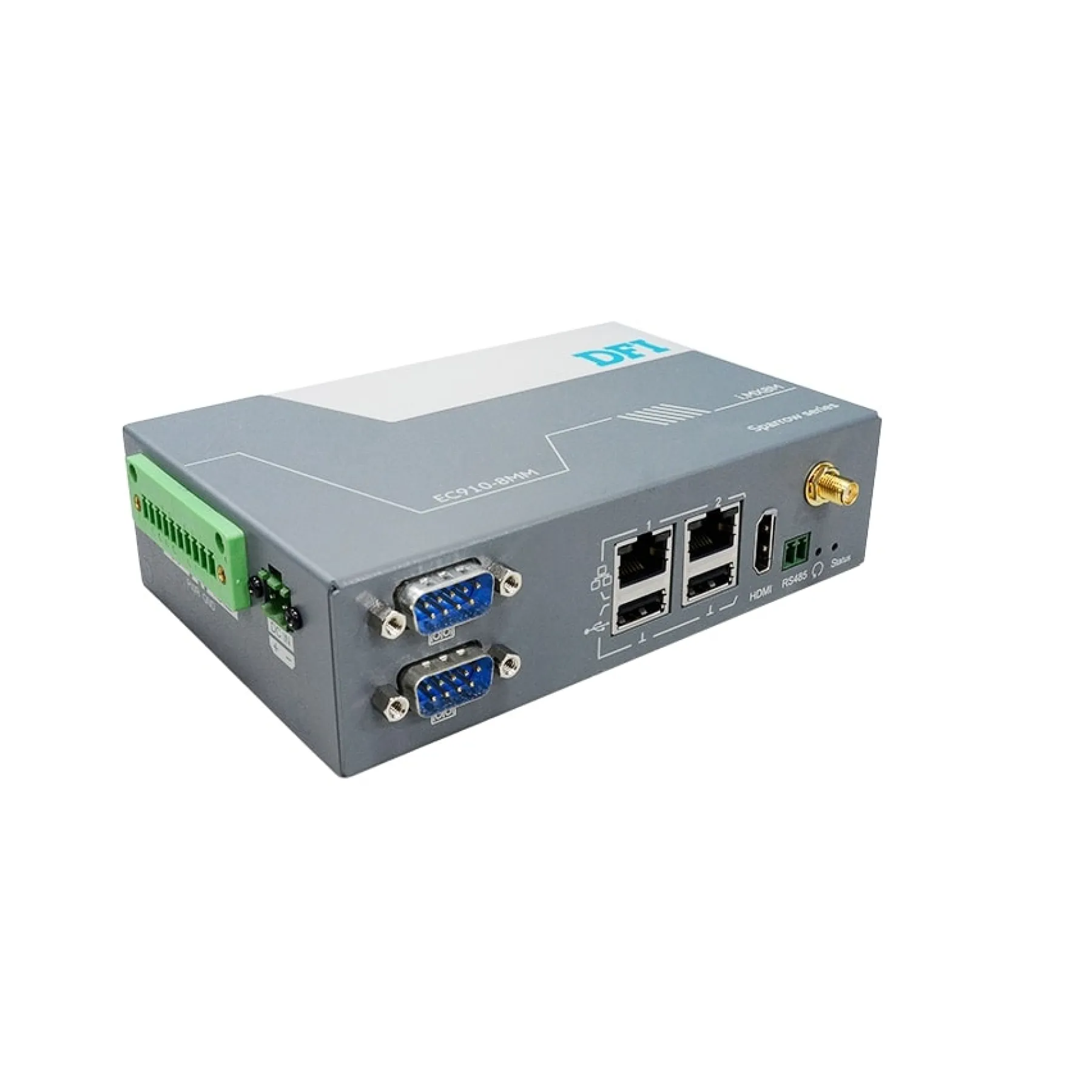

Name: DFI EC910-8MM NXP i.MX8M Mini Processor Ultra Small Size Embedded System with x4 Serial Ports
SKU: EC910-8MM

DFI

DFI EC910-8MM NXP i.MX8M Mini Processor Ultra Small Size Embedded System with x4 Serial Ports

EC910-8MM

NXP i.MX8M Mini Platform: Quad Core Max.1.8GHz
High Speed Memory Down: LPDDR4 3200MHz
Multiple Expansions: M.2 support, WiFi/BT, LTE

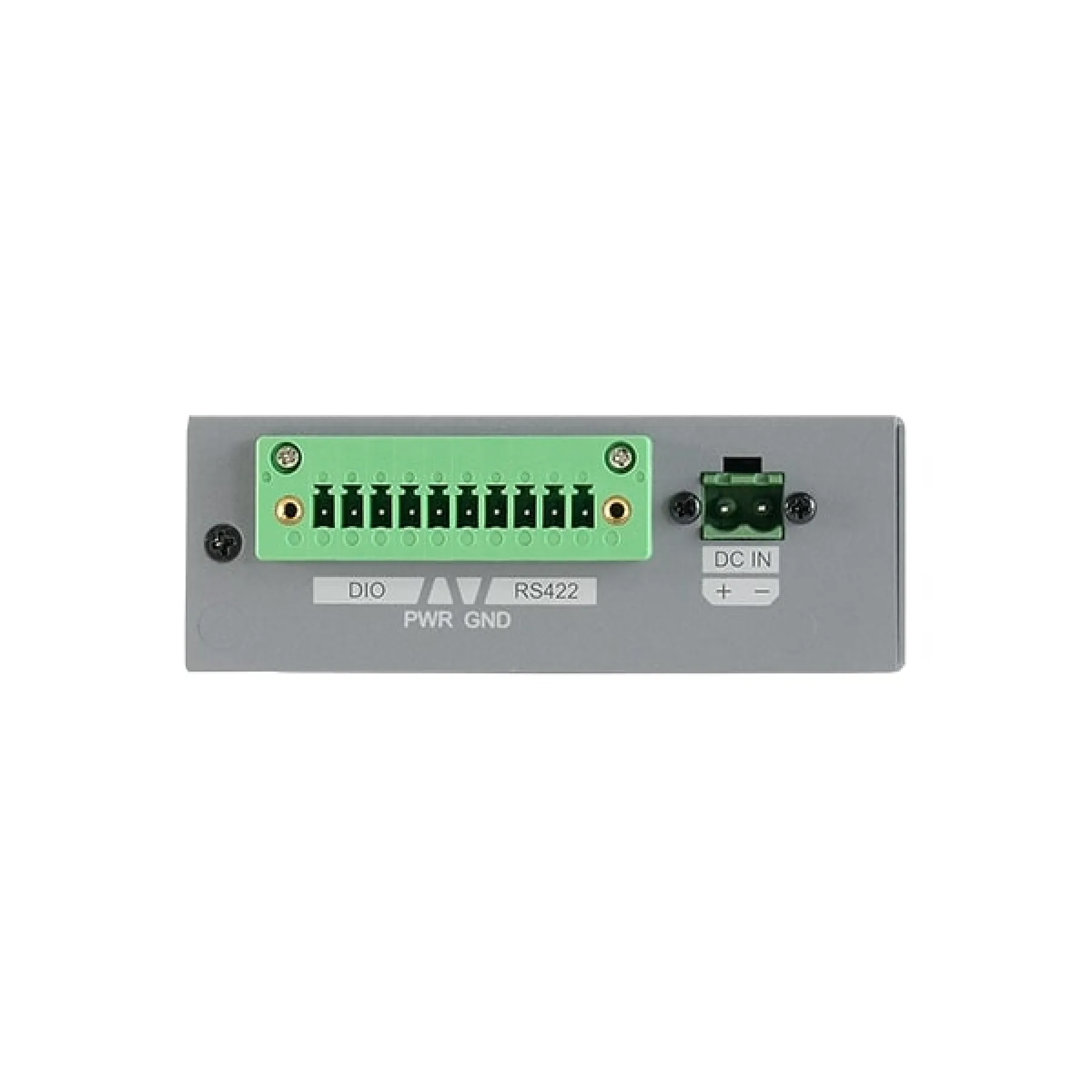

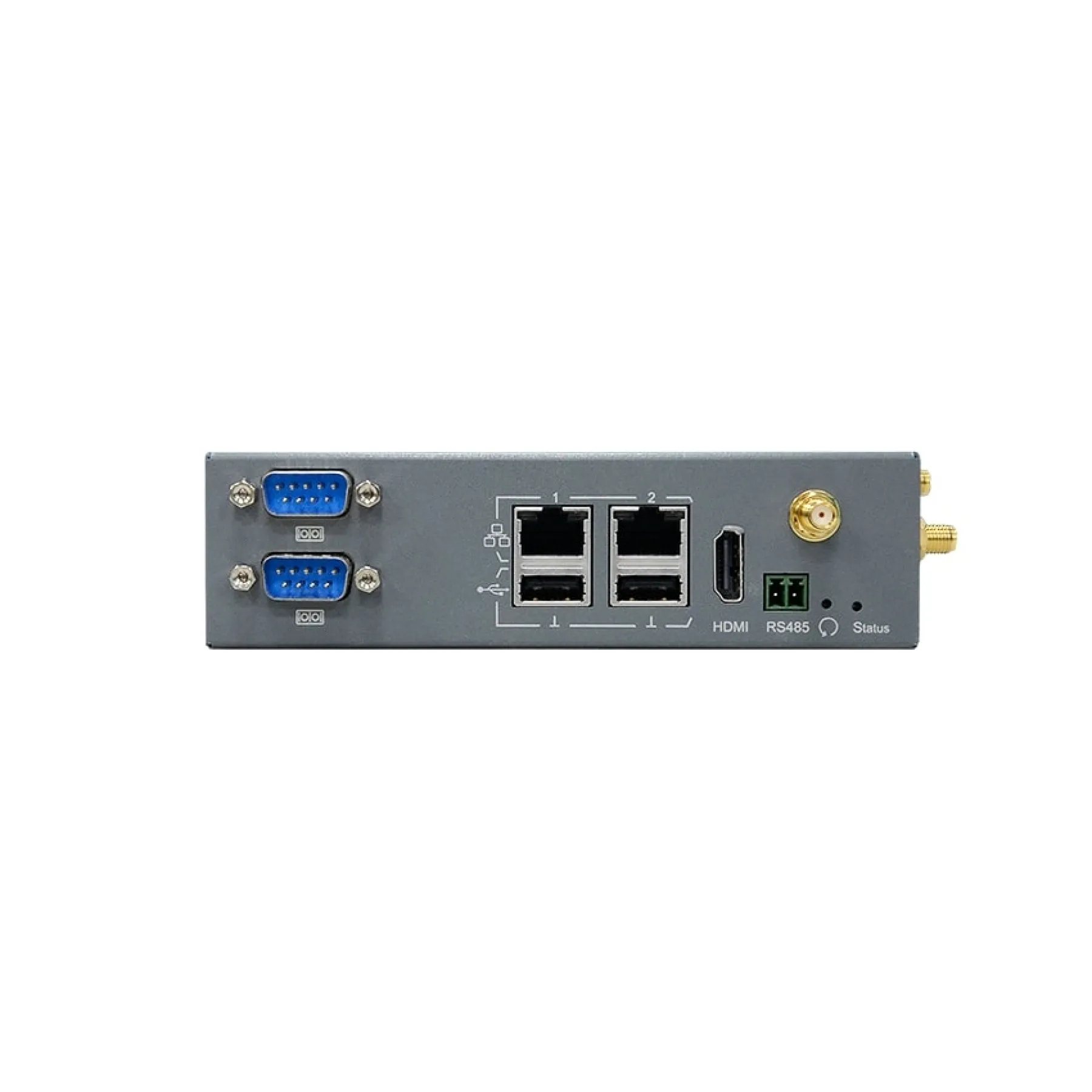

Rich I/O: 2 GbE LAN, 2 USB, 4bit DIO, RS422, RS485
Wide Voltage: Support 9~36VDC

Product Code: EC910-8MM

Categories: DFI, Fanless Embedded PCs

Range: DFI

Details

The DFI EC900-8MM is a Ultra Small Size Embedded System powered by I.MX8M mini Quad core. It has a standard operating temperature of -5 to 60°C and upon request an option for a wider function of -40 to 70°C, it stores within -40 to 85°C. It has a memory capacity of 8GB and an input voltage of 9 to 36 VDC.

Downloads

Datasheet (EC910-8MM) (PDF)

1.4MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Processor Type	RISC, up to 4 Cores
GPU	Integrated GPU
Memory Capacity	Up to 8GB
Cooling Type	Fanless
Serial Ports (COM)	RS-485: Us to 2 Ports, 4 Ports
USB Ports	2x USB 2.0
Ethernet Ports (LAN)	2x 1G
Wireless	WiFi
Video Ports	1x HDMI
Digital I/O	4 DIO
Storage Type	1x SDCARD
Expansion Type	2x M.2
Input Voltage	9-36 VDC
Mounting Options	DIN-Rail
Operating Temperature	Extra Wide: Uo to 40 C to 70 C, Extra Wide
Market Certifications	CE/FCC
OS Support	Linux
