EC320/EC321/EC322

Name: DFI EC320/EC321/EC322 Fanless Embedded Computer
SKU: EC320/EC321/EC322

DFI

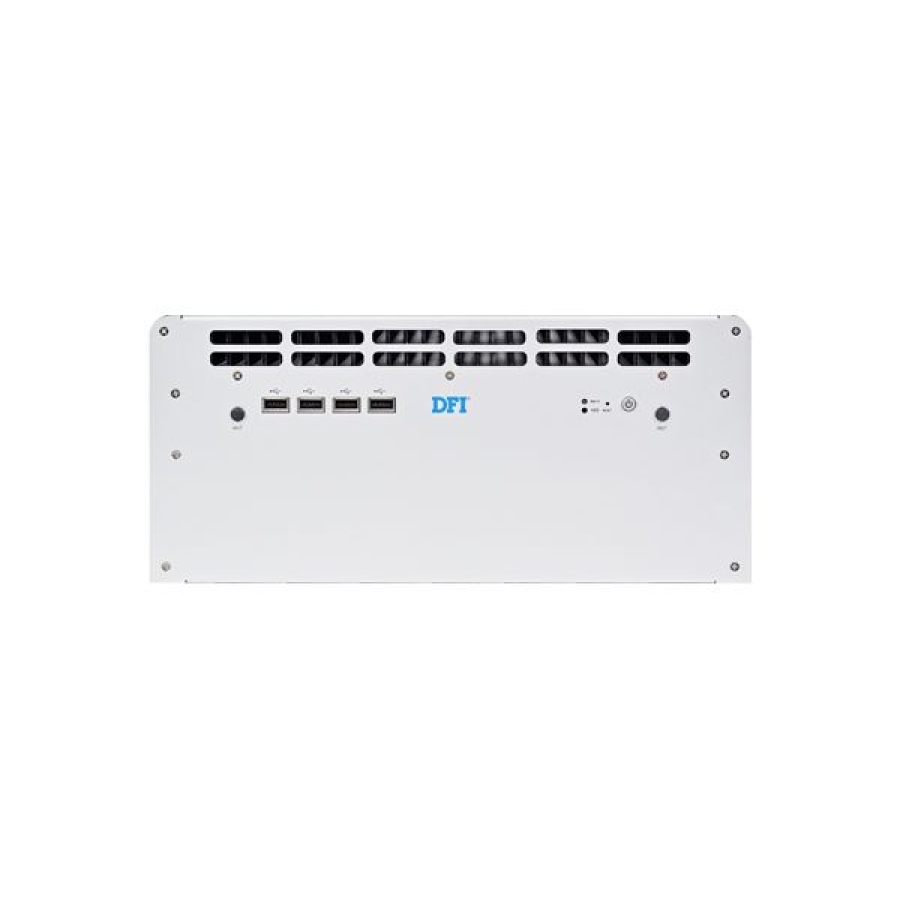

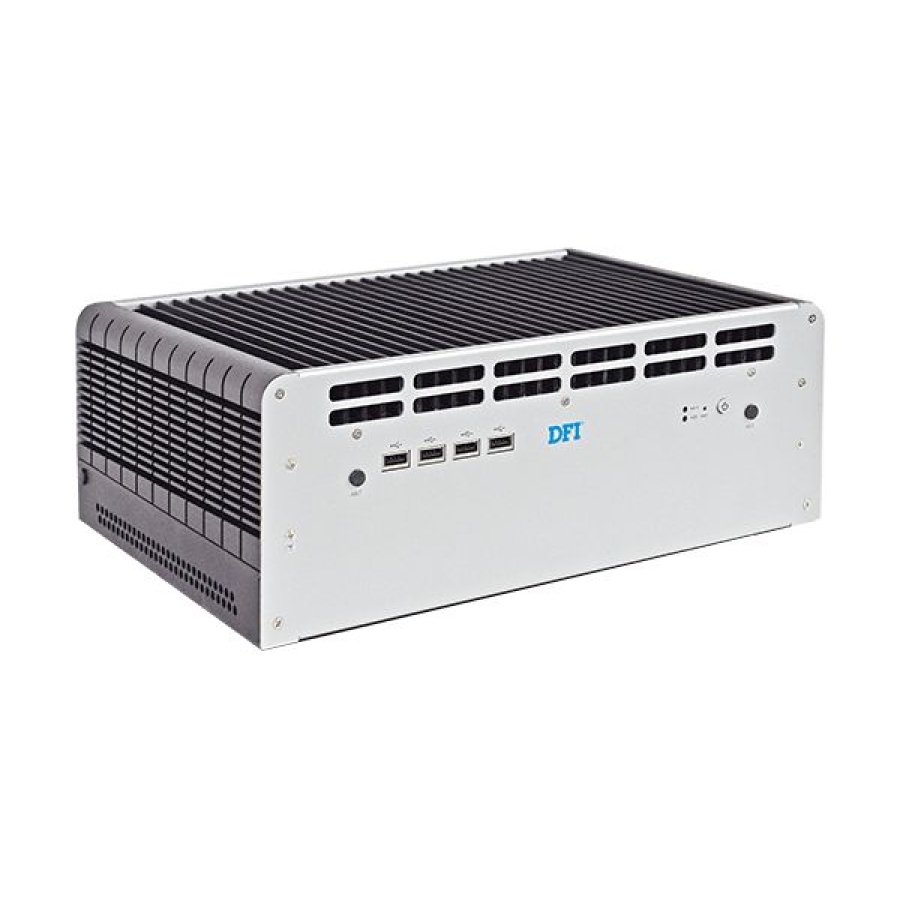

DFI EC320/EC321/EC322 Fanless Embedded Computer

End of Life

3rd/2nd Gen Intel® Core™ Modular-Designed System
Supports DDR3/DDR3L SODIMM up to 16GB
Up to 2x 2.5″ SATA drive bay, 1 CF socket
Supports mSATA via the mini PCIe slot
3 expansion slots: PCIe x16 and PCI expansions
7-Year CPU Life Cycle Support

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

Product Code: EC320/EC321/EC322

Categories: End of Life Products

Range: DFI

Details

The DFI EC320/EC321/EC322 fanless embedded computer supports 3rd generation Intel Core processors with up to 16gb of memory.

Ordering Info

EC320-CR6881: 750-EC3200-300G- Fanless, i7/i5/i3, QM77, 2 LAN, 1 DVI, 1 VGA, 6 COM, 8-bit GPIO, 8 USB, 2 PCI, RoHS

EC320-CR4866: 750-EC3200-500G- Fanless, i7/i5/i3, QM77, 1 VGA, 4 PoE Gigabit LAN, 2 LAN, 4 COM, 8-bit GPIO, 6 USB, 2 PCI, RoHS

EC321-CR6G60: 750-EC3210-100G- Fanless, i7/i5/i3, QM77, 2 LAN, 1 VGA, 6 COM, 16-bit GPIO, 6 USB, 1 PCI, 1 PCIe x16, RoHS

EC321-CRA060: 750-EC3210-200G- Fanless, i7/i5/i3, QM77, 2 LAN,1 VGA, 10 COM, 6 USB, 1 PCI, 1 PCIe x16, RoHS

EC321-CR6881: 750-EC3210-300G- Fanless, i7/i5/i3, QM77, 2 LAN, 1 DVI, 1 VGA, 6 COM, 8-bit GPIO, 8 USB, 1 PCI, 1 PCIe x16, RoHS

EC322-CR6G60: 750-EC3220-100G- Fanless, i7/i5/i3, QM77, 2 LAN, 1 VGA, 6 COM, 16-bit GPIO, 6 USB, 2 PCIe x16, RoHS

EC321-CR4866: 750-EC3210-500G- Fanless, i7/i5/i3, QM77, 1 VGA, 4 PoE Gigabit LAN, 2 LAN, 4 COM, 8-bit GPIO, 6 USB, 1 PCI, 1 PCIe x16, RoHS

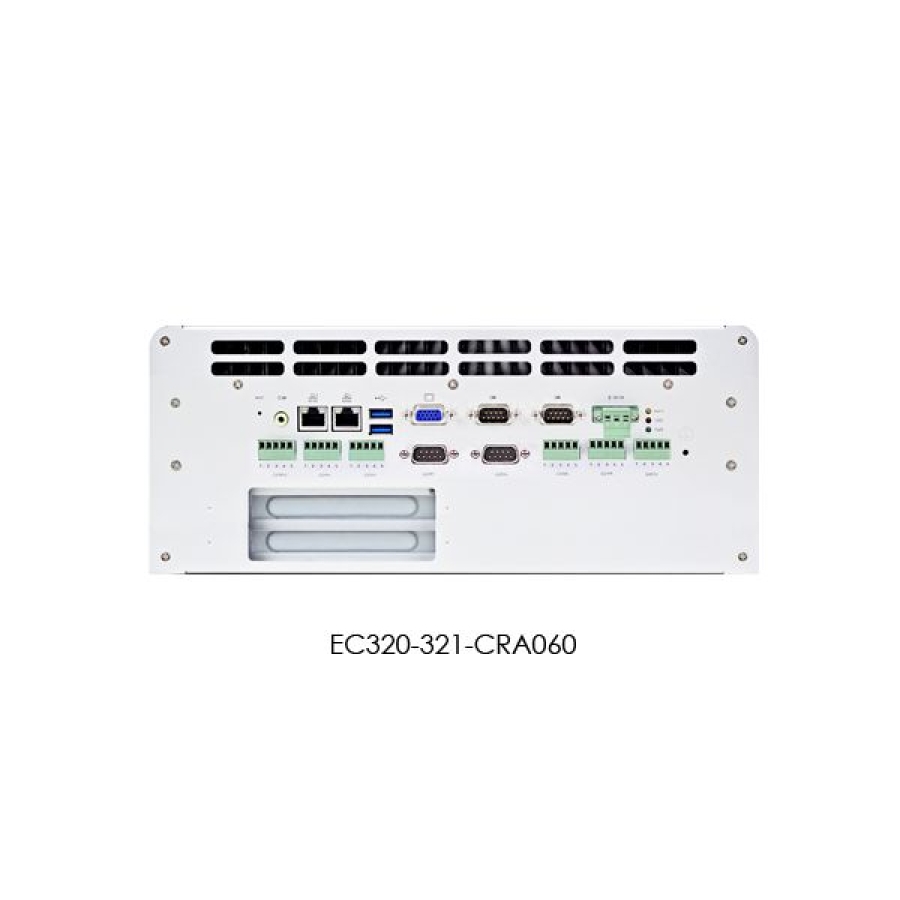

EC320-CRA060: 750-EC3200-200G- Fanless, i7/i5/i3, QM77, 2 LAN, 1 VGA, 10 COM, 6 USB, 2 PCI, RoHS

EC322-CRA060: 750-EC3220-200G- Fanless, i7/i5/i3, QM77, 2 LAN,1 VGA, 10 COM, 6 USB, 2 PCIe x16, RoHS

EC322-CR6881: 750-EC3220-300G- Fanless, i7/i5/i3, QM77, 2 LAN, 1 DVI, 1 VGA, 6 COM, 8-bit GPIO, 8 USB, 2 PCIe x16, RoHS

EC322-CR4866: 750-EC3220-000G- Fanless, i7/i5/i3, QM77, 4 PoE Gigabit LAN, 2 LAN, 1 VGA, 4 COM, 8-bit GPIO, 6 USB, 2 PCIe x16, RoHS

EC321-CR4G65: 750-EC3210-A00G- Fanless, i7/i5/i3, QM77, 5 LAN, 1 VGA, 4 COM, 16-bit GPIO, 6 USB, 1 PCI, 1 PCIe x16, RoHS

EC322-CR4G65: 750-EC3220-400G- Fanless, i7/i5/i3, QM77, 5 LAN, 1 VGA, 4 COM, 16-bit GPIO, 6 USB, 2 PCIe x16, RoHS

EC320-CR6G60: 750-EC3200-100G- Fanless, i7/i5/i3, QM77, 2 LAN, 1 VGA, 6 COM, 16-bit GPIO, 6 USB, 2 PCI, RoHS

Downloads

DFI EC320/EC321 Datasheet (PDF)

1.51MB

DFI EC322 Datasheet (PDF)

1.53MB
