CS350-C246

Name: DFI CS350-C246 8th/9th Gen Intel Core Industrial MicroATX Motherboard
SKU: CS350-C246

DFI

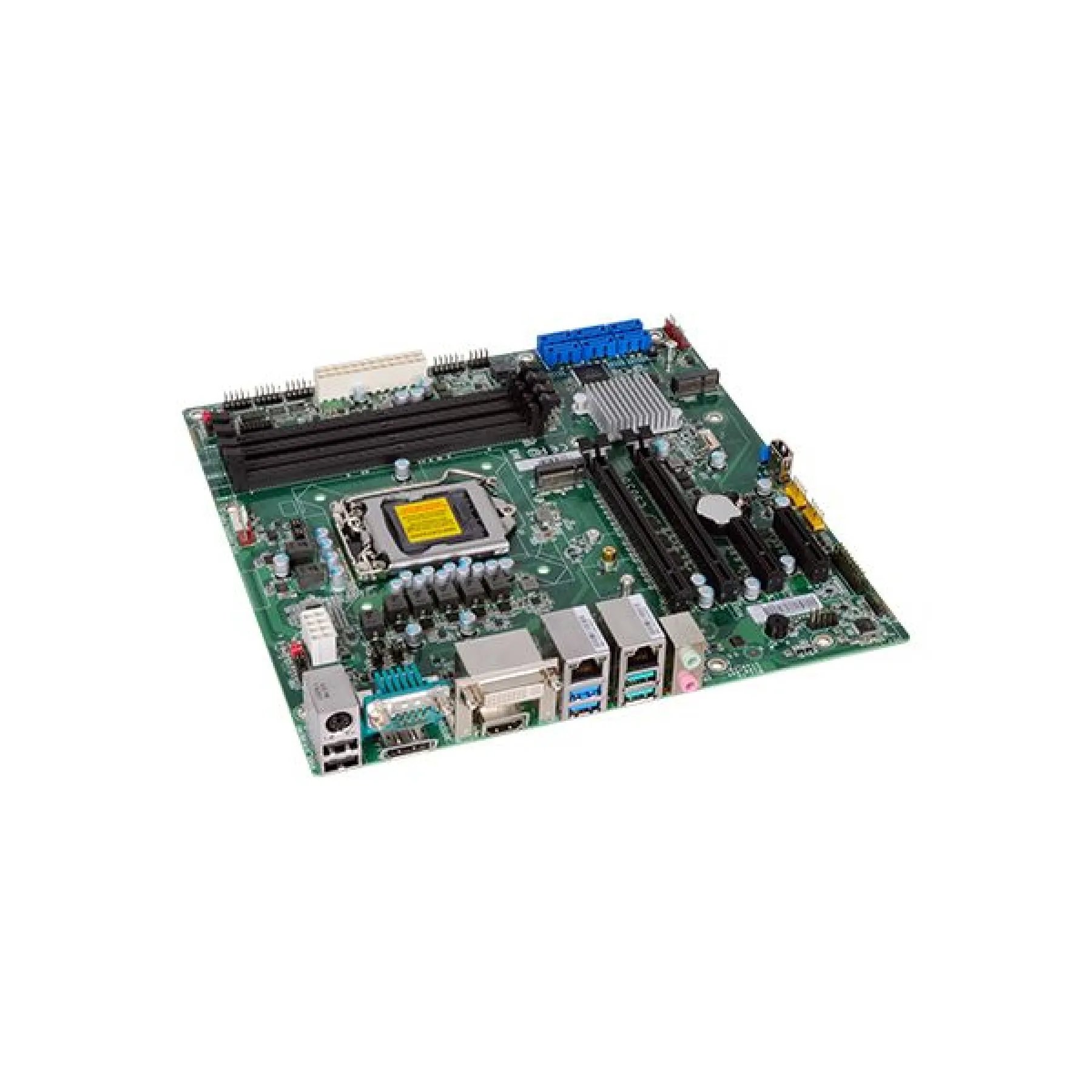

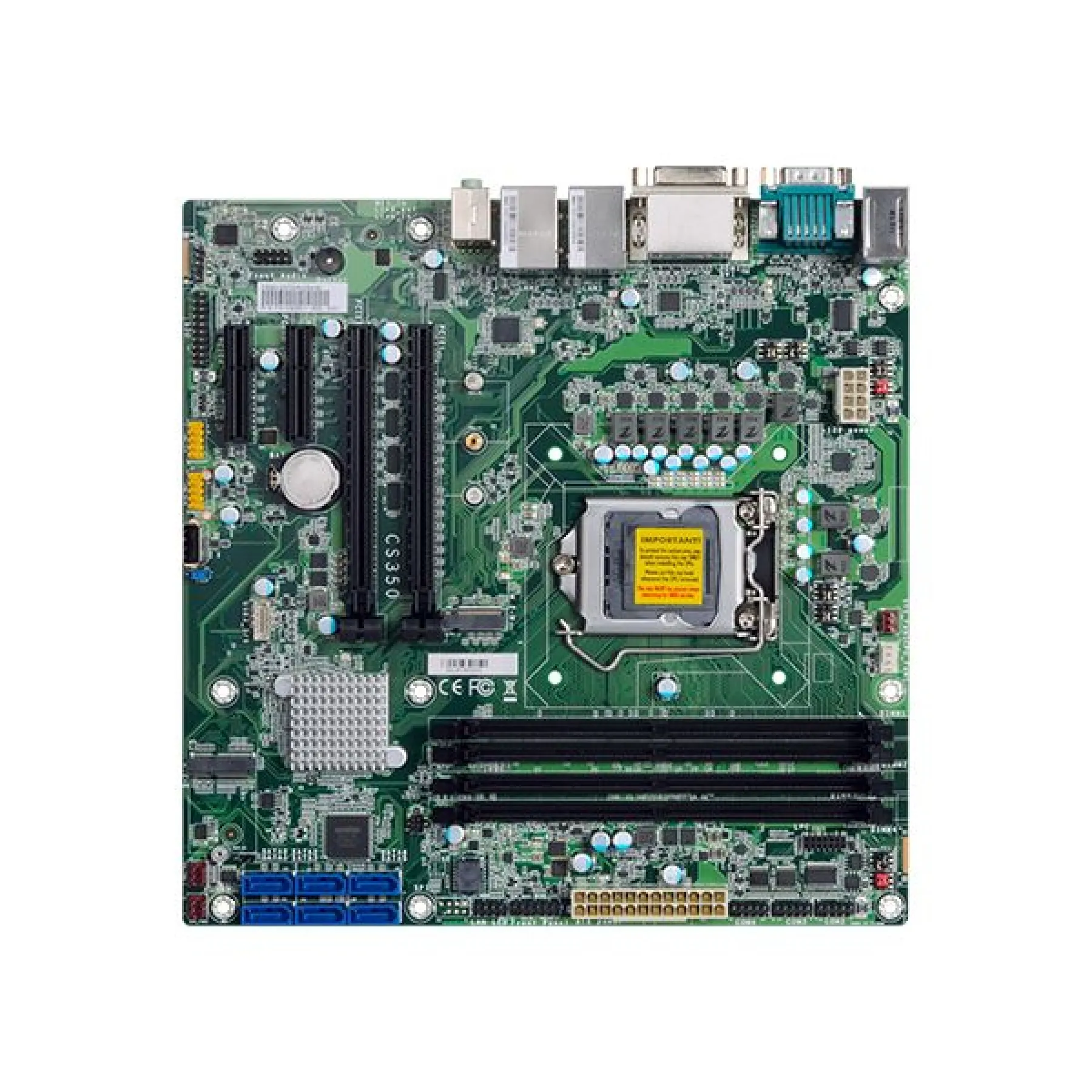

DFI CS350-C246 8th/9th Gen Intel Core Industrial MicroATX Motherboard

CS350-C246

4 DDR4 ECC/Non-ECC DIMM up to 128GB
Three display ports: DVI-D, DP++, DP++(Opt.:HDMI 1.4b) Supports triple independent displays
DP++ resolution up to 4096×2160 @ 60Hz DVI-D resolution up to 1920×1200 @ 60Hz
Multiple expansion: 2 PCIe x16 (1 x16 or 2 x8 signal), 2 PCIe x4, 1 M.2 E key, 1 M.2 M key (support Optane Memory)
Rich I/O: 2 Intel GbE, 4 COM, 2 USB 3.1 Gen 2, 4 USB 3.1 Gen 1, 6 USB 2.0
15-Year CPU Life Cycle Support Until Q1′ 32 (Based on Intel IOTG Roadmap)
8th/9th Gen Intel® Core™ with Intel® C246

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: CS350-C246

Categories: DFI, DFI Industrial Motherboards, Industrial Motherboards, Micro-ATX Motherboards

Range: DFI

Details

The DFI CS350-C246 is an industrial Micro-ATX motherboard powered by 8th/9th Gen Intel Core processors. This motherboard supports triple independent displays with a DP++ resolution up to 4096 x 2160 at 60Hz and a DVI-D resolution up to 1920 x 1200 at 60Hz. The rich I/O includes: 2 x Intel GbE, 4 x COM, 2 x USB 3.1 Gen 2, 4 x USB 3.1 Gen 1 and 6 x USB 2.0 alongside 2 PCIe x16 (1 x16 or 2 x8 signal), 2 PCIe x4, 1 M.2 E key, 1 M.2 M key (support Optane Memory) for multiple expansion.

Downloads

DFI CS350-C246 Datasheet (PDF)

0.86MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

System Processors	8th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors9th Generation Intel® Core™ LGA 1151 Socket Processors
Graphics	Intel® HD Gen 9 Graphics
Expansion	2 x PCIe x16 (Gen 3) (1 x16 signals or 2 x8 signals)2 x PCIe x4 (Gen 3)1 x M.2 2230 E key (PCIe x2/USB2.0/intel CNVi support)1 x M.2 2242/2260/2280 M key (PCIe Gen3 x 4 NVMe)
Audio	Realtek ALC888
Ethernet	1 x Intel® i219LM PCIe (10/100/1000Mbps)1 x Intel® i211AT PCIe (10/100/1000Mbps) with iAMT 12.0 (only Xeon, Core i7/i5 support iAMT)
Rear I/O	2 x GbE (RJ-45), 1 x RS-232/422/485 (RS-232 w/ power) (DB-9), 2 x USB 3.1 Gen 2, 2 x USB 3.1 Gen 1, 2 x USB 2.0, PS/2 1 x PS/2 (mini-DIN-6), 1 x DVI-I (DVI-D signal), 2 x DP++, 1 x Line-out, 1 x Line-in (colay, opt., MOQ required), 1 x Mic-in.
Internal I/O	1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch), 2 x RS-232, 2 x USB 3.1 Gen 2, 4 x USB 2.0 (2.54mm pitch) (1 x USB 2.0 colay vertical Type A) (opt., MOQ required), Audio 1 x S/PDIF, 1 x Front Audio Header, 6 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10, 1 x 8-bit DIO, 1 x LPC, 1 x SMBus
Watchdog Timer	System Reset, Programmable via Software from 1 to 255 sec/min
Security	Infineon TPM 2.0 (opt., MOQ required)
Power Type	ATX
OS Support	Windows 10 IoT Enterprise 64-bitLinux: Ubuntu 18.04
Environment	Operating: -10 to 70°CStorage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
Mechanism	microATX form factor 244mm (9.6″) x 244mm (9.6″)
Packing List	1 CS350-C246 motherboard1 COM port cable (W/Bracket, Length: 300mm, 2 x COM ports) A81-015026-023G1 Serial ATA data cable (W/LOCK, Length: 500mm) 332-553001-005G1 I/O shield TBD

Processor Type	Intel Celeron: Up to 2 Cores, Intel Pentium: Up to 2 Cores, Intel Xeon: Up to 4 Cores, Intel Core: Up to 4 Cores, Intel Xeon: Up to 6 Cores, Intel Core: Up to 6 Cores, Intel Xeon: Up to 8 Cores, Intel Core: Up to 8 Cores
Memory Type	DDR4
COM Ports	2x RS-232, 2x RS-232/422/485
LAN Ports	2x 1GB
USB Ports	6x USB 2.0
Video Ports	1x DVI, 2x DisplayPort
Storage	6x SATA
Operating Temperature	-10°C to 70°C
