AL553

Name: DFI AL553 3.5" Intel Atom SBC w/ Three Independent Displays &amp; Memory up to 8GB
SKU: AL553

DFI

DFI AL553 3.5″ Intel Atom SBC w/ Three Independent Displays & Memory up to 8GB

AL553

Intel Atom E3900 3.5″ SBC
1 DDR3L SODIMM up to 8GB
Three independent displays: VGA + LVDS + HDMI
Multiple expansion: 1 x M.2 B Key, 1 x M.2 E Key, Mini PCIe
Rich I/O: 2 x Intel GbE, 1 x COM, 2 x USB 3.1 Gen1, 4 x USB 2.0
15-Year CPU Life Cycle Support Until Q1′ 31 (Based on Intel IOTG Roadmap)

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: AL553

Categories: 3.5" Single Board Computers, DFI, Industrial Motherboards, Industrial Single Board Computers

Range: DFI

Details

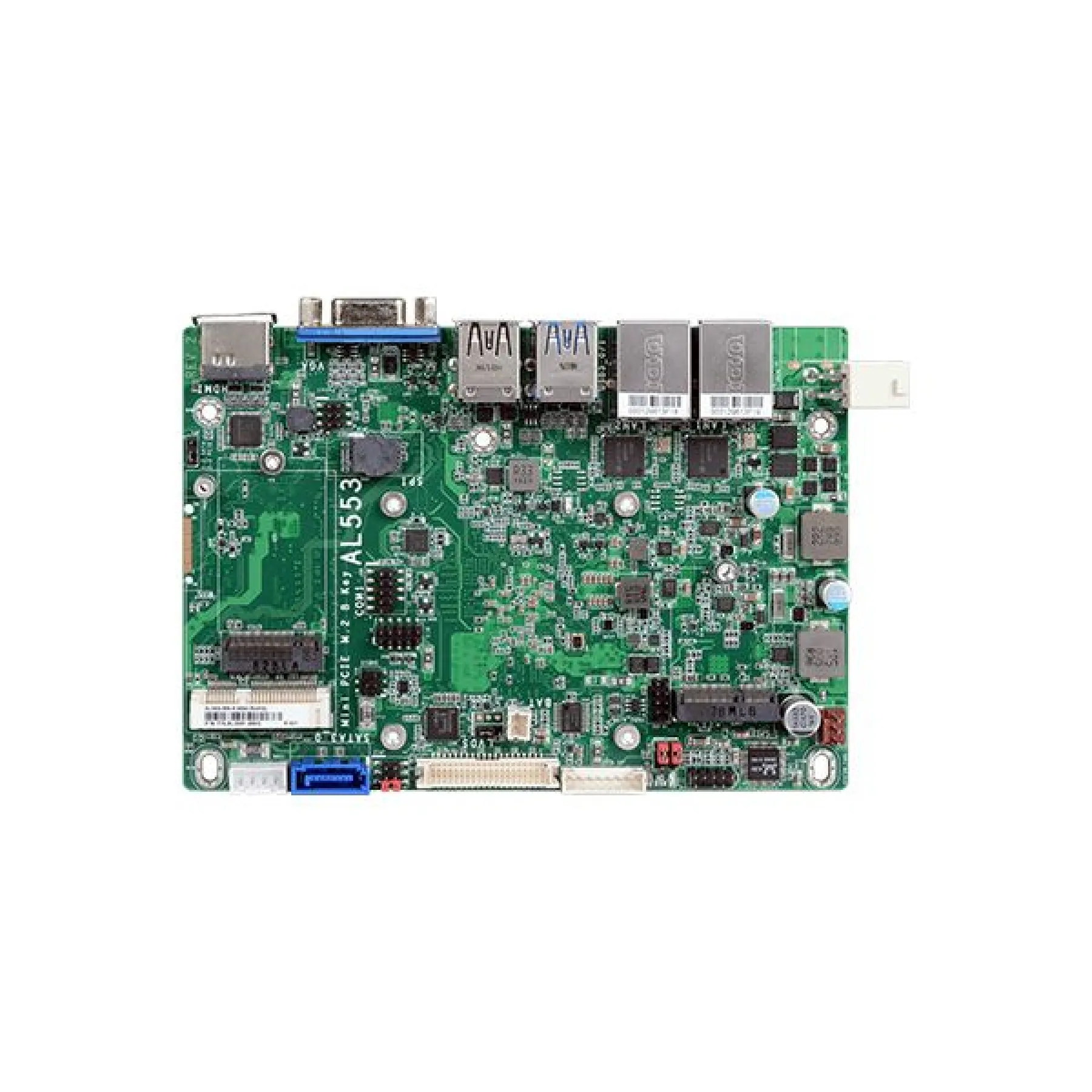

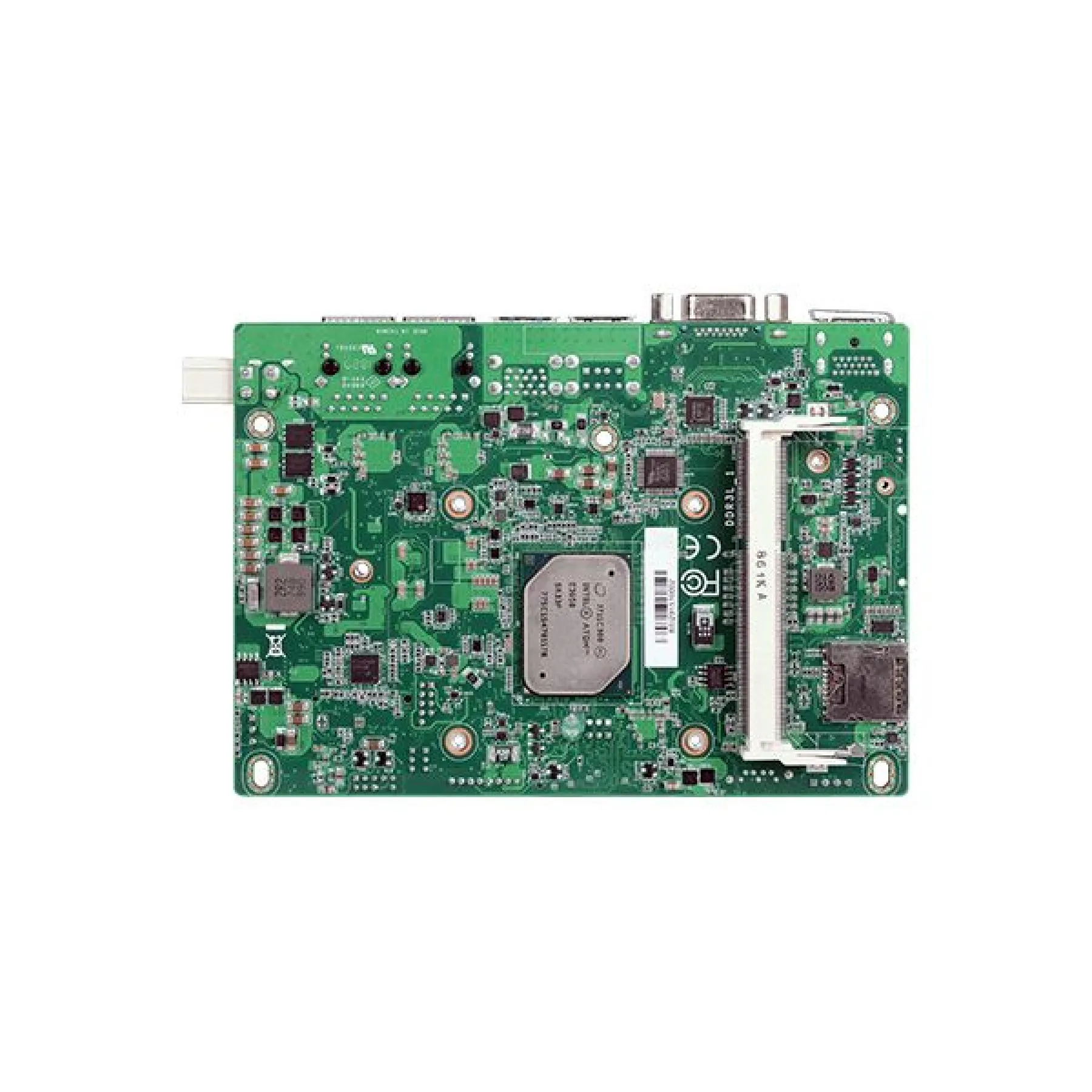

The DFI AL553 is a 3.5" Single board computer powered by the Intel Atom E3900 processor. The SBC has three independent displays: VGA, LVDS, HDMI. The rich I/O includes: 2 x Intel GbE, 1 x COM, 2 x USB 3.1 Gen1, 4 x USB 2.0 alongside the multiple expansion: 1 x M.2 B Key, 1 x M.2 E Key, Mini PCIe.

Ordering Info

AL553-BN-E3950	Intel Atom x7-E3950, 1 DDR3L SODIMM, 1VGA, 1 LVDS, 1 HDMI,1 COM, 2 LAN, 6 USB, 9-36VDC, Fanless, 0 to 60°C
AL553-BN-E3940	Intel Atom x5-E3940, 1 DDR3L SODIMM, 1VGA, 1 LVDS, 1 HDMI, 2 LAN, 1 COM, 6 USB, 9-36VDC, Fanless, 0 to 60°C
AL553-BN-E3930	Intel Atom x5-E3930, 1 DDR3L SODIMM, 1VGA, 1 LVDS, 1 HDMI, 2 LAN, 1 COM, 6 USB, 9-36VDC, Fanless, 0 to 60°C
AL553-BN-N4200	Intel Pentium N4200, 1 DDR3L SODIMM, 1VGA, 1 LVDS, 1 HDMI, 2 LAN, 1 COM, 6 USB, 9-36VDC, Fanless, 0 to 60°C
AL553-BN-N3350	Intel Celeron N3350, 1 DDR3L SODIMM, 1VGA, 1 LVDS, 1 HDMI, 2 LAN, 1 COM, 6 USB, 9-36VDC, Fanless, 0 to 60°C
AL553-EN-E3950	Intel Atom x7-E3950, 1 DDR3L SODIMM, 1VGA, 1 LVDS, 1 HDMI, 2 LAN, 1 COM, 6 USB, 9-36VDC, Fanless, -20 to 70°C
AL553-TN-E3950	Intel Atom x7-E3950, 1 DDR3L SODIMM, 1VGA, 1 LVDS, 1 HDMI, 2 LAN, 1 COM, 6 USB, 9-36VDC, Fanless, -40 to 85°C

Downloads

DFI AL553 Datasheet (PDF)

1.06MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

System	Intel Atom Processor E3900 Family, BGA 1296Intel Pentium Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6WIntel Celeron Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6WIntel Celeron Processor J3455, Quad Core, 2M Cache, 1.5GHz (2.3GHz), 10W
Graphics	Intel HD Graphics
Expansion	1 x Full-size mini PCIe with SIM slot option1 x M.2 B Key 22421 x M.2 E Key 2230
Audio	Realtek ALC262
Ethernet	2 x Intel I211AT PCIe, 2 x Intel I210IT PCIe

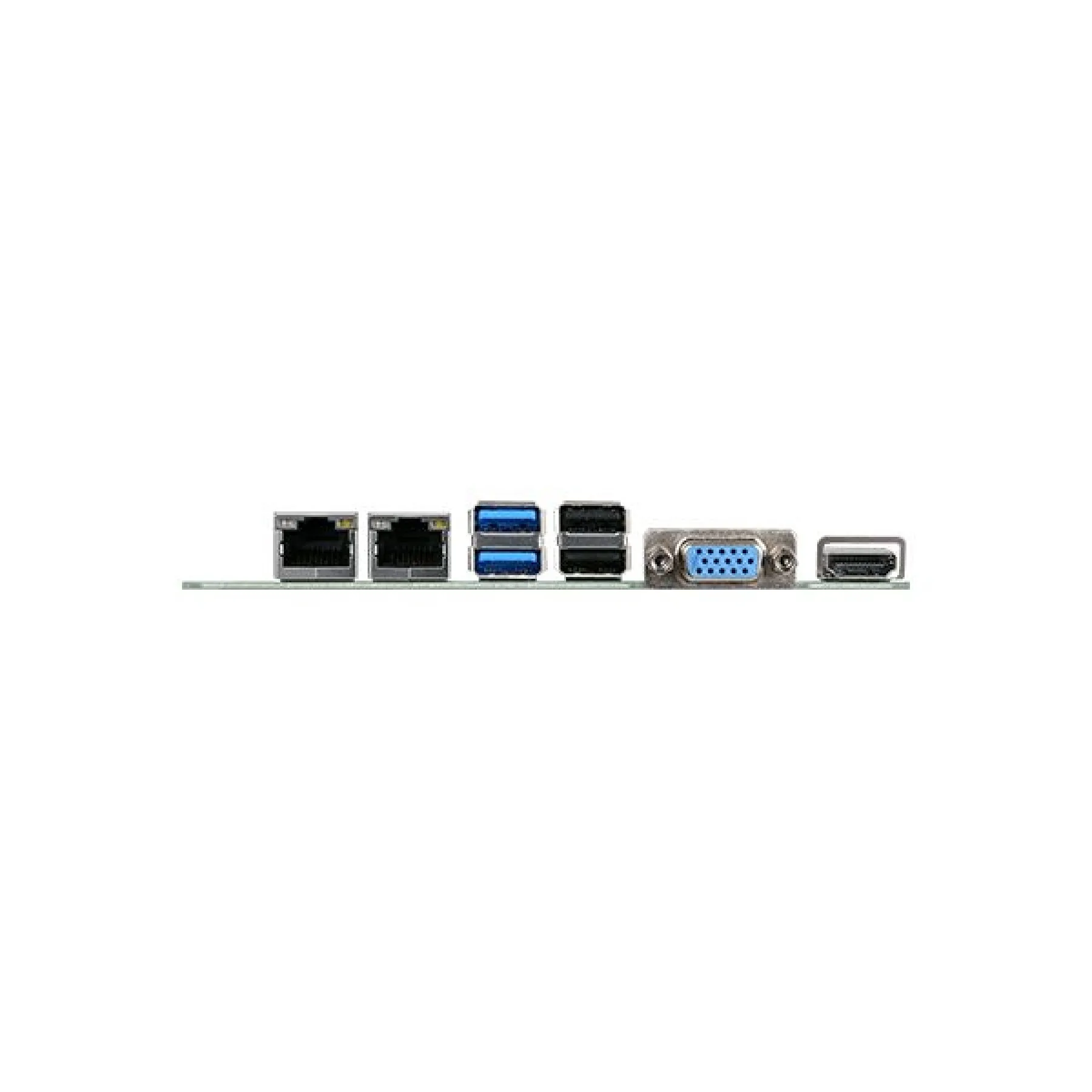

Rear I/O	2 x GbE (RJ-45), 2 x USB 3.1 Gen1, 2 x USB 2.0, 1 x VGA, 1 x HDMI, 1 x LVDS
Internal I/O	1 x RS-232/422/485, 2 x USB 2.0, 1 x LVDS LCD Panel Connector, 1 x LCD/Inverter Power, 1 x Audio (Line-out/Mic-in), 1 x SATA 3.0, 1 x SATA Power, 1 x 8-bit DIO, 1 x SMBus
Watchdog Timer	System Reset, Programmable via Software from 1 to 255 Seconds
Security	fTPM2.0
Power	Wide Range 9~36V DC
OS Support	Windows 10 IoT Enterprise (64-bit) Linux
Environment	Operating: 0 to 60°C, -20 to 70°C, -40 to 85 °C
Mechanical	3.5″ SBC Form Factor
Certifications	CE, FCC Class B, RoHS

Processor Type	Intel Celeron: Up to 2 Cores, Intel Atom: Up to 2 Cores, Intel Celeron: Up to 4 Cores, Intel Pentium: Up to 4 Cores, Intel Atom: Up to 4 Cores
Memory Type	DDR3L
COM Ports	1x RS-232/422/485
LAN Ports	2x 1GB
USB Ports	2x USB 3.1, 4x USB 2.0
Video Ports	1x HDMI, 1x VGA, 1x LVDS
Storage	2x SATA
Operating Temperature	-20°C to 70°C, -40°C to 85°C, 0°C to 60°C
