DI-1000-i5

Name: Cincoze DI-1000-i5 6th Gen Intel Core i5-6300U Compact and Modular Embedded PC
SKU: DI-1000-i5

Cincoze

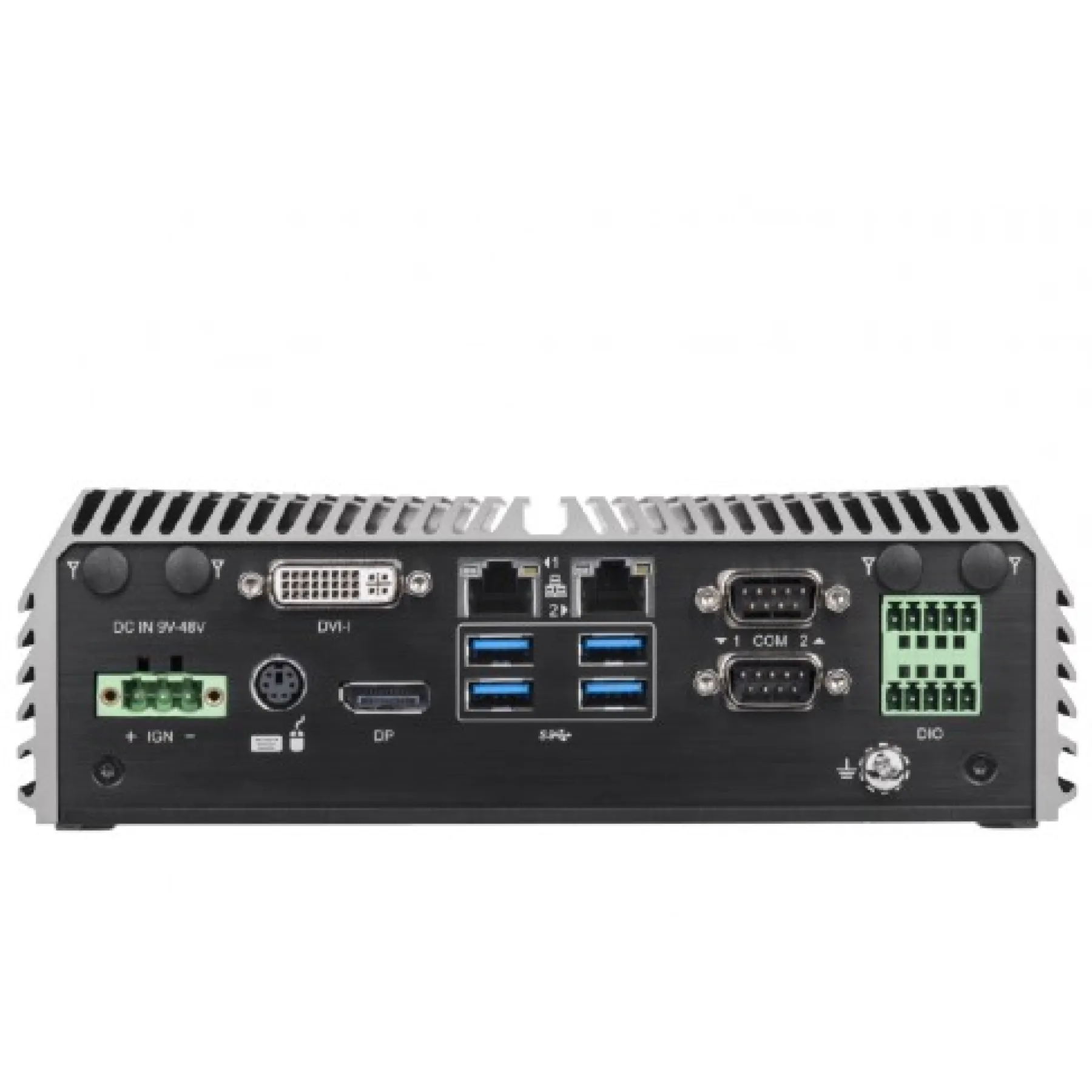

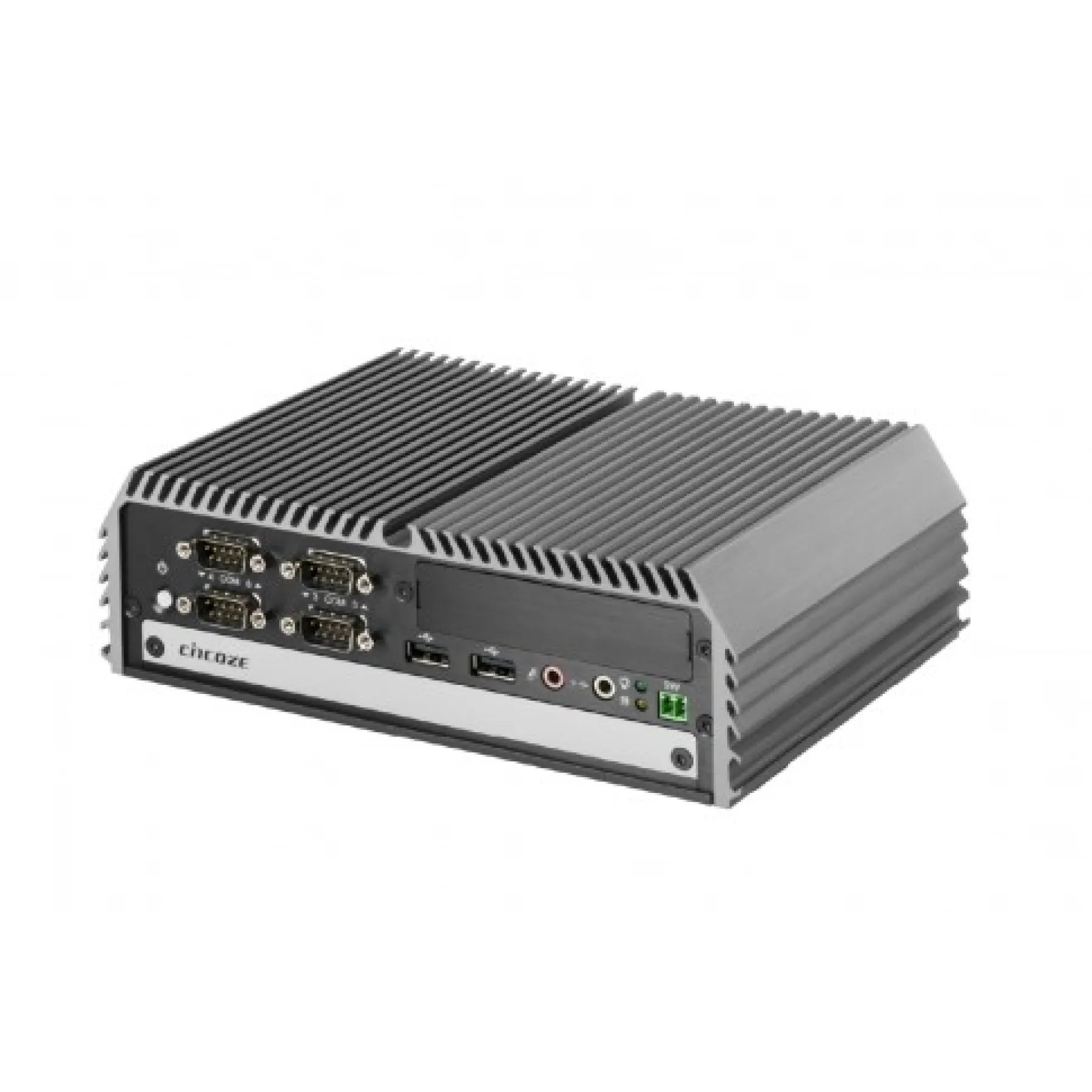

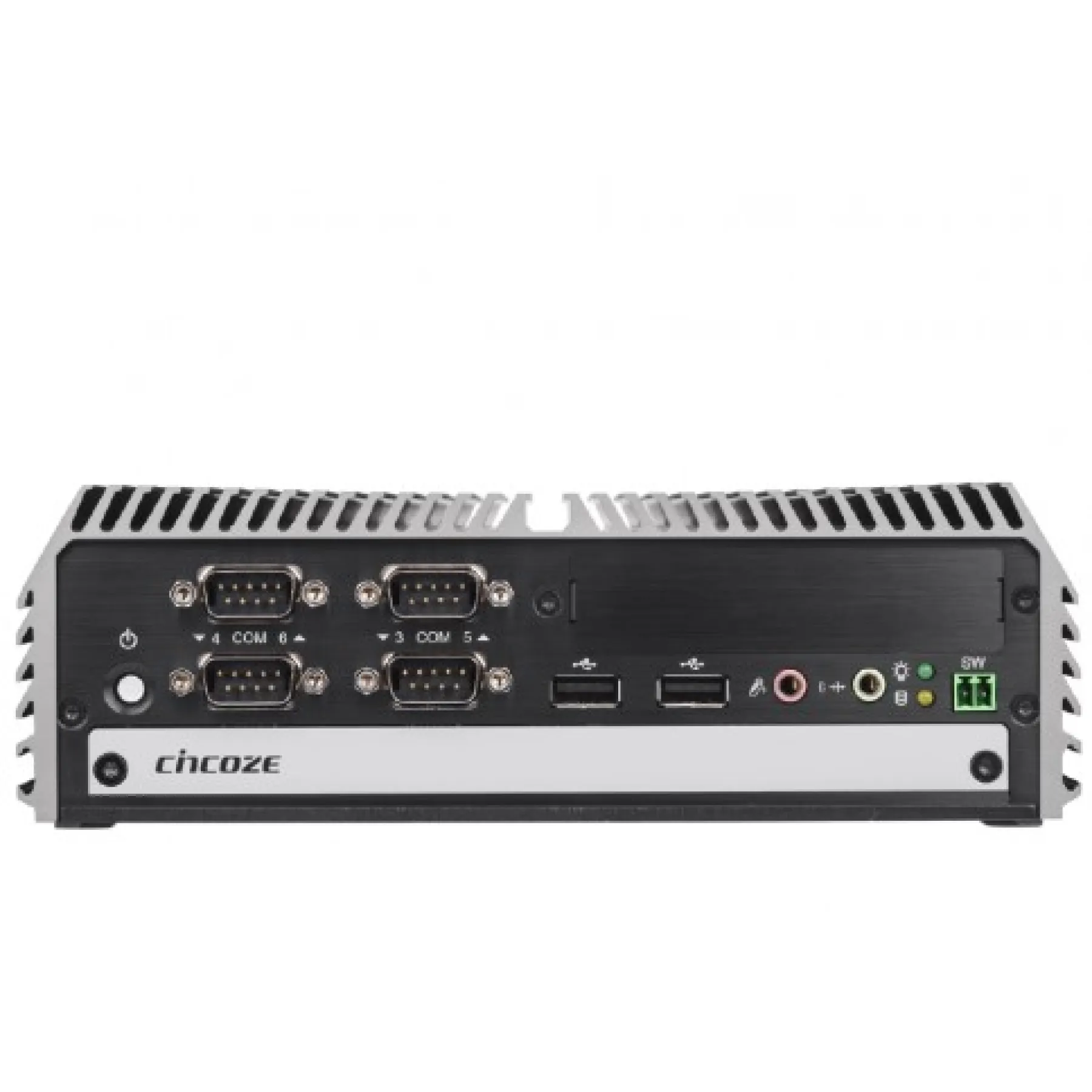

Cincoze DI-1000-i5 6th Gen Intel Core i5-6300U Compact and Modular Embedded PC

DI-1000-i5

Onboard 6th Generation Intel Core Mobile Processor (BGA Type)
1x DDR4 SO-DIMM Socket, 2133MHz, Supports Up to 32 GB
Triple Independent Display (DVI-I, DisplayPort)
Compact Size 203 x 142 x 66.8 mm with Light Weight 1.65 kg
1x Hot-swappable 2.5” SATA HDD/SSD Bay and 1x Internal 2.5” SATA HDD/SSD Bay, Supports RAID 0/1
Rich I/O Including DVI, DP, 2x GbE LAN, 6x COM, 6x USB, 8x Optical Isolated DIO
Supports Cincoze CMI Technology for LAN, PoE & M12 Connector Expansion
Supports Cincoze CFM Technology for Power Ignition Sensing (IGN) Function Expansion
Cincoze MEC Module Kits for Various I/O Expansion
2x Full-size Mini-PCIe Slots for Wireless and I/O Expansion
Wide Operating Temperature (-40°C to 70°C)
EN50121-3-2 Certified for Railway Application
E-Mark (E13, No. 10R-0514273) Certified for In-vehicle Application

Choose DI-1000 Series Model:

Optional Expansion Modules

Using Cincoze CMI/CFM/MEC Module interface for function expansion, you can add additional I/O to the system without using any of the system's standard expansion interfaces. Please select from the options below.

CFM Modules *
CMI Modules *
MEC Modules *
MEC Modules *

Product Code: DI-1000-i5

Categories: Cincoze, Cincoze DI-1000 Series, Cincoze Rugged Embedded Computers, Industrial Computing, Rugged Computers

Range: Cincoze - Cincoze DI-1000 Series

Details

Cincoze DI-1000 Series is a high-performance, compact and modular fanless embedded computer powered by 6th generation Intel Core mobile processor (Skylake-U), it integrates Intel HD graphic engine and accommodates one DDR4 socket up to 32 GB which allows DI-1000 Series to fulfill all kinds of high-end computing demands. Extremely compact size with dimension 203 x 142 x 66.8 mm, comprising unbeatable I/O such as DVI-I, DP, 2x LAN, 6x COM, 6x USB, 8x Optical Isolated DIO, PS/2, Mic-in, Line-out, and remote power on/off switch, supporting two full-size Mini-PCIe slots for wireless communication and I/O expansion, accommodating two 2.5” SATA HDD/SSD bay for RAID 0/1 function, making DI-1000 series unmatchable in the market for its size and functions. DI-1000 Series weighs only 1.65 kg supporting 4 types of mounting mechanisms (Wall, DIN, Side and VESA) allowing it to be installed everywhere. The unique Cincoze’s CMI (Combined Multiple I/O), CFM (Control Function Module) and MEC (Mini-PCIe Card) technologies allow DI-1000 Series to be expanded according to the specific needs. The options of ready-to-use modules including Multi-LAN, PoE, M12 connections, Power Ignition Sensing and various types of I/O interface, making DI-1000 series application-ready platform for factory automation, machine vision, in-vehicle, and mobile surveillance applications.

Ordering Info

Package Checklist
√ DI-1000 Embedded System x 1	√ Power Terminal Block Connector x 1
√ CPU Heatsink Thermal Pad x 1	√ Remote Power On/Off Terminal Block Connector x 2
√ Utility DVD Driver x 1	√ DIO Terminal Block Connector x 2
√ Screw Pack x 1	√ DVI-I to VGA Adaptor
√ Wall Mounting Kit x 1

Optional Accessories
Model No.	Description
CFM-IGN102	CFM Module with Power Ignition Sensing Control Function, Selectable 12V/24V
CMI-LAN01-R12/UB0712	CMI Module with 4x Intel I210 GbE LAN, RJ45 Port / 1x Universal Bracket
CMI-M12LAN01-R12/UB0710	CMI Module with M12 Connector, 4x Intel I210 GbE LAN / 1x Universal Bracket
MEC-COM-M212/UB0703	Mini-PCIe Module with 2x COM Ports, 2x Universal Brackets
MEC-LAN-M102-15/UB0711	Mini-PCIe Module with 2x LAN Ports / 1x Universal Bracket
MEC-USB-M102-15/UB0714	Mini-PCIe Module with 2x USB 3.0 Ports, 1x Universal Bracket, 1x Cable for MEC-USB
DIN01	DIN-RAIL Mount Kit, KMRH-K175
SIDE01	SIDE Mount Kit
GST60A12-CIN1	Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch, with Tubes, Level VI
GST120A24-CIN	Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch, with Tubes, Level VI

Downloads

Cincoze DI-1000-i5 Datasheet (PDF)

1.16MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Model Name	DI-1000-i5
Processor	Onboard Intel Core i5-6300U Processor (3M Cache, up to 3.00 GHz, 15W TDP)
Chipset	SoC
Memory	1x DDR4 260-pin SO-DIMM Socket, Support up to 32 GB (2133MHz, Un-buffered and Non-ECC type)
Graphics	• Integrated Intel HD Graphics • Three Independent Display
Audio	• Realtek ALC888-GR • High Definition Audio
BIOS	AMI 8Mbit SPI BIOS
DVI	1x DVI-I Connector, Resolution 1920 x 1080
DP	1x DisplayPort Connector, Resolution 3840 x 2160
LAN	2x GbE LAN (Support Wake-on-LAN, Teaming, Jumbo Frame, IEEE 1588v2 and PXE), RJ45 – GbE1: Intel I210 – GbE2: Intel I219-LM
Serial Port	6x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9
USB	．4x USB 3.0, Type-A ．2x USB 2.0, Type-A
PS/2 Port	1x PS/2, 6-Pin Mini-DIN Female Connector
Isolated DIO	8x Optical Isolated DIO (4x DI, 4x DO), 10-Pin Terminal Block Support 5~48V
Line-Out	1x Line-Out, Phone Jack 3.5mm
Mic-In	1x Mic-In, Phone Jack 3.5mm
Power Button	1x ATX Power On/Off Button
AT/ATX Switch	1x AT/ATX Mode Switch
Clear CMOS Switch	1x Clear CMOS Switch
Remote Power On/Off Connector	1x Remote Power On/Off Connector, 2-pin Terminal Block
SSD/HDD	2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3) (One Internal, One Front Accessible & Hot-swappable)
mSATA	2x mSATA (Shared by Mini-PCIe Socket) (Gen3)
CFM (Control Function Module) Interface	1x CFM Interface for CFM Modules
CMI (Combine Multiple I/O) Interface	1x CMI Interface for CMI Modules
Mini PCI Express	2x Full-size Mini PCIe Supports Wireless & I/O Expansion
SIM Socket	1x SIM Socket
CFM	Support CFM (Control Function Module) Technology
CMI	Support CMI (Combined Multiple I/O) Technology
Instant Reboot	Support 0.2sec
Super Cap	Super Cap integrated for CMOS Battery Maintenance-free
Watchdog Timer	Software Programmable Supports 256 Levels System Reset
Power Type	AT/ATX
Power Input Voltage	9~48VDC
Connector	3-pin Terminal Block
Power Adapter	Optional AC/DC Adapter ．AC/DC 12V/5A, 60W ．AC/DC 24V/5A, 120W
Dimension (WxDxH)	203 x 142 x 66.8 mm
Weight Information	1.65 kg
Mechanical Construction	Extruded Aluminum with Heavy Duty Metal
Mounting	Wall / Side / DIN-RAIL / VESA
Unibody Design	Yes
Fanless Design	Yes
Cable-less Design	Yes
Jumper-less Design	Yes
Reverse Power Input Protection	Yes
Over Voltage Protection	Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection	15A
ESD Protection	+/-8kV (air), +/-4kV (contact)
Surge	3.84 kV (impedance 12 ohm 1.2/50us waveform)
Time	360, 145 Hours
Calculation Model	Telcordia SR-332 Issue 3, Method 1, Case 3
Environment	GB, GC
Temperature	40°C
Windows	Windows 10 Windows 8.1 Windows 7
Operating Temperature	Operating Temperature: -40°C to 70°C (With extended temperature peripherals; Ambient with air flow; According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
Storage Temperature	-40°C to 85°C
Relative Humidity	95% RH @ 70°C (Non-condensing)
Shock	Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
Vibration	Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
EMC	CE, FCC Class A, EN50121-3-2, E-Mark (E13, No. 10R-0514273)
