DC-1200

Name: Cincoze DC-1200 Intel Pentium N4200 Compact Fanless Embedded PC supporting PoE+
SKU: DC-1200

Cincoze

Cincoze DC-1200 Intel Pentium N4200 Compact Fanless Embedded PC supporting PoE+

DC-1200

Onboard Intel Pentium N4200 Processor
Supports Triple Independent Display

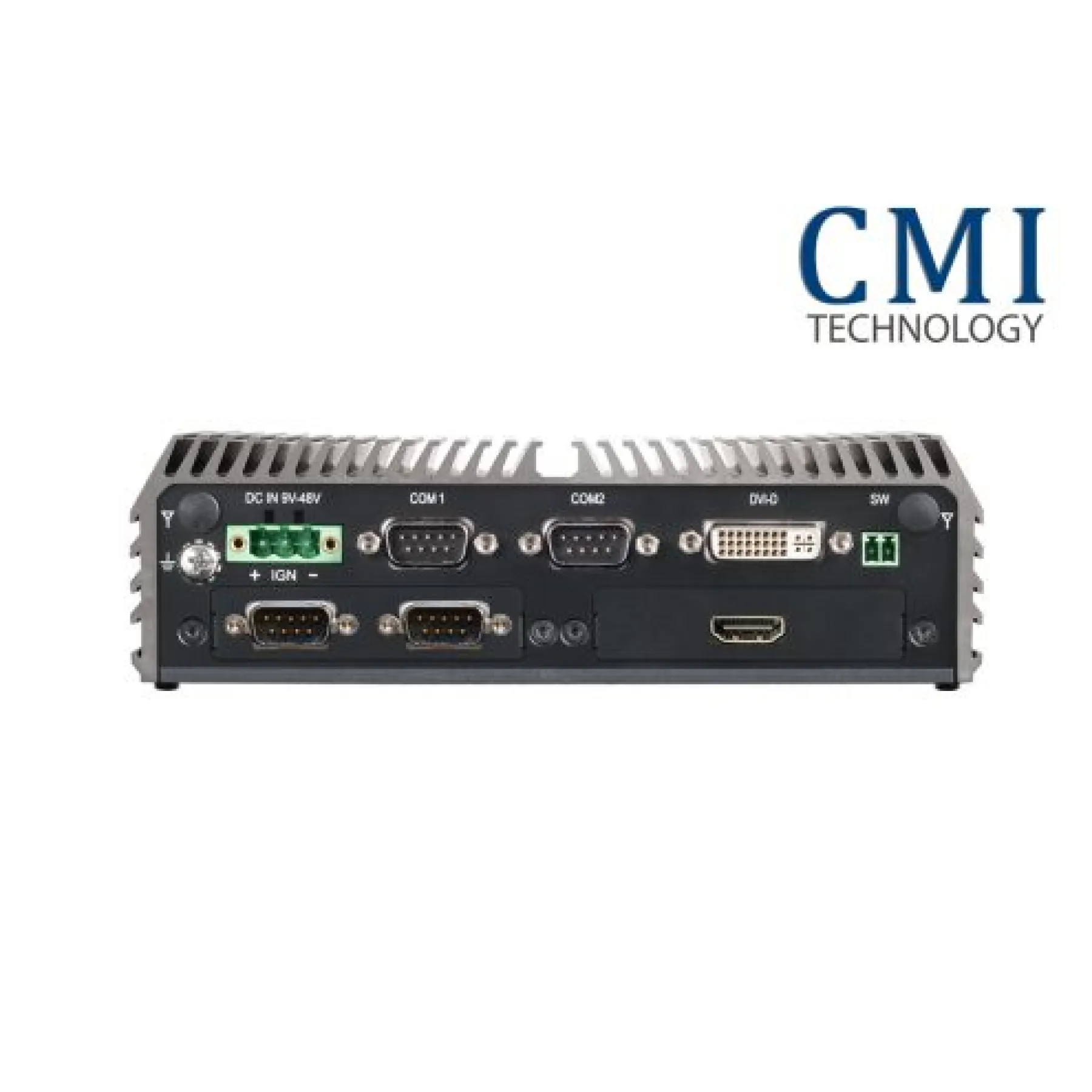

Supports CMI Interface for I/O Expandability
Supports PoE+ and Power Ignition Function (with optional CFM modules)
1x 2.5” SATA Drive Bay, 1x mSATA Socket
2x Full Size Mini-PCIe Socket, 2x SIM Card Socket
Compact Size (185 x 131 x 56.5 mm)
Wide Operating Temperature -40°C to 70°C
E-Mark (E13, No. 10R-0515075), LVD EN62368-1

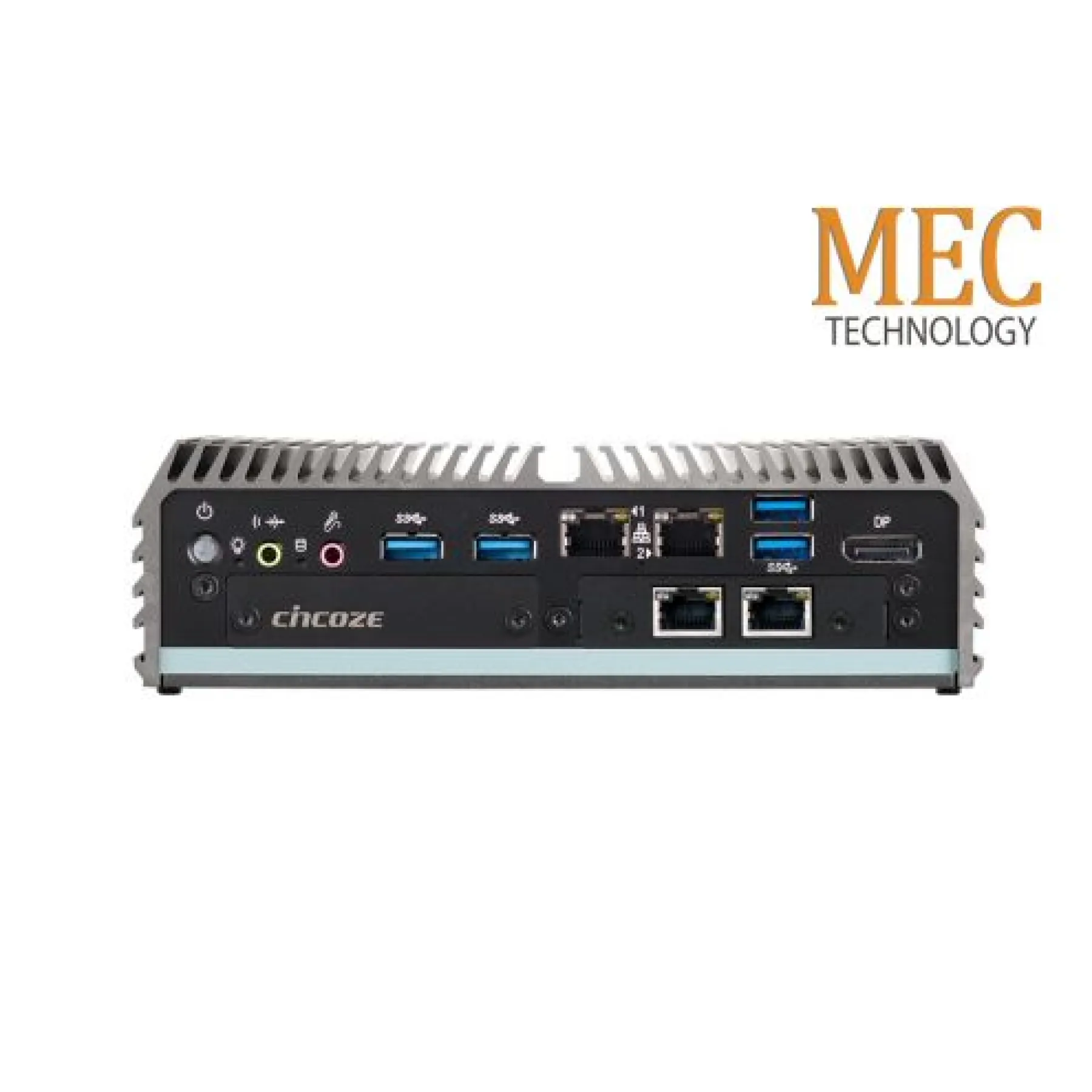

Optional Module Configuration

Using Cincoze CMI/CFM/MEC Module interface for function expansion, you can add additional I/O to the system without using any of the system's standard expansion interfaces. Please select from the options below.

MEC Modules *
CMI Modules *
CMI Modules *
CFM Modules *
CFM Modules *

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: DC-1200

Categories: Cincoze, Cincoze Rugged Embedded Computers, Din Rail PCs, Embedded Box PCs, Fanless Embedded PCs, Fanless Industrial PCs, Industrial Computing, Railway Certified Computers, Rugged Computers

Range: Cincoze

Details

Based on Intel Pentium N4200 quad-core processor, the DC-1200 is a fanless embedded computer offering an incredible size-performance ratio for the most challenging environments. Despite its compact size, the DC-1200 incorporates extensive connectivities including serial ports, USB 3.0, GbE LAN, full-size Mini-PCIe slot, dual SIM sockets, DVI-D, and DisplayPort. The system also provides 2.5" SATA drive bay and mSATA socket for extensive storage requirements.Furthermore, it is much easier to utilize Cincoze’ ready-to-use CMI and CFM modules for extension of digital I/O, serial ports, power ignition sensing, Power over Ethernet (PoE) even the third output of video for a variety of applications.Featuring with rigorous industrial protections, wide temperature range, and wide range DC power input, the DC-1200 offers a powerful, expandable computing platform to ensure long-lasting performance and reduce maintenance costs.

Ordering Info

Available Models
Model No.	Product Description
DC-1200-N42-R10	Intel Pentium Processor N4200 Compact Size Fanless Computer

Downloads

Cincoze DC-1200 Datasheet (PDF)

1.45MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Model Name		DC-1200
Processor System	CPU	Onboard Intel Pentium N4200 Quad Core Processor, up to 2.50 GHz
Processor System	BIOS	AMI BIOS, 8MB SPI Flash ROM built on board
Memory	Technology	DDR3L 1333/1600/1866 MHz (un-buffered and non-ECC)
	Max. Capacity	8 GB
	Socket	1x 204-Pin SO-DIMM
Display	Integrated Graphics	Integrated Intel® HD Graphics 505 (Pentium® N4200)
Display	Triple Display Supported	Yes (DVI-D, DisplayPort and one output from optional CMI module)
Audio	Codec	Realtek ALC888-GR
I/O Ports	DVI-D	1 (1920 x 1080 @60Hz)
	GbE LAN	2 (RJ45, Intel I210 Supports WoL, Teaming, Jumbo Frame & PXE)
	USB 3.0	4
	COM Port	2 (DB9, RS-232/422/485 with Auto Flow Control (Supports 5V/12V))
	Line-out	1
	Mic-in	1
	ATX Power On/Off Button	1
	AT/ATX Mode Switch	1
	Clear CMOS Switch	1
	Remote Power On/Off Connector	1
	Ignition DIP Switch	1 (12V/24V, need to work with CFM module)
Storage	2.5” HDD/SSD Drive Bay	1 (SATA 3.0)
Storage	mSATA	1 (SATA 3.0, Shared by Mini-PCIe Socket)
Expansion	Mini-PCIe Socket	2 (Full-size)
	SIM Socket	2 (for Signal Redundancy)
	Control Function Module (CFM) Interface	2
	Combined Multiple I/O (CMI) Interface	2
	Antenna Holes	2
Other Functions	Watchdog Timer	Software Programmable Supports 256 Levels System Reset
Other Functions	Supports Instant Reboot Technology	0.2 sec
Power Requirement	Power Type	AT / ATX
	Power Supply Voltage	9~48VDC
	Power Connector	1x 3-pin Terminal Block
	Power Adaptor	Power Adapter AC/DC 12V/5A 60W or 24V/5A 120W (Optional)
Physical	Dimension (WxDxH)	185 x 131 x 56.5 mm
	Weight	1.42kg
	Construction	Extruded Aluminum with Heavy Duty Metal
	Mounting	Wall / VESA / Din Rail (Optional: Side + Din Rail Mounting Kit)
	Unibody Chassis	Yes
	Fanless Design	Yes
	Jumper-less Design	Yes
	Cable-less Design	Yes
Protection	Reverse Power Input Protection	Yes
	Over Voltage Protection	Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover
	Over Current Protection	15A
	ESD Protection	+/-8kV (air), +/-4kV (contact)
	Surge Protection	3.84 kV (impedance 12 ohm 1.2/50us waveform)
Operating System	Windows	Windows® 10
Operating System	Linux	Supports by project
Environment	Operating Temperature	-40°C to 70°C * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
	Storage Temperature	-40°C to 85°C
	Relative Humidity	95%RH @ 70°C (non-Condensing)
	Shock	Operating, 50 Grms, Half-sine 11 ms Duration * w/ SSD, according to IEC60068-2-27
	Vibration	Operating, 5 Grms, 5-500 Hz, 3 Axes * w/ SSD, according to IEC60068-2-64
	MTBF	479,119Hours
Certification	EMC	• CE • FCC Class A • E-Mark (E13, No. 10R-0515075)
Certification	Safety	LVD (EN62368-1)

Processor Type	Intel Pentium, up to 4 Cores
Memory Capacity	Up to 8GB
Cooling Type	Fanless
Serial Ports (COM)	2x RS-232/422/485
USB Ports	4x USB 3.0
Ethernet Ports (LAN)	2x 1G
Wireless	Cellular, Wi-Fi
Video Ports	1x DisplayPort, 1x DVI
Storage Type	1x mSATA, 1x 2.5"
Expansion Type	2x Mini PCI Express
Input Voltage	9-48 VDC
Mounting Options	DIN-mount, VESA-mount, Wall-mount
Operating Temperature	Extra-Wide OT: -40°C to 70°C
Market Certifications	CE/FCC, E-Mark
OS Support	Windows 10
