CV-117

Name: Cincoze CV-117 Industrial Touchscreen Monitor 17" 1280 x 1024 (SXGA) 350 cd/m2
SKU: CV-117

Cincoze

Cincoze CV-117 Industrial Touchscreen Monitor 17″ 1280 x 1024 (SXGA) 350 cd/m2

CV-117

17″ TFT SXGA 5:4 LCD with Resistive 5-wire Touch / Projected Capacitive Touch / Glass Only
50,000 hrs LED Backlight Life
Resolution up to 1280 x 1024 (SXGA)
350 nits Brightness
Designed with Aluminium Die-cast Front Frame
IP 65 Compliant Front Panel
Convertible Display System (CDS) Supported

Product Code: CV-117

Categories: Cincoze, Cincoze Industrial Monitors, Industrial Monitors

Range: Cincoze

Details

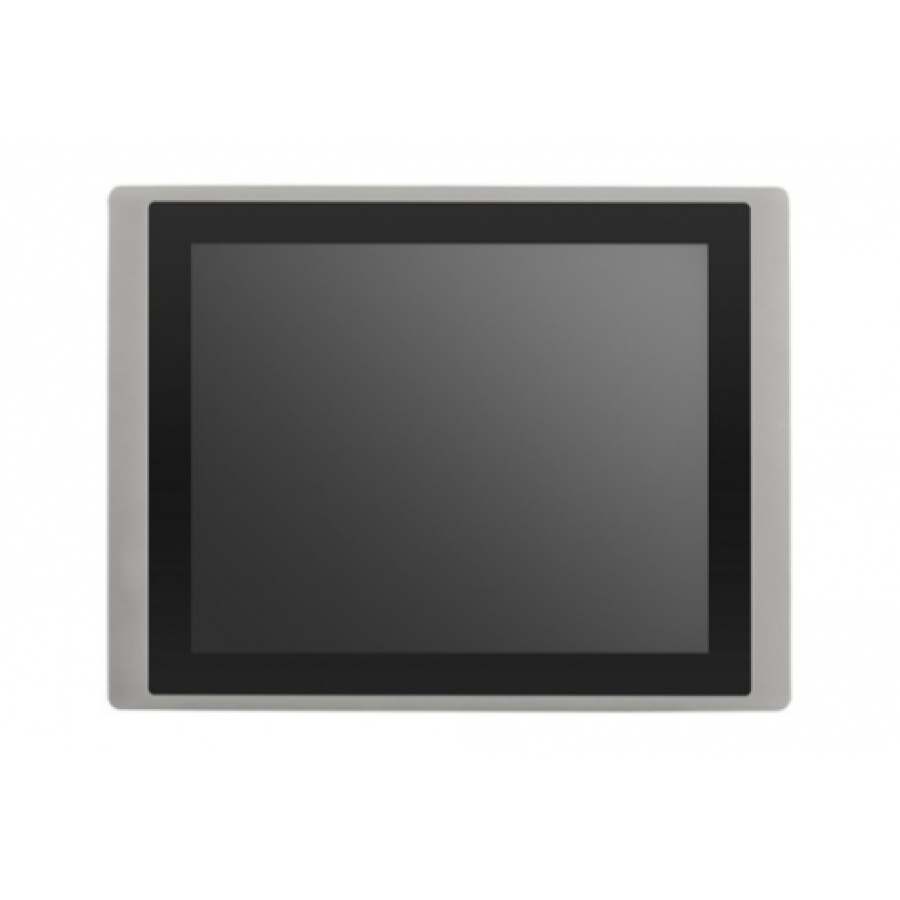

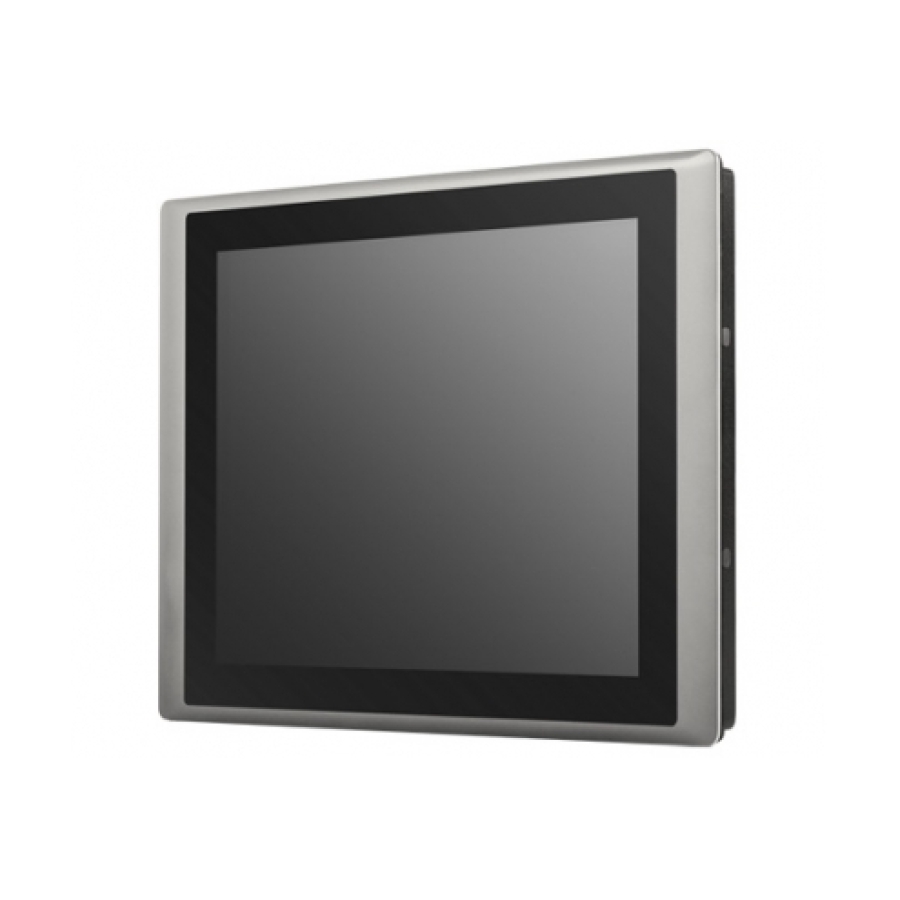

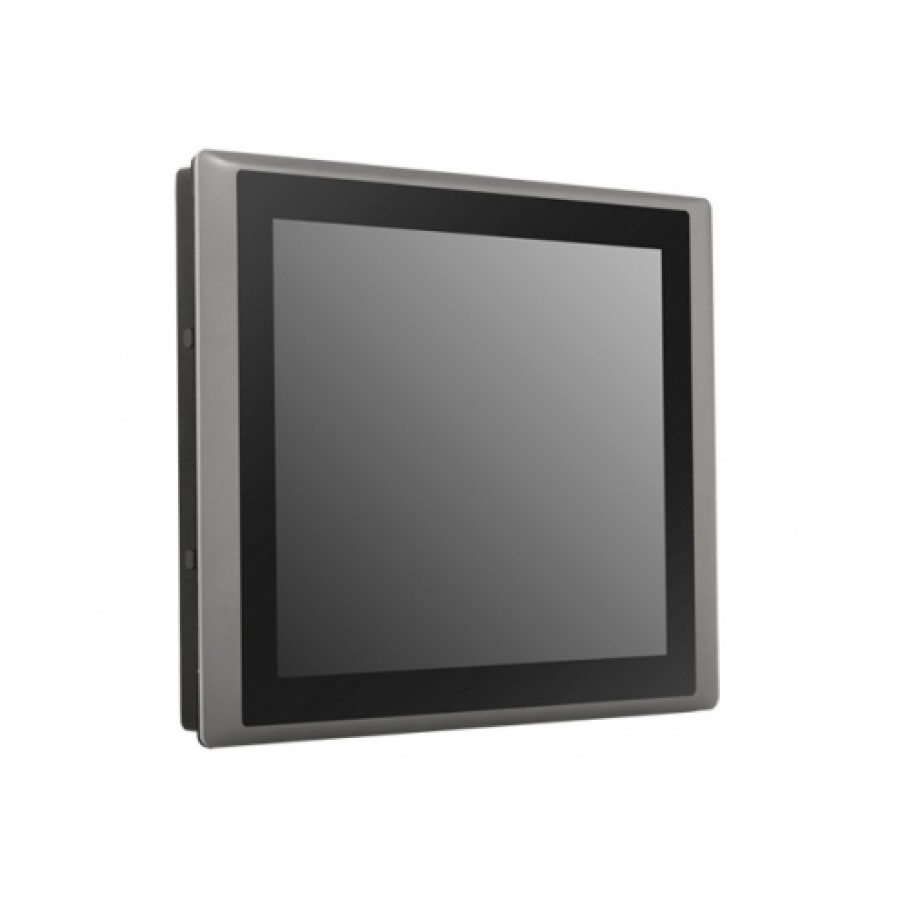

CV-117 is 17" LCD display module with Resistive 5-wire touch, projected capacitive touch, or glass only. It offers resolution up to 1280x1024 (SXGA) and 350 nits brightness. CV-117 features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminium die-cast front frame, it is rugged and reliable for industrial environment. With support for Convertible Display System (CDS) technology, CV-117 allows you to configure, upgrade and maintain your Convertible Display System easily.

Ordering Info

Available Models

Model No.	Product Description
CV-117R-R10	17″ TFT SXGA 5:4 Display Module with Resistive 5-wire Touch
CV-117C-R10	17″ TFT SXGA 5:4 Display Module with Projected Capacitive Touch
CV-117G-R10	17″ TFT SXGA 5:4 Display Module without Touch

Package Checklist

CV-117

√ CV-117 Display Module x 1

√ Panel Mounting Kit x 1

Downloads

Cincoze_CV-117_Datasheet (PDF)

0.28MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Model Name		CV-117
Model No.		CV-117R	CV-117C	CV-117G
Display	LCD Size	17″ (5:4)
	Max. Resolution	1280 x 1024 (SXGA)
	Brightness (cd/m2)	350
	Contrast Ratio	800 : 1
	LCD Colour	16.7M
	Pixel Pitch (mm)	0.264 (H) x 0.264 (V)
	Viewing Angle (H-V)	160 / 140
	Backlight MTBF	50,000 hrs (LED Backlight)
Touch	Resistive 5-wire	V	–	–
Touch	Projected Capacitive	–	V	–
Environment	Operating Temperature	Ambient with Air flow: -20°C to 75°C (with Industrial Grade Peripherals)	Ambient with Air flow: -20°C to 80°C (with Industrial Grade Peripherals)	Ambient with Air flow: -30°C to 85°C (with Industrial Grade Peripherals)
	Storage Temperature	-30°C to 80°C	-30°C to 80°C	-30°C to 85°C
	Relative Humidity	80% RH @ 50°C (non-condensing)	80% RH @ 50°C (non-condensing)	90% RH @ 50°C (non-condensing)
	IP Level	IP65 Compliant Front Panel
Physical	Dimension (WxHxD)	450 x 350 x 63.2 mm
	Weight	5.64 kg
	Construction Front Panel	Die-cast Flat Surface
Certification	Safety Certifications	• CE• FCC Class A

Screen Size	11" to 20", 17"
Touch Technology	Projected Capactive, Resistive
Ingress Protection	IP65
Brightness	350nit, Standard
