CV-108/M1101

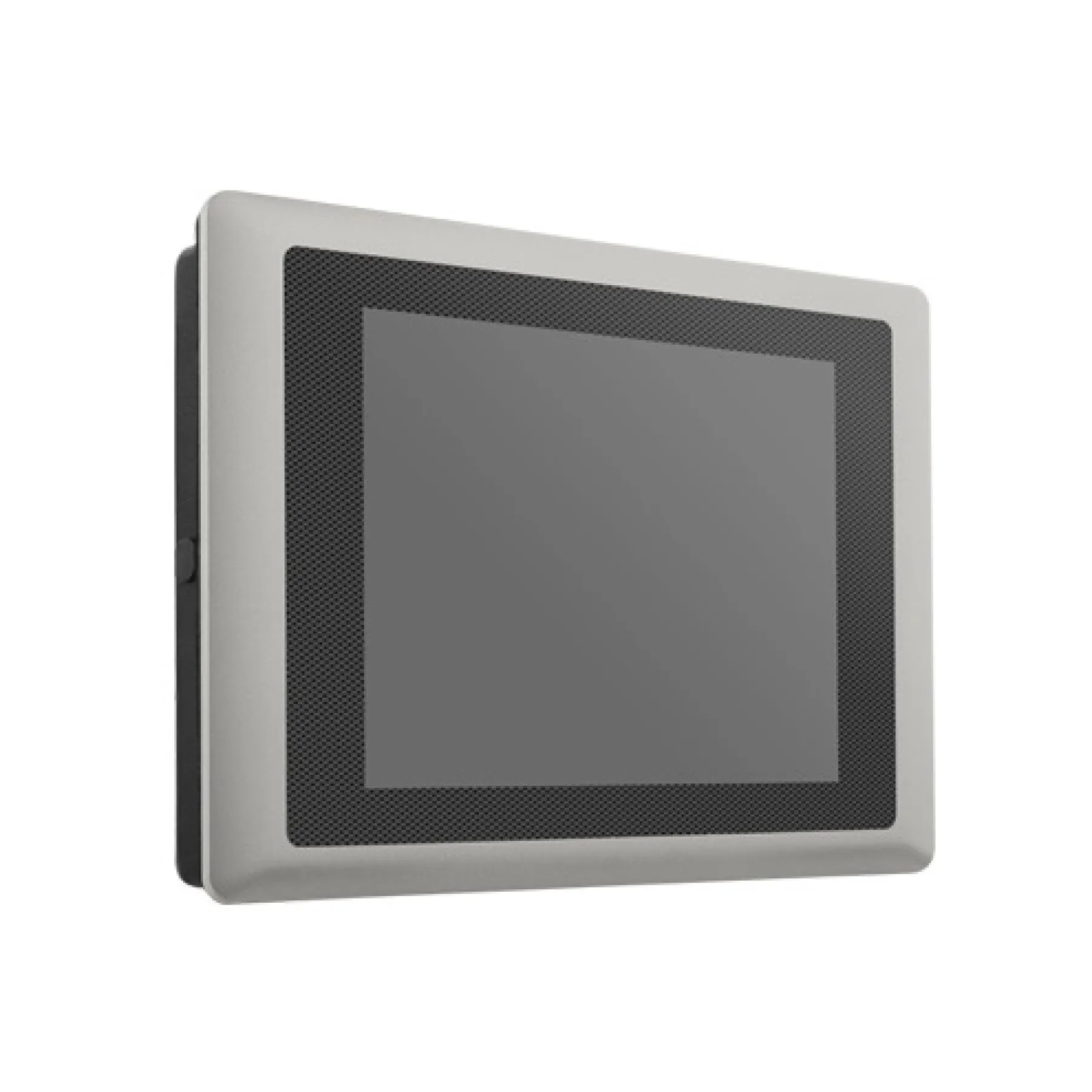

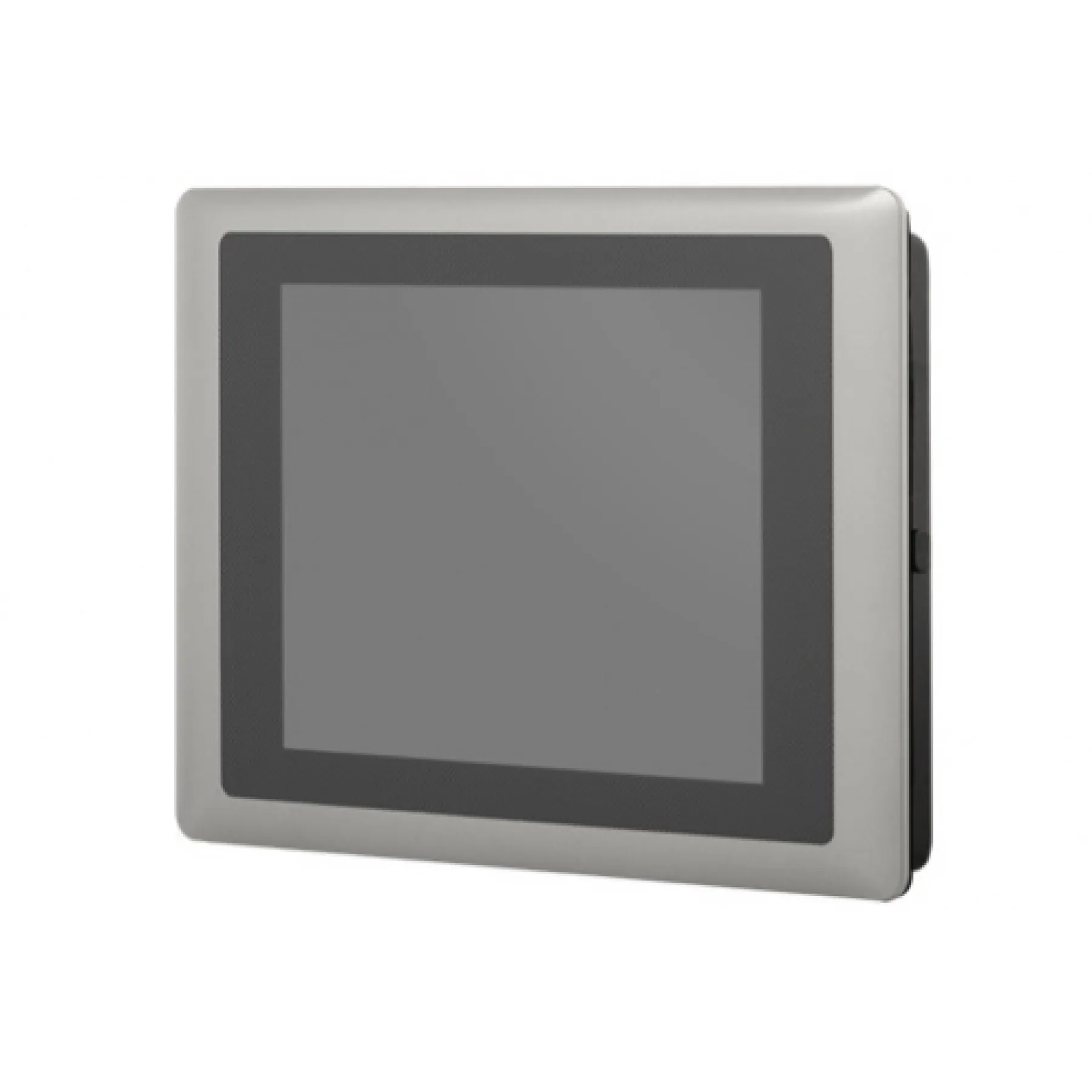

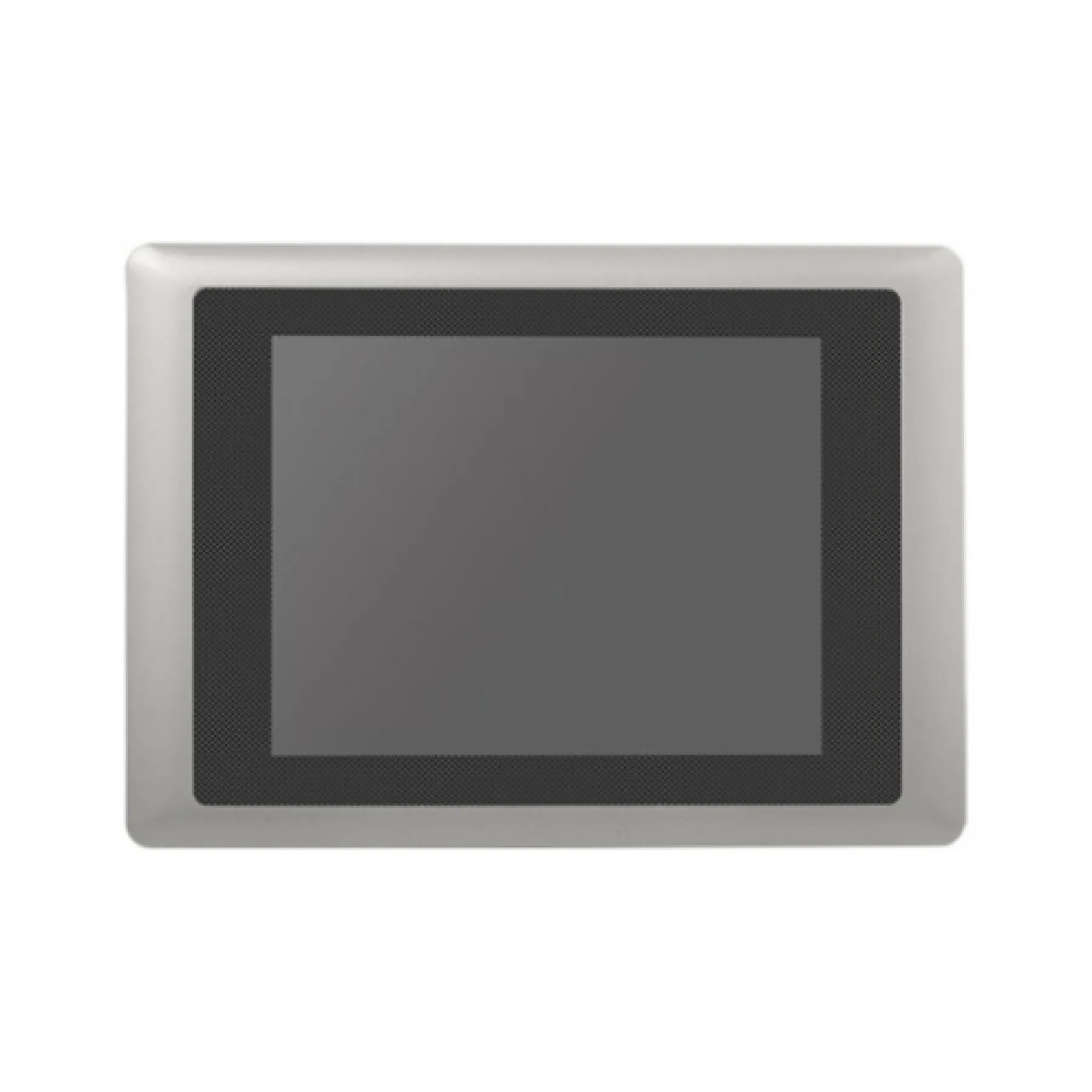

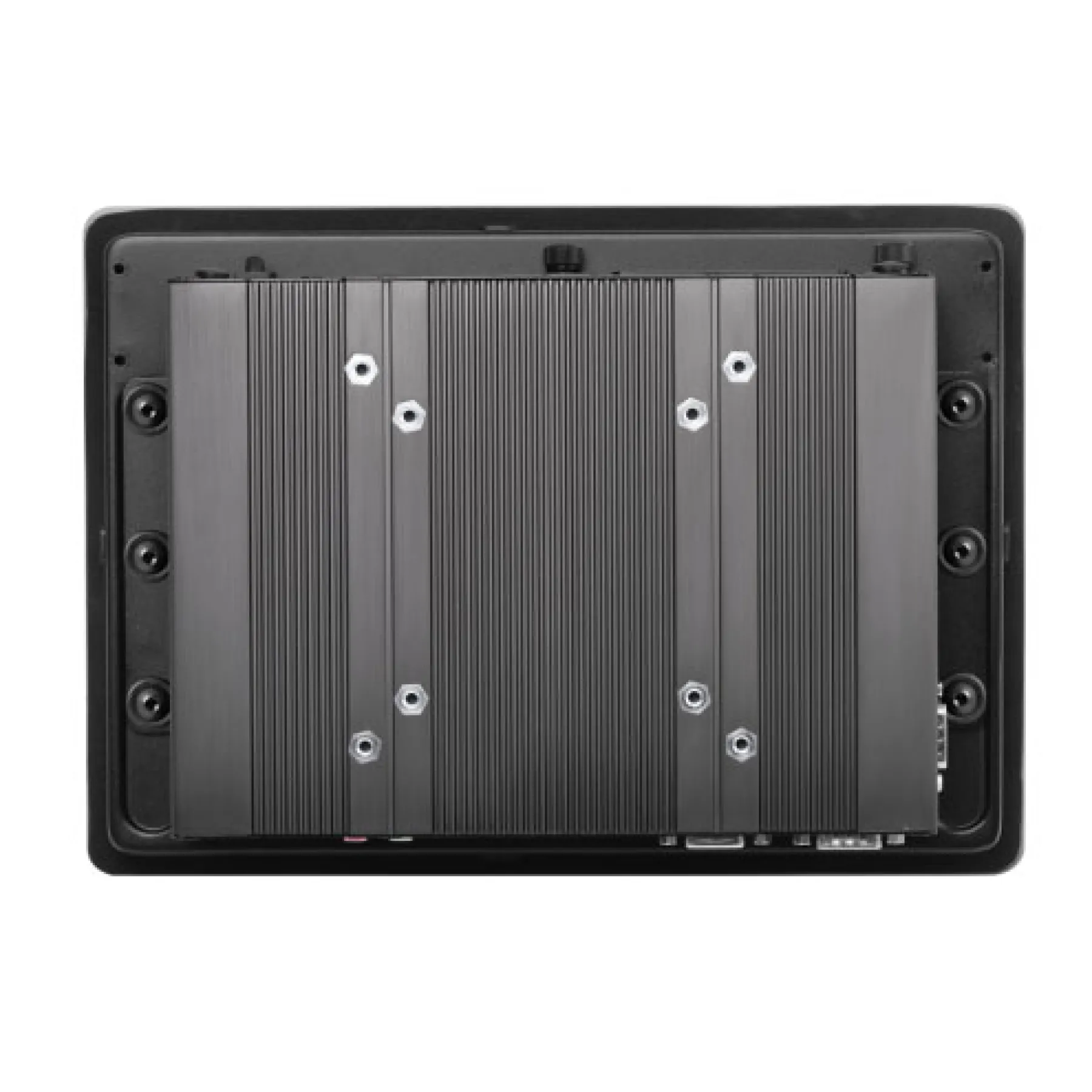

Name: Cincoze CV-108/M1101 Industrial Touchscreen Monitor 8.4" 1x HDMI, DP, VGA, USB and RS-232
SKU: CV-108/M1101

Cincoze

Cincoze CV-108/M1101 Industrial Touchscreen Monitor 8.4″ 1x HDMI, DP, VGA, USB and RS-232

CV-108/M1101

8.4″ TFT SVGA 4:3 LCD with Resistive 5-wire or P-Cap Touchscreen
Designed with Aluminium Die-Cast Front Frame
1x USB, 1x VGA, 1x HDMI, 1x DisplayPort, 1x Audio
IP 65 Compliant Front Panel
Supports Panel / VESA / Rack Mounting
Convertible Display System (CDS) Supported
Built-in Two 5W Internal Speakers

Product Code: CV-108/M1101

Categories: Cincoze, Commercial Monitors, Industrial Monitors, IP65 Monitors, Panel Mount Monitors

Range: Cincoze

Details

The 8.4" touch monitor with resistive 5-wire or P-Cap touch screen offers resolution up to 800x600 (SVGA) and 400 nits brightness. CV-108/M1001 features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminium die-cast front frame, it is rugged and reliable for industrial environment. CV-108/M1001 supports Convertible Display System (CDS) which allows to configure, upgrade and maintain your touch monitor easily. CV-108/M1001 supports both digital and analogue signal input via three types of display interface: VGA, DVI-D and Display-Port. Touch screen can be connected with USB port. It has OSD function for adjusting the viewing options of display. With support to wide range power input from 9~48VDC, CV-108/M1001 is designed as an ideal solution for industrial application.

Downloads

Datasheet (CV-108-M1101) (PDF)

2.1MB
