CS-W124C/P2002E

Name: Cincoze CS-W124C/P2002E 6th Gen Intel Industrial Touchscreen Panel PC 16DIO
SKU: CS-W124C/P2002E

Cincoze

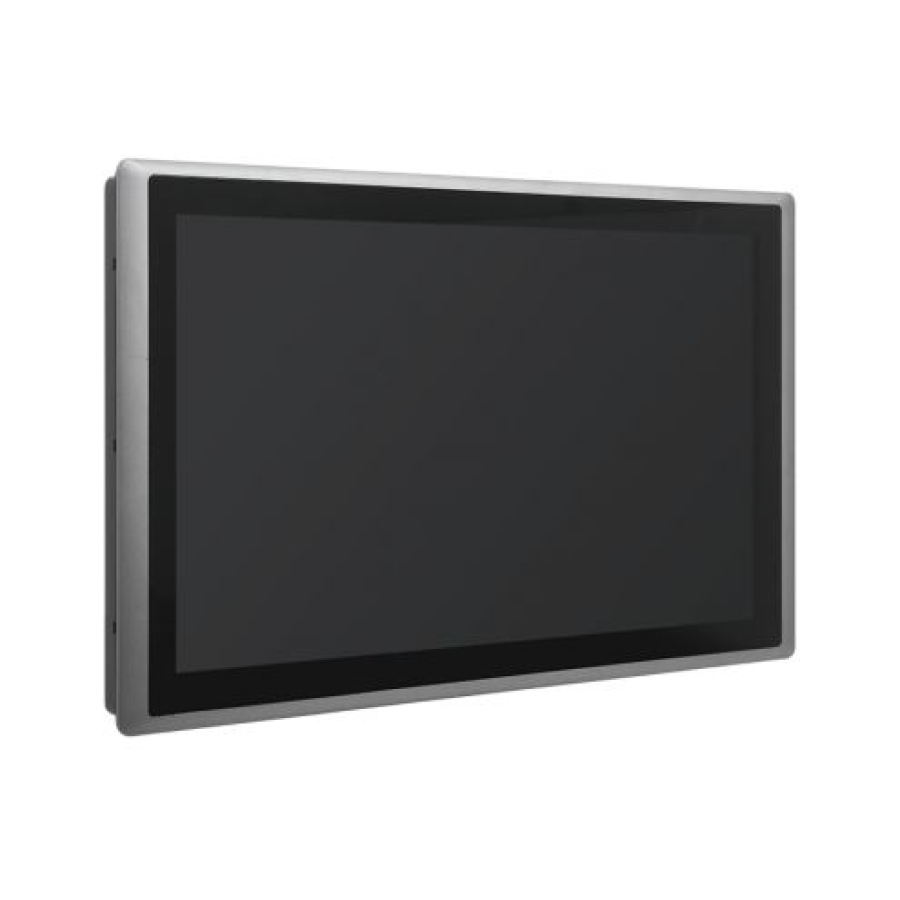

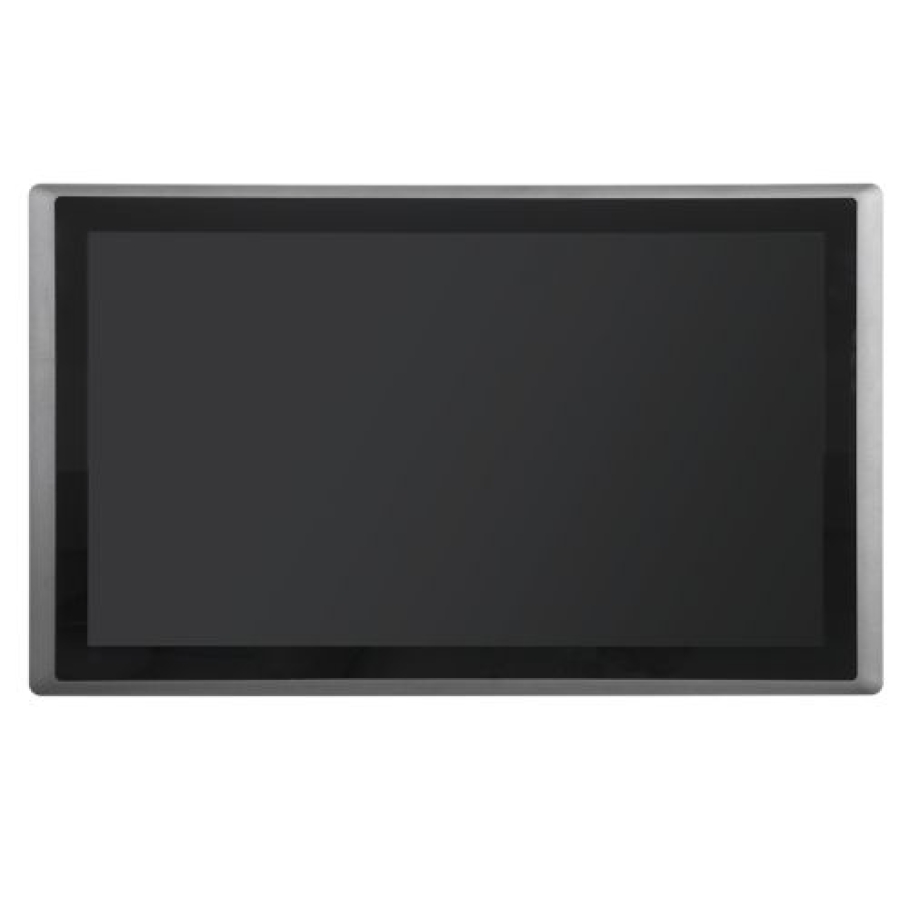

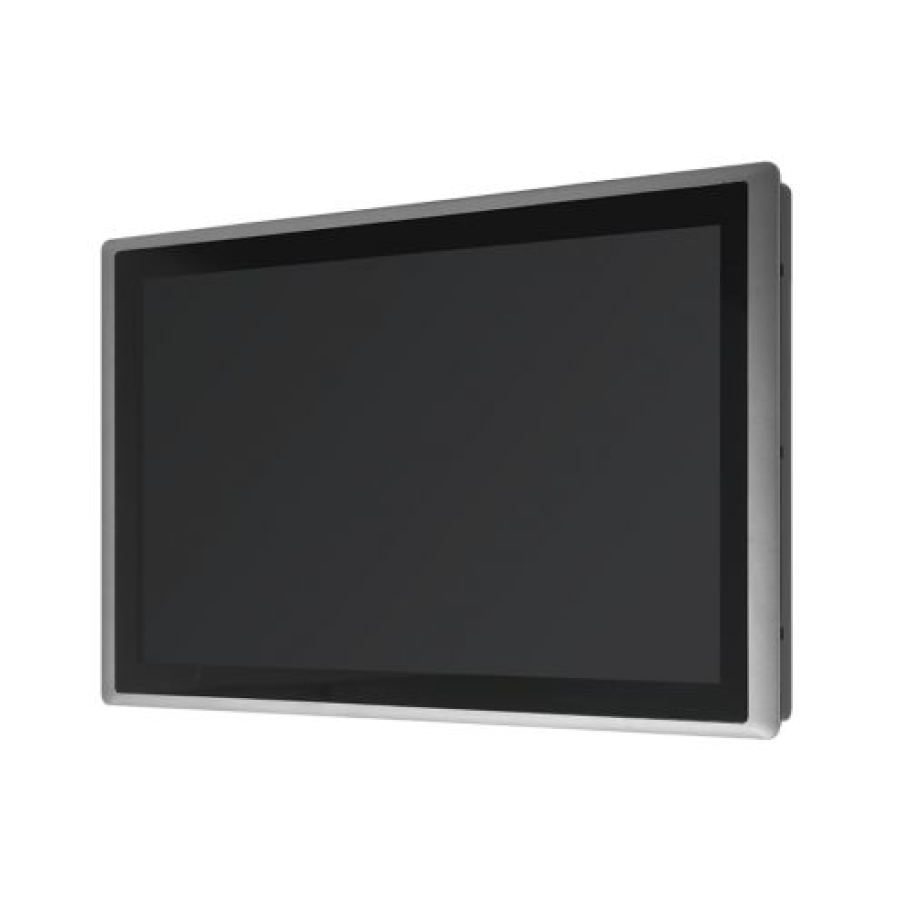

Cincoze CS-W124C/P2002E 6th Gen Intel Industrial Touchscreen Panel PC 16DIO

CS-W124C/P2002E

24” TFT-LCD with Ultra High Brightness up to 1,500 nits and 1920 x 1080 Resolution
Onboard Intel 6th Generation Core Processor U Series (15W)
Supports 2x DDR4 SO-DIMM Socket, up to 32 GB
Integrated Intel HD Graphics 520, Triple Display Support
2x 2.5” SATA Drive Bay, 1x mSATA, and 1x CFast Socket
Rich I/O (2x GbE LAN, 6x COM, 5x USB, 16x Isolated DIO)
2x Full-size Mini-PCIe Socket for Wireless and I/O Expansion
Wide Range Operating Temperature -20°C to 70°C
Designed with Aluminum Die-casting Front Frame
True Flat IP65 Front Panel Protection
Supports Panel / VESA / Rack Mounting
Convertible Display System (CDS) Technology Supported

Product Code: CS-W124C/P2002E

Categories: Cincoze, Cincoze Industrial Panel PCs, High Brightness Panel PCs, Industrial Panel PCs, Industrial Touchscreen Computers, IP65 Panel PCs, Panel Mount Panel PCs, Panel PCs

Range: Cincoze

Details

CS-W124C/P2002E Series is a 24” TFT-LCD sunlight readable touch panel PC offering 1,500 nits ultra high brightness and 1920 x 1080 resolution. The system is equipped with high-performance Intel 6th generation Core U series processor and provides extensive I/O including 2x GbE, 5x USB, 6x RS232/422/485, 8x DI/8x DO, 1x VGA and 1x DVI-D. It also supports 2x Mini-PCIe slot and 1x SIM socket for a variety of wireless connections, such as BT/WiFi and 3G/LTE. In addition, there are 3 types of storage devices including 2.5" SATA HDD (RAID 0/1), mSATA and CFast. The accessible design of these storage devices allows quick data access and easy maintenance. CS-W124C/P2002E Series supports Convertible Display System (CDS) technology. Comparing to regular standalone panel PCs, it can lower maintenance cost and reduce unplanned downtime. For greater flexibility, CS-W124C/P2002E Series has PCI/PCIe expandable version and PoE/power ignition functions by additional CFM (Control Function Module). Furthermore, CS-W124C/P2002E Series is a truly rugged display system supporting wide range operating temperature (-20°C to 70°C), IP65 dust/waterproof front panel, wide range DC power input (9 to 48VDC) and rigorous industrial protections.

Ordering Info

Available Models

Model No.	Product Description
CS-W124C-R10/P2002E-i5-R10	24″ TFT-LCD Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer, CFM Interface, CDS Interface
CS-W124C-R10/P2002E-i5-E4-R10	24″ TFT-LCD Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCIex4 Expansion
CS-W124C-R10/P2002E-i5-PI-R10	24″ TFT-LCD Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCI Expansion
CS-W124C-R10/P2002E-i3-R10	24″ TFT-LCD Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, CDS Interface
CS-W124C-R10/P2002E-i3-E4-R10	24″ TFT-LCD Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCIex4 Expansion
CS-W124C-R10/P2002E-i3-PI-R10	24″ TFT-LCD Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCI Expansion

Package Checklist

√ CS-W124C/P2002E Panel PC x 1	√ DIO Terminal Block Connector x 2
√ Fan Terminal Block Connector x 1	√ Utility Driver DVD x 1
√ Power Terminal Block Connector x 1	√ Screws Pack x 1
√ Power On/Off Terminal Block Connector x 1	√ Panel Mounting Kit x 1

Optional Module Configuration

Model No.	Description
RC-E4-01	Riser Card with 1x PCIex4 Slot
RC-PI-01	Riser Card with 1x PCI Slot
MEC-COM-M212-DB9/UB0503	Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Standatd DB9 Cable
MEC-COM-M334-TDB9/UB0504	Mini-PCIe Module with 4x RS-232/422/485 Serial Ports, 2x Thin DB9 Cable
MEC-LAN-M102-30/UB0511	Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable
MEC-USB-M102-30/UB0514	Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable

Optional Module

Model No.	Description
CFM-IGN100	CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (41 x 35 mm)
CFM-PoE101	PoE Control Function Module, Individual Port 25.5W (50 x 44 x 33 mm) (For CS-100/P2002E only)
URM01	Universal 19″ Rack Mount Kit for Industrial Panel PC & Industrial Monitor

Optional Accessories

Model No.	Description
GST60A12-CIN1	Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C)
GST120A24-CIN	Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI
GST220A24-CIN	Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, GST220A24-CIN

Downloads

Cincoze_CS-W124C_P2002E_Datasheets (PDF)

0.48MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Model Name		CS-W124C / P2002E
Display	LCD Size	24” (16:9)
	Max. Resolution	1920×1080 (Full HD)
	Brightness (cd/m2)	1500
	Contrast Ratio	5000 : 1
	LCD Color	16.7M
	Pixel Pitch (mm)	0.27675 (H) x 0.27675 (V)
	Viewing Angle (H-V)	178 / 178
	Backlight MTBF	50000 hrs (LED Backlignt)
Touch	Projected Capacitive	V
System	Processor	• Onboard 6th Intel Core U Processors (Skylake Lake) – Intel Core i5-6300U Processor (3M Cache, up to 3.00 GHz) – Intel Core i3-6100U Processor (3M Cache, up to 2.30 GHz) – TDP: 15 W
	Memory	• 2x DDR4 2133 MHz SO-DIMM Sockets • Support Un-buffered and Non-ECC Type up to 32 GB (According to CPU Specifications)
	BIOS	AMI 64Mbit SPI BIOS
Graphics	Graphics Engine	• Intel HD Graphics 520 • Triple display with 1x VGA, 1x DVI-D and 1x CDS interface
Graphics	Maximum Display Output	Supports Triple Display
Audio	Audio Codec	Realtek ALC888-GR
	Line-out	1x Line-out Phone Jack 3.5mm
	Mic-in	1x Mic-in, Phone Jack 3.5mm
External I/O Interface	VGA	1x VGA (Up to 1920 x 1080 @ 60Hz), DB-15
	DVI	1x DVI-D (Up to 1920 x 1080 @ 60Hz)
	CDS	1x CDS Interface, Compact PCI Connector
	LAN	• 2x GbE LAN (Support WoL, Teaming, Jumbo Frame and PXE), RJ45 – GbE1: Intel I219LM – GbE2: Intel I210 • 2x PoE+ (with Optional CFM PoE Module) – Comply with IEEE 802.3at, Offers Up to 25.5W Per Port
	COM	6x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9
	USB	• 4x USB 3.2 Gen1, Type-A • 1x USB 2.0, Type-A
DIO	DIO	16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block
Storage	SSD/HDD	2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3)
	mSATA	2x mSATA (One Shared by Mini-PCIe Socket) (Gen2)
	CFast	1x CFast Socket (Gen3)
Expansion	CFM (Control Function Module) Interface	• 1x CFM IGN Interface • 1x CFM PoE Interface
	PCI Express	• 1x PCI or 1x PCIex4 Expansion slot [CS-W124C/P2002E] • Optional Riser Card: 1x PCI, 1x PCIex4 Support maximum dimension of add-on card (H x L): 100mm x 200mm
	UB	1x Universal I/O Bracket
	SIM Socket	1x Front Accessible SIM Socket
	Antenna Hole	4x Antenna Hole
Other Function	Internal Speaker	AMP 2W + 2W
	Power Ignition Sensing	Support Power Ignition Sensing (IGN)
	Rest Button	1x Reset Button
	Instant Reboot	Supports Instant Reboot Technology (0.2 sec)
	Watchdog Timer	Software Programmable Supports 256 Levels System Reset
	OSD Function	LCD On/Off, Brightness Up, Brightness Down for CDS Display Module
	External FAN Connector	1x External FAN Connector, 4-pin Terminal Block
Power	Power Button	1x ATX Power On/Off Button
	Power Mode Switch	1x AT/ATX Mode Switch
	Power Input	9 – 48VDC, 3-pin Terminal Block
	Remote Power On/Off	1x Remote Power On/Off Connector, 2-pin Terminal Block
	Power Adapter (Optional)	AC/DC 12V/5A 60W, 24V/5A 120W or 24V/9.2A 220W
Physical	Dimension (WxHxD)	605 x 373 x 106.5 mm
	Weight Information	9.82 Kg
	Front Panel Construction	Die-casting Flat Surface
	Mounting	Panel / VESA / Rack Mounting (with optional mounting kit)
	Physical Design	• Fanless Design • Jumper-less Design
Reliability & Protection	Reverse Power Input Protection	Yes
	Over Voltage Protection	• Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover
	Over Current Protection	15A
	CMOS Battery Backup	SuperCap Integrated for CMOS Battery Maintenance-free Operation
	ESD Protection	+/-8kV (air), +/-4kV (contact)
Operating System	Windows	• Windows 10 • Windows 8.1 • Windows 7
Operating System	Linux	Support by Project
Environment	Operating Temperature	-20°C to 70°C (with Industrial Grade Peripherals; Ambient with air flow)
	Storage Temperature	-20°C to 70°C
	Relative Humidity	80% RH @ 50°C (Non-Condensing)
	EMC	CE, FCC, ICES-003 Class A
	IP Level	IP65 Compliant Front Panel

Touch Technology	Projected Capacitive
Ingress Protection	IP65
Brightness	1500nit, High
Resolution	1920x1080, FHD
GPU	Integrated GPU
Memory Capacity	Up to 32GB
Cooling Type	Fanless, Yes
Serial Ports (COM)	6 Ports, 6 Ports, RS-232/422/485
USB Ports	1 Port, 4 Ports, 5 Ports, USB 2.0, USB 3.2
Ethernet Ports (LAN)	4 Ports, 4 Ports
Power Over Ethernet (PoE)	PoE Ports
Wireless	Cellular, Wi-Fi
Audio	Yes
Video Ports	1x VGA, 1x DVI, 1 Port, 3 Ports, CDS
Digital I/O	16 DIO
Storage Type	1, 2, 2, 2.5", 5, CFast, mSATA
Expansion Type	1, 1, Any Expansion Type, PCI, PCI Express
Input Voltage	9-48 VDC, ATX Powered, Yes
Mounting Options	Panel-mount, Rack-mount, VESA-mount
Operating Temperature	-20°C to 70°C, Wide
Certifications	CE/FCC
OS Support	Linux, Windows 10, Windows 10 IoT, Windows 10 Pro, Windows 7, Windows 8.1
