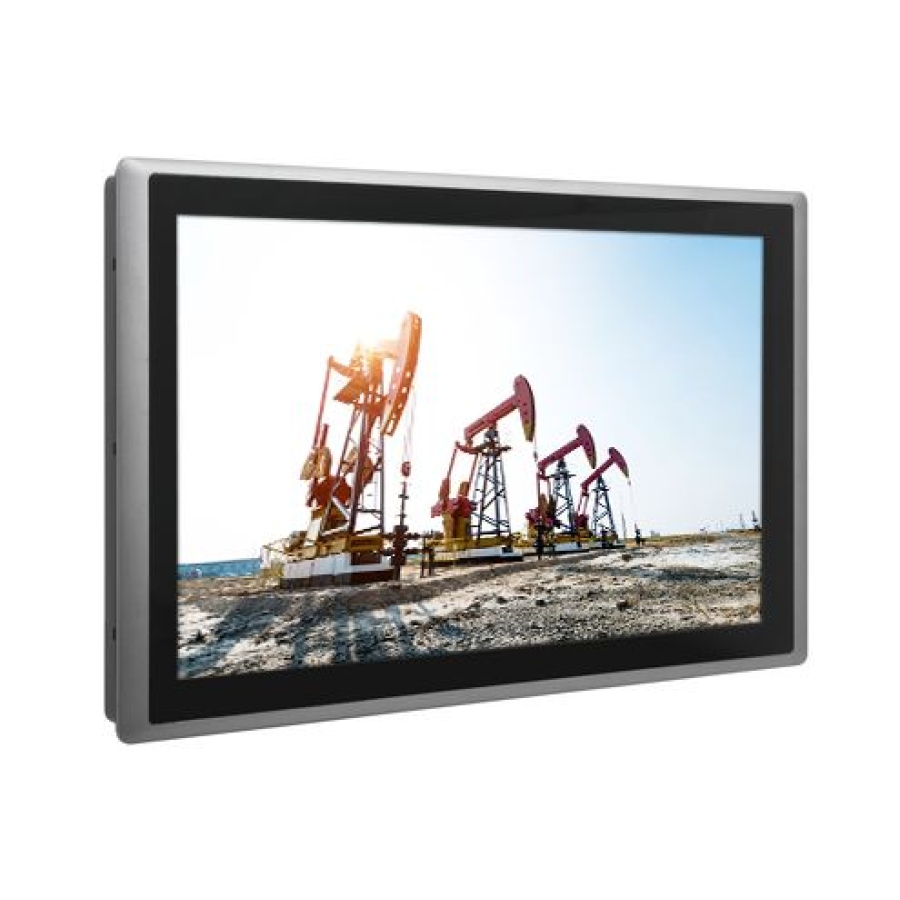

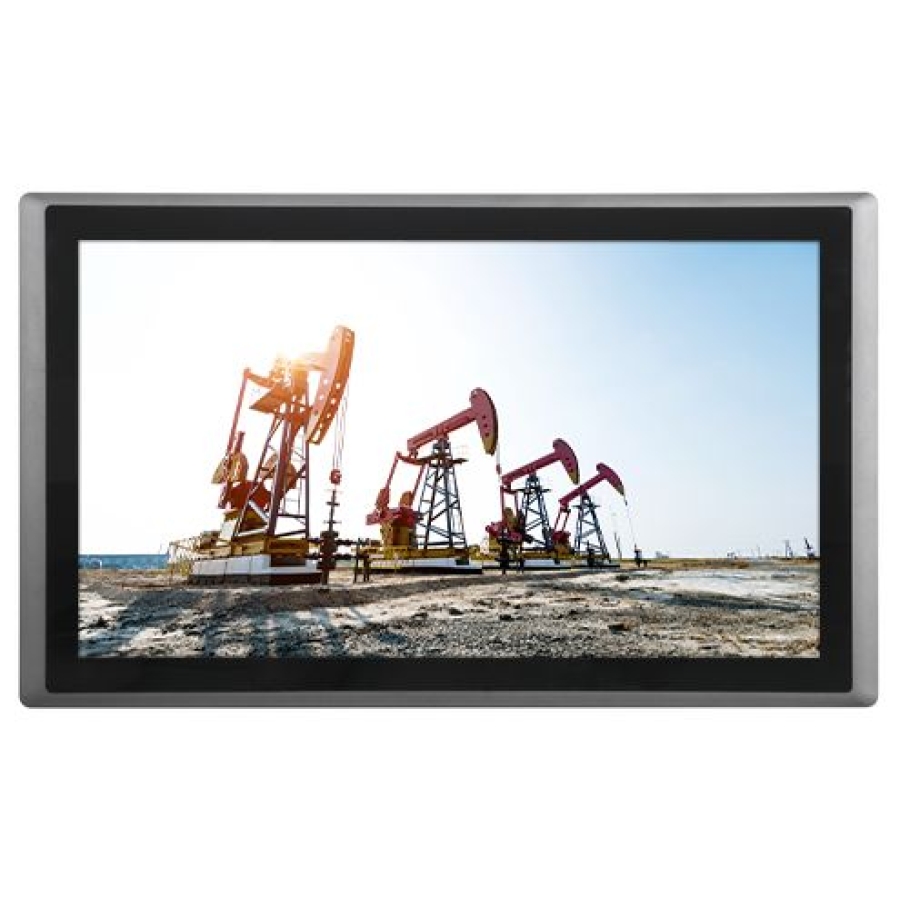

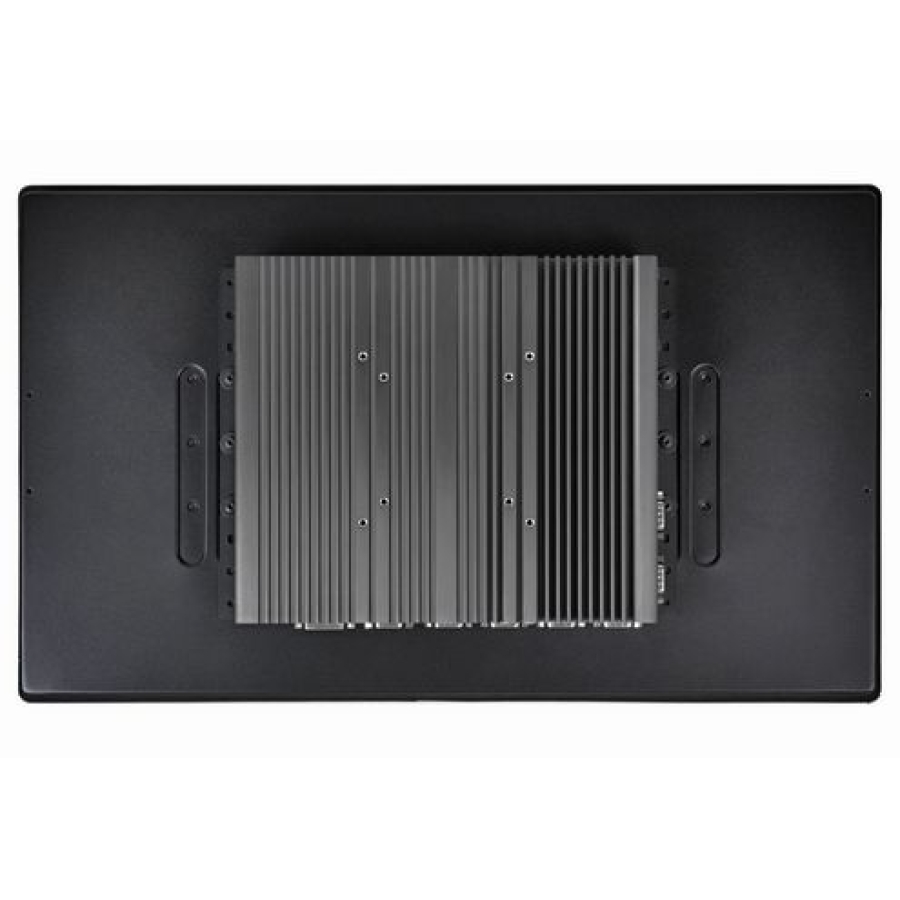

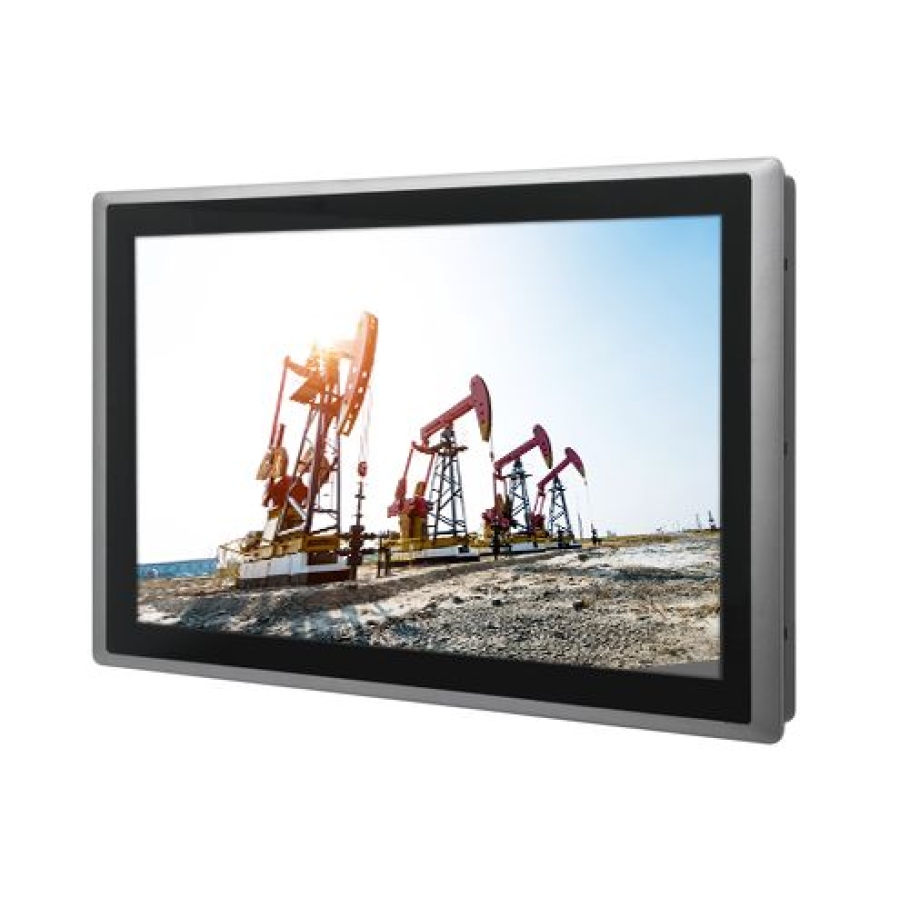

Cincoze CS-W121C/P2002 6th Gen Intel Industrial Touchscreen Panel PC up to 64GB
CS-W121C/P2002
- 21.5” TFT-LCD with Ultra High Brightness up to 1,000 nits and 1920 x 1080 Resolution
- Onboard Intel 6th Generation Core Processor U Series (15W)
- Supports 2x DDR4 SO-DIMM Socket, up to 32 GB
- Integrated Intel HD Graphics 520, Triple Display Support
- 2x 2.5” SATA Drive Bay, 1x mSATA, and 1x CFast Socket
- Rich I/O (2x GbE LAN, 6x COM, 5x USB, 16x Isolated DIO)
- 2x Full-size Mini-PCIe Socket for Wireless and I/O Expansion
- Wide Range Operating Temperature 0°C to 70°C
- Designed with Aluminum Die-casting Front Frame
- True Flat IP65 Front Panel Protection
- Supports Panel / VESA / Rack Mounting
- Convertible Display System (CDS) Technology Supported
Details
CS-W121C/P2000 Series is a 21.5” TFT-LCD sunlight readable touch panel PC offering 1,000 nits ultra high brightness and 1920 x 1080 resolution. The system is equipped with high-performance Intel 6th generation Core U series processor and provides extensive I/O including 2x GbE, 5x USB, 6x RS232/422/485, 8x DI/8x DO, 1x VGA and 1x DVI-D. It also supports 2x Mini-PCIe slot and 1x SIM socket for a variety of wireless connections, such as BT/WiFi and 3G/LTE. In addition, there are 3 types of storage devices including 2.5" SATA HDD (RAID 0/1), mSATA and CFast. The accessible design of these storage devices allows quick data access and easy maintenance. CS-W121C/P2000 Series supports Convertible Display System (CDS) technology. Comparing to regular standalone panel PCs, it can lower maintenance cost and reduce unplanned downtime. For greater flexibility, CS-W121C/P2000 Series has PCI/PCIe expandable version and PoE/power ignition functions by additional CFM (Control Function Module). Furthermore, CS-W121C/P2000 Series is a truly rugged display system supporting wide range operating temperature (0°C to 70°C), IP65 dust/waterproof front panel, wide range DC power input (9 to 48VDC) and rigorous industrial protections.
Ordering Info
| Model No. | Product Description |
|---|---|
| CS-W121C-R10/P2002-i5-R10 | 21.5″ TFT-LCD Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen.Core i5-6300U Fanless Computer, CFM Interface, CDS Interface |
| CS-W121C-R10/P2002-i3-R10 | 21.5″ TFT-LCD Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen.Core i3-6100U Fanless Computer, CFM Interface, CDS Interface |
| √ CS-W121C/P2002 Panel PC x 1 | √ DIO Terminal Block Connector x 2 |
| √ Fan Terminal Block Connector x 1 | √ Utility Driver DVD x 1 |
| √ Power Terminal Block Connector x 1 | √ Screws Pack x 1 |
| √ Power On/Off Terminal Block Connector x 1 | √ Panel Mounting Kit x 1 |
| Model No. | Description |
|---|---|
| MEC-COM-M212-DB9/UB0503 | Mini-PCIe Module with 2x COM Ports, 2x Universal Brackets (154 x 17 mm) |
| MEC-COM-M334-TDB9/UB0504 | Mini-PCIe Module with 4x RS-232/422/485 Serial Ports,1x Universal Bracket (154 x 17 mm) |
| MEC-LAN-M102-30/UB0511 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout for P2000 Series |
| MEC-USB-M102-30/UB0514 | Mini-PCIe Module with 2x USB 3.0 Ports, 1x Universal Bracket (154 x 17 mm) |
| Model No. | Description |
|---|---|
| CFM-IGN100 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (41 x 35 mm) |
| CFM-PoE100 | PoE Control Function Module, Individual Port 25.5W (50 x 44 x 15 mm) (For CS-100/P2002 only) |
| URM01 | Universal 19″ Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| Model No. | Description |
|---|---|
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, GST220A24-CIN |
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| Model Name | CS-W121C / P2002 | |
|---|---|---|
| Display | LCD Size | 21.5” (16:9) |
| Max. Resolution | 1920×1080 (Full HD) | |
| Brightness (cd/m2) | 1000 | |
| Contrast Ratio | 5000 : 1 | |
| LCD Color | 16.7M | |
| Pixel Pitch (mm) | 0.24825 (H) x 0.24825 (V) | |
| Viewing Angle (H-V) | 178 / 178 | |
| Backlight MTBF | 50000 hrs (LED Backlignt) | |
| Touch | Projected Capacitive | V |
| System | Processor | • Onboard 6th Intel Core U Processors (Skylake Lake)– Intel Core i5-6300U Processor (3M Cache, up to 3.00 GHz)– Intel Core i3-6100U Processor (3M Cache, up to 2.30 GHz)– TDP: 15 W– BIOS: AMI 64Mbit SPI BIOS |
| Memory | • 2x DDR4 2400 MHz 260-Pin SO-DIMM Socket• Supports up to 64 GB (un-buffered and non-ECC) | |
| BIOS | AMI 64Mbit SPI BIOS | |
| Graphics | Graphics Engine | Intel® HD Graphics 520 |
| Maximum Display Output | Triple display with 1x VGA, 1x DVI-D and 1x CDS interface | |
| Audio | Audio Codec | Realtek ALC888-GR |
| Line-out | 1x Line-out Phone Jack 3.5mm | |
| Mic-in | 1x Mic-in, Phone Jack 3.5mm | |
| External I/O Interface | VGA | 1x VGA (Up to 1920 x 1080 @ 60Hz), DB-15 |
| DVI | 1x DVI-D (Up to 1920 x 1080 @ 60Hz) | |
| CDS | 1x CDS Interface, Compact PCI Connector | |
| LAN | • 2x GbE LAN (Support WoL, Teaming, Jumbo Frame and PXE), RJ45– GbE1: Intel I219LM– GbE2: Intel I210• 2x PoE+ (with Optional CFM PoE Module)– Comply with IEEE 802.3at, Offers Up to 25.5W Per Port | |
| COM | 6x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9 | |
| USB | • 4x USB 3.0, Type-A• 1x USB 2.0, Type-A | |
| DIO | DIO | 16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block |
| Storage | SSD/HDD | 2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3) |
| mSATA | 2x mSATA (One Shared by Mini-PCIe Socket) (Gen2) | |
| CFast | 1x CFast Socket (Gen3) | |
| Expansion | CFM (Control Function Module) Interface | • 1x CFM IGN Interface• 1x CFM PoE Interface |
| Mini PCI Express | 2x Full-size Mini-PCIe Socket | |
| UB | 1x Universal I/O Bracket | |
| SIM Socket | 1x SIM Socket | |
| Antenna Hole | 4x Antenna Hole | |
| Other Function | Internal Speaker | AMP 2W + 2W |
| Power Ignition Sensing | Support Power Ignition Sensing (IGN) | |
| Rest Button | 1x Reset Button | |
| Instant Reboot | Supports Instant Reboot Technology (0.2 sec) | |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
| OSD Function | LCD On/Off, Brightness Up, Brightness Down for CDS Display Module | |
| External FAN Connector | 1x External FAN Connector, 4-pin Terminal Block | |
| Power | Power Button | 1x ATX Power On/Off Button |
| Power Mode Switch | 1x AT/ATX Mode Switch | |
| Power Input | 9 – 48VDC, 3-pin Terminal Block | |
| Remote Power On/Off | 1x Remote Power On/Off Connector, 2-pin Terminal Block | |
| Power Adapter (Optional) | AC/DC 12V/5A 60W or AC/DC 24V/5A 120W | |
| Physical | Dimension (WxHxD) | 550 x 330.5 x 88.5 mm |
| Weight Information | 8.48 Kg | |
| Front Panel Construction | Die-casting Flat Surface | |
| Mounting | Panel / VESA / *Rack Mounting (*with optional mounting kit) | |
| Physical Design | • Fanless Design• Jumper-less Design | |
| Reliability & Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | • Protection Range: 51~58V• Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | 15A | |
| Surge Protection | 3.84 kV (impedance 12 ohm 1.2/50μs waveform) | |
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| ESD Protection | +/-8kV (air), +/-4kV (contact) | |
| Operating System | Windows | • Windows 10• Windows 8.1• Windows 7 |
| Linux | Support by Project | |
| Environment | Operating Temperature | 0°C to 70°C (with Industrial Grade Peripherals; Ambient with air flow) |
| Storage Temperature | -20°C to 70°C | |
| Relative Humidity | 95% RH @ 39°C (Non-Condensing) | |
| EMC | CE, FCC, ICES-003 Class A | |
| IP Level | IP65 Compliant Front Panel | |
