CS-W121C

Name: Cincoze CS-W121C Widescreen Touchscreen Display 1000 cd/m2 Full HD
SKU: CS-W121C

Cincoze

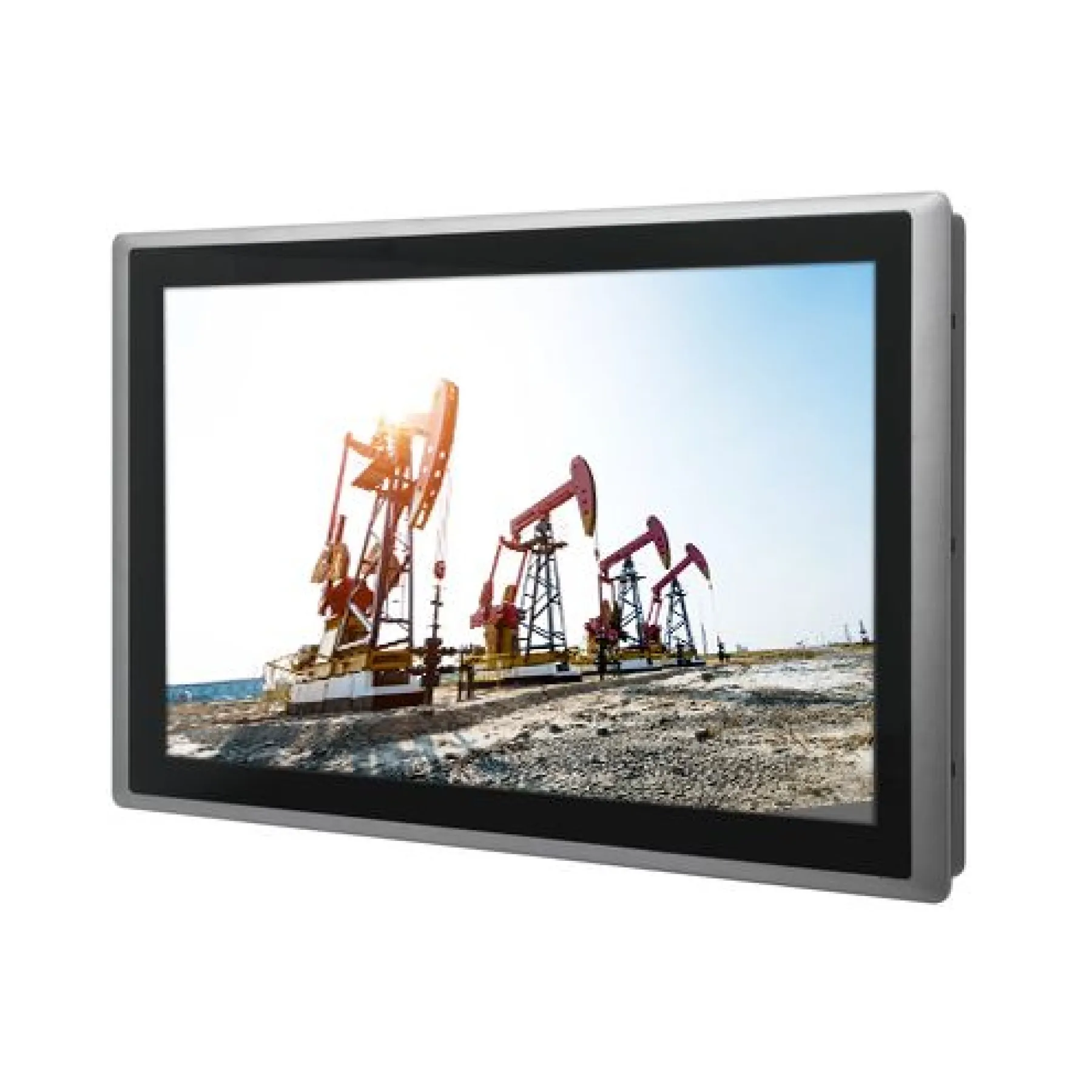

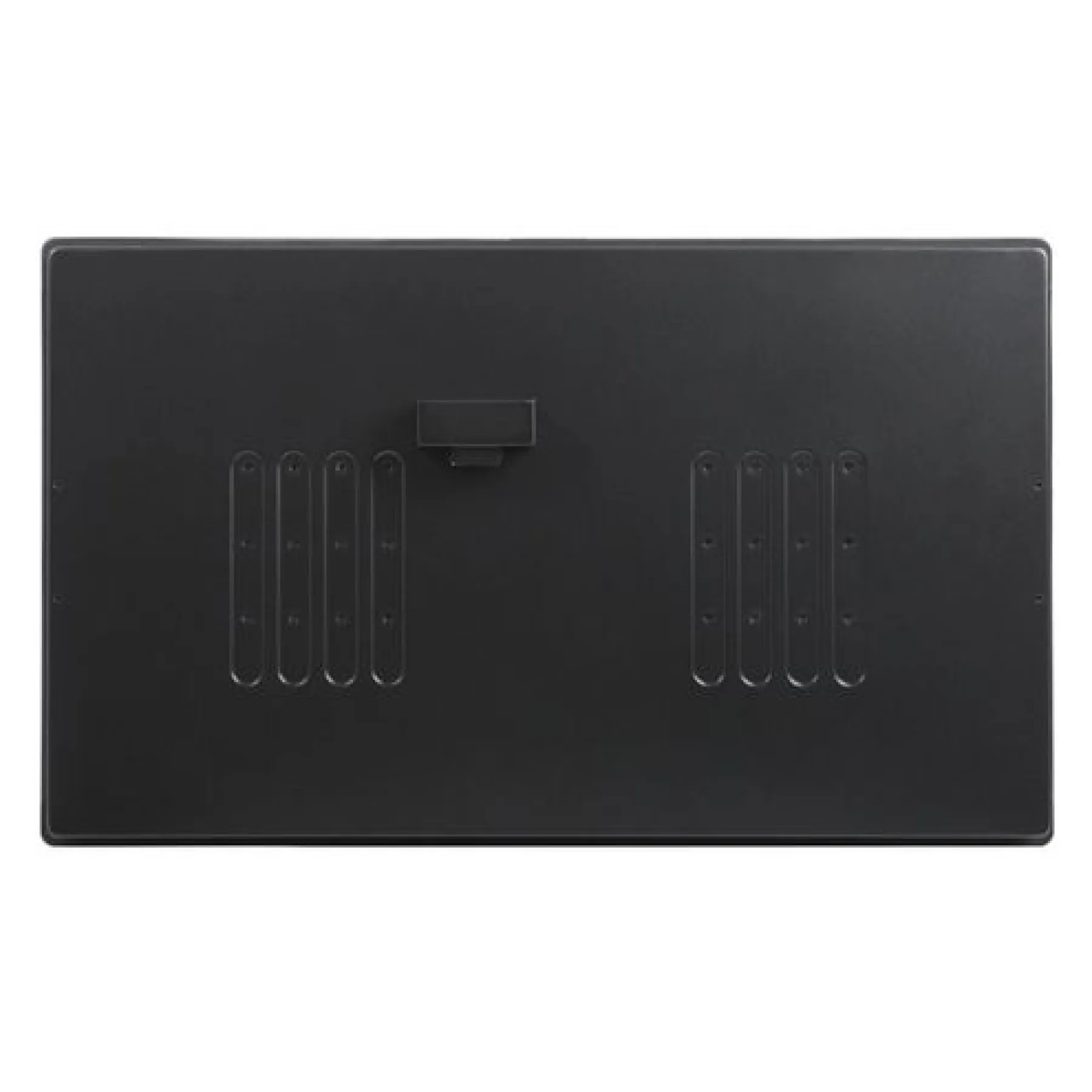

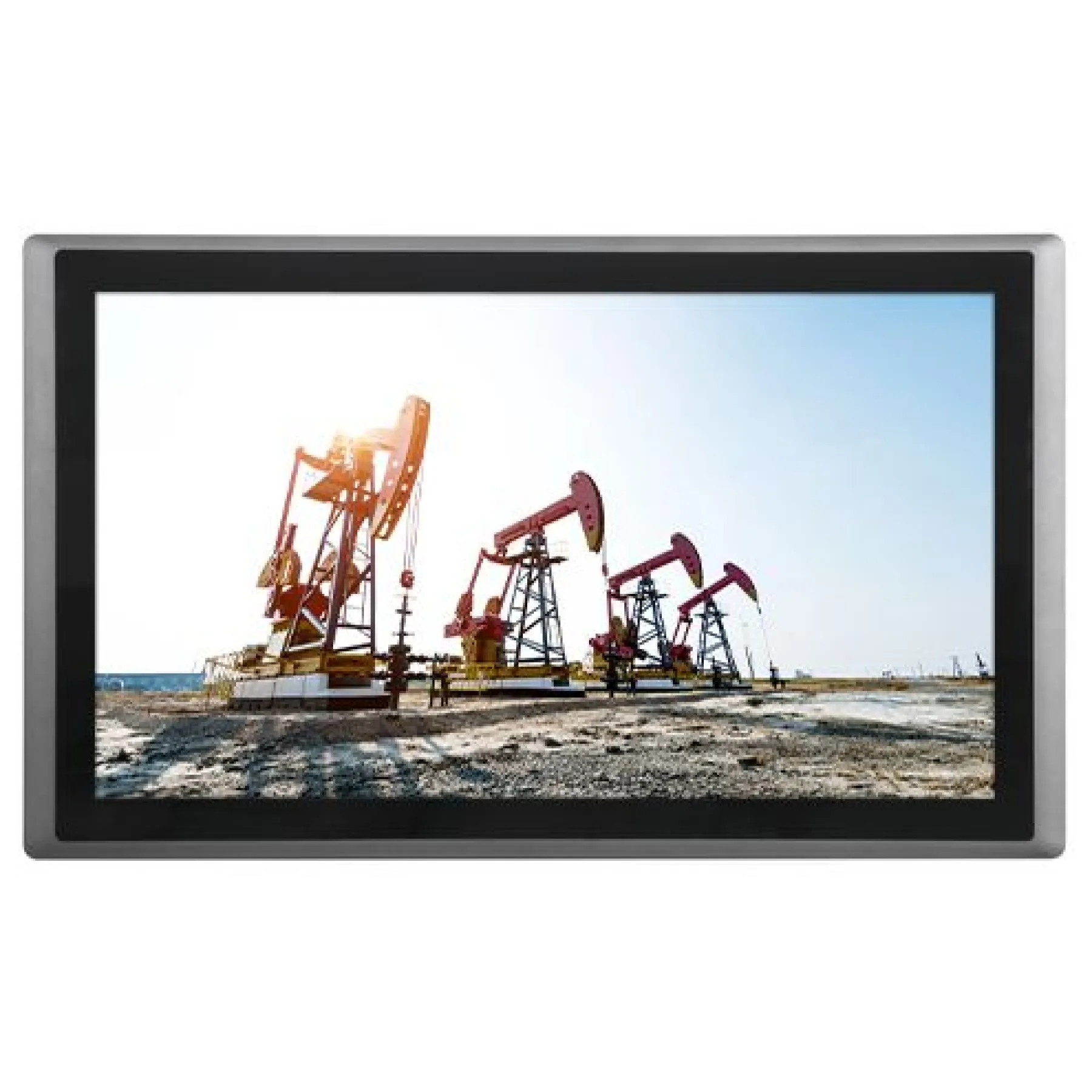

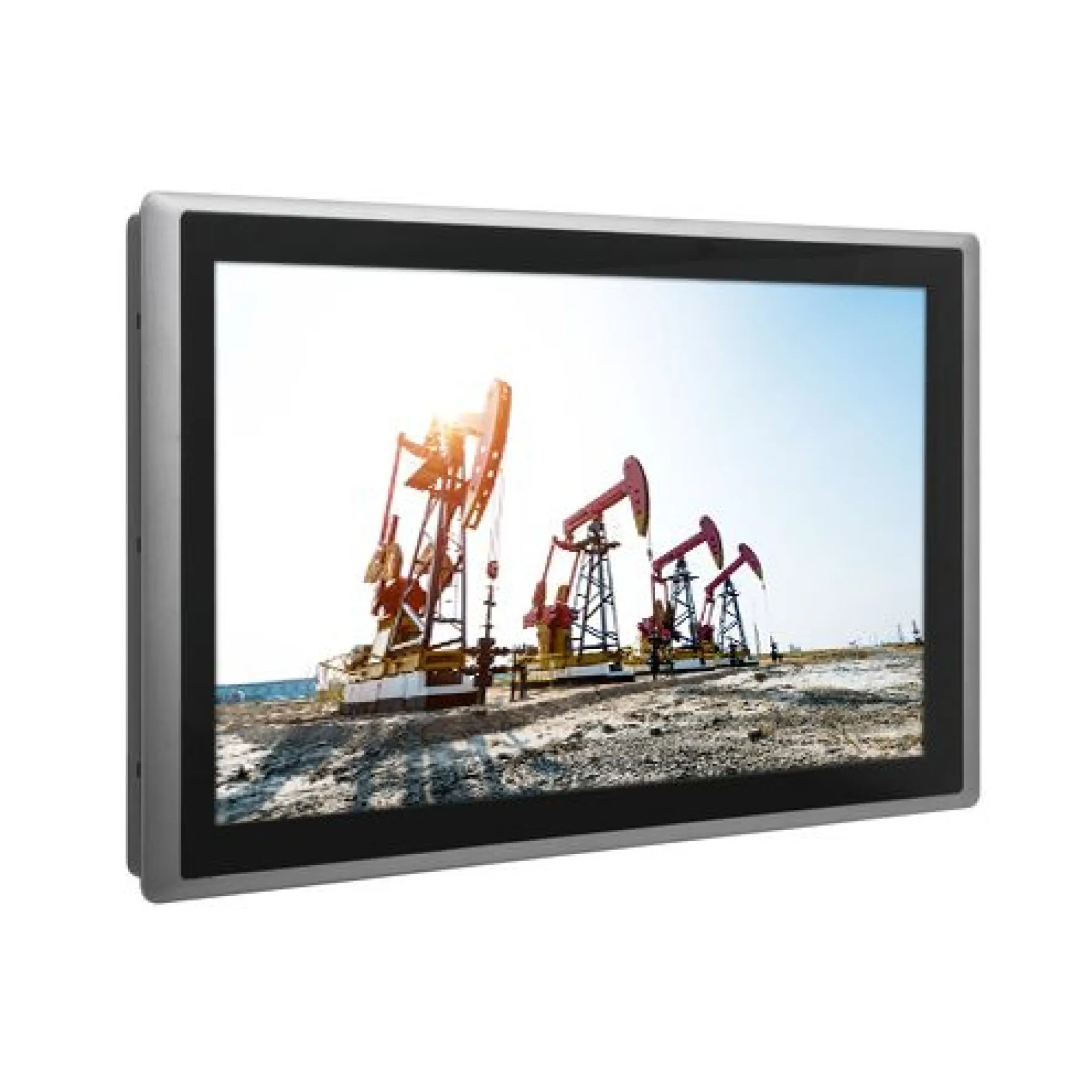

Cincoze CS-W121C Widescreen Touchscreen Display 1000 cd/m2 Full HD

CS-W121C

21.5″ TFT-LCD with Projected Capacitive Touch
50,000 hrs LED Backlight Life
Resolution up to 1920 X 1080
1,000 nits Brightness
Designed with Rugged Aluminium Die-casting Front Bezel
IP 65 Compliant Front Panel
Convertible Display System (CDS) Supported

Product Code: CS-W121C

Categories: Cincoze, Cincoze Industrial Monitors, Commercial Monitors, Industrial Monitors, Panel Mount Monitors, Sunlight Readable Monitors

Range: Cincoze

Details

CS-W121C is 21.5“ wide screen TFT-LCD display module with projected capacitive touch screen. It offers resolution up to 1920x1080 and 1,000 nits brightness. CS-W121C features flat surface and IP65 dust/waterproof front panel.

In addition, designed with Rugged Aluminium Die-casting Front Bezel, it is rugged and reliable for industrial environment. With support for Convertible Display System (CDS) technology, CS-W121C allows you to configure, upgrade and maintain your Convertible Display System easily.

Ordering Info

Model No.	Product Description
CS-W121C-R10	21.5″ TFT-LCD 1000 nits Full HD 16:9 Display Module with Projected Capacitive Touch

Package Checklist

√ CS-W121C Display Module x 1

√ Panel Mounting Kit x 1

Downloads

Cincoze_CS-W121C_Datasheet (PDF)

0.28MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Model Name		CS-W121C
Display	LCD Size	21.5″ (16:9)
	Max. Resolution	1920 x 1080 (Full HD)
	Brightness (cd/m2)	1000
	Contrast Ratio	5000 : 1
	LCD Colour	16.7M
	Pixel Pitch (mm)	0.24825 (H) x 0.24825 (V)
	Viewing Angle (H-V)	178 / 178
	Backlight MTBF	50,000 hrs (LED Backlight)
Touch	Projected Capacitive	V
Physical	Dimension (WxHxD)	550 x 330.5 x 63.2 mm
	Weight	5.56kg
	Front Panel Construction	Rugged Aluminium Die-casting Front Bezel
Reliability & Protection	Front Panel Protection	IP65 Compliant
Environment	Operating Temperature	0°C to 70°C
	Storage Temperature	-20°C to 70°C
	Relative Humidity	90%RH @ 39°C (non-condensing)
	EMC	CE, FCC, ICES-003 Class A

Screen Size	21" to 30", 21.5"
