Name: Cincoze CS-W115FHC/P2102 8th Gen Intel Industrial Panel PC 2 x PoE up to 64GB
SKU: CS-W115FHC/P2102

Cincoze

Cincoze CS-W115FHC/P2102 8th Gen Intel Industrial Panel PC 2 x PoE up to 64GB

CS-W115FHC/P2102

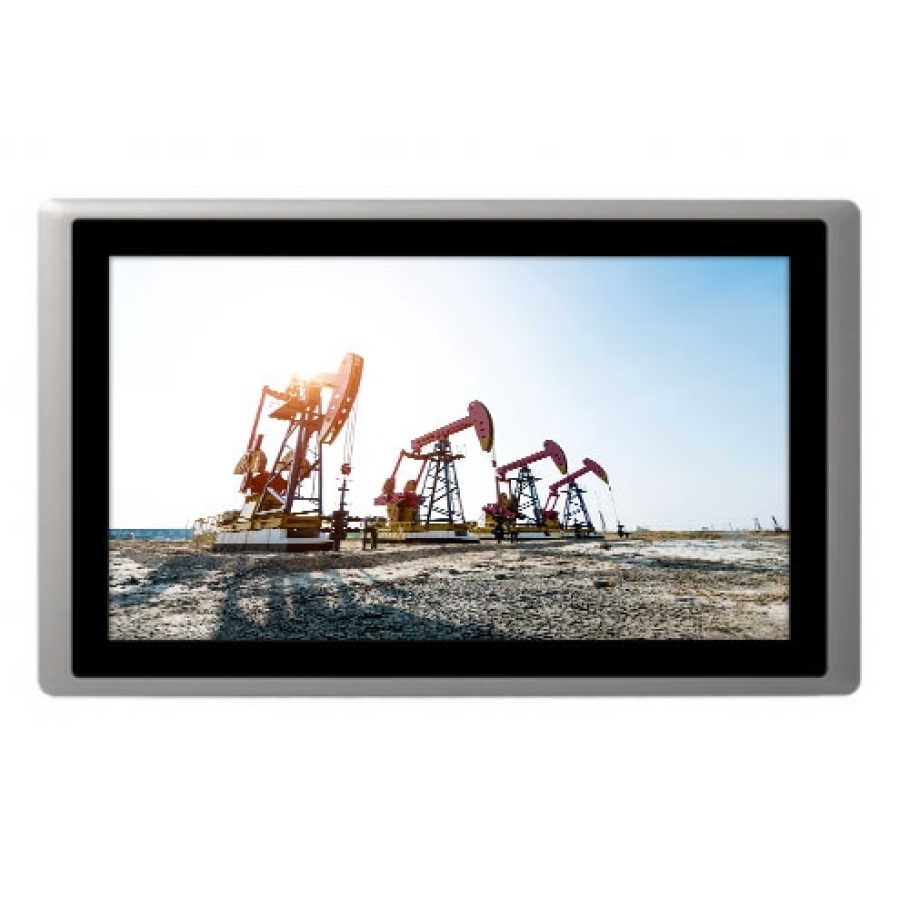

15.6” TFT-LCD with Ultra-high Brightness up to 1,500 nits and 1920 x 1080 Resolution
Onboard 8th Generation Intel Core U Series Processor
2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB
Supports Triple Independent Display
Integrated USB 3.2 Gen 2 supports up to 10Gbps
M.2 E Key Socket for Wireless Module or Intel CRF Module
Supports Ignition Sensing Function (IGN) (with optional CFM module)
Supports 2x PoE+ Function (with optional CFM module)
Wide Range Operating Temperature -10°C to 70°C

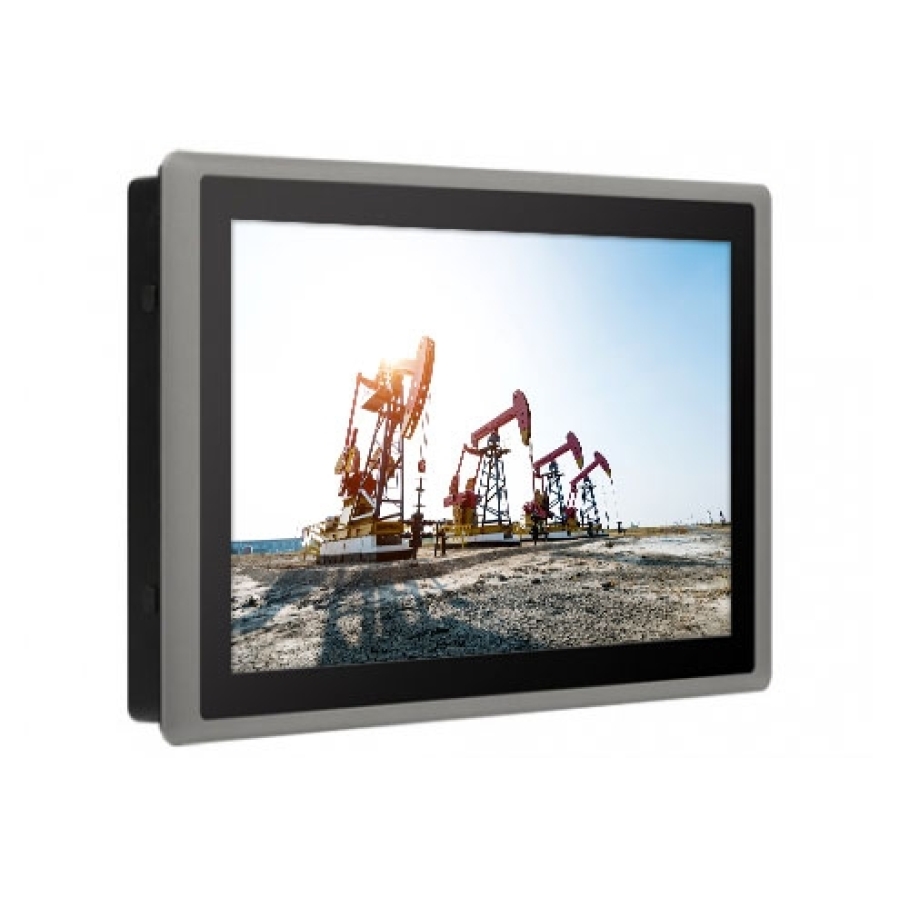

Designed with Rugged Aluminum Die-casting Front Bezel
True Flat IP65 Compliant Front Panel Protection
Supports Panel / VESA / Rack Mounting

Product Code: CS-W115FHC/P2102

Categories: Cincoze, Cincoze Industrial Panel PCs, High Brightness Panel PCs, Industrial Touchscreen Computers, IP65 Panel PCs, Panel Mount Panel PCs

Range: Cincoze

Details

The CS-W115FHC/P2102 is a 15.6" TFT-LCD sunlight readable panel PC that offers sufficient screen brightness for better image quality in outdoor usage. The panel PC is powered by Intel 8th generation Core U series processor that brings outstanding computing performance boost up to 84% at a TDP of 15 watts, compared to 6th generation Intel Core U series. To enable faster responsiveness and deal with multi tasks with ease, the CS-W115FHC/P2102 is equipped with two DDR4 2400 SODIMM sockets for up to 64 GB memory. With its slim design, the CS-W115FHC/P2102 offers extensive I/O to fulfill different connectivities and can easily fit into almost any space limited environment. For wireless connectivity, the CS-W115FHC/P2102 has 1x M.2 2230 E key and 2x full-size Mini-PCIe expansions which can be installed various add-on cards to enable Wi-Fi, 3G, and LTE communication. Besides, the CS-W115FHC/P2102 supports Control Function Module (CFM) Technology to install optional CFM modules for increasing power over ethernet and power ignition sensing functions according to user’s specific applications. Featuring rigorous industrial protections, wide range operating temperature (-10°C to 70°C), IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), the CS-W115FHC/P2102 is appropriate for tough outdoor applications under direct sunlight. Furthermore, the CS-W115FHC/P2102 supports Cincoze patented Convertible Display System (CDS) technology, allowing users to replace display module or computer module on-site easily and thereby reducing maintenance costs and downtime.

Ordering Info

Available Models

Model No.	Product Description
CS-W115FHC-R10/P2102-i5-R10	15.6“ TFT-LCD Modular Panel PC with 8th Gen. Intel Core i5-8365UE Quad Core Processor and P-Cap. Touch
CS-W115FHC-R10/P2102-i3-R10	15.6″ TFT-LCD Modular Panel PC with 8th Gen. Intel Core i3-8145UE Dual Core Processor and P-Cap. Touch

Package Checklist

√ CS-W115FHC/P2102 Panel PC x 1	√ DIO Terminal Block Connector x 2
√ Thermal Pad (for CPU Thermal Block) x 1	√ Utility Driver DVD x 1
√ Power Terminal Block Connector x 1	√ Screws Pack x 5
√ Remote Power On/Off Terminal Block Connector x 1	√ Panel Mounting Kit x 1

Optional Module

Model No.	Description
CFM-IGN101	CFM Module with Power Ignition Sensing Control Function, 12V/24V Voltage Detection Selectable
CFM-PoE04	CFM Module with PoE Control Function, Individual Port 25.5W
URM01	Universal 19″ Rack Mount Kit for Industrial Panel PC & Industrial Monitor

Optional Accessories

Model No.	Description
GST60A12-CIN1	Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C), level VI
GST120A24-CIN	Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI

Downloads

Cincoze_CS-W115FHC/P2102_Datasheet (PDF)

0.46MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Model Name		CS-W115FHC / P2102
Display	LCD Size	15.6” (16:9)
	Max. Resolution	1920×1080 (Full HD)
	Brightness (cd/m2)	1500
	Contrast Ratio	700 : 1
	LCD Color	16.7M
	Pixel Pitch (mm)	0.17925 (H) x 0.17925 (V)
	Viewing Angle (H-V)	160 / 140
	Backlight MTBF	50000 hrs (LED Backlignt)
Touch	Resistive 5-wire	–
Touch	Projected Capacitive	V
System	Processor	• Onboard 8th Intel Core U Processors (Whiskey Lake) – Intel Core i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz) – Intel Core i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz) – TDP: 15 W
System	Memory	• 2x DDR4 2400 MHz 260-Pin SO-DIMM Socket • Supports up to 64 GB (un-buffered and non-ECC)
Graphics	Graphics Engine	Integrated Intel UHD Graphics 620
Graphics	Maximum Display Output	Supports Triple Independent Display (via VGA and DisplayPort Outputs)
Audio	Audio Codec	Realtek ALC888-GR
	Line-out	1x Speaker-out Phone Jack 3.5mm
	Mic-in	1x Mic-in, Phone Jack 3.5mm

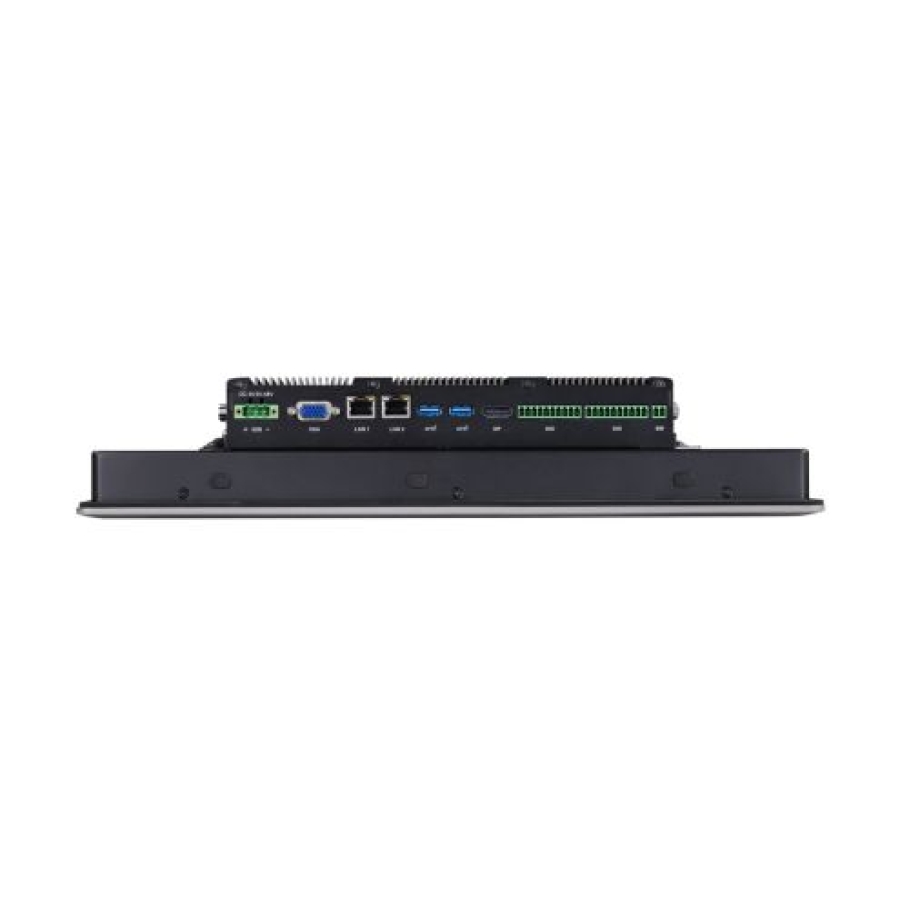

External I/O Interface	VGA	1x VGA (1920 x 1200 @60Hz)
	DP	1x DisplayPort (4096 x 2304 @ 60Hz)
	LAN	• 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 – GbE1: Intel I219-LM – GbE2: Intel I210
	USB	• 3x USB 3.2 Gen2 (Type A) • 2x USB 2.0 (Type A)
	COM	4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
DIO	DIO	16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block
Storage	SSD/HDD	2x 2.5” HDD/SSD Drive Bay (SATA 3.0)
Storage	RAID	Supports RAID 0/1
Expansion	M.2 Express	1x M.2 2230 E Key for Socket Wireless Module, Supports Intel CRF Module
	Mini PCI Express	2x Full-size Mini-PCIe Socket
	SIM Socket	1x Front Accessible SIM Socket
	CFM (Control Function Module) Interface	2x Control Function Module (CFM) Interface
Other Function	Internal Speaker	AMP 2W + 2W
	Power Ignition Sensing	1x Ignition DIP Switch (12V/24V, need to work with CFM module)
	Clear CMOS Switch	1x Clear CMOS Switch
	Rest Button	1x Reset Button
	Instant Reboot	Supports Instant Reboot Technology (0.2 sec)
	Watchdog Timer	Software Programmable Supports 256 Levels System Reset
	OSD Function	LCD On/Off, Brightness Up, Brightness Down
Power	Power Button	1x ATX Power On/Off Button
	Power Mode Switch	1x AT/ATX Mode Switch
	Power Input	9 – 48VDC, 3-pin Terminal Block
	Remote Power On/Off	1x Remote Power On/Off Connector, 2-pin Terminal Block
	Power Adapter (Optional)	AC/DC 12V/5A 60W or AC/DC 24V/5A 120W
Physical	Dimension (WxHxD)	420 x 254 x 79 mm
	Weight Information	6.25 Kg
	Mechanical Construction	Rugged Aluminum Die-casting Front Bezel and Heavy Duty Metal Chassis
	Mounting	Panel / VESA / Rack Mounting (with optional mounting kit)
	Physical Design	• Fanless Design • Jumper-less Design
Reliability & Protection	Reverse Power Input Protection	Yes
	Over Voltage Protection	• Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover
	Over Current Protection	15A
	Surge Protection	3.84 kV (impedance 12 ohm 1.2/50μs waveform)
	CMOS Battery Backup	SuperCap Integrated for CMOS Battery Maintenance-free Operation
	ESD Protection	+/-8kV (air), +/-4kV (contact)
Operating System	Windows	• Windows® 10
Operating System	Linux	Support by Project
Environment	Operating Temperature	-10°C to 70°C (with Extended Temperature Peripherals; Ambient with Air Flow)
	Storage Temperature	-20°C to 70°C
	Relative Humidity	95% RH @ 39°C (Non-Condensing)
	Shock	Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
	Vibration	Operating, 1.5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
	EMC	CE, FCC, ICES-003 Class A
	IP Level	IP65 Compliant Front Panel

Touch Technology	Projected Capacitive
Ingress Protection	IP65
Brightness	1500nit, High
Resolution	1920x1080, FHD
GPU	Integrated GPU
Memory Capacity	Up to 64GB
Cooling Type	Fanless, Yes
Serial Ports (COM)	4 Ports, 4 Ports, RS-232/422/485
USB Ports	2 Ports, 3 Ports, 5 Ports, USB 2.0, USB 3.2
Ethernet Ports (LAN)	2 Ports, 2 Ports
Wireless	Cellular, Wi-Fi
Audio	Yes
Video Ports	1x DisplayPort, 1x VGA, 2 Ports
Digital I/O	16 DIO
Storage Type	2, 2, 2.5"
Expansion Type	1x M.2, 2, 3, Any Expansion Type, M.2, Mini PCI Express
Input Voltage	9-48 VDC, ATX Powered, Yes
Mounting Options	Panel-mount, Rack-mount, VESA-mount
Operating Temperature	-10°C to 70°C, Wide
Certifications	CE/FCC
OS Support	Linux, Windows 10, Windows 10 IoT, Windows 10 Pro
