Name: Cincoze CS-119/P1001E 19" Intel Atom E3845 High Bright Panel PC with I/O Bracket
SKU: CS-119/P1001E

Cincoze

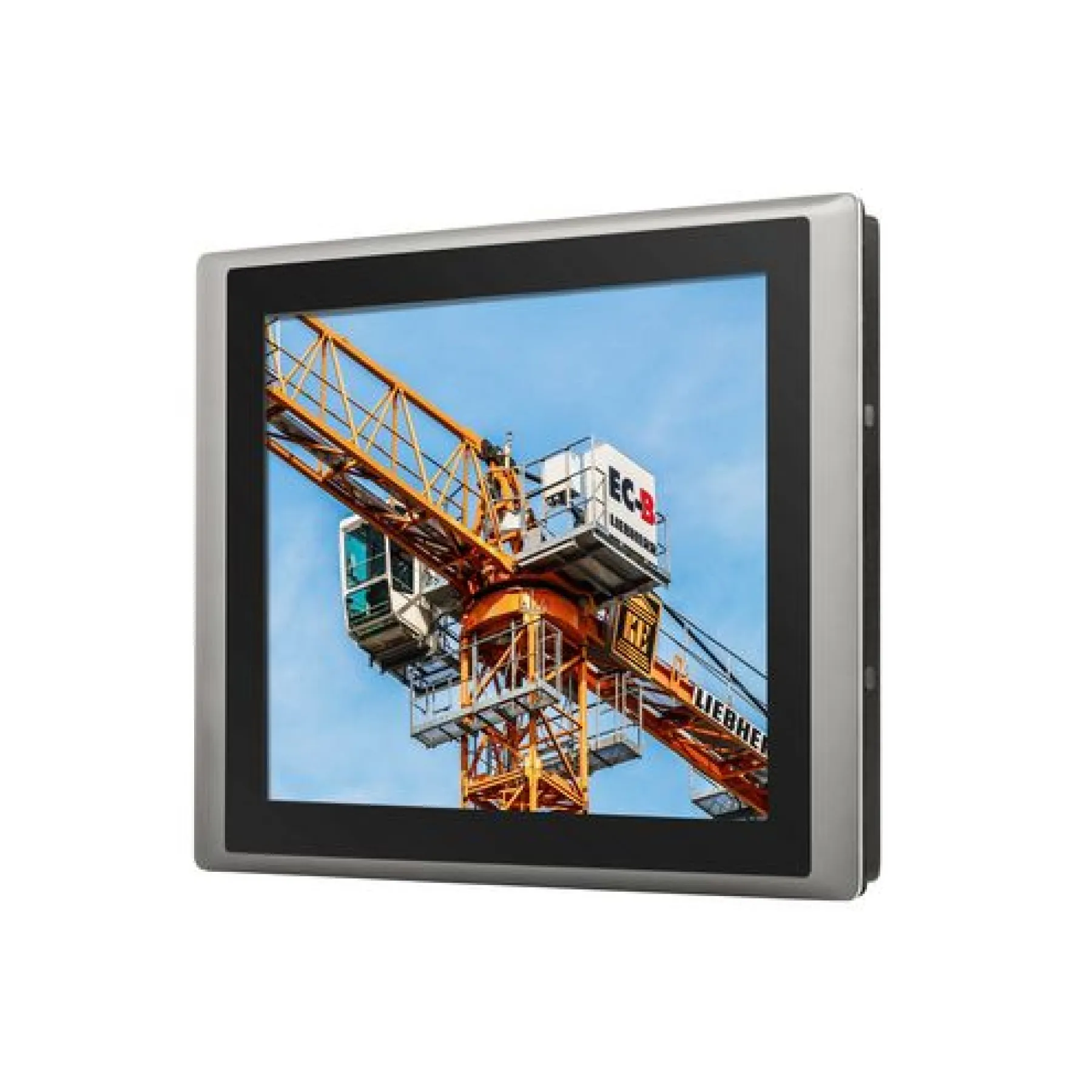

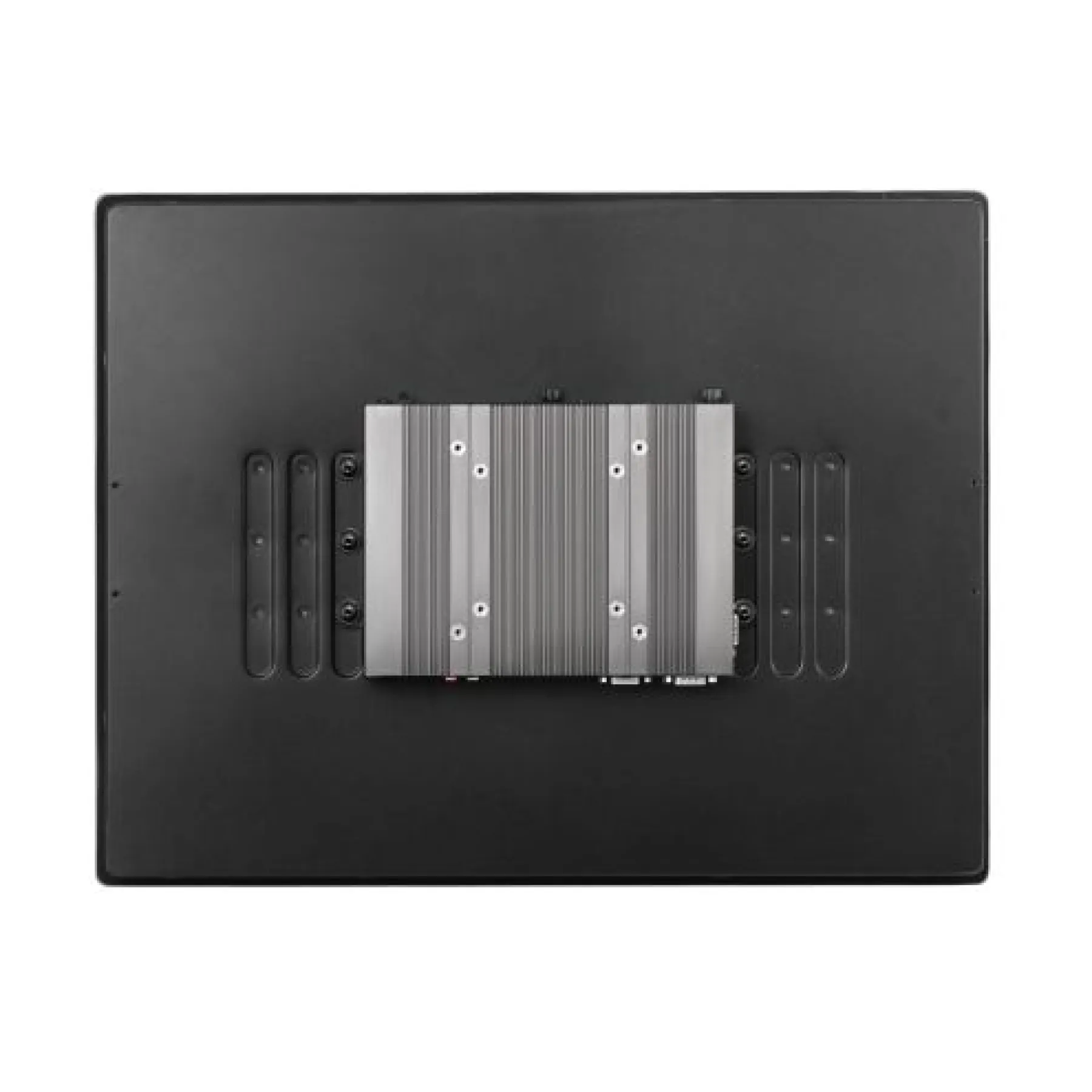

Cincoze CS-119/P1001E 19″ Intel Atom E3845 High Bright Panel PC with I/O Bracket

CS-119/P1001E

19” TFT-LCD with Ultra High Brightness up to 1,600 nits and 1280 x 1024 (SXGA) Resolution
Onboard Intel Atom E3845 Processor Quad Core, 1.91GHz
Supports 1x DDR3L SO-DIMM Socket, up to 8 GB
1x 2.5” SATA Drive Bay, 1x CFast Card and 1x SIM Card Socket
2x GbE LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO
1x Mini-PCIe Expansion Socket for Wireless and I/O Expansion
Wide Range Operating Temperature -20°C to 70°C
Designed with Aluminum Die-casting Front Frame
True Flat IP65 Front Panel Protection
Supports Panel / VESA / Rack Mounting
Convertible Display System (CDS) Technology Supported

Product Code: CS-119/P1001E

Categories: Cincoze, Cincoze Industrial Panel PCs, High Brightness Panel PCs, Industrial Touchscreen Computers, IP65 Panel PCs, Panel Mount Panel PCs

Range: Cincoze

Details

CS-119/P1000 Series is a 19" TFT-LCD sunlight readable touch panel PC offering 1,600 nits ultra high brightness and 1280 x 1024 (SXGA) resolution. The system is equipped with Intel Atom E3845 processor and provides extensive I/O including 2x GbE, 4x USB, 2x RS232/422/485, 4x DI/4x DO, 1x VGA and 1x DisplayPort. It also supports 1x Mini-PCIe slot and 1x SIM socket for a variety of wireless connections, such as BT/WiFi and 3G/LTE. In addition, there are 2 types of storage devices including 2.5" SATA HDD and CFast. The accessible design of these storage devices allows quick data access and easy maintenance.CS-119/P1000 Series supports Convertible Display System (CDS) technology. Comparing to regular standalone panel PCs, it can lower maintenance cost and reduce unplanned downtime.Furthermore, CS-119/P1000 Series is a truly rugged display system supporting wide range operating temperature (-20°C to 70°C), IP65 dust/water proof front panel, wide range DC power input (9 to 48VDC) and rigorous industrial protections.

Ordering Info

Available Models
Model No.	Product Description
CS-119C-R10/P1001E-R10	19″ TFT-LCD 1600 nits Sunlight Readable Touch Panel PC with Intel® Atom™ E3845 Quad Core Processor, P-Cap. Touch and 2x Universal I/O Bracket

Package Checklist
√ Panel PC x 1	√ Power Terminal Block Connector x 1
√ Panel Mounting Kit x 1	√ HDD Screw Pack x 1
√ Utility DVD Driver x 1	√ Mini PCIe Screw Pack x 1
√ DIO Terminal Block Connector x 1

Optional Accessories
Model No.	Description
GST60A12-CIN1	Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C)
SL2-SL3	US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3
SL6-SL3	EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3
QP026-SL3	UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3
URM01	Universal 19″ Rack Mount Kit for Industrial Panel PC & Industrial Monitor

Optional Modules
Model No.	Description
MEC-COM-M212/UB0303	Mini-PCIe Module with 2x COM Ports, 2x Universal Brackets (65 x 16 mm)
MEC-LAN-M002-R1/UB0311	Mini-PCIe Module with 2x LAN Ports, 1x Universal Bracket (65 x 16 mm)
MEC-USB-M002/UB0314	Mini-PCIe Module with 2x USB 3.0 Ports, 1x Universal Bracket (65 x 16 mm)

Downloads

Cincoze CS-119/P1001E Datasheet (PDF)

0.86MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Model Name		CS-119/P1001E
Model No.		CS-119C/P1001E
Display	LCD Size	19″ (5:4)
	Max. Resolution	1280 x 1024
	Brightness (cd/m2)	1600
	Contrast Ratio	1000 : 1
	LCD Color	16.7M
	Pixel Pitch (mm)	0.294 (H) x 0.294 (V)
	Viewing Angle (H-V)	170 / 160
	Backlight MTBF	50000 hrs (LED Backlignt)
Touch	Resistive 5-wire	–
Touch	Projected Capacitive	V
Processor System	CPU	Intel Atom E3845
	Core Number	4
	Frequency	1.91 GHz
	Cache	2 MB
	Watts	10W
Memory	Transfer Rate	DDR3L 1066/ 1333MHz (un-buffered and non-ECC)
	Max. Capacity	8 GB
	Socket	1x 204-Pin SODIMM
Graphics	Chipset	Intel HD Graphics
Graphics	Dual Display	VGA + DP VGA + CDS DP + CDS
Audio	Interface	Realtek ALC888-GR, High Definition Audio
I/O Interface	VGA	1x DB-15 connector, CH7517, Up to 1920×1080@60Hz
	DP	1x DP connector, Up to 1920×1080@60Hz
	LAN	2x 10/100/1000 Mbps, RJ45 GbE1: Intel I210 GbE2: Intel I210 Support Wake On Lan, Teaming, Jumbo frame, IEEE 1588v2, PXE
	POE+	–
	Serial Port	2x RS-232/422/485, DB9 Support 5V/12V
	USB 3.0	1x USB 3.0, Type-A
	USB 2.0	3x USB 2.0, Type-A
	DIO	4 in/4 out
	Line-Out	1x Phone Jack 3.5mm
	Mic-In	1x Phone Jack 3.5mm
	Power on/off switch	V
	Reset Button	V
	AT/ATX Switch	V
	Remote Power On/Off Connector	–
	External FAN Connector	–
Storage	SSD/HDD	1x Internal SATA port for 2.5” HDD/SSD
	mSATA	–
	CFast	1
Expansion	PCI	–
	PCIe	–
	CFM Interface (Control Function Module)	–
	Mini PCI Express	1x Full-size Mini PCIe
	Universal I/O Bracket	2
	SIM Socket	1(internal)
	Antenna Holes	2
Other Function	CDS Function	V
	OSD Function	LCD On/Off, Brightness Up/Down (With Display Module)
	Power Ignition Sensing	–
	Internal Speaker	AMP 2W + 2W
	Super Cap	–
	Instant Reboot	V
	Watchdog Timer	Software Programmable Supports 256 Levels System Reset
Power Requirement	Power Type	AT/ATX
	Power Input Voltage	9~48VDC
	Connector	3-pin Terminal Block
	Power Adaptor	Optional AC/DC 24V/5A, 120W
Physical	Dimension (WxHxD)	510 x 389.3 x 94.85 mm
	Weight Information	8.5 kg
	Construction Front Panel	Die-cast Flat Surface
	Mounting	Panel / VESA / Rack Mounting (with optional mounting kit)
	Fanless Design	V
	Cable-less Design	–
	Jumper-less Design	–
Protection	Reverse Power Input Protection	V
	Over Voltage Protection	Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover
	Over Current Protection	20A
	ESD Protection	+/-8kV (air), +/-4kV (contact)
Operating Stystem	Windows	Windows 10 Windows 8.1 Windows 7
Operating Stystem	Linux	Linux Kernel 3.X
Environment	Operating Temperature	Ambient with air flow: -20°C to 70°C (with Industrial Grade Peripherals)
	StorageTemperature	-30°C to 80°C
	Relative Humidity	90% RH @ 40°C (Non-Condensing)
	IP Level	IP 65 Compliant Front Panel
	EMC	CE/ FCC Class A

Touch Technology	Projected Capacitive
Ingress Protection	IP65
Brightness	1600nit, High
Resolution	1280x1024, Special/Other
GPU	Integrated GPU
Memory Capacity	Up to 8GB
Serial Ports (COM)	2 Ports, 2 Ports, RS-232/422/485
USB Ports	1 Port, 3 Ports, 4 Ports, USB 2.0, USB 3.0
Ethernet Ports (LAN)	2 Ports, 2 Ports
Wireless	Cellular, Wi-Fi
Audio	Yes
Video Ports	1x DisplayPort, 1x VGA, 2 Ports
Digital I/O	8 DIO
Storage Type	1, 1, 2, 2.5", CFast
Expansion Type	1, Any Expansion Type, Mini PCI Express
Input Voltage	9-48 VDC, ATX Powered, Yes
Mounting Options	Panel-mount, Rack-mount, VESA-mount
Operating Temperature	-20°C to 70°C, Wide
Certifications	CE/FCC
OS Support	Windows 10, Windows 10 IoT, Windows 10 Pro, Windows 7, Windows 8.1
