CS-119/P1001

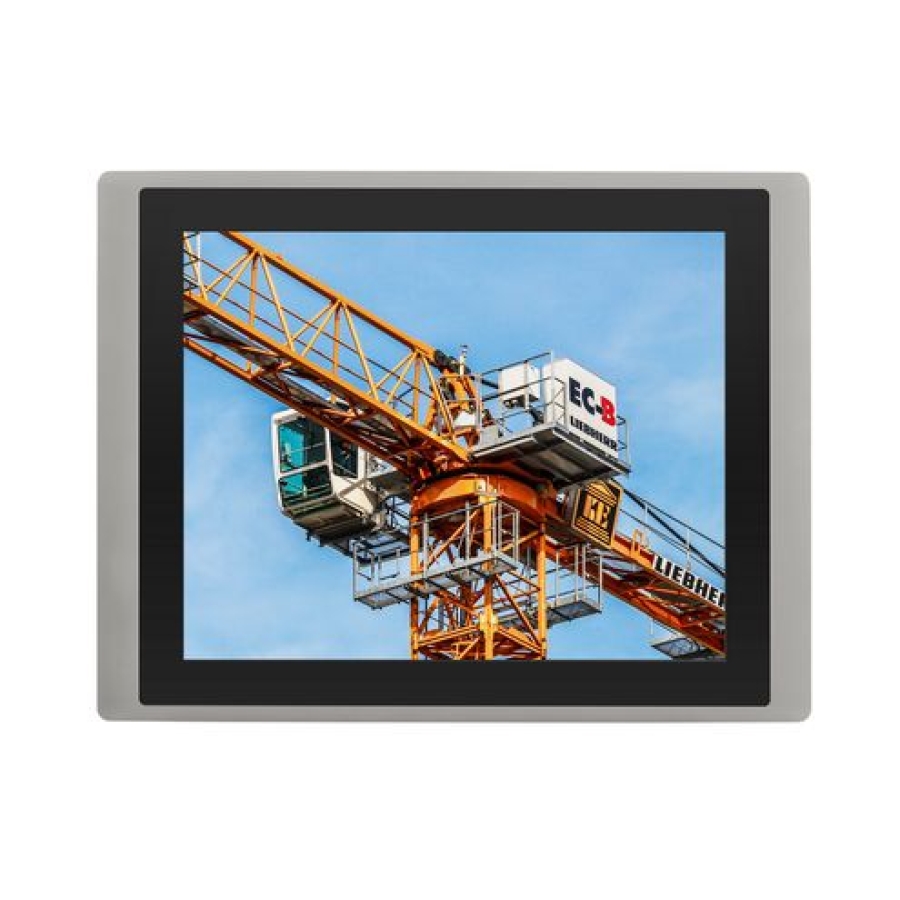

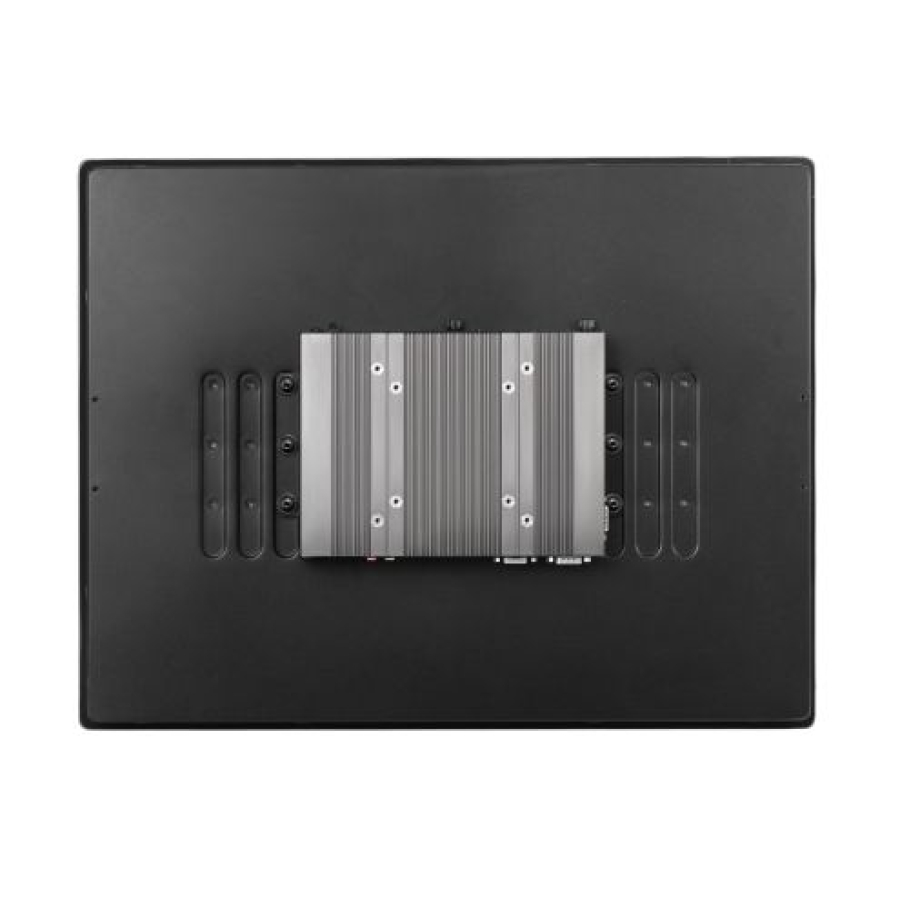

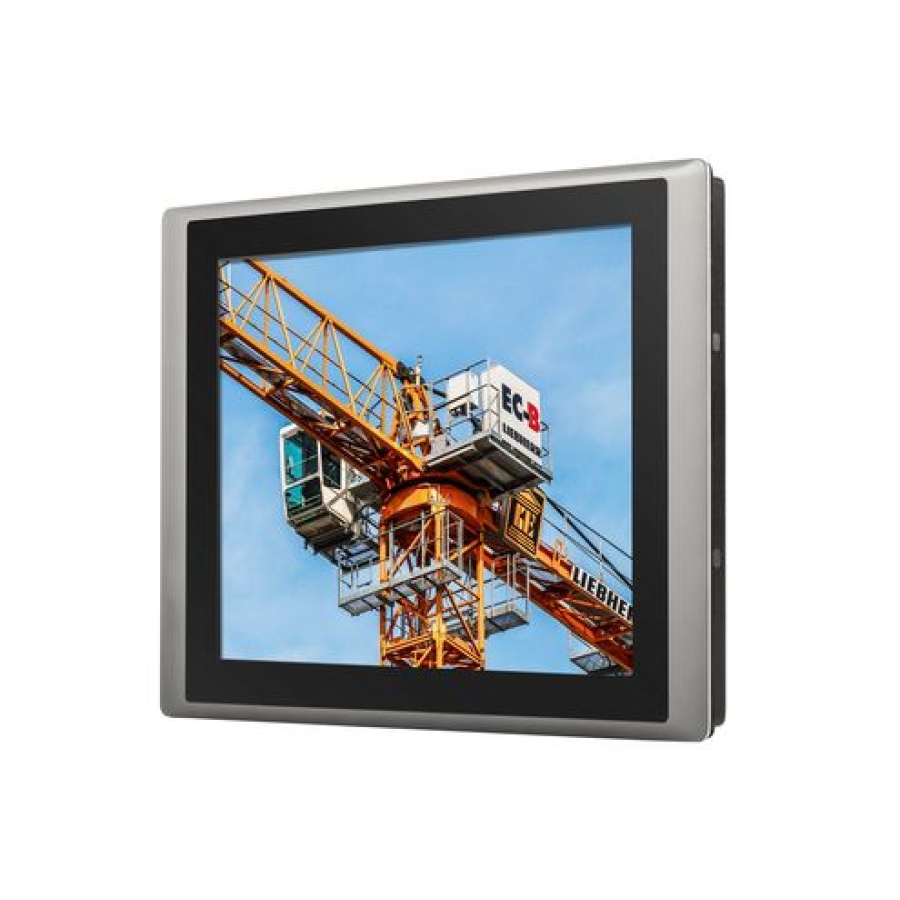

Name: Cincoze CS-119/P1001 19" Intel Atom E3845 1600nit High Bright Touch Panel PC
SKU: CS-119/P1001

Cincoze

Cincoze CS-119/P1001 19″ Intel Atom E3845 1600nit High Bright Touch Panel PC

CS-119/P1001

19” TFT-LCD with Ultra High Brightness up to 1,600 nits and 1280 x 1024 (SXGA) Resolution
Onboard Intel Atom E3845 Processor Quad Core, 1.91GHz
Supports 1x DDR3L SO-DIMM Socket, up to 8 GB
1x 2.5” SATA Drive Bay, 1x CFast Card and 1x SIM Card Socket
2x GbE LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO
1x Mini-PCIe Expansion Socket for Wireless and I/O Expansion
Wide Range Operating Temperature -20°C to 70°C
Designed with Aluminum Die-casting Front Frame
True Flat IP65 Front Panel Protection
Supports Panel / VESA / Rack Mounting
Convertible Display System (CDS) Technology Supported

Product Code: CS-119/P1001

Categories: Cincoze, Cincoze Industrial Panel PCs, High Brightness Panel PCs, Industrial Touchscreen Computers, IP65 Panel PCs, Panel Mount Panel PCs

Range: Cincoze

Details

CS-119/P1000 Series is a 19" TFT-LCD sunlight readable touch panel PC offering 1,600 nits ultra high brightness and 1280 x 1024 (SXGA) resolution. The system is equipped with Intel Atom E3845 processor and provides extensive I/O including 2x GbE, 4x USB, 2x RS232/422/485, 4x DI/4x DO, 1x VGA and 1x DisplayPort. It also supports 1x Mini-PCIe slot and 1x SIM socket for a variety of wireless connections, such as BT/WiFi and 3G/LTE. In addition, there are 2 types of storage devices including 2.5" SATA HDD and CFast. The accessible design of these storage devices allows quick data access and easy maintenance.CS-119/P1000 Series supports Convertible Display System (CDS) technology. Comparing to regular standalone panel PCs, it can lower maintenance cost and reduce unplanned downtime.Furthermore, CS-119/P1000 Series is a truly rugged display system supporting wide range operating temperature (-20°C to 70°C), IP65 dust/water proof front panel, wide range DC power input (9 to 48VDC) and rigorous industrial protections.

Ordering Info

Available Models
Model No.	Product Description
CS-119C-R10/P1001-R10	19″ TFT-LCD 1600 nits Sunlight Readable Touch Panel PC with Intel® Atom™ E3845 Quad Core Processor and P-Cap. Touch

Package Checklist
√ Panel PC x 1	√ Power Terminal Block Connector x 1
√ Panel Mounting Kit x 1	√ HDD Screw Pack x 1
√ Utility DVD Driver x 1	√ Mini PCIe Screw Pack x 1
√ DIO Terminal Block Connector x 1

Optional Accessories
Model No.	Description
GST60A12-CIN1	Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C)
SL2-SL3	US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3
SL6-SL3	EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3
QP026-SL3	UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3
URM01	Universal 19″ Rack Mount Kit for Industrial Panel PC & Industrial Monitor

Downloads

Cincoze CS-119/P1001 Datasheet (PDF)

0.86MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Model Series		CS-119/P1101
Model Name		CS-119C/P1101
Display	LCD Size	19″ (5:4)
	Max. Resolution	1280 x 1024
	Brightness (cd/m2)	1600
	Contrast Ratio	1000 : 1
	LCD Color	16.7M
	Pixel Pitch (mm)	0.294 (H) x 0.294 (V)
	Viewing Angle (H-V)	170 / 160
	Backlight MTBF	50000 hrs (LED Backlight)
Touch	Resistive 5-wire	–
Touch	Projected Capacitive	V
System	Processor	• Onboard Intel Atom x7-E3950 Quad Core Processor, up to 2.00 GHz • Onboard Intel Pentium N4200 Quad Core Processor, up to 2.50 GHz
	Memory	• 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket • Supports up to 8GB (un-buffered and non-ECC)
	Graphics	• Integrated Intel HD Graphics 505 • Supports Triple Independent Display (1x CDS, 1x VGA, 1x DisplayPort)
	Audio	Realtek ALC888-GR
I/O Interface	VGA	1x VGA (1920 x 1200 @60Hz)
	DP	1x DisplayPort (4K x 2K @60Hz)
	LAN	2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 – GbE1: Intel I210 – GbE2: Intel I210
	Serial Port	4x RS-232/422/485, DB9 with Auto Flow Control (Supports 5V/12V), DB9
	USB	4x USB 3.0 (Type-A)
	Isolated DIO	8x Isolated DIO (4x DI/4x DO), 10-Pin Terminal Block
	Line-Out	1x Phone Jack 3.5mm
	Mic-In	1x Phone Jack 3.5mm
	Power Button	1x ATX Power On/Off Button
	Reset Button	1x Rest Button
	AT/ATX Switch	1x AT/ATX Mode Switch
	Clear CMOS Switch	1x Clear CMOS Switch
	Remote Power On/Off Connector	1x Remote Power On/Off Connector, 2-pin Terminal Block
Storage	SSD/HDD	1x 2.5” HDD/SSD Drive Bay (SATA 3.0)
Storage	mSATA	1x mSATA Socket (SATA 3.0, Shared by Mini-PCIe Socket)
Expansion	PCI / PCIe	–
	CFM (Control Function Module) Interface	– Optional CFM IGN Module for Power Ignition Function – Optional CFM PoE Module for Power over Ethernet Function
	CDS (Convertible Display System) Technology	1x CDS Interface for Convertible Display Module
	Mini PCI Express	2x Full-size Mini-PCIe Sockets
	SIM Socket	1x SIM Socket
	Antenna Holes	4x Antenna Holes
Other Function	Instant Reboot	Support 0.2sec
	Super Cap	SuperCap Integrated for CMOS Battery Maintenance-free Operation
	OSD Function	LCD On/Off, Brightness Up, Brightness Down
	Internal Speaker	AMP 2W + 2W
	Watchdog Timer	Software Programmable Supports 256 Levels System Reset
Power Requirement	Power Type	AT/ATX
	Power Input Voltage	9~48VDC
	Connector	3-pin Terminal Block
	Power Adaptor	Optional AC/DC Adapter ．AC/DC 24V/5A, 120W ．AC/DC 24V/9.2A, 220W (Optional)
Physical	Dimension (WxHxD)	510 x 389.3 x 76.35 mm
	Weight Information	8.45 kg
	Front Panel Construction	Flat Rugged Aluminum Die-casting Bezel
	Mounting	Panel / VESA / Rack Mounting (with optional mounting kit)
	Fanless Design	Yes
Protection	Reverse Power Input Protection	V
	Over Voltage Protection	Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover
	Over Current Protection	15A
	ESD Protection	+/-8kV (air), +/-4kV (contact)
	Surge Protection	3.84 kV (impedance 12 ohm 1.2/50us waveform)
Operating System	Windows	Windows 10
Operating System	Linux	Support by project
Environment	Operating Temperature	Operating Temperature: -20°C to 70°C (with extended temperature peripherals; Ambient with air flow)
	Storage Temperature	-20°C to 70°C
	Relative Humidity	80% RH @ 40°C (Non-Condensing)
	Shock	Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
	Vibration	Operating, 1.5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
	IP Level	IP 65 Compliant Front Panel
	EMC	CE/ FCC Class A

Touch Technology	Projected Capacitive
Ingress Protection	IP65
Brightness	1600nit, High
Resolution	1280x1024, Special/Other
GPU	Integrated GPU
Memory Capacity	Up to 8GB
Serial Ports (COM)	2 Ports, 2 Ports, RS-232/422/485
USB Ports	1 Port, 3 Ports, 4 Ports, USB 2.0, USB 3.0
Ethernet Ports (LAN)	2 Ports, 2 Ports
Wireless	Cellular, Wi-Fi
Audio	Yes
Video Ports	1x DisplayPort, 1x VGA, 2 Ports
Digital I/O	8 DIO
Storage Type	1, 1, 2, 2.5", CFast
Expansion Type	1, Any Expansion Type, Mini PCI Express
Input Voltage	9-48 VDC, ATX Powered, Yes
Mounting Options	Panel-mount, Rack-mount, VESA-mount
Operating Temperature	-20°C to 70°C, Wide
Certifications	CE/FCC
OS Support	Windows 10, Windows 10 IoT, Windows 10 Pro, Windows 7, Windows 8.1
