Name: Cincoze CS-115/P2102E 15" Intel Core 8th Gen U Series High Bright Touch Panel PC
SKU: CS-115/P2102E

Cincoze

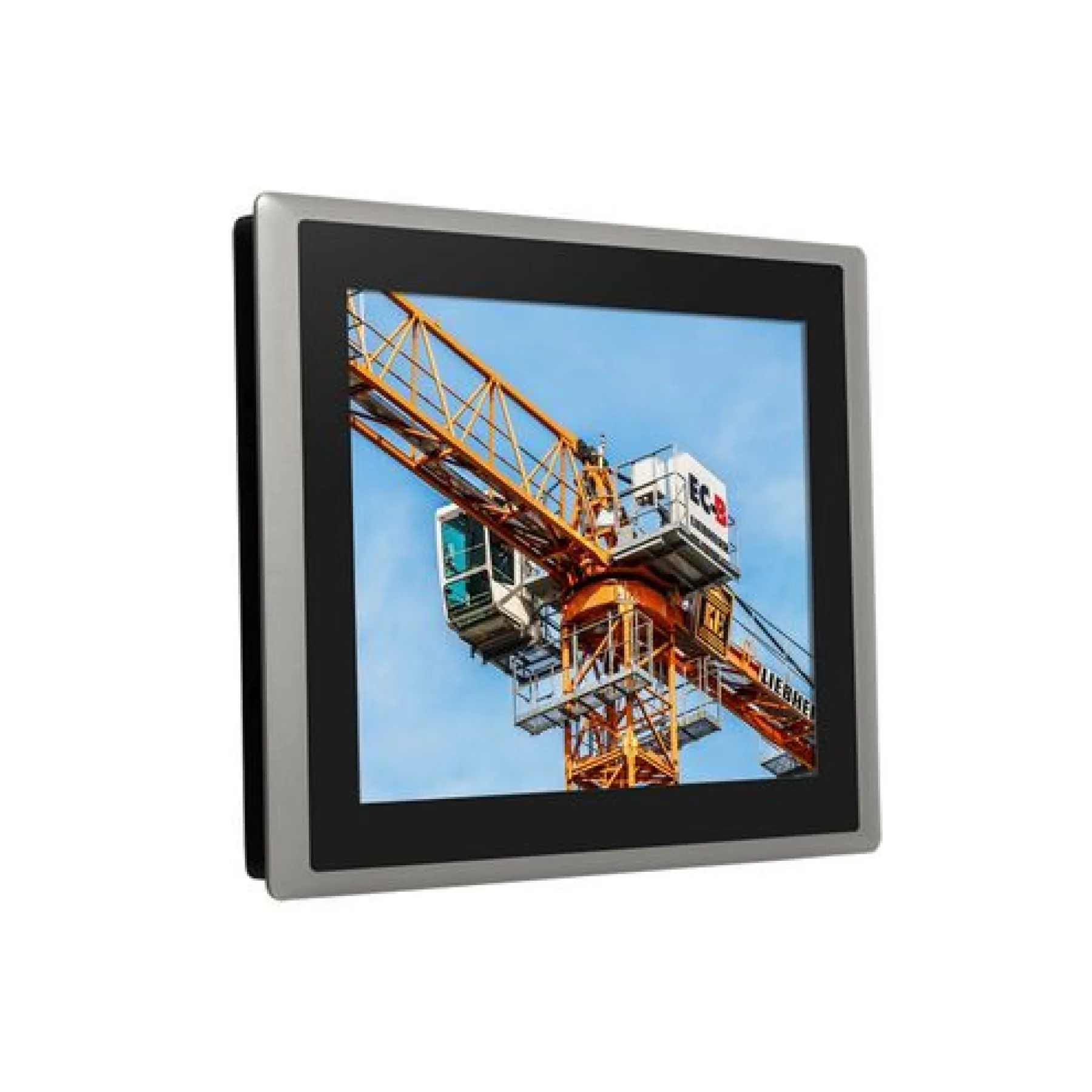

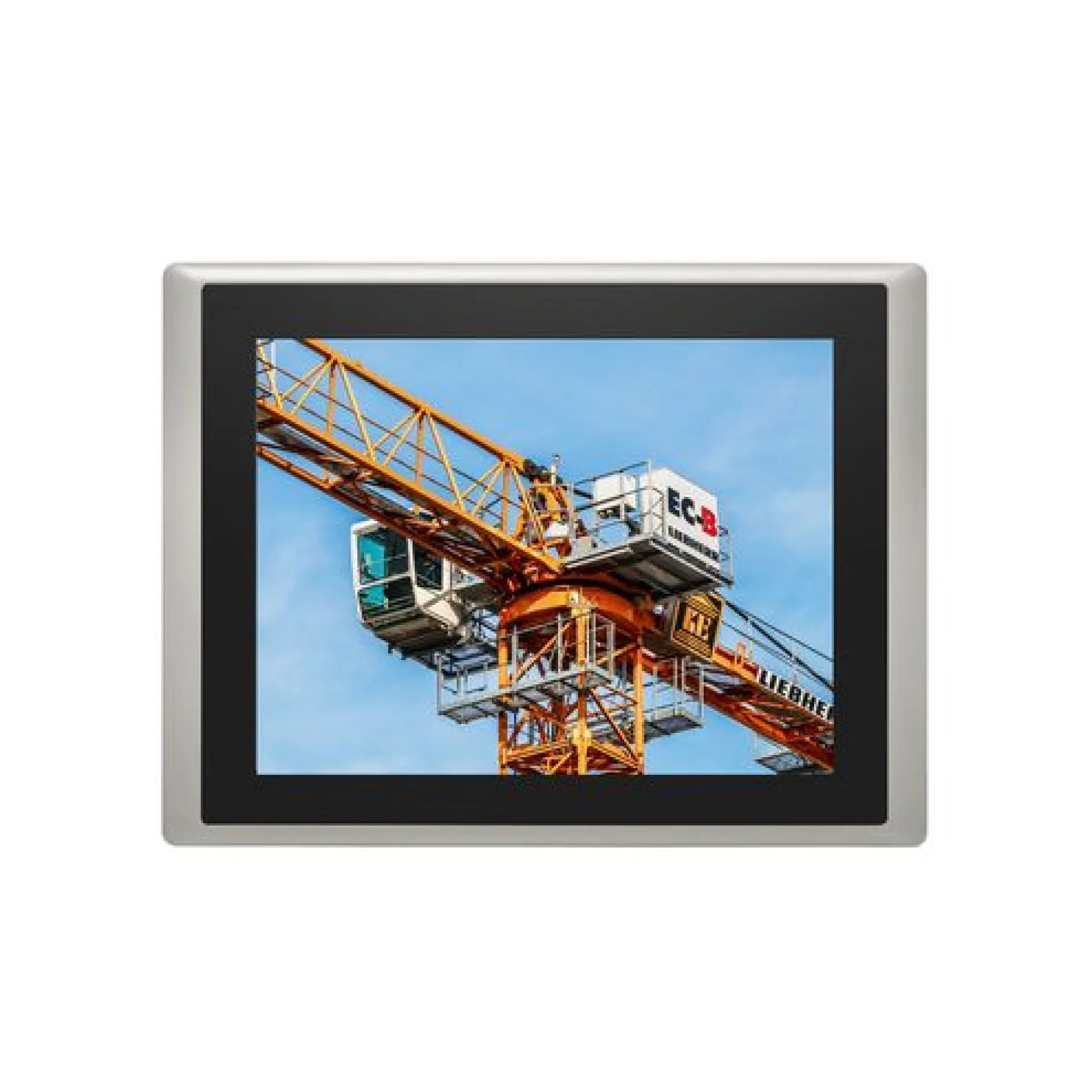

Cincoze CS-115/P2102E 15″ Intel Core 8th Gen U Series High Bright Touch Panel PC

CS-115/P2102E

15” TFT-LCD with Ultra-high Brightness up to 1,600 nits and 1024 x 768 (XGA) Resolution
Onboard 8th Generation Intel Core U Series Processor
2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB
Supports Triple Independent Display
Integrated USB 3.2 Gen 2 supports up to 10Gbps
M.2 E Key Socket for Wireless Module or Intel CRF Module
Supports Ignition Sensing Function (IGN) (with optional CFM module)
Supports 2x PoE+ Function (with optional CFM module)
1x PCI or 1x PCIe Slot for Add-on Card Expansion: Max. Length 180mm including Bracket (with optional riser card)
Wide Range Operating Temperature -20°C to 70°C
Designed with Rugged Aluminum Die-casting Front Bezel
True Flat IP65 Compliant Front Panel Protection
Supports Panel / VESA / Rack Mounting

Product Code: CS-115/P2102E

Categories: Cincoze, Cincoze Industrial Panel PCs, High Brightness Panel PCs, Industrial Touchscreen Computers, IP65 Panel PCs, Panel Mount Panel PCs

Range: Cincoze

Details

The CS-115/P2102E is a 15" TFT-LCD sunlight readable panel PC that offers sufficient screen brightness for better image quality in outdoor usage. The panel PC is powered by Intel 8th generation Core U series processor that brings outstanding computing performance boost up to 84% at a TDP of 15 watts, compared to 6th generation Intel Core U series. To enable faster responsiveness and deal with multi tasks with ease, the CS-115/P2102E is equipped with two DDR4 2400 SODIMM sockets for up to 64 GB memory. For expansion requirements, the CS-115/P2102E has 1x PCI/PCIe x4, 1x M.2 2230 E key and 2x full-size Mini-PCIe expansions which can be installed various add-on cards to increase desired functions. Besides, the CS-115/P2102E supports Control Function Module (CFM) Technology to install optional CFM modules for increasing power over ethernet and power ignition sensing functions according to user’s specific applications.Featuring rigorous industrial protections, wide range operating temperature (-20°C to 70°C), IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), the CS-115/P2102E is appropriate for tough outdoor applications under direct sunlight. Furthermore, the CS-115/P2102E supports Cincoze patented Convertible Display System (CDS) technology, allowing users to replace display module or computer module on-site easily and thereby reducing maintenance costs and downtime.

Ordering Info

Available Models
Model No.	Product Description
CS-115C-R11/P2102E-i5-R10	15″ 1600nits TFT-LCD Sunlight Readable, Modular and Expandable Panel PC with 8th Gen. Intel Core i5-8365UE Quad Core Processor and P-Cap. Touch
CS-115C-R11/P2102E-i3-R10	15″ 1600nits TFT-LCD Sunlight Readable, Modular and Expandable Panel PC with 8th Gen. Intel Core i3-8145UE Quad Core Processor and P-Cap. Touch

Package Checklist

√ CS-115/P2102E Panel PC x 1

√ Utility Driver DVD x 1

√ Thermal Pad (for CPU Thermal Block) x 1

√ Screws Pack x 5

√ Power Terminal Block Connector x 1

√ Panel Mounting Kit x 1

√ Remote Power On/Off Terminal Block Connector x 1

√ PCI / PCIe Card Installation Kit x 1

√ DIO Terminal Block Connector x 2

Optional Modules & Accessories
Model No.	Description
CFM-IGN101	CFM Module with Power Ignition Sensing Control Function, 12V/24V Voltage Detection Selectable
CFM-PoE05	CFM Module with PoE Control Function, Individual Port 25.5W
RC-E4-02	Riser Card with 1x PCIe x4 Slot for P2102E
RC-PI-02	Riser Card with 1x PCI Slot for P2102E
MEC-COM-M212-TDB9/UB1203	Mini-PCIe Module with 2x RS-232 Ports, 1x Thin DB9 Cable / 1x Universal Bracket with 2x DB9 Cutout for P2102E
MEC-COM-M334-TDB9/2xUB1203	Mini-PCIe Module with 4x RS-232/422/485 Ports, 2x Thin DB9 Cable / 2x Universal Bracket each with 2x DB9 Cutout for P2102E
MEC-USB-M102-30/UB1214	Mini-PCIe Module with 2x USB 3.0 Ports, 1x 30cm cable / 1x Universal Bracket with 2x USB Cutout for P2102E
MEC-LAN-M102-30/UB1211	Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout for P2102E
GST120A24-CIN	Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI
GST220A24-CIN	Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI
SL2-SL3	US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3
SL6-SL3	EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3
QP026-SL3	UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3
URM01	Universal 19″ Rack Mount Kit for Industrial Panel PC & Industrial Monitor

Downloads

Cincoze CS-115/P2102E Datasheet (PDF)

1.78MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Model Name		CS-115/P2102E
Model No.		CS-115C/P2102E
Display	LCD Size	15″ (4:3)
	Max. Resolution	1024 x 768
	Brightness (cd/m2)	1600
	Contrast Ratio	800 : 1
	LCD Color	16.2M
	Pixel Pitch (mm)	0.297 (H) x 0.297 (V)
	Viewing Angle (H-V)	160 / 150
	Backlight MTBF	50000 hrs (LED Backlight)
Touch		Projected Capacitive Touch
Processor System		Onboard 8th Intel Core U Processors (Whiskey Lake) – Intel Core i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz) – Intel Core i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz) – TDP: 15 W
Memory		2x DDR4 2400 MHz 260-Pin SO-DIMM Socket Supports up to 64 GB (un-buffered and non-ECC)
Graphics		Integrated Intel UHD Graphics 620
		Supports Triple Independent Display (via VGA and DisplayPort Outputs)
Audio		Realtek ALC888-GR
		High Definition Audio

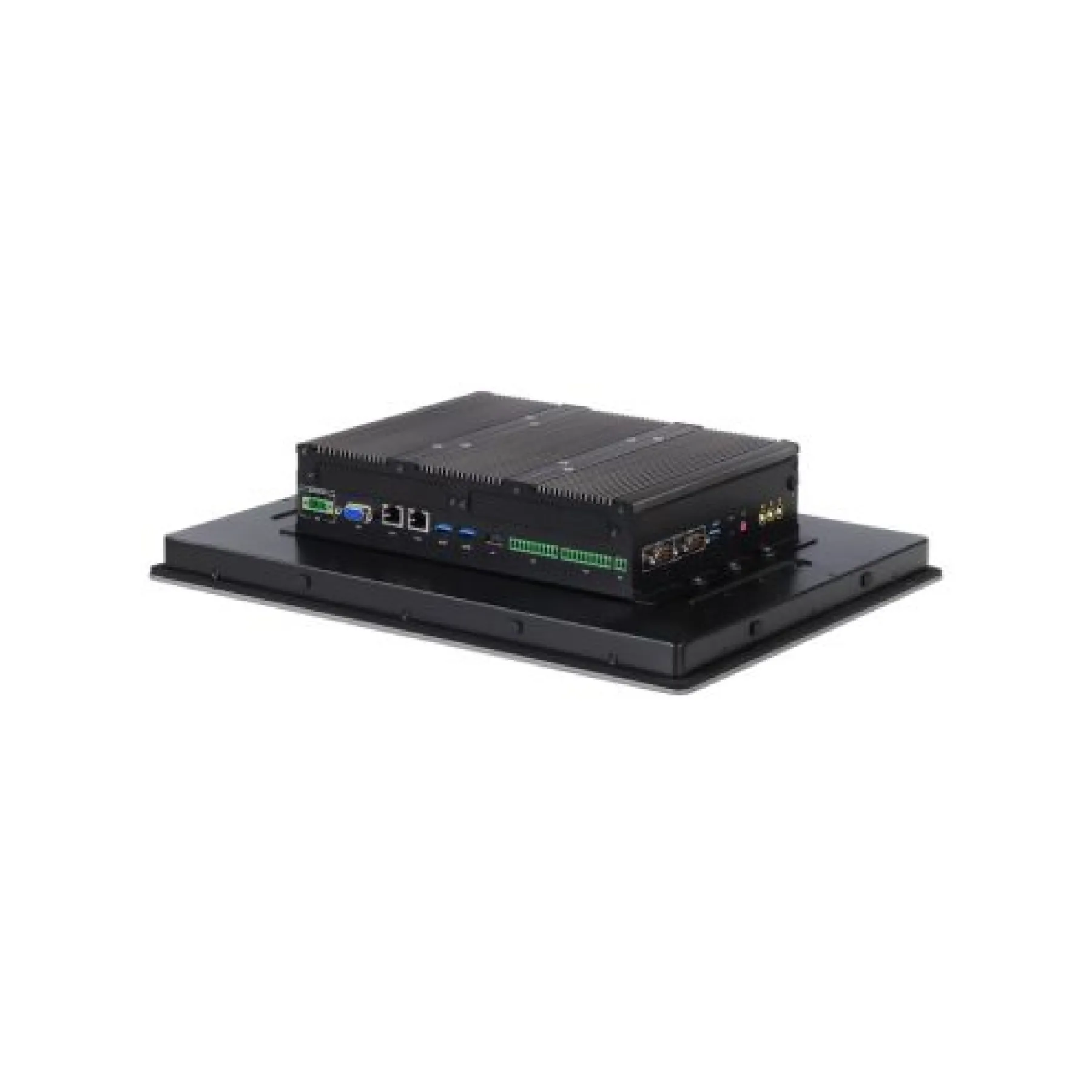

I/O Interface		1x VGA (1920 x 1200 @60Hz)
		1x DisplayPort (4096 x 2304 @ 60Hz)
		2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 – GbE1: Intel I219-LM – GbE2: Intel I210
		3x USB 3.2 Gen2 (Type A)
		2x USB 2.0 (Type A)
		4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
		16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block
		1x Speaker-out & 1x Mic-in, Phone Jack 3.5mm
		1x AT/ATX Mode Switch
		1x Clear CMOS Switch
		1x Remote Power On/Off Connector, 2-pin Terminal Block
		16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block
		1x Ignition DIP Switch (12V/24V, need to work with CFM module)
Storage		2x 2.5” HDD/SSD Drive Bay (SATA 3.0), Supports RAID 0/1
Expansion		2x Full-size Mini-PCIe Socket
		1x M.2 2230 E Key for Socket Wireless Module, Supports Intel CRF Module
		2x Control Function Module (CFM) Interface
		1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card)
		2x Universal I/O Bracket
		1x Front Accessible SIM Socket
		4x Antenna Hole
Other Function		Watchdog Timer: Software Programmable Supports 256 Levels System Reset
		Internal Speaker AMP 2W + 2W
		OSD Function: LCD On/Off, Brightness Up, Brightness Down
		SuperCap Integrated for CMOS Battery Maintenance-free Operation
		Supports Instant Reboot Technology (0.2 sec)
Power Requirement		Support AT/ATX Power Mode
		Power Input Voltage 9~48VDC
		1x 3-pin Terminal Block
		Power Adapter (Optional): AC/DC 24V/5A 120W or AC/DC 24V/9.2A 220W
Physical		Dimension (WxDxH, mm): 408 x 312.4 x 91.5 mm
		Weight: 7.1 kg
		Construction: Rugged Aluminum Die-casting Front Bezel and Heavy Duty Metal Chassis
		Mounting: Panel / VESA / Rack Mounting (with optional mounting kit)
		Fanless Design
		Jumper-less Design
Protection		Reverse Power Input Protection
		Over Voltage Protection: Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover
		Over Current Protection: 15A
		ESD Protection: +/-8kV (air), +/-4kV (contact)
		Surge Protection: 3.84 kV (impedance 12 ohm 1.2/50μs waveform)
Operating Stystem		Windows 10
		Linux: Supports by project
Environment		Operating Temperature: -20°C to 70°C (with Extended Temperature Peripherals; Ambient with Air Flow)
		Storage Temperature: -20°C to 70°C
		Relative Humidity: 80% RH @ 40°C (Non-condensing)
		IP Level: IP65 Compliant Front Panel
		Shock: Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
		Vibration: Operating, 1.5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
		IP Level: IP65 Compliant Front Panel
		EMC: CE, FCC Class A

Touch Technology	Projected Capacitive
Ingress Protection	IP65
Brightness	1600nit, High
Resolution	1024x768, Special/Other
GPU	Integrated GPU
Memory Capacity	Up to 64GB
Serial Ports (COM)	4 Ports, 4 Ports, RS-232/422/485
USB Ports	2 Ports, 3 Ports, 5 Ports, USB 2.0, USB 3.2
Ethernet Ports (LAN)	2 Ports, 2 Ports
Wireless	Cellular, Wi-Fi
Audio	Yes
Video Ports	1x VGA, 1x DisplayPort, 2 Ports
Digital I/O	16 DIO
Storage Type	2, 2, 2.5"
Expansion Type	1, 1, 1x M.2, 2, 4, Any Expansion Type, M.2, Mini PCI Express, PCI, PCI Express
Input Voltage	9-48 VDC, ATX Powered, Yes
Mounting Options	Panel-mount, Rack-mount, VESA-mount
Operating Temperature	-20°C to 70°C, Wide
Certifications	CE/FCC
OS Support	Linux, Windows 10, Windows 10 IoT, Windows 10 Pro
